Woodward

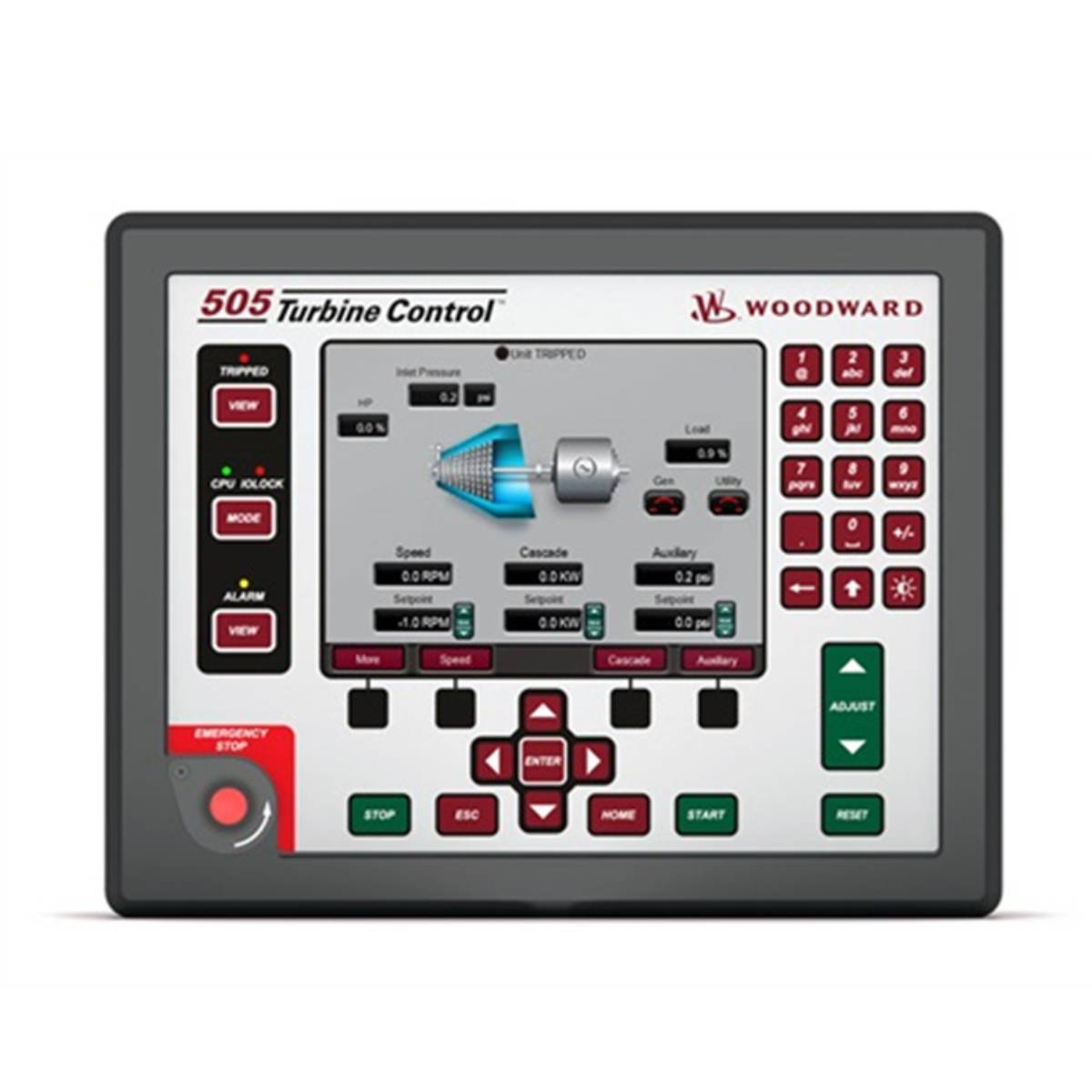

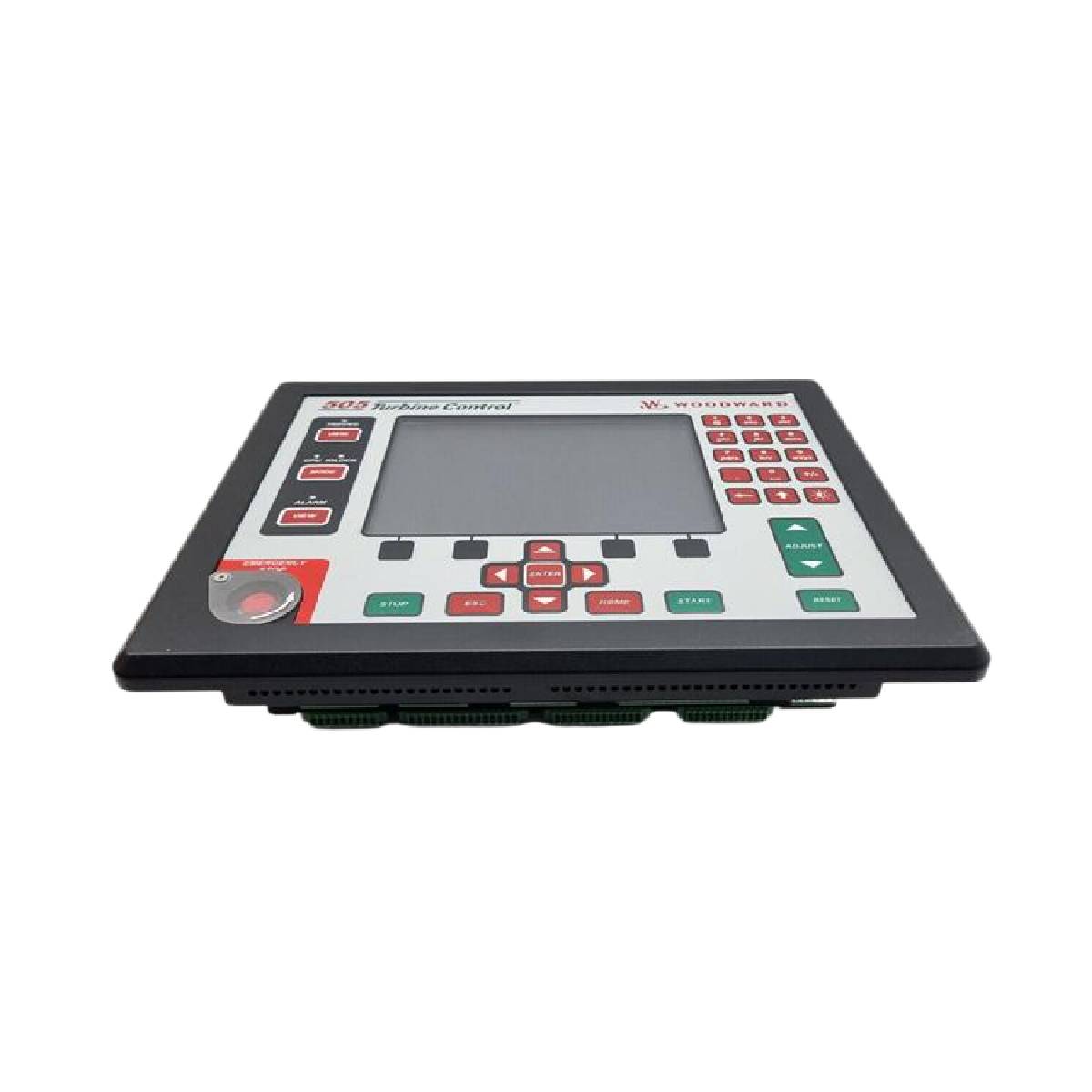

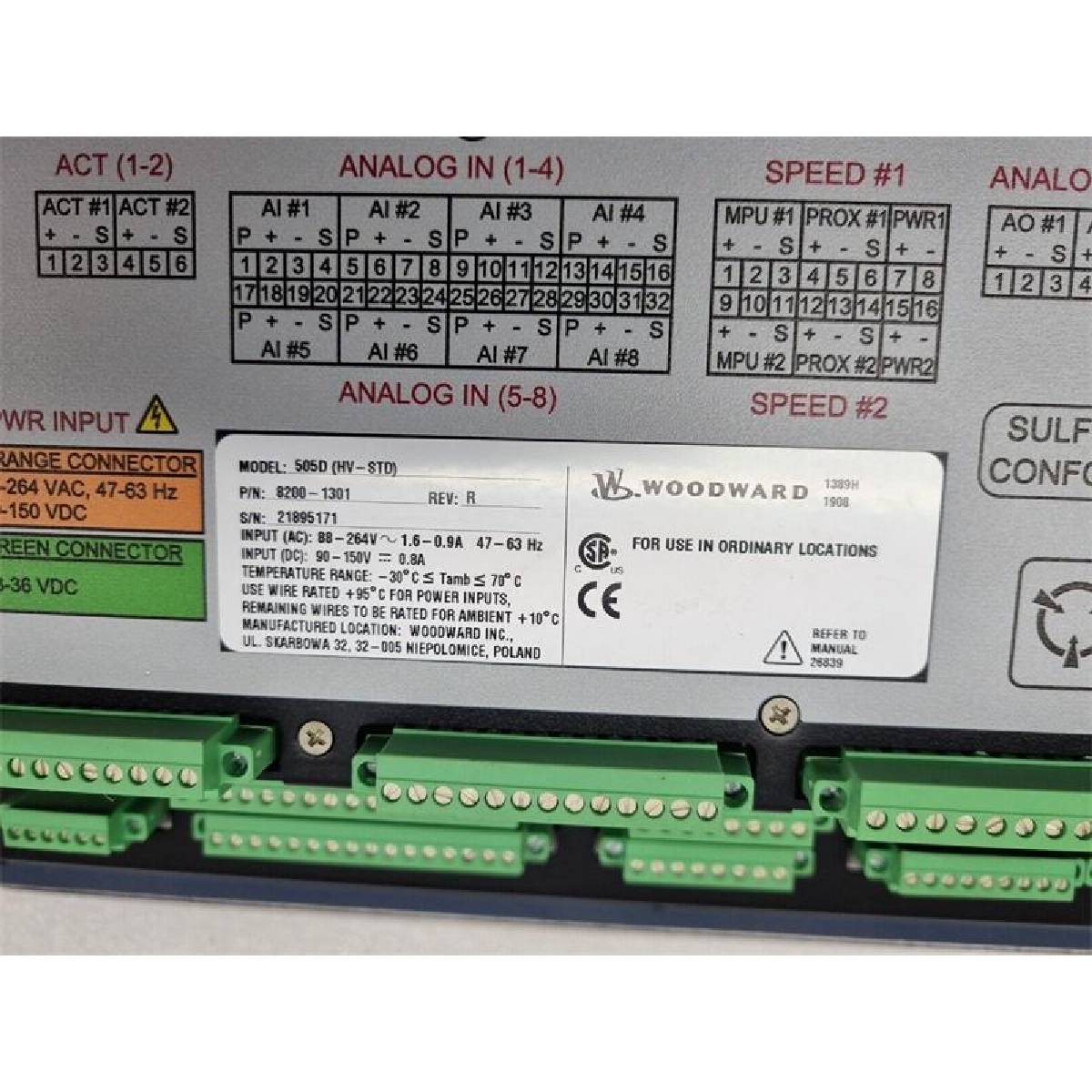

Woodward 8200-1302 505D Digital Governor Steam Turbine Control

SKU 8200-1302

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Woodward
Product No.: 8200-1302
Origin United States
Product Type: Steam Turbine Digital Governors
Payment: T/T, Western Union
Weight: 4.5 kg
Dimensions: 103 mm x 358 mm x 283 mm (D x H x W)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The Woodward 8200-1302 is a 505D (LV-ATX & Marine) digital governor steam turbine control unit engineered for speed regulation, control, and protection of steam turbines in industrial and marine applications. Operating on low-voltage DC power, the 8200-1302 delivers microprocessor-based control for industrial steam turbines driving generators, pumps, or compressors.

Per Woodward Product Change Notification 07004 (September 2024), part number 8200-1302 has been superseded by replacement part number 8200-2302. The 8200-1302 unit features marine type approvals (Lloyd's Register and DNV-GL) and is rated for skid- or cab-mounted random vibration (RV1 profile). The replacement model 8200-2302 incorporates updated internal relays and is rated for control room applications (RV5 profile).

Features

Digital governor steam turbine controller engineered for industrial and marine turbine applications.
Integrated relay outputs configured for speed regulation, trip control, and status indication.
Low-voltage ATX (LV-ATX) hardware configuration for specialized industrial and marine power environments.
Rated for cab or skid mounting under random vibration profile RV1 (MIL-STD 202F, SAE J1455 Cab Data).
Form, fit, and functional compatibility with replacement item number 8200-2302.

Applications

Steam turbine speed and load regulation
Marine steam turbine driver control
Industrial generator-drive steam turbine control
Mechanical-drive steam turbines for pumps and process compressors

Ordering Information

Replaced Item Number	Replaced Item Description	Replacement Item Number	Replacement Item Description
8200-1302	505D (LV-ATX & MARINE) STEAM TURBINE CONTROL	8200-2302	505D (LV-ATX) STEAM TURBINE CONTROL
8200-1304	VANTAGE GC (LV-ATX & MARINE) STEAM TURBINE CONTROL	8200-2304	VANTAGE GC (LV-ATX) STEAM TURBINE CONTROL
8200-1312	505XT (LV-ATX & MARINE) STEAM TURBINE CONTROL	8200-2312	505XT (LV-ATX) STEAM TURBINE CONTROL
8200-1314	VANTAGE XC (LV-ATX & MARINE) STEAM TURBINE CONTROL	8200-2314	VANTAGE XC (LV-ATX) STEAM TURBINE CONTROL

Technical Specifications

Parameter	Specification
Manufacturer	Woodward
Replaced Part Number	8200-1302
Replacement Part Number	8200-2302
Product Family	505D Series
Control Type	Digital Governor Steam Turbine Control
Hardware Variant	Low Voltage (LV-ATX & Marine)
Vibration Grade (8200-1302)	RV1 Cab or Skid Mounted (MIL-STD 202F, M214A, TC(B), SAE J1455 Cab Data)
Vibration Limits (8200-1302)	0.04 G^2/Hz (10 to 2000 Hz), 8.2 Grms, 1.5 hours per axis
Vibration Grade (8200-2302)	RV5 Control Room (MIL-STD 810F, M514.5A, Cat. 4, Fig. 514.5-C1)
Vibration Limits (8200-2302)	0.015 G^2/Hz (10 to 500 Hz), 1.04 Grms, 2 hours per axis
Marine Approvals (8200-1302)	Lloyd's Register (LR), DNV-GL
Product Change Notice	PCN 07004 (Rev - September 2024)

Installation Guidelines

Verify installation environment requirements: model 8200-1302 is rated for RV1 cab or skid mounting, while replacement model 8200-2302 is rated for RV5 control room environments.
When transitioning from 8200-1302 to replacement model 8200-2302, ensure class-specific marine society approval is not mandatory for the targeted vessel or facility.
Wire low-voltage power connections and I/O signals in accordance with official manufacturer schematics and terminal diagrams.
Standard electrostatic discharge (ESD) protective procedures must be observed during handling and installation.

Compliance and Certifications

Marine Type Approvals (8200-1302): Lloyd's Register (LR), DNV-GL
Vibration Standards (8200-1302): MIL-STD 202F Method 214A, SAE J1455 Cab Data
Vibration Standards (8200-2302): MIL-STD 810F Method 514.5A Category 4

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the official replacement for the 8200-1302 control unit?

According to Woodward PCN 07004, the direct replacement item number for 8200-1302 is 8200-2302.

What are the primary differences between model 8200-1302 and replacement 8200-2302?

Model 8200-1302 includes LR and DNV-GL marine type approvals and is graded for cab/skid mounting (RV1 vibration profile). Model 8200-2302 incorporates updated internal relays and is graded for control room mounting (RV5 vibration profile).

What random vibration specification applies to the 8200-1302 unit?

The 8200-1302 unit is rated for RV1 cab or skid mounting with 0.04 G^2/Hz over 10 to 2000 Hz (8.2 Grms) per MIL-STD 202F.
