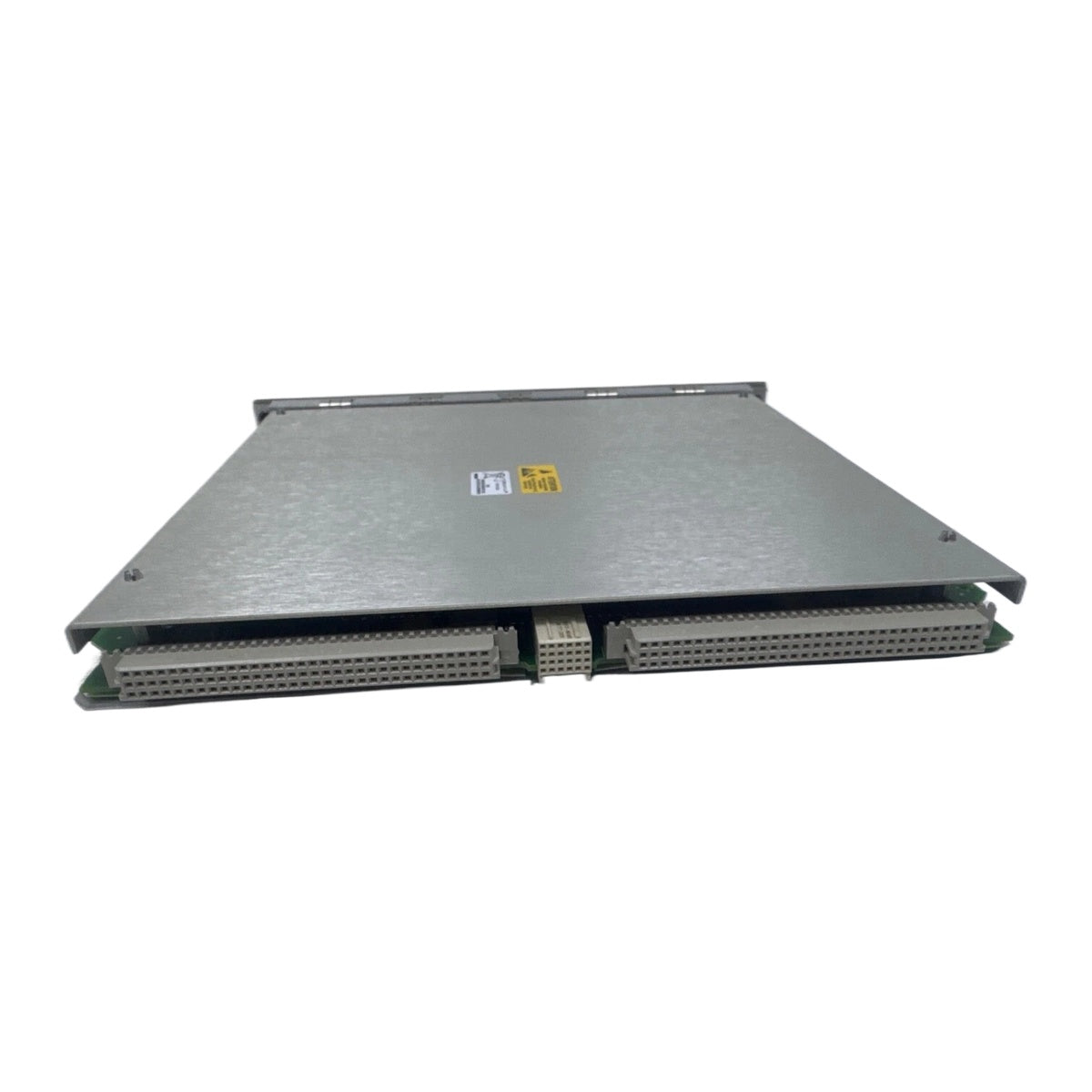

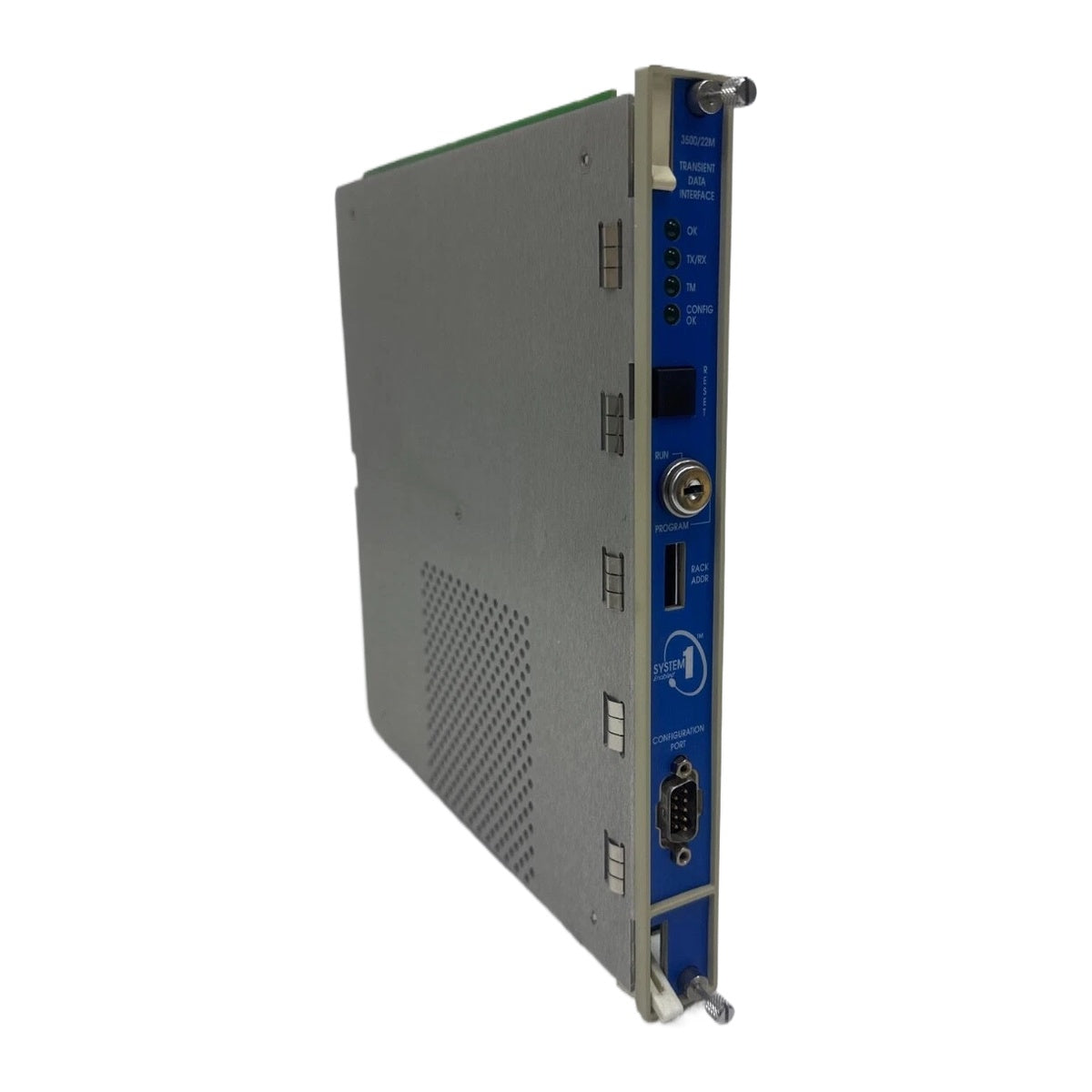

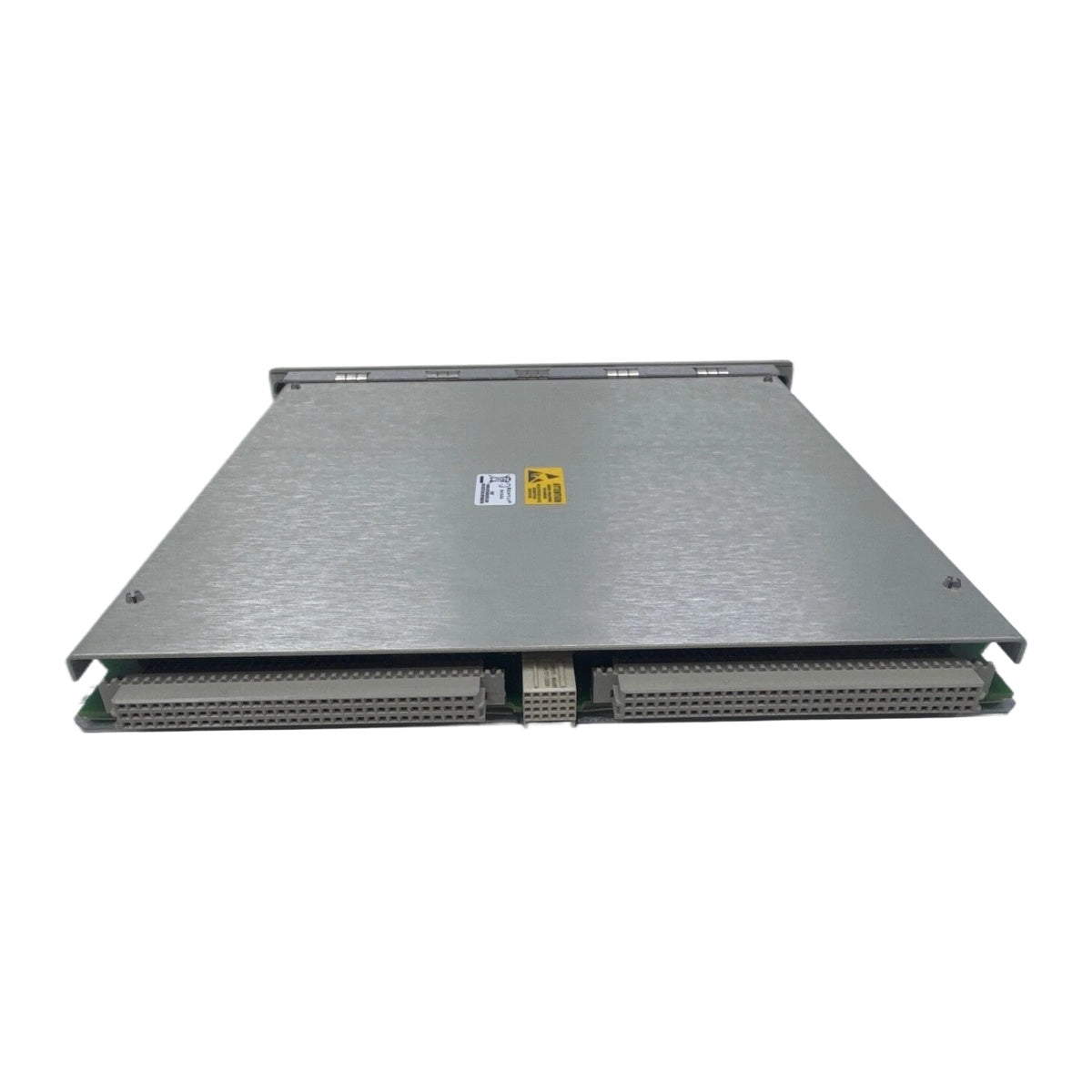

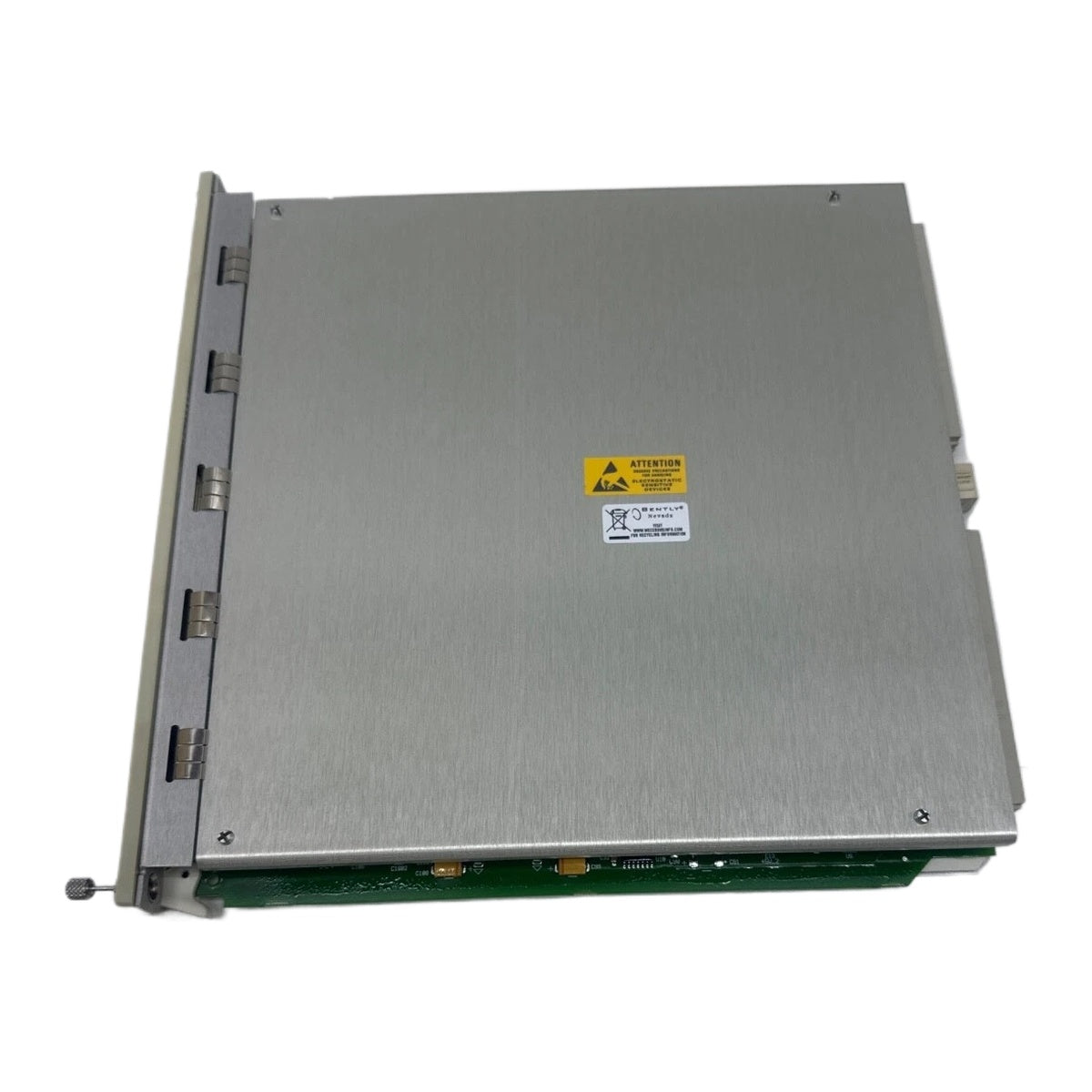

3500/91-01-01-01 161204-01+61216-01 EGD Communication Gateway Module

Description

The Bently Nevada 3500/91-01-01-01 161204-01+161216-01 is an Ethernet Global Data (EGD) communication gateway module that provides comprehensive communication capabilities for 3500 rack-monitored values and status. It offers an Ethernet network path with response times suitable for controller applications and integrates seamlessly with EGD protocol-compatible controllers. The assembly consists of the 3500/91 EGD Gateway Main Module (161204-01) and the Ethernet 10BASE-T/100BASE-TX I/O Module (161216-01).

Features

• Transmits rack, module, channel, and data value statuses, as well as float data values and setpoints.
• Supports group control functions including Group Reset, Group Trip Multiply, Group Alarm Inhibit, and Group Special Alarm Inhibit.
• Equipped with front panel status LEDs including OK LED and TX/RX LED.
• Integrates via RJ-45 jack for Ethernet 10BASE-T/100BASE-TX twisted pair connectivity.

Applications

• Integration of 3500 rack monitoring data into EGD protocol-compatible controllers.
• Real-time machinery condition monitoring and plant control systems.

Ordering Information

Technical Specifications

Installation Guidelines

• Software & Hardware Requirements: Requires Version 3.70 or higher of 3500 Rack Configuration Software and a 3500/22M TDI module to communicate with monitor modules.
• Firmware Requirements: Requires Version 1.20 or higher of TDI (3500/22M) firmware. For consumed exchange support, Version 2.21 or higher of 4-Channel firmware is required.
• Rack Limitation: Only 1 EGD module is allowed per 3500 rack.
• Slot Mounting: Mount the main module into 1 full-height front slot and the corresponding I/O module into the matching full-height rear slot.

Compliance and Certifications

• FCC: Complies with part 15 of the FCC Rules.
• EMC: European Community Directive 2014/30/EU; Standards: EN 61000-6-2, EN 61000-6-4.
• Electrical Safety: European Community Directive 2014/35/EU; Standard: EN 61010-1.
• RoHS: European Community Directive 2011/65/EU.
• Maritime: DNV GL rules for classification; ABS Rules for Condition of Classification (Steel Vessels Rules, Offshore Units and Structures).
• cNRTLus Hazardous Area: Class I, Zone 2: AEx/Ex nA nC ic IIC T4 Gc; Class I, Zone 2: AEx/Ex ec nC ic IIC T4 Gc; Class I, Division 2, Groups A, B, C, and D; T4 @ Ta = -20 degC to +65 degC (-4 degF to +149 degF) when installed per drawing 149243 or 149244.
• ATEX/IECEx: II 3 G, Ex nA nC ic IIC T4 Gc, Ex ec nC ic IIC T4 Gc, T4 @ Ta = -20 degC to +65 degC (-4 degF to +149 degF) when installed per drawing 149243 or 149244.
