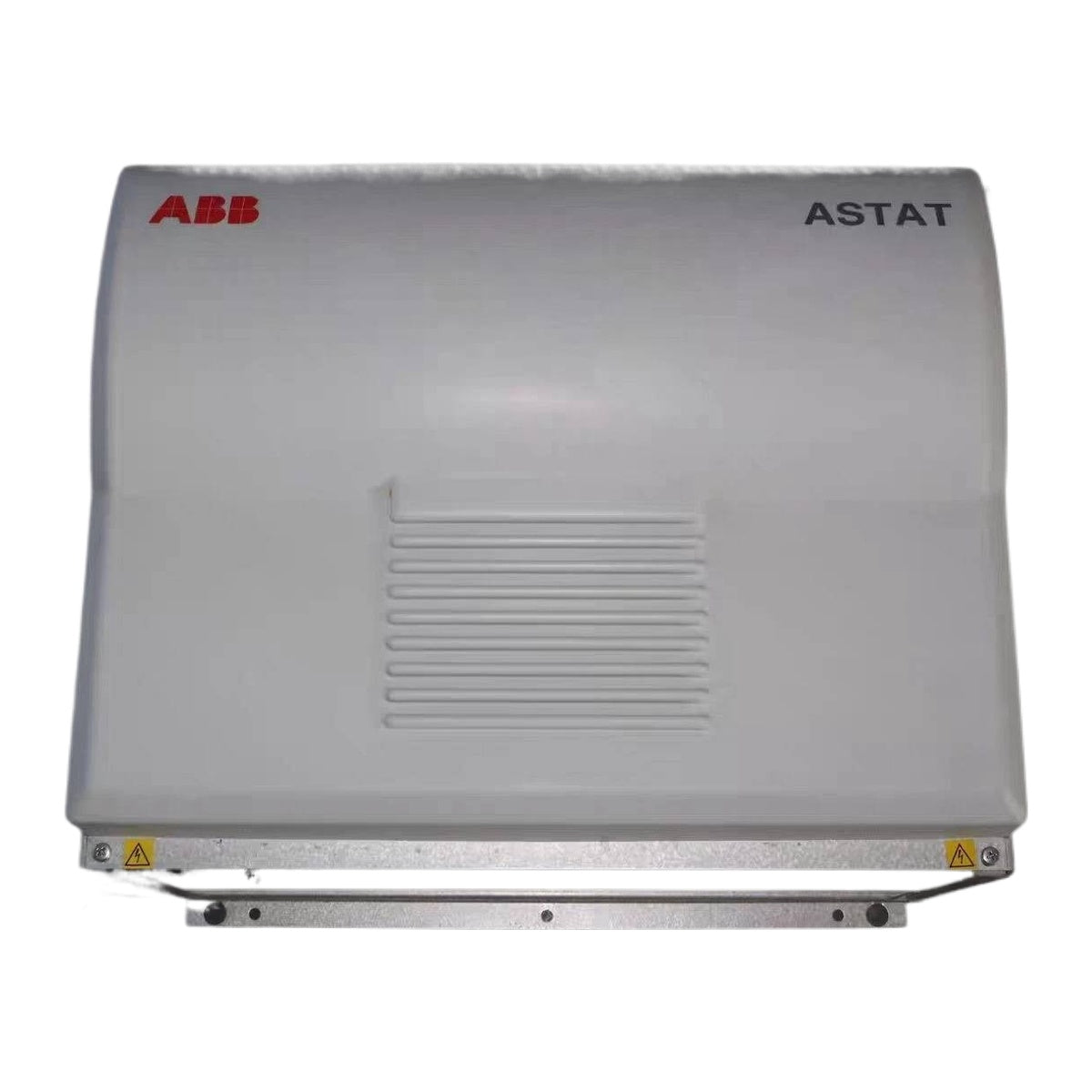

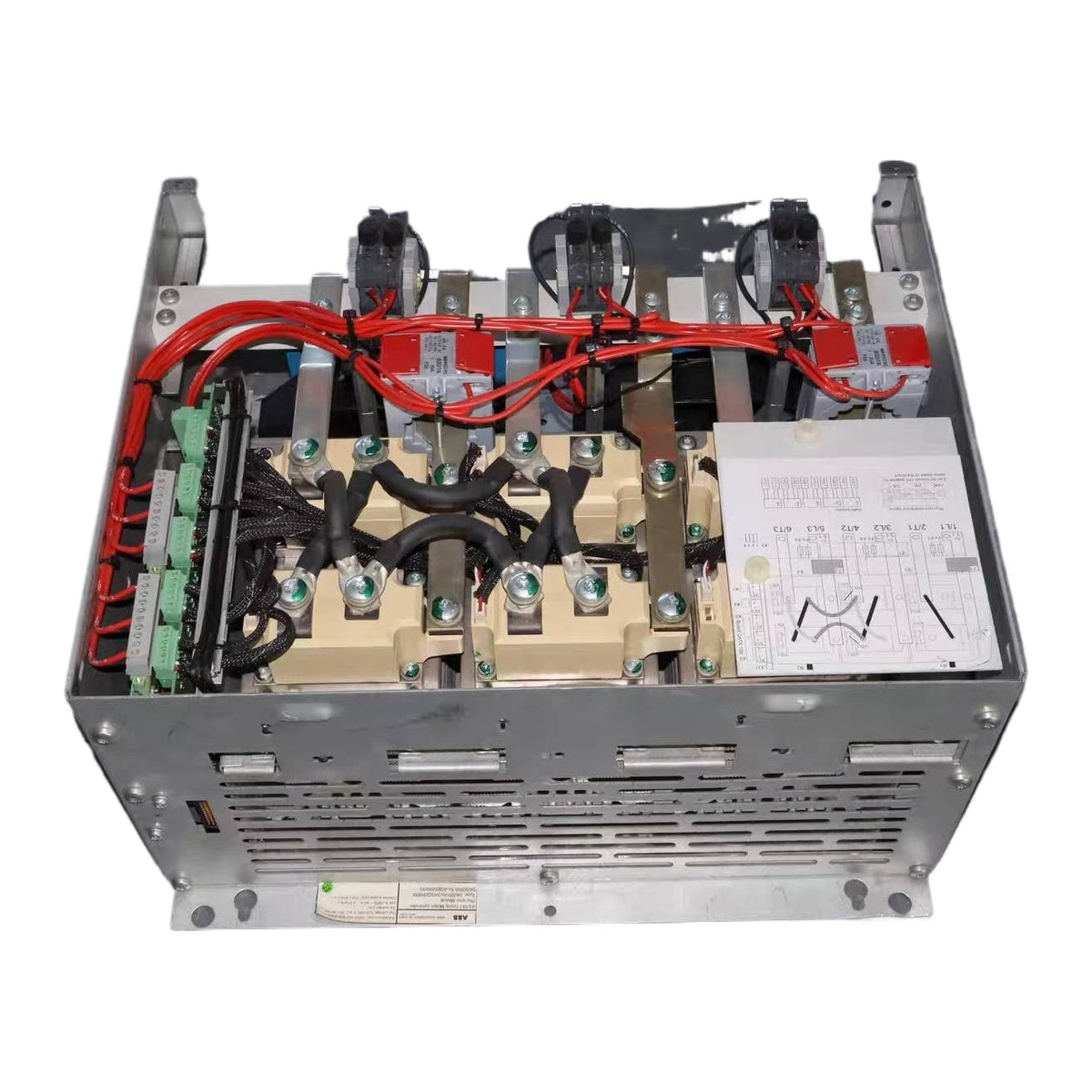

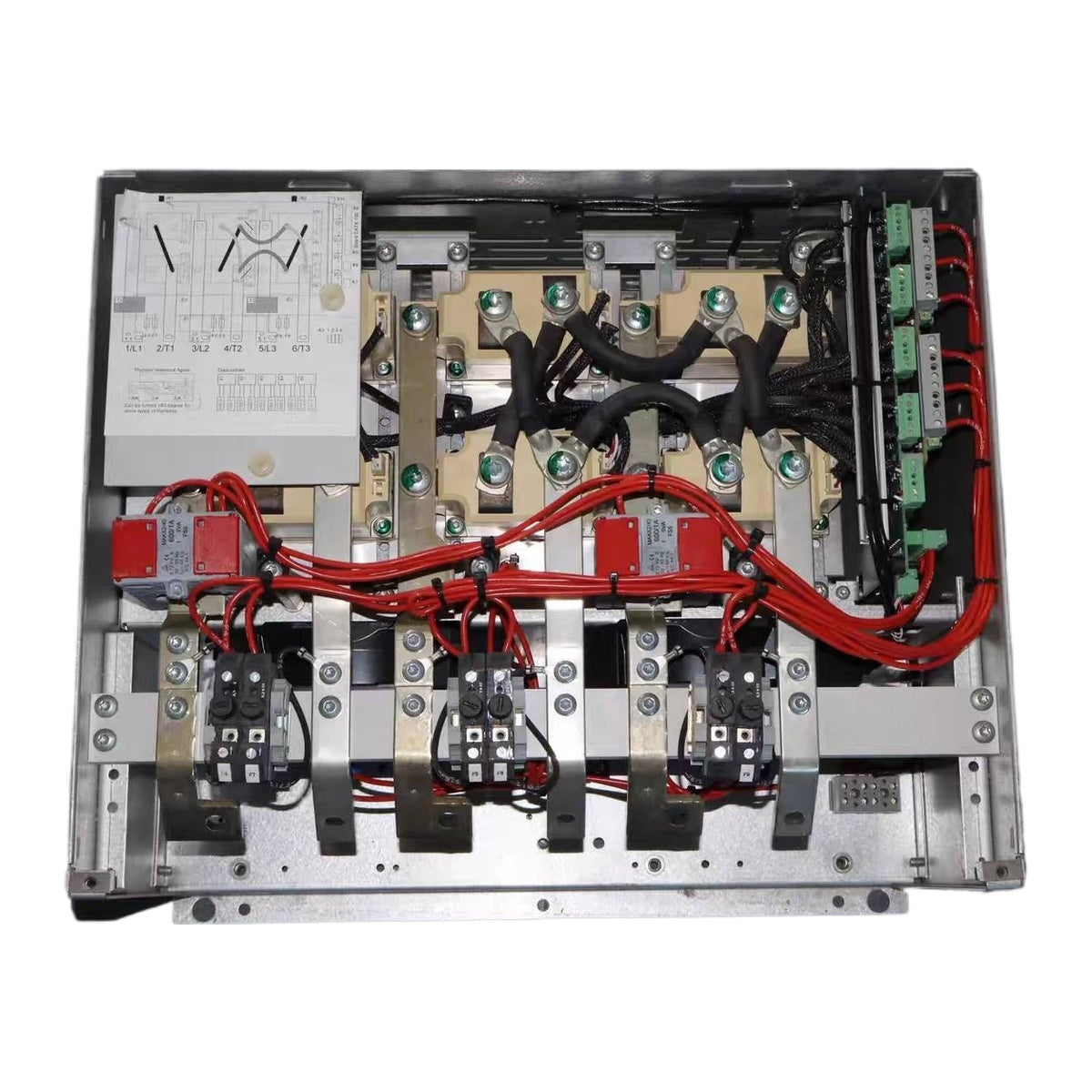

ABB 3ASC25H285 DASD 105 Thyristor module

Only 2 item(s) left in stock

Manufacturer: ABB
Product No.: 3ASC25H285 DASD105
Country of origin:Finland,Sweden
Product Type: Thyristor Module
Payment: T/T, Western Union
Weight: 32000g
Dimensions: 315 mm x 473 mm x 422 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Description

The ABB 3ASC25H285 DASD 105 Thyristor module is a solid-state power semiconductor device designed for heavy-duty motor speed and torque control in crane motion applications and heavy industrial machinery. Operating as a core power component within the ABB ASTAT crane motion control system, the unit regulates three-phase AC stator voltage and phase sequence via microprocessor-controlled phase-angle trigger pulses, delivering smooth, stepless motor acceleration, deceleration, and high-speed regenerative braking. The 3ASC25H285 DASD 105 connects directly to power distribution buses and interfaces seamlessly with DARA control system modules via optical links and dedicated pulse transformer connections.

Features

Designed for heavy-duty crane motions and harsh industrial environments.
Enables stepless electronic voltage and torque adjustment without requiring direction-reversal contactors.
Convection/fan-cooled compact assembly rated for panel installation.
Direct fiber-optic and pulse-transformer coupling to DARA control units for maximum noise immunity.
Integral internal system I/O board (DATX 100) with coated surface protection against conductive dust ingress.

Applications

Crane hoist motion control systems.
Crane travel motions (bridge and trolley drives).
Heavy industrial material handling machinery.
Speed and slip control of slip-ring induction motors.

Technical Specifications

Parameter	Value
Manufacturer	ABB
Model Designation	DASD 105
Product ID	3ASC25H285
Voltage Rating	600 V
Motor Rated Current	355 A
No-Load Power Loss (P0)	40 W
On-State Voltage Drop (dV)	1.00 V
Reference Temperature	40 degC
Current Derating Above Ref. Temp.	1.2% per degC
Maximum Operating Temperature	+85 degC
Protection Degree	IP 20
Height	422 mm
Width	473 mm
Depth	315 mm
Weight	32 kg

Installation Guidelines

Mount inside closed electrical cubicles or control rooms with adequate ventilation to maintain operating temperatures within specified limits.
Ensure vertical mounting orientation to facilitate proper cooling air flow through the heatsink assembly.
In corporate installations, maintain specified clearance around air inlets and outlets.
When operating above 40 degC ambient temperature, apply a current derating factor of 1.2% per degC up to the maximum limit of +85 degC.
Connect power terminals ensuring recommended bolt torque and cable strain relief.

Product Image	Model Number / Title	Condition	Availability	Action
	ABB ASTAT 3ASC25H283 DASD 103 Overvoltage Protection Module	Original New	In Stock	View Details

Key Features:

#ABB ASTAT #Thyristor Modules

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

What is the rated voltage and current for this thyristor module?

The module is rated for a supply voltage of 600 V and a motor current rating of 355 A.

What is the reference operating temperature for full current rating?

The reference temperature is +40 degC. Above this temperature, the rated current decreases by 1.2% per degC up to +85 degC.

Does the module feature an IP protection rating?

Yes, the thyristor module provides an IP 20 degree of protection.

Global Express Shipping

Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).

For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
