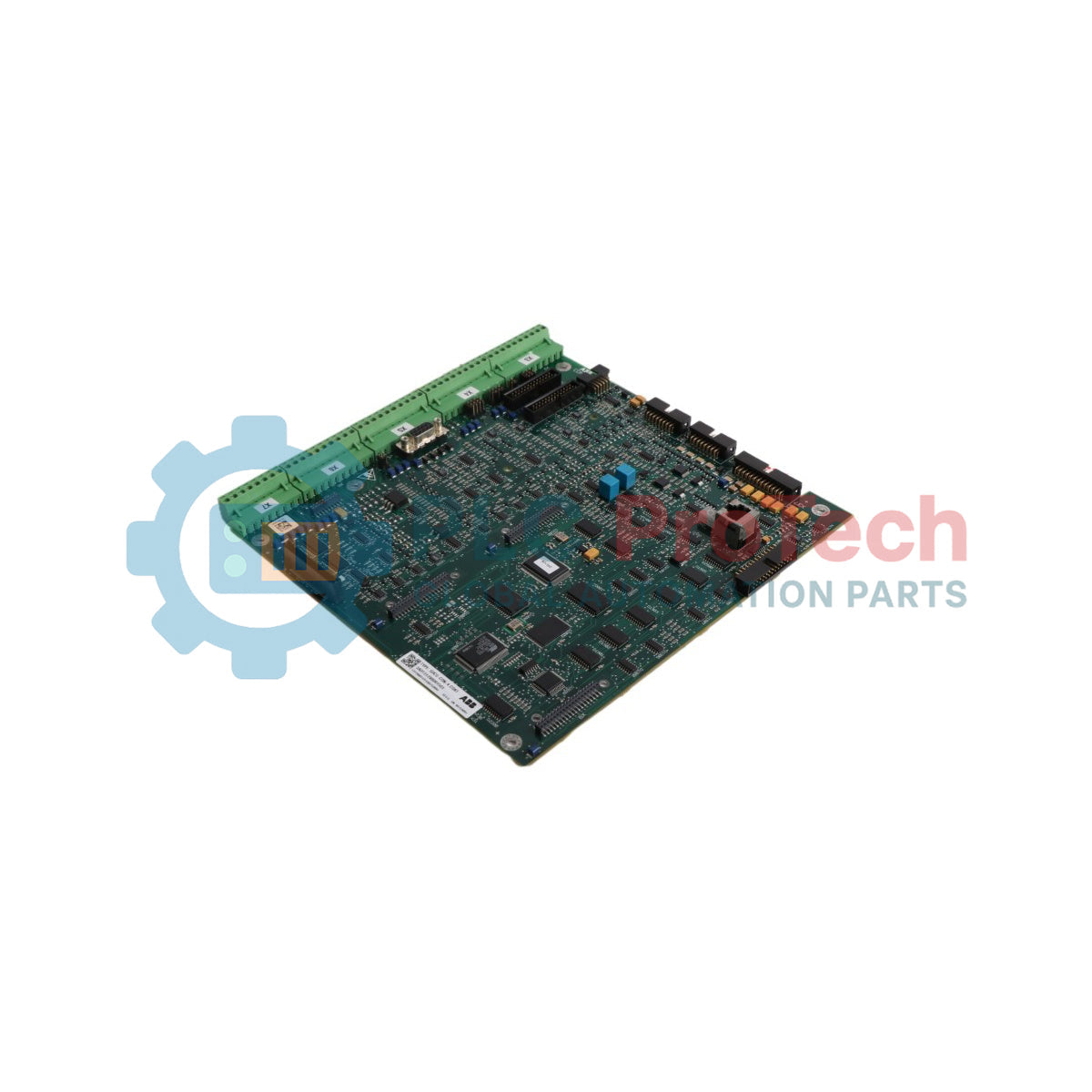

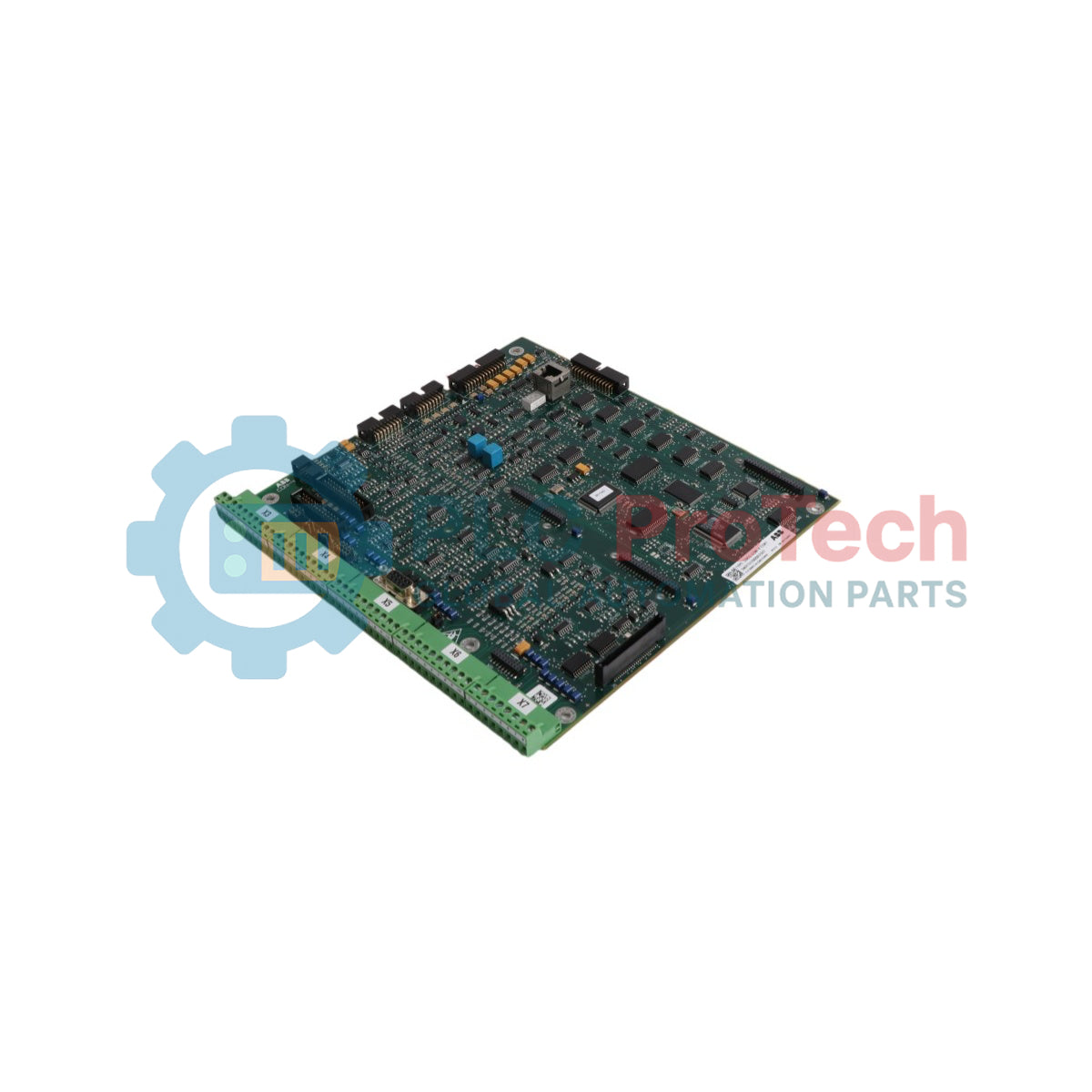

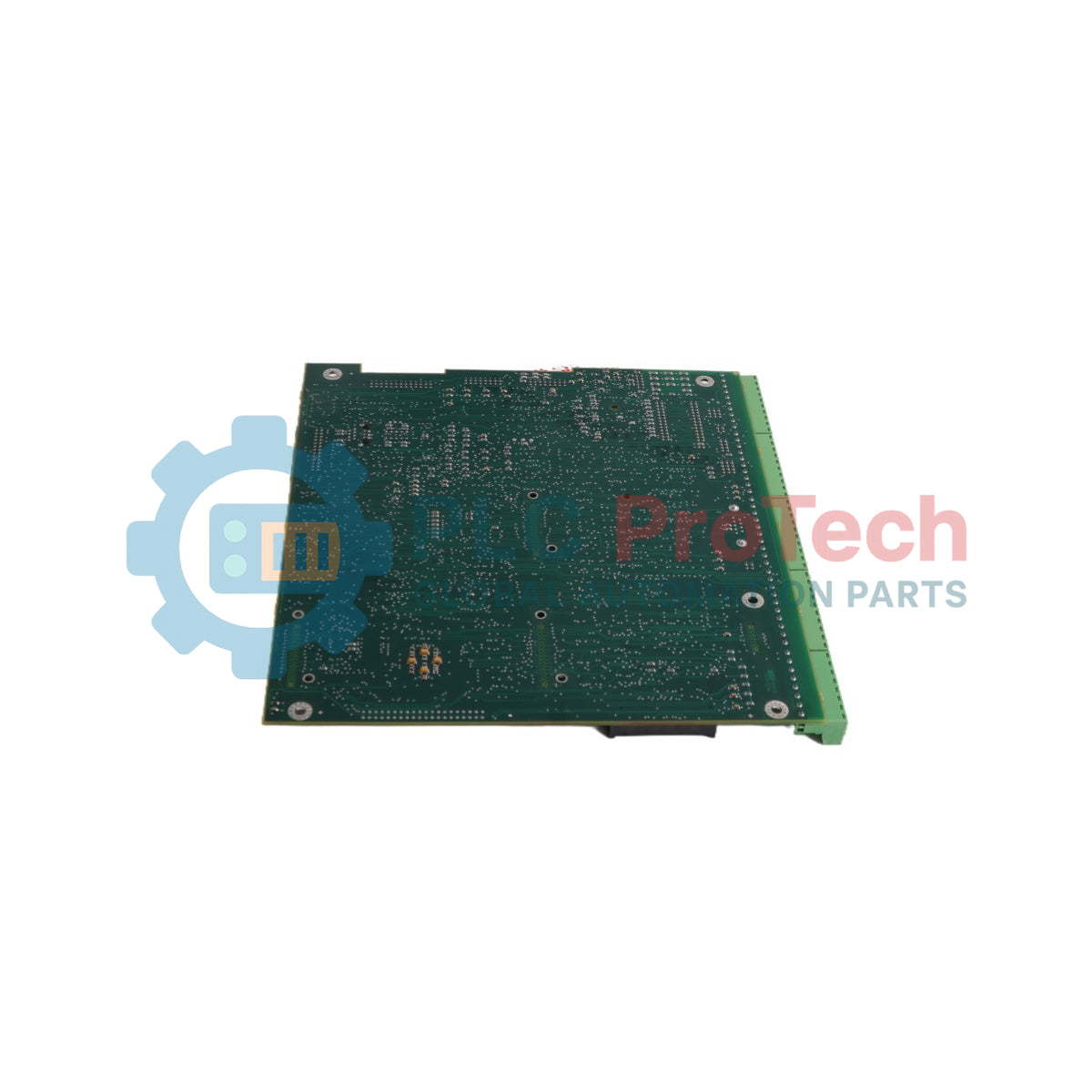

ABB SDCS-CON-4-COAT-ROHS 3ADT313900R1501 DCS800 Drive Control Board

Description

The ABB SDCS-CON-4-COAT-ROHS is a microprocessor-based main processing architecture engineered for the processing loops of DCS800 industrial DC drive modules. Operating as the primary control board, this card handles computational speed and torque control profiles, gating configurations, and field communication synchronization loops.

The SDCS-CON-4-COAT-ROHS is equipped with a factory-applied conformal coating (-COAT) to establish higher dielectric resistance and environmental stabilization within heavy industrial control enclosures. This hardware assembly, cataloged under product ID 3ADT313900R1501, features full hazardous substance compliance (RoHS) and direct multi-channel interface links to drive peripheral boards, preserving computational accuracy during fast-response torque transitions.

Features

• Conformal Coated Isolation: Features specialized chemical shielding to protect active component traces from conductive moisture, metal dust, and ambient corrosive factors.
• RoHS Standard Compliance: Developed in accordance with strict environmental specifications utilizing lead-free solder paths and hazard-free material combinations.
• High-Speed System Logic: Executes complex variable speed control algorithms and real-time fieldbus loop configurations without calculation lag.
• Onboard Interface Hub: Features dedicated communication channels, optical bus links, and ribbon cable headers for synchronous power module feedback tracking.

Applications

• Main computational control unit replacement across single or multi-drive cabinet modules of the ABB DCS800 power series.
• High-capacity positioning setups including industrial crane hoists, mill winders, paper machinery, and heavy extrusion systems.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The SDCS-CON-4-COAT-ROHS acts as the standard baseline processor card for the DCS800 product footprint. When swapping out legacy or non-coated board versions, engineers must verify that firmware revisions match the specific operational configuration parameters of the host thyristor power bridge. Ensure parameter profiles are backed up before removing old hardware to guarantee seamless parameter migration.

Application Pitfalls & Engineering Notes

When deploying these control units inside non-ventilated electrical bays, ambient thermal loading can cause accelerated drift in sensitive analog processing components. Ensure that environmental temperatures around the module tray remain within factory limits. In high-vibration applications like mining or crane gantries, check that flat ribbon interface cables are locked down with retention clips to avoid trace communication faults under structural oscillation.

Commissioning & Wiring Tips

Flat ribbon connections running between the SDCS-CON-4 processor and peripheral interface blocks (such as SDCS-IOB-2 or SDCS-IOB-3 boards) must utilize shielded flat cables for lengths over 2 meters to avoid inductive noise insertion. Always route optical link lines away from high-power AC input distribution rails and armature cables to protect data telegrams from electromagnetic interference (EMI).

Installation Guidelines
