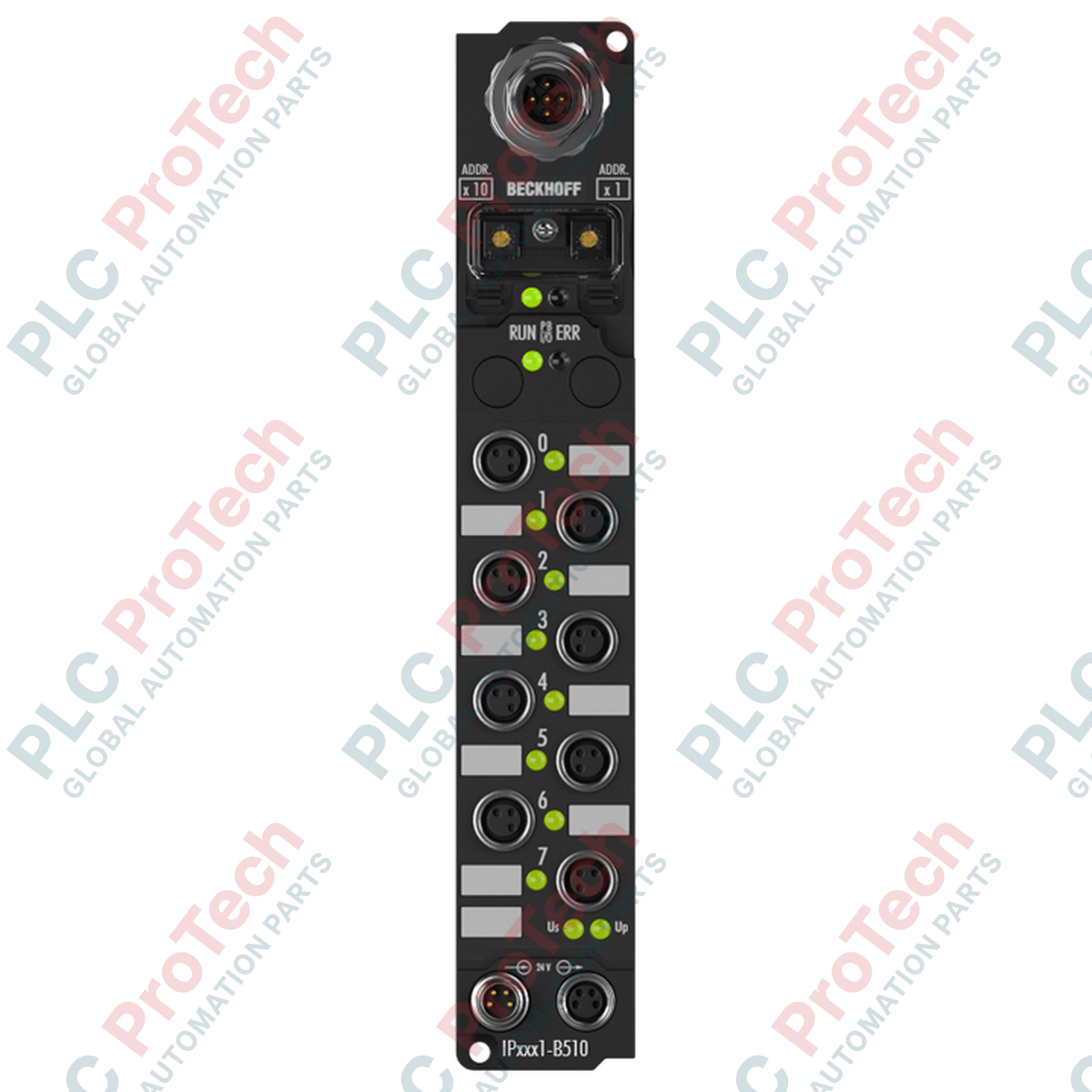

Beckhoff IP2001-B510 Fieldbus Box 8-channel Digital Output Module

Description

Engineered for decentralized automation architectures, the Beckhoff IP2001-B510 establishes direct field-level connectivity via CANopen communication, serving as an 8-channel digital output module designed to operate without a control cabinet. This robust Fieldbus Box allows direct connection of up to eight digital actuators to the bus, reducing wiring overhead and facilitating localized, rapid signal processing. Housed in a durable polyamide casing with an IP67 protection rating, this module guarantees high dust and water resistance, making it suitable for direct installation on machines in harsh industrial environments.

The device features standardized M8 connection interfaces for both digital outputs and power supply distribution, alongside an M12 connection for CANopen bus integration. This configuration ensures reliable, vibration-resistant electrical contacts and supports high-speed data transfer rates up to 1 Mbaud with automatic baud rate detection. Each output channel is individually engineered with short-circuit protection, minimizing system downtime during localized electrical faults.

Features

• 8 Digital Outputs: 24 V DC nominal voltage with up to 0.5 A load capacity per channel.
• CANopen Bus Interface: Direct system integration via a 5-pin M12 connector with support for up to 1 Mbaud data rates.
• Short-Circuit Protection: Each channel is individually protected against short circuits, limiting fault propagation.
• Robust IP67 Casing: High-grade polyamide (PA6) construction provides superior resistance to moisture, oils, and physical impact.
• Compact Decoupled Design: Enables flexible mounting directly onto machinery, eliminating the need for localized electrical enclosures.
• Diagnostic Capabilities: Supports node guarding, life guarding, emergency objects, and variable PDO mapping.

Applications

• Decentralized assembly and packaging machinery.
• Material handling systems and complex conveyor routing lines.
• Machine tool and robotic physical arm monitoring.
• Industrial manufacturing lines requiring localized valve terminal or actuator actuation.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The IP2001-B510 is compatible with any standard CANopen master card or PLC interface, including Beckhoff's native FC5101/FC5102 PCI cards and EL6751 EtherCAT terminals. For system upgrades from legacy IP2001-Bxxx modules, ensure that the active network EDS (Electronic Data Sheet) files match the specific software revision in TwinCAT to allow proper mapping of the 16 send and 16 receive Process Data Objects (PDOs).

Application Pitfalls & Engineering Notes

Pay critical attention to the cumulative current limits of the power supply loop. The internal box supply current is 45 mA, but the system relies heavily on the physical input supply capacity. If looping power across multiple modules using the downstream M8 connectors, ensure the total current load across both Us (Control Voltage) and Up (Load Voltage) does not exceed 4.0 A to prevent terminal overheating or voltage drops that can destabilize downstream bus devices.

Commissioning & Wiring Tips

Ensure that proper 120-ohm termination resistors are installed on the first and last CANopen nodes. Running the network without a terminator or with incorrect termination values is the leading cause of communication drops at high baud rates. Use shielded, twisted-pair copper cables specifically rated for CANopen to prevent electromagnetic interference from surrounding inductive loads.

Installation Guidelines
