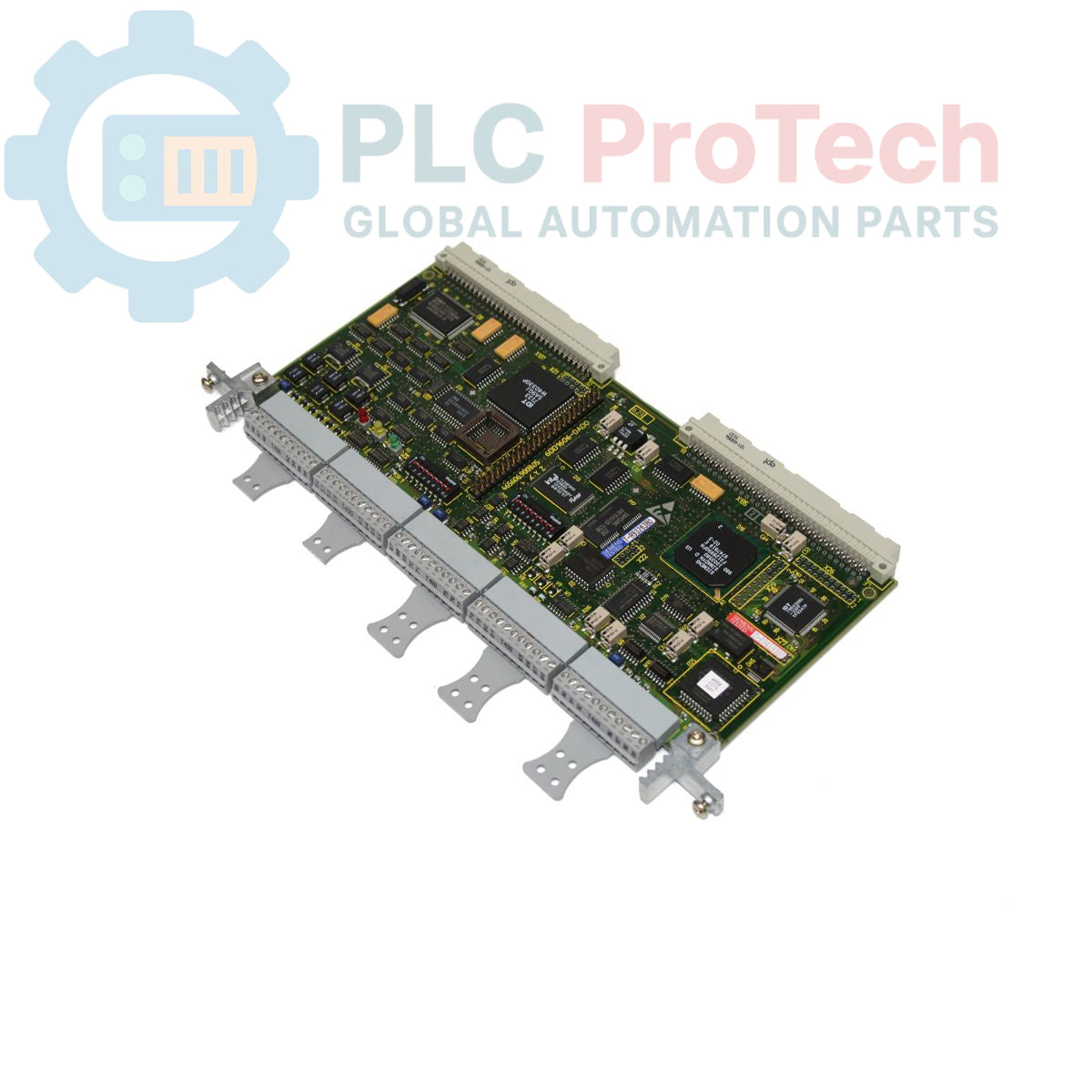

Papan Teknologi Siemens 6DD1606-0AD0 SIMADYN D T400

Description

The 6DD1606-0AD0 is a SIMADYN D series T400 technology board designed for high-performance control tasks in industrial automation, specifically for integration with 6SE70/71 and SRT400 drive systems. Featuring a 32-bit processor operating at 32 MHz, the board provides efficient signal processing for complex motion and control sequences. It offers extensive I/O connectivity, including binary and analog channels, pulse encoder inputs, and SSI encoder support, allowing for flexible integration with a wide variety of industrial sensors and actuators. Configuration is managed via the D7-SYS software environment.

Features

• Advanced 32-bit/32 MHz processor for reliable control performance
• Extensive I/O set: 8 binary inputs, 2 binary outputs, 4 combined binary I/Os
• 5 analog inputs and 2 analog outputs
• Versatile encoder support: 2 pulse encoder inputs and flexible SSI encoder configuration (1 or 2 interfaces)
• Equipped with 1 MB Flash, 2 MB RAM, and 32 KB EEPROM for configuration storage
• Designed for SIMADYN D platform and 6SE70/71 drive systems

Applications

• High-performance motion control systems
• Complex industrial drive synchronization
• Advanced process automation and sequencing
• Feedback loop management for sensors and encoders
• Drive and motor control integration

Technical Specifications

Installation Guidelines

• Mounting: Install the T400 board into the designated slot within the 6SE70/71 or SRT400 drive housing.
• Configuration: Utilize the D7-SYS software environment to perform hardware configuration and parameterization before operation.
• Connectivity: Ensure all binary, analog, and encoder signal cables are shielded and correctly routed to avoid signal interference.
• Grounding: Maintain proper grounding of the control housing to ensure the stability of the high-speed 32-bit processor electronics.
• Environmental: Protect the module from moisture, excessive vibration, and extreme temperature fluctuations to ensure long-term operational integrity.
