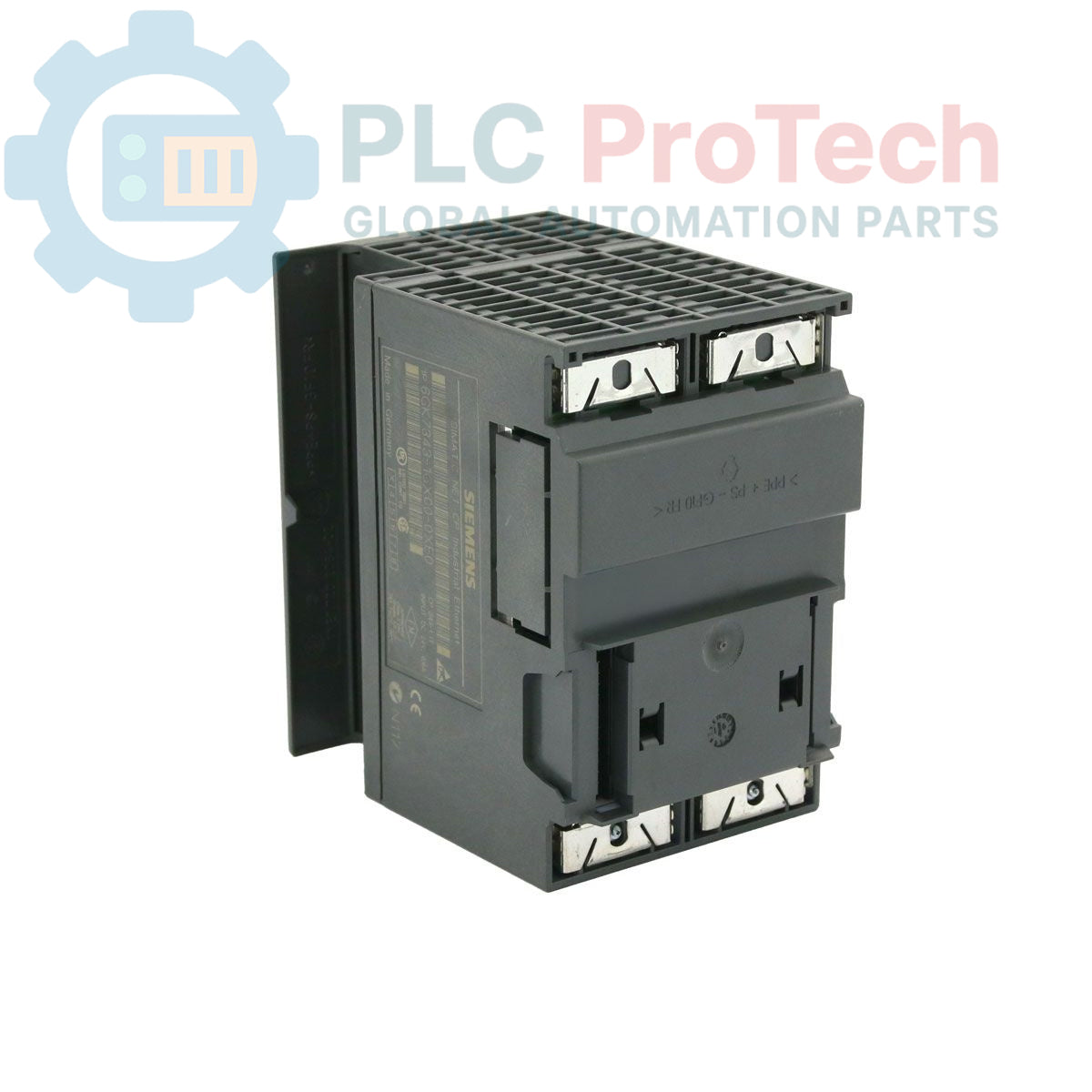

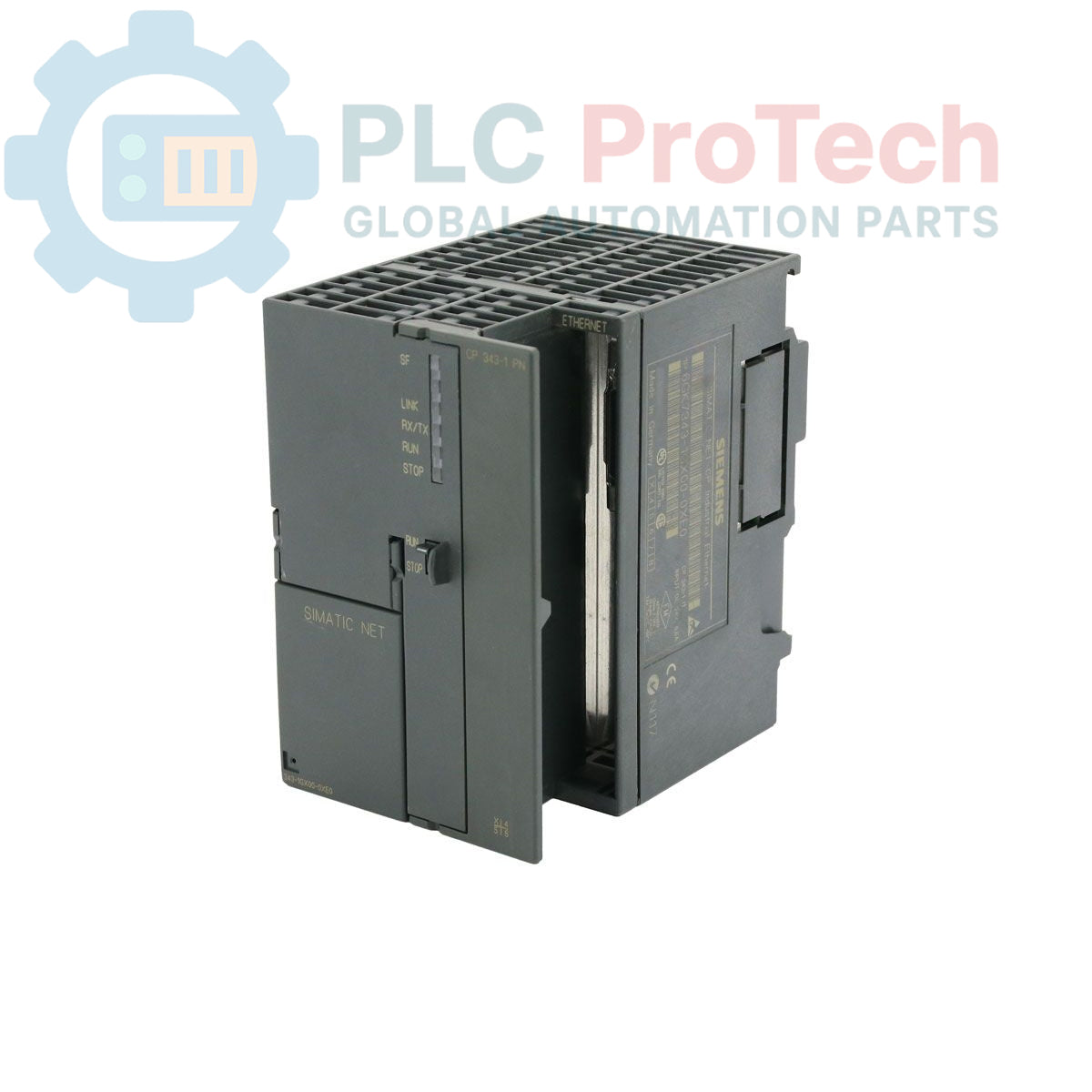

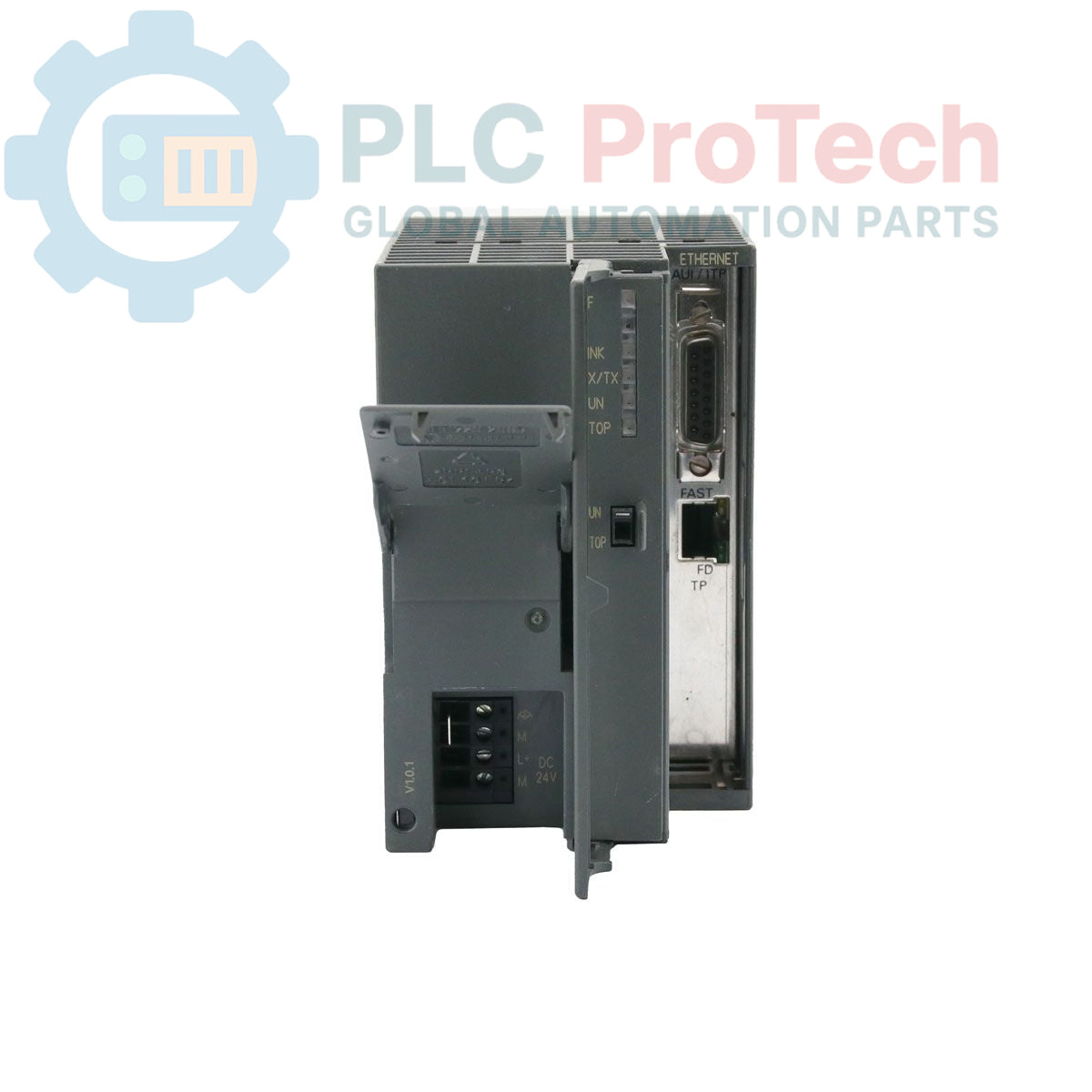

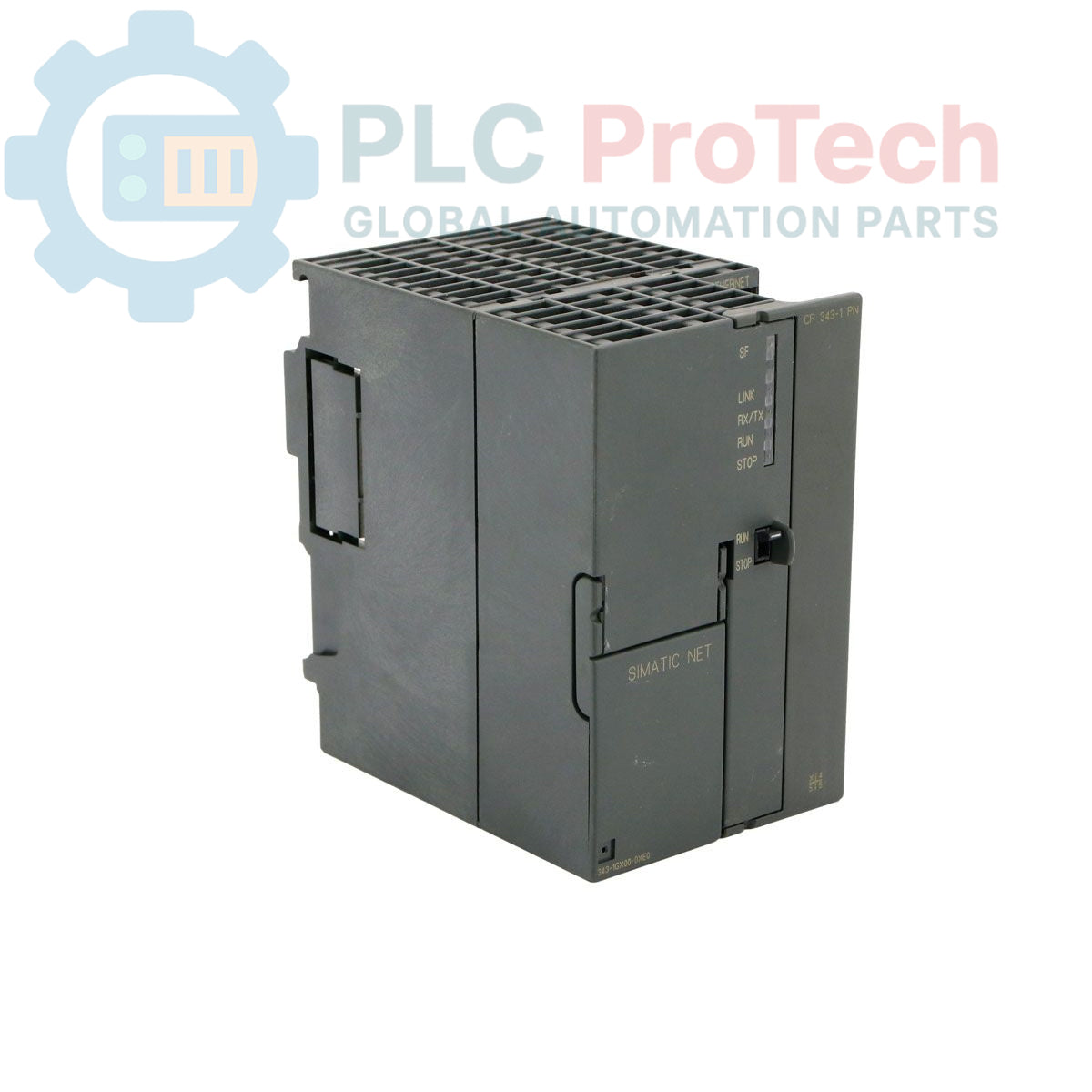

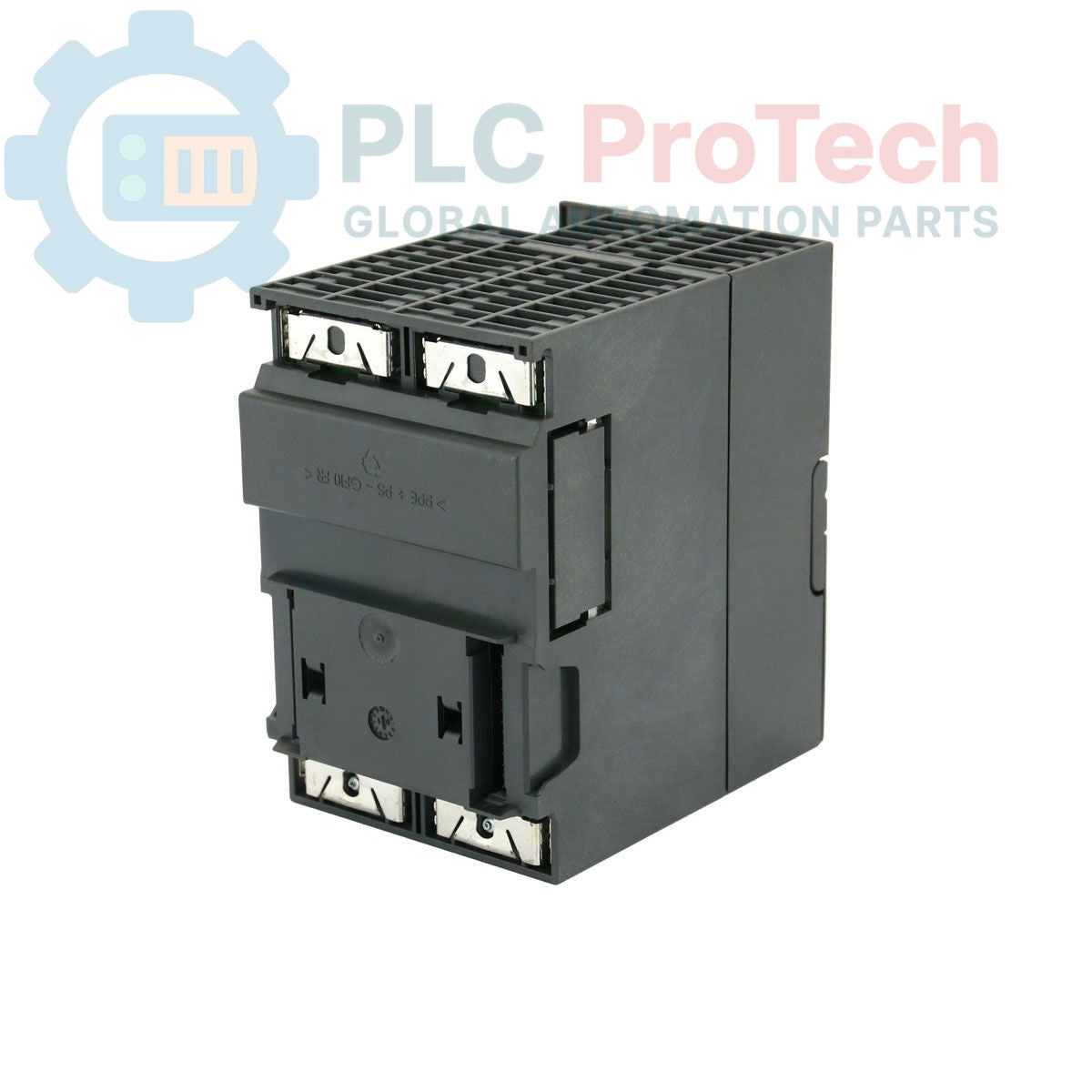

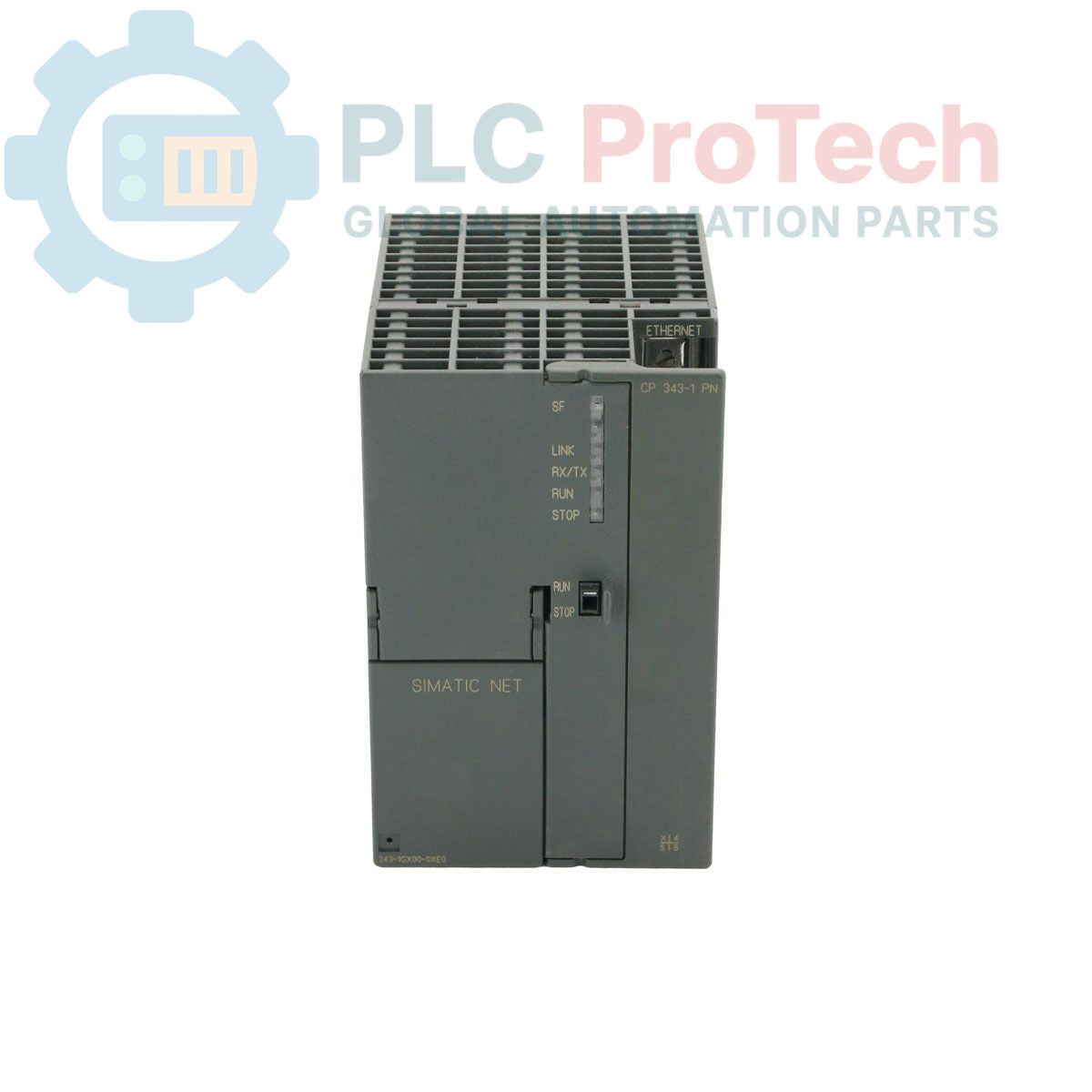

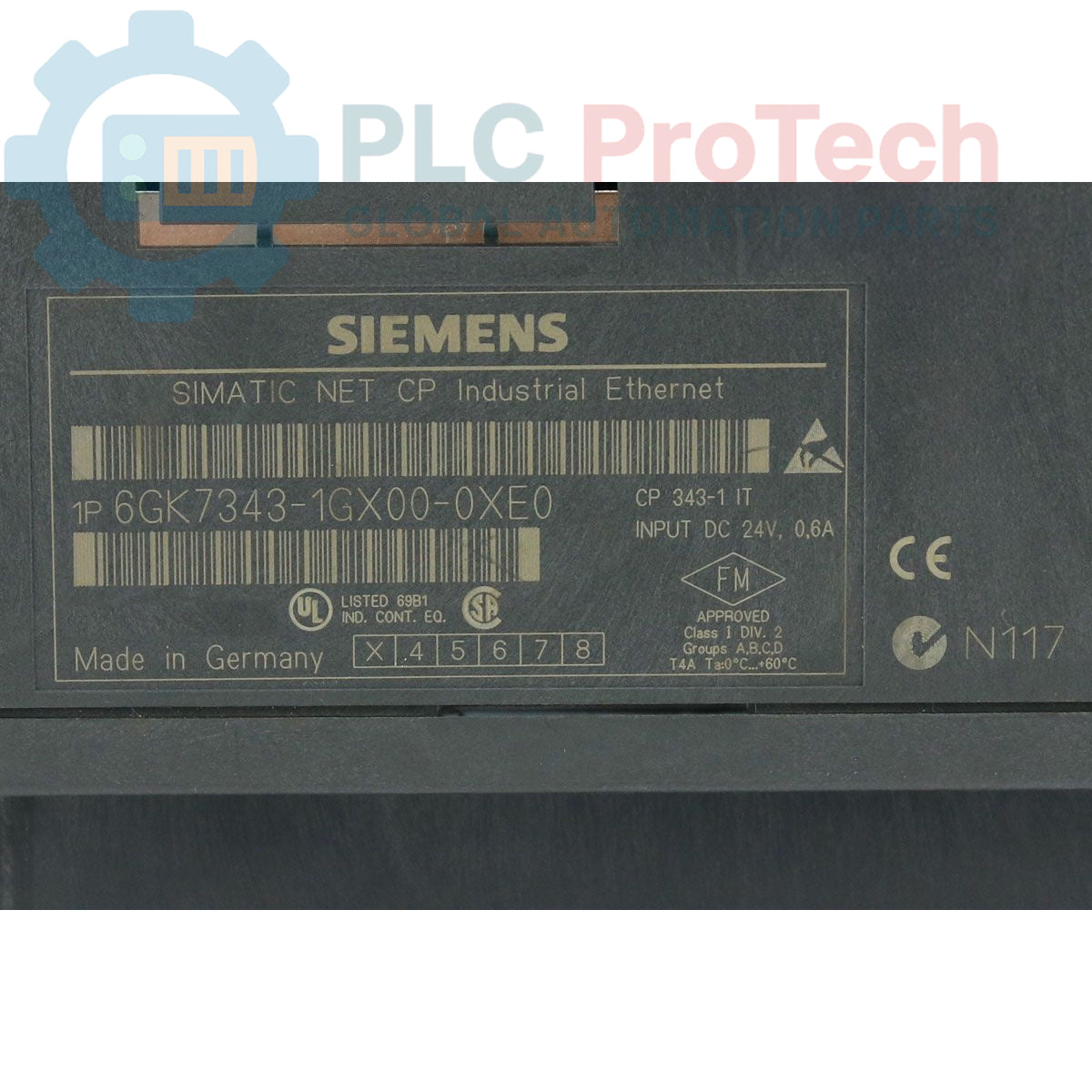

Pemproses Komunikasi IT Siemens SIMATIC NET CP 343-1 (6GK7343-1GX00-0XE0)

Description

The 6GK7343-1GX00-0XE0 is an industrial communication processor from the SIMATIC NET portfolio, designed specifically for the SIMATIC S7-300 PLC family. This "IT" variant of the CP 343-1 allows S7-300 controllers to interface with Industrial Ethernet networks using both ISO and TCP/IP protocols. Beyond standard data exchange, this module includes advanced functionality such as integrated web server capabilities and email alert generation, making it a powerful tool for remote diagnostics and factory-to-office communication.

Features

• Ethernet Connectivity: 10/100 Mbit/s interface for Industrial Ethernet.
• Protocol Support: Comprehensive support for S7 communication, Fetch/Write, and Send/Receive protocols.
• IT Functionality: Includes integrated web server (WWW) and email notification services.
• Seamless S7-300 Integration: Designed for high-performance communication within the S7-300 backplane.
• Operational Versatility: Ideal for plant-wide data integration and remote monitoring.

Technical Specifications

Installation Guidelines

• Module Seating: Ensure the S7-300 CPU rack power is disconnected before installing the communication processor to avoid shorting the backplane pins.
• Cabling: Use shielded RJ45 Industrial Ethernet cables to ensure reliable data transfer in electrically noisy environments.
• Configuration: Utilize Siemens STEP 7 software to configure the network parameters (IP address, subnet, gateway) and communication blocks.
• Thermal Considerations: Ensure the module is installed in a well-ventilated enclosure to maintain safe operating temperatures.
• Web/IT Setup: For web server or email functions, verify that the network security settings are configured properly to prevent unauthorized access to the controller
