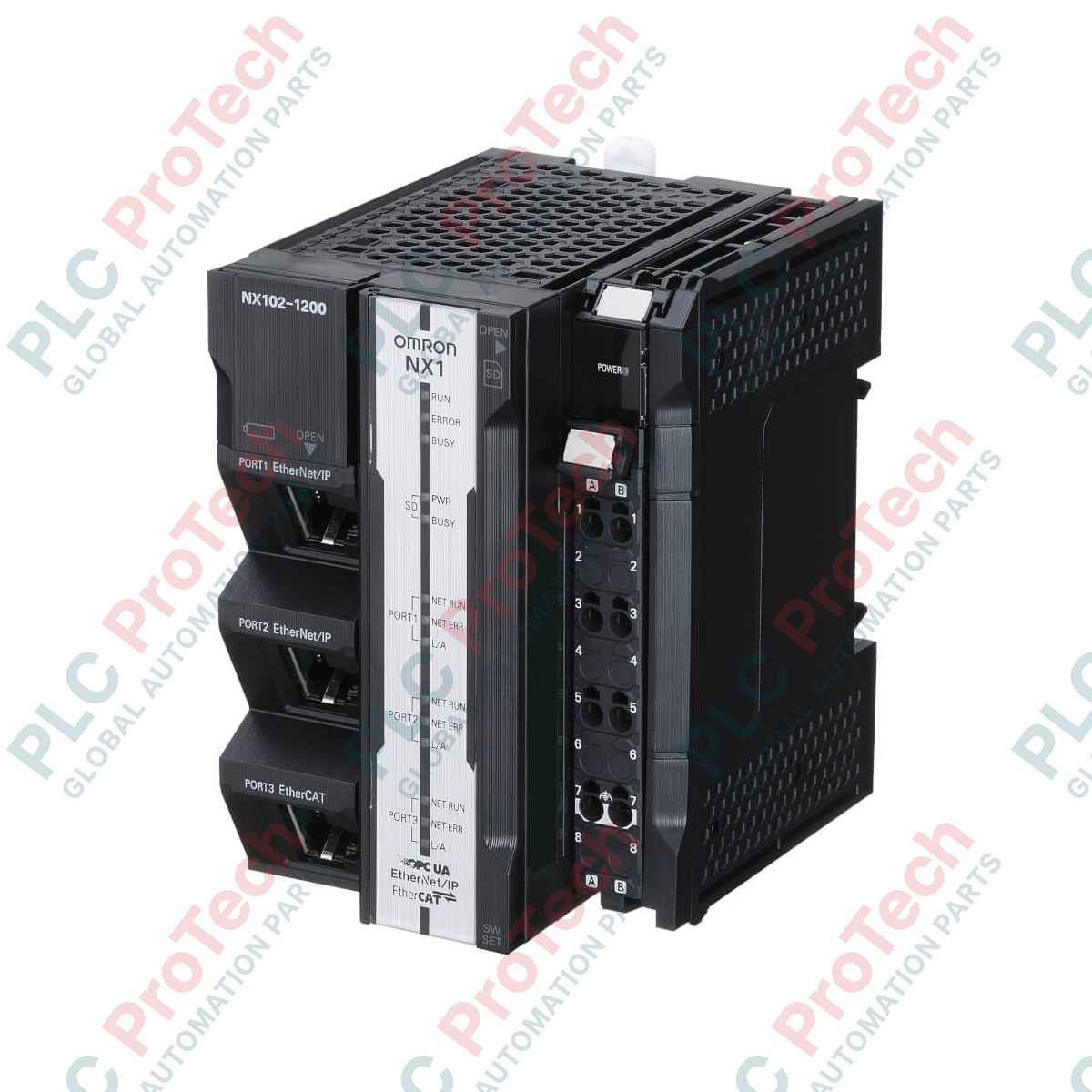

Omron NX102-1220 Sysmac NX1 Modular CPU

Description

Managing synchronous motion axes and direct database synchronization simultaneously, the Omron NX102-1220 Sysmac NX1 series controller serves as a highly integrated node for modern industrial Internet of Things (IIoT) applications. By combining sequence control, motion control, database client connectivity, and OPC-UA server capabilities into a single compact unit, this controller eliminates the need for middle-tier PCs or gateway devices. The unit communicates seamlessly down to physical field devices via EtherCAT and horizontally/upward to enterprise systems via dual EtherNet/IP ports, offering precise execution of high-speed machine control loops alongside robust transactional data integrity.

Features

• Direct SQL Integration: Features built-in database client functionality that connects directly to SQL databases, enabling automated data logging, recipe retrieval, and traceability updates.
• Synchronous Motion Engine: Controls up to 8 synchronous motion axes and up to 4 point-to-point (PTP) axes for electronic gearing, cams, and linear/circular interpolation.
• Secure Industrial IT Communication: Built-in OPC-UA server capability facilitates secure, platform-independent connectivity to SCADA, MES, and ERP layers.
• Dual Network Segregation: Two independent EtherNet/IP ports permit physical isolation of the machine control network from the broader plant-floor IT network.
• Expandable Local Architecture: Connects directly to local NX-series digital, analog, and specialized safety I/O units on a single backplane.

Applications

• Traceability-Critical Manufacturing: Real-time production data storage in food, beverage, and pharmaceutical packaging lines requiring compliance logs.
• High-Speed Multi-Axis Assembly: Electronic component placement, pick-and-place robotics, and automated cartoning systems.
• Semi-Conductor and Cleanroom Machinery: Precise temperature, positioning, and sequence tracking with direct host-system handshake.
• Intelligent Material Handling: Sorting lines and conveyor networks requiring high-capacity I/O expansion and rapid barcode/RFID data integration.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The NX102-1220 serves as the database-enabled variation of the standard NX102 series controllers. While a standard NX102-1200 matches the processing speeds and motion-axis count of this module, it lacks the built-in SQL server client execution library. Programs compiled in Sysmac Studio for standard NX102-1200 units can be ported to the NX102-1220, but the reverse migration requires removing any active DB connection blocks from the task execution routine. Ensure Sysmac Studio version 1.22 or higher is utilized for full hardware and feature parameter deployment.

Application Pitfalls & Engineering Notes

When utilizing direct-to-database connections, design error-handling and buffering logic in the PLC program. In the event of a sudden network link failure between the dual EtherNet/IP ports and the server hosting the SQL Database, data writes can queue inside the CPU variables memory. Since variable memory space is capped at 33.5 MB, an extended database outage could lead to buffer overrun errors. Utilize the internal ring-buffer function blocks to manage communication timeouts safely.

Commissioning & Wiring Tips

To ensure high noise immunity over high-speed networks, install only double-shielded STP (Shielded Twisted Pair) Cat5e or higher cables on Port 3 (EtherCAT). To prevent ground loops from corrupting high-frequency data packets, shield grounds should be terminated exclusively on the controller side or routed according to strict industrial EMC guidelines. Do not run communication cables parallel to high-current motor cables or variable frequency drive (VFD) outputs.
