Siemens 6AG1123-2GB03-2AX0 SIPLUS HMI Basic Panel

Siemens 6AG1123-2GB03-2AX0 SIPLUS HMI Basic Panel

Only 6 item(s) left in stock

  • Manufacturer: Siemens

  • Product No.: 6AG1123-2GB03-2AX0

  • Country of origin:Niemcy

  • Product Type: Digital Modules

  • Barcode: 85371091

  • Payment: T/T, Western Union

  • Weight: 980g

  • Dimensions: 26.10cm x 18.90cm x 6.30cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Pokaż kompletne dane
Opis produktu
FAQ
Wysyłka Zwroty
Dodatkowe szczegóły
Recenzje

Description

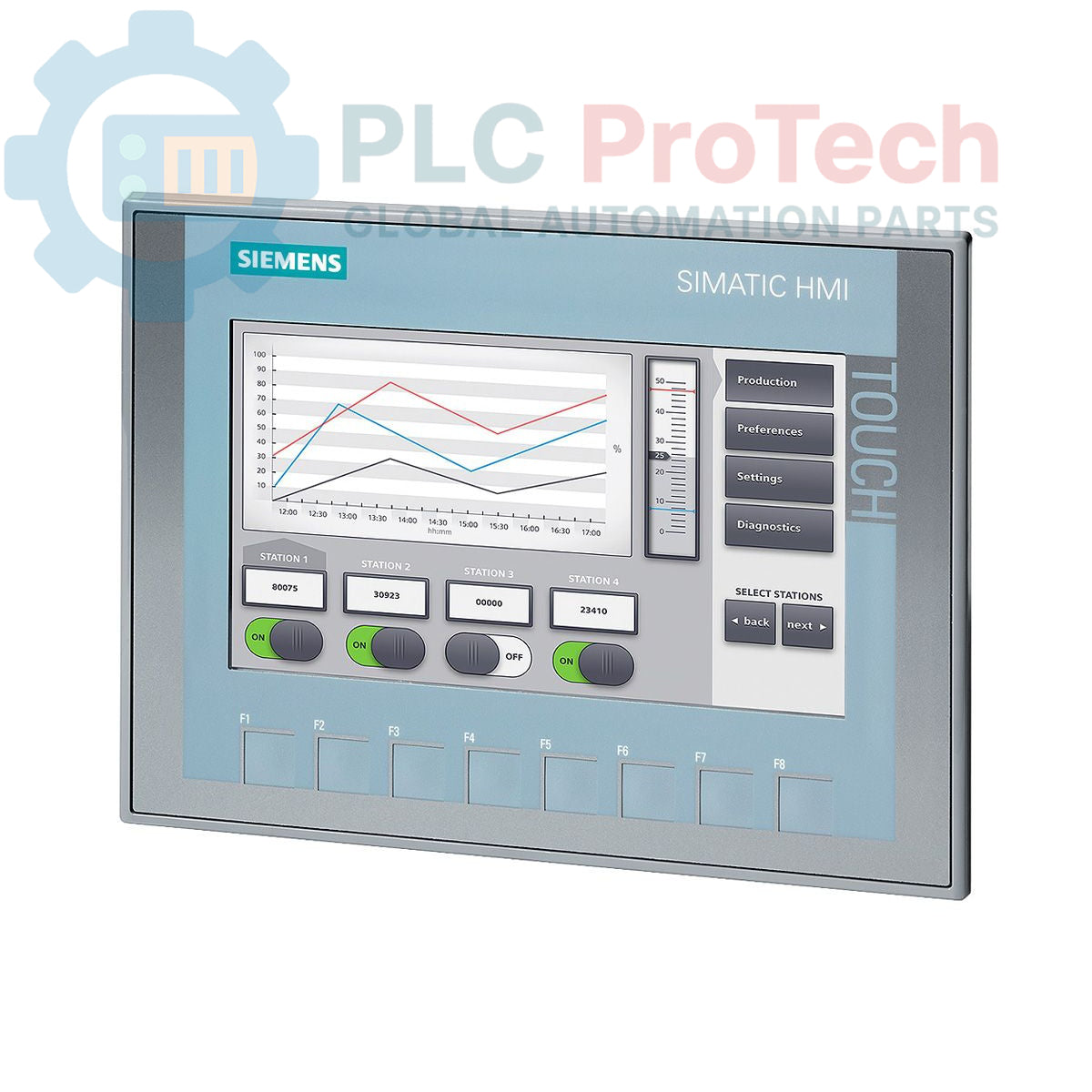

The 6AG1123-2GB03-2AX0 is a SIPLUS HMI KTP700 Basic Color PN operator panel, engineered based on the 6AV2123-2GB03-0AX0 platform. This device is designed for demanding industrial environments and features a specialized conformal coating to protect internal circuitry against environmental stressors. It provides a 7" TFT color display with a resolution of 800 x 480 pixels and 65536 colors, offering clear visualization for machine operation and process monitoring.

Equipped with a PROFINET interface, the 6AG1123-2GB03-2AX0 facilitates seamless integration into Siemens automation systems. It is specifically designed to operate in extended temperature ranges from -20 degC to +50 degC, ensuring reliability in applications where standard panels may be insufficient.

Features

  • 7" TFT display with 800 x 480 resolution
  • 65536 color support for clear process visualization
  • Integrated PROFINET interface for Ethernet-based communication
  • Conformal coating for enhanced protection in harsh environments
  • Wide operating temperature range: -20 degC to +50 degC
  • 10240 kbyte memory for project storage

Applications

  • Machine-level operator control and monitoring
  • Industrial automation systems requiring harsh-environment protection
  • Material handling and packaging lines
  • Building automation and HVAC control systems
  • System retrofits requiring increased environmental tolerance

Technical Specifications

Feature Specification
Brand Siemens
Range SIPLUS HMI
Subrange Basic Panels (2nd gen)
Product Type HMI Panel
Display Size 7"
Display Resolution 800 x 480 pixels
Color Depth 65536 colors
Communication PROFINET
Supply Voltage 24V DC
Memory 10240 kbyte
Operating Temperature -20 degC to +50 degC
Weight 0.98 kg
Dimensions 26.10 cm x 18.90 cm x 6.30 cm
Product Phase Active
Commodity Code 85371091
Export Control (ECCN) EAR99

Installation Guidelines

  • Mounting: Install the panel in a cutout on a control cabinet door or console according to the specified dimensions to maintain IP integrity.
  • Environmental Protection: The conformal coating provides protection against chemicals and moisture; however, ensure the panel is kept away from direct high-pressure spray or liquid submersion.
  • Power Supply: Ensure a stable 24V DC power source is connected; verify polarity before energizing the device.
  • Grounding: Properly ground the housing to the control cabinet frame to prevent electrostatic discharge (ESD) and improve electromagnetic compatibility.
  • Cable Routing: Use shielded cables for the PROFINET connection to prevent signal interference in high-EMI environments.
Key Features:
#HMI Operator Panels #Siemens Siplus Hmi

What is the main advantage of the SIPLUS version of this HMI?
The SIPLUS version includes a conformal coating on its internal components, allowing for operation in harsh environmental conditions and an extended temperature range of -20 degC to +50 degC.

Does this model support standard Ethernet communication?
Yes, it is equipped with a PROFINET interface, which supports standard Ethernet-based communication for integration into automation networks.

What is the display resolution of this KTP700 model?
The display has a resolution of 800 x 480 pixels.

Is this a new or obsolete product?
The 6AG1123-2GB03-2AX0 is currently an active product in the Siemens portfolio.
