Siemens 6AV7861-4TA00-1AA0 SIMATIC FP 17-inch Touch Display

Description

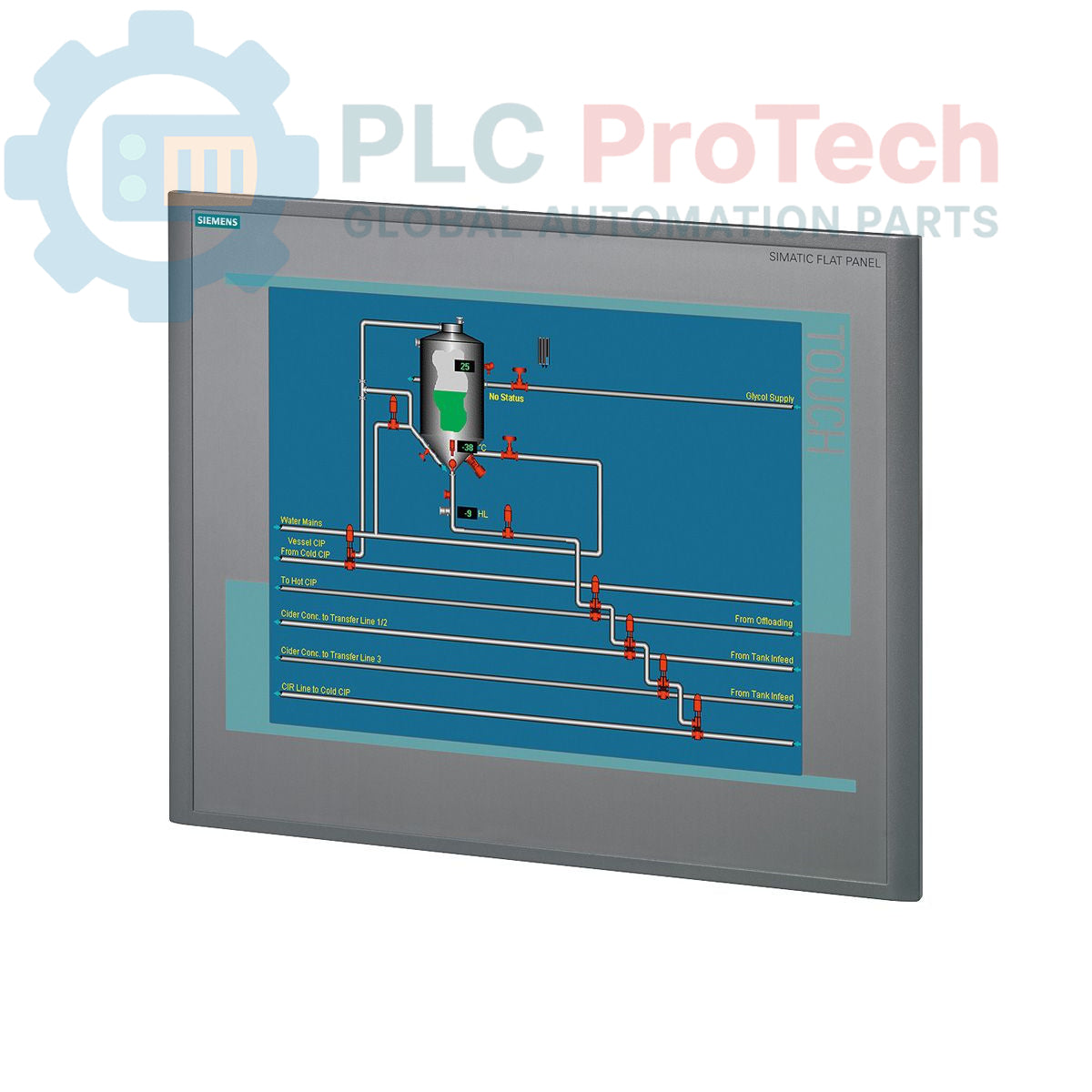

The Siemens 6AV7861-4TA00-1AA0 is a SIMATIC Flat Panel 17T industrial touch display designed for human-machine interface (HMI) applications. It features a 17-inch TFT screen with a native resolution of 1280 x 1024 pixels, providing clear and detailed process visualization. This unit operates on a standard 24V DC power supply and offers flexible connectivity with both VGA and DVI-D interfaces. A 1.8-meter VGA cable is included with the panel for direct connection to compatible industrial PCs or controllers.

Features

• 17-inch diagonal TFT touch display
• High-resolution 1280 x 1024 pixel screen
• Standard 24V DC power input
• Dual video inputs: VGA and DVI-D
• Includes a 1.8-meter VGA connection cable

Applications

• Machine-level operator control and monitoring
• Process visualization in manufacturing and production lines
• Industrial PC-based HMI systems
• Control room display units

Technical Specifications

Installation Guidelines

1. 1 Prepare the panel cutout according to the manufacturer's dimensional drawings. Ensure all surfaces are clean and free of burrs or debris to guarantee a proper seal.
2. 2 Insert the flat panel into the cutout from the front of the enclosure. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to maintain the IP rating. Do not overtighten.
3. 3 Connect the 24V DC power supply to the designated terminals, observing correct polarity. Use appropriately sized wiring for the load and secure the connections firmly.
4. 4 Connect the VGA or DVI-D cable from the display to the video source (e.g., industrial PC). Secure the connector screws to prevent accidental disconnection due to vibration.
5. 5 Ensure the chassis is connected to a reliable protective earth (PE) ground point within the control cabinet to minimize electrical noise and ensure safety.
