Manufacturer: ABB
Product No.: 200-CPU30/10
Country of origin:Sweden
Product Type: PLC CPU Modules
Barcode: 85389091
Payment: T/T, Western Union
Weight: 560g
Dimensions: 163 mm x 45 mm x 91 mm
Shipping port: Xiamen
Warranty: 12 months

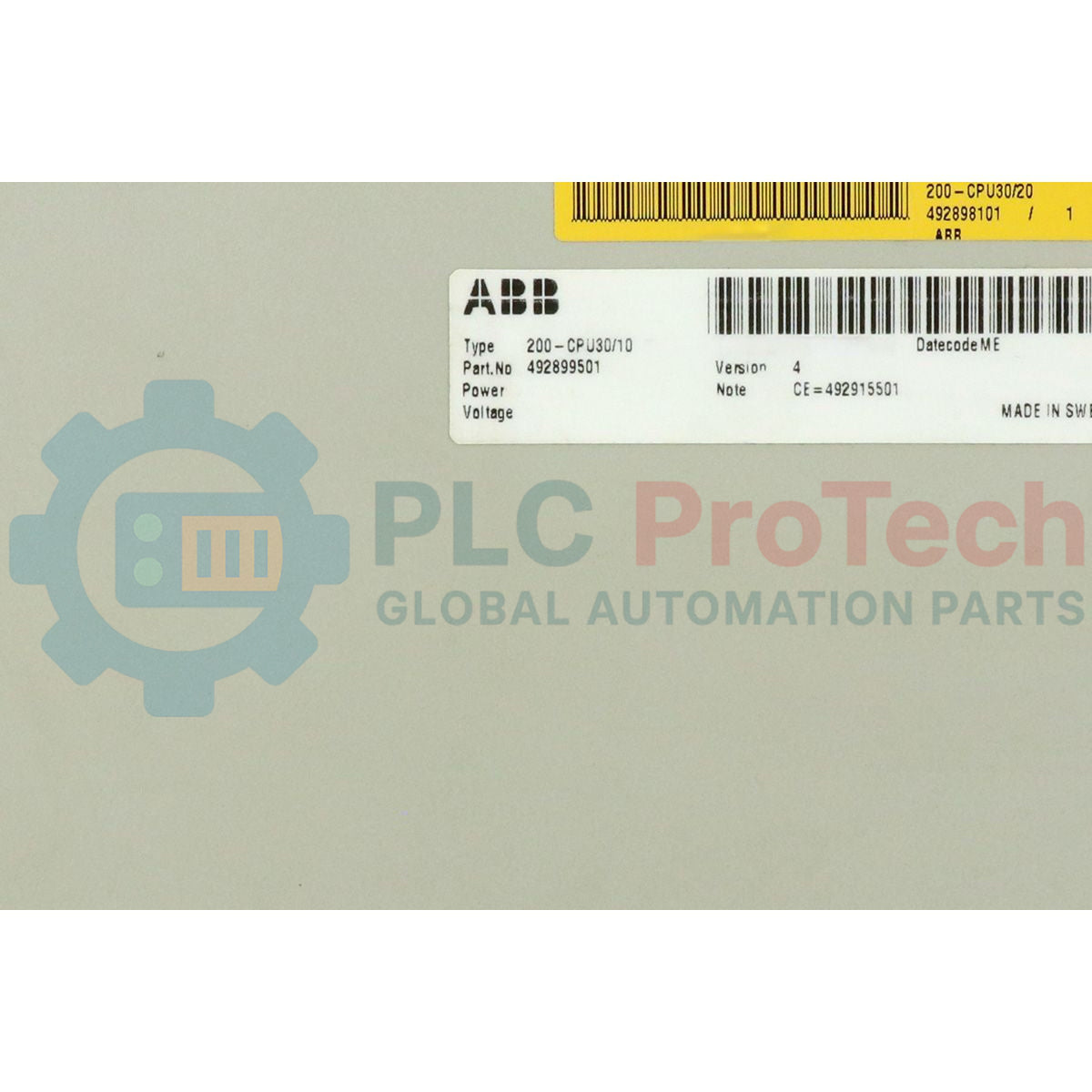

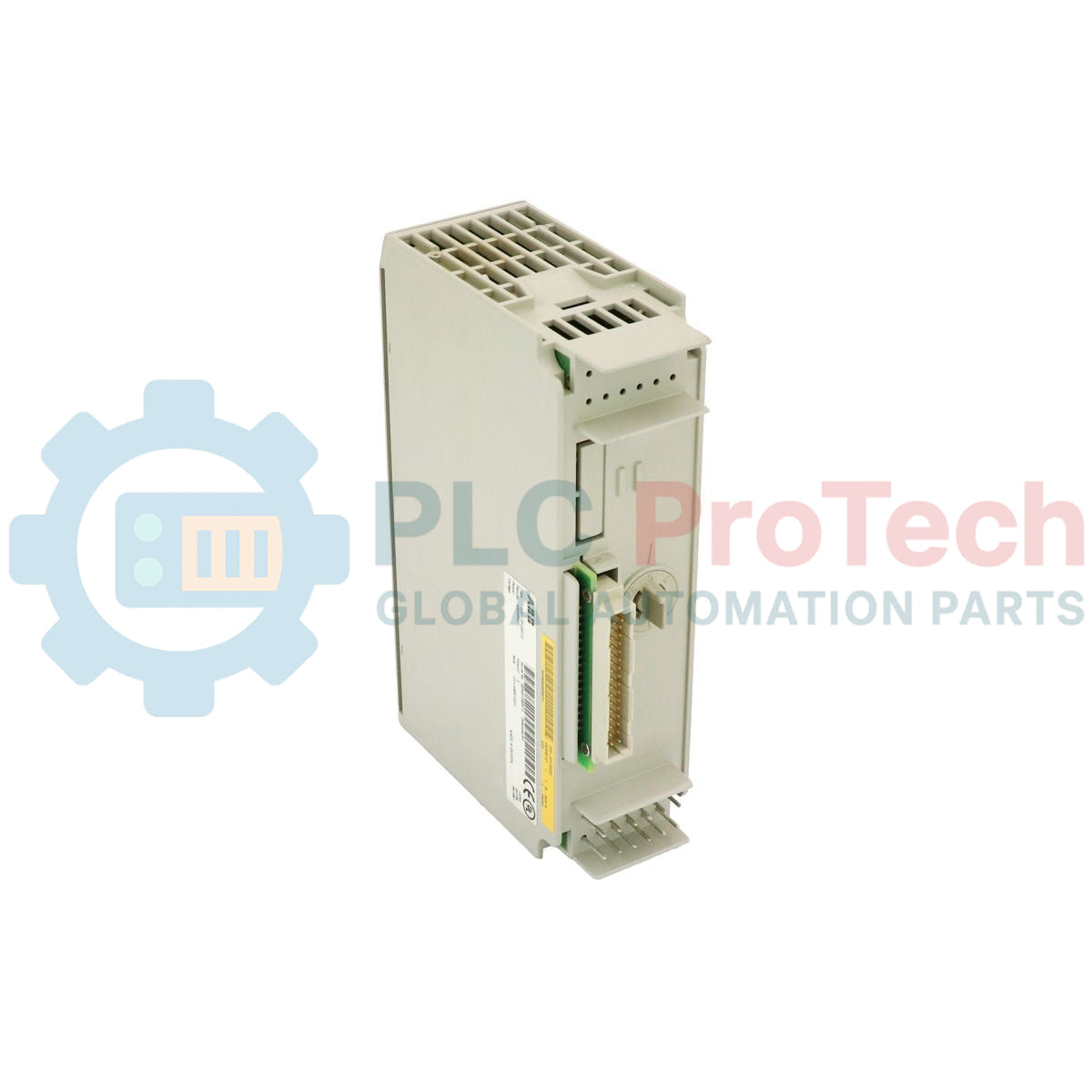

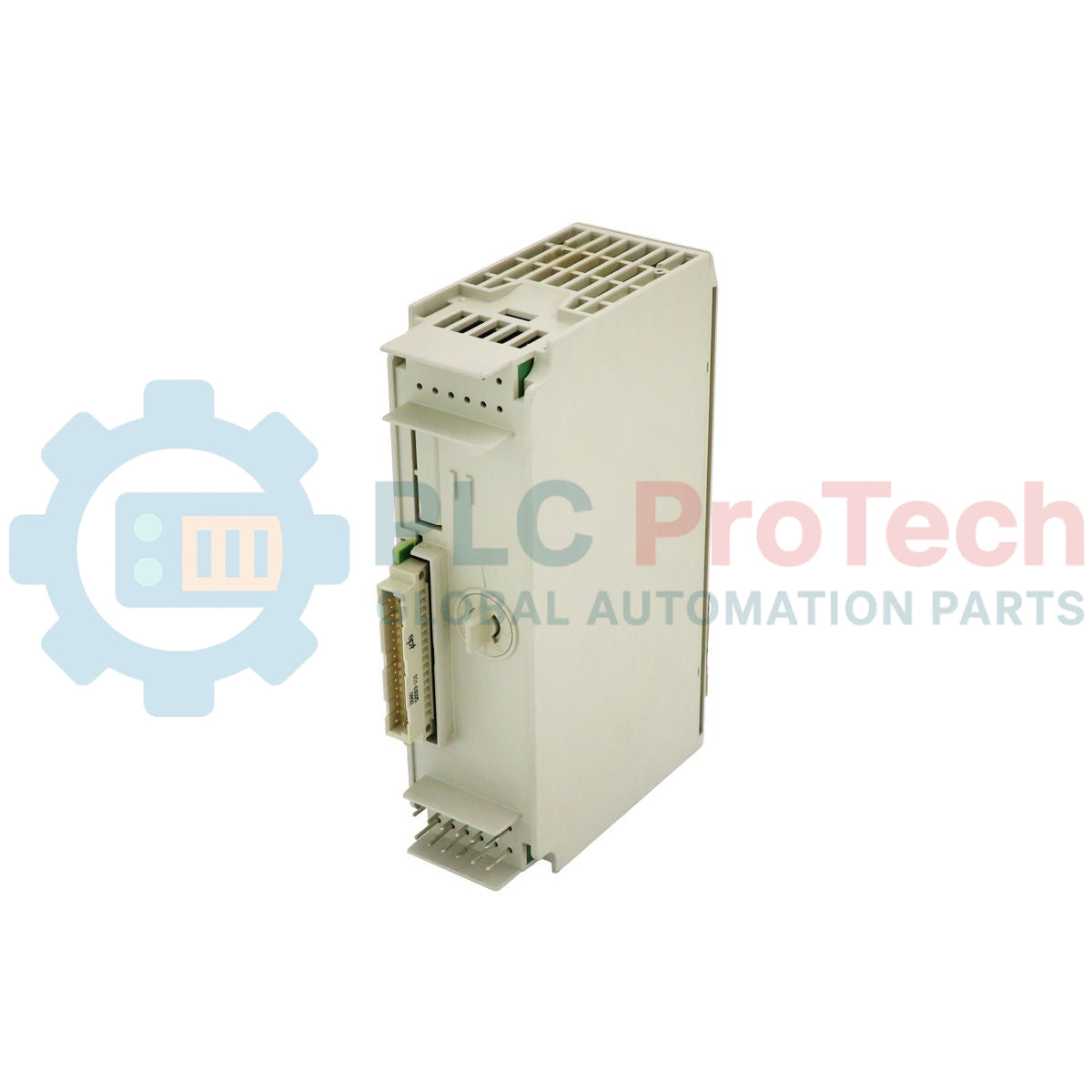

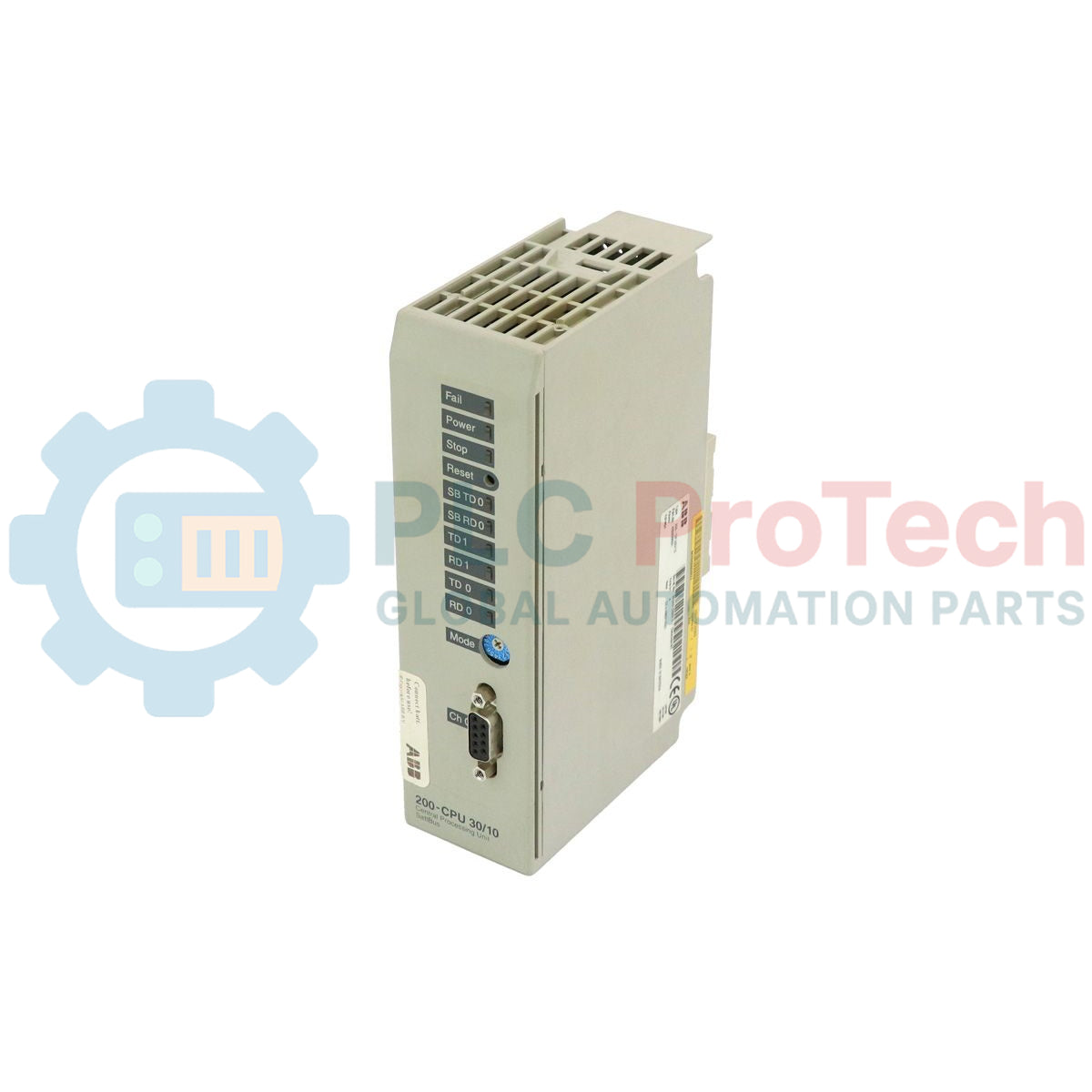

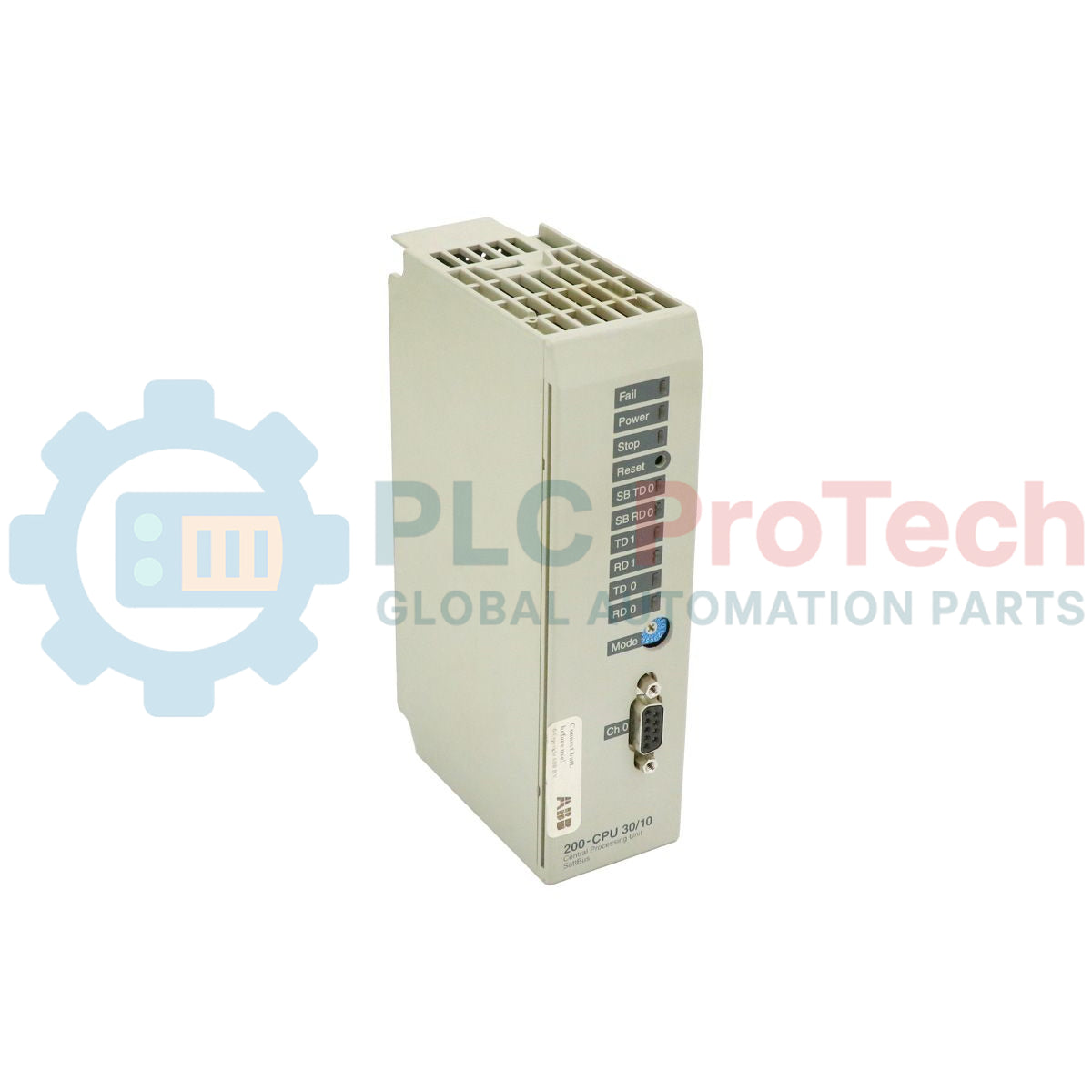

Designed for integration into SattCon 200 and SattLine control architectures, the ABB 200-CPU30/10 is a high-performance 32-bit single-board central processing unit optimized for demanding process control tasks. This module features an integrated math co-processor (FPU) for accelerated floating-point calculation performance and a built-in SattBus supervisor interface to facilitate seamless industrial network communication. Equipped with 2 MByte of RAM system memory and a real-time clock backed by a long-life lithium battery, this unit provides reliable, deterministic execution of automation programs. Normal operation requires a stable power-fail signal input from the companion power supply module, ensuring immediate, safe shut-down and data preservation in the event of voltage drops.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Series | Advant Controller 250 |
| Processor Type | Motorola MC68020 (16.7 MHz) with Math Co-Processor |
| System Memory | 2 MByte RAM |
| Supply Voltage | 24 V DC (19.2 to 30 V DC) with max 5% ripple |
| Internal Current Consumption | Max 0.6 A |
| Serial Interfaces | 2x RS232 Channels (Baud rates: 75 to 19200 bps, Max 15 m) |
| Network Interfaces | 1x SattBus supervisor channel |
| Backup Battery | Lithium 3.6 V, 1.75 Ah (Type AA/R6/UM-3), 3-year life |
| Backplane Key Code | 5 |
| Operating Temperature | +5 degC to +55 degC |
| Non-Operating Temperature | -25 degC to +70 degC |
| Humidity Range | Max 90% relative humidity, non-condensing |
| Protection Rating | IP20 |
| Certifications and Approvals | CE, EMC Directive 89/336/EEC, LVD 73/23/EEC, UL Listed (US/Canada), Class I Div 2 |
| Dimensions (H x W x D) | 163 mm x 45 mm x 91 mm (excluding connectors/snap locks) |
| Net Weight | 0.43 kg |
| Port / Terminal | Interface Type & Function |
|---|---|

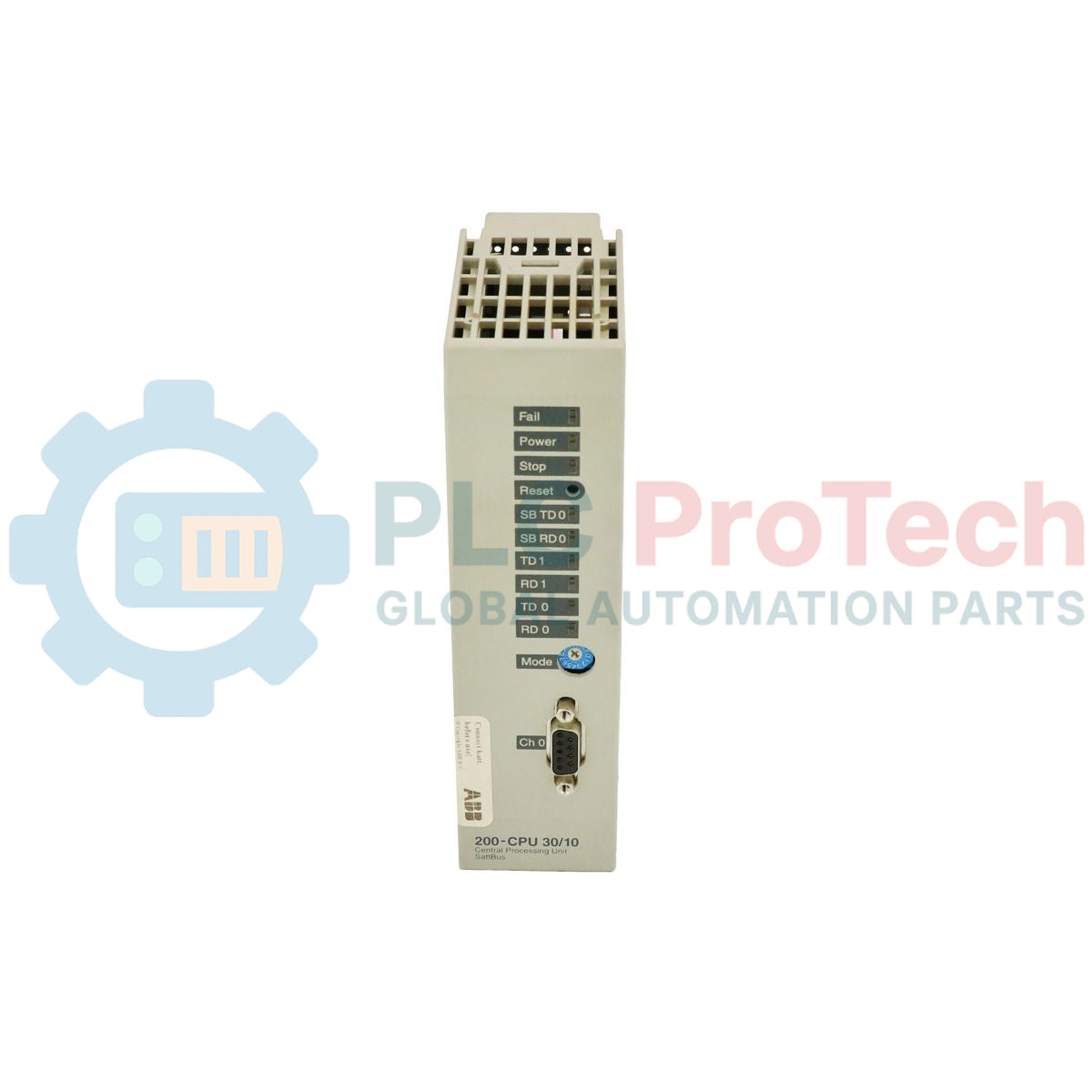

| Front D-Connector | 9-pin female D-type connector for direct programming and serial diagnostic interfacing |
| Base Connector | One 200-BPP screw terminal block interface |
| Backplane Interface | Direct ground connection and system power routing via the 200-BPN backplane |
The 200-CPU30/10 acts as an upgrade path for standard CPU30 series cards within the Advant Controller 250 family. It uses backplane key code 5; verify keyway compatibility on the 200-BPN backplane prior to insertion to prevent mechanical interference or pin damage. Ensure that system software configurations (SattCon or SattLine) are updated to match this specific hardware version to resolve potential addressing conflicts.
A common point of operational failure is the omission of the power-fail line signal. The 200-CPU30/10 requires active power fail signals routed from the 200-PSMG/PSSG power supply units. If these lines are severed or improperly configured, the controller will fail to execute application programs, displaying a permanent Stop state. Always measure voltage stability and verify the integrity of the 24 V DC supply under full I/O load conditions.
During initial commissioning, verify the physical position of the front-panel start-mode switch before powering up the assembly. This switch dictates how the program space loads on boot. To ensure maximum noise immunity for the RS232 serial links, ensure they do not exceed 15 meters and are routed in grounded, shielded conduits isolated from high-current AC cabling.
Disconnect all power sources from the backplane assembly before mounting, removing, or wiring the processor module. Static discharge can permanently damage delicate internal CMOS logic. Wear an approved, grounded ESD wrist strap during handling. Ensure the system backplane ground terminal is bonded to the main earth ground.
