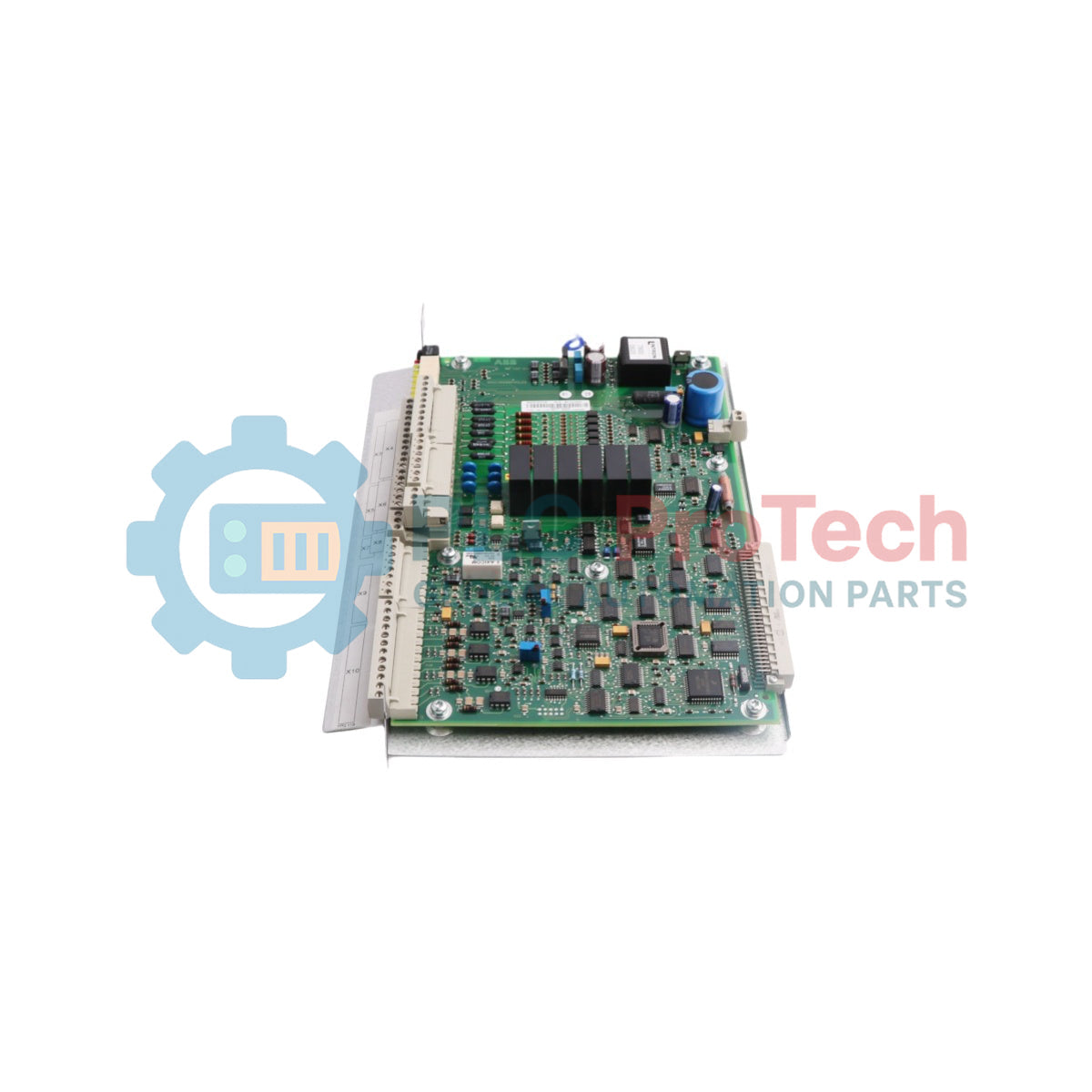

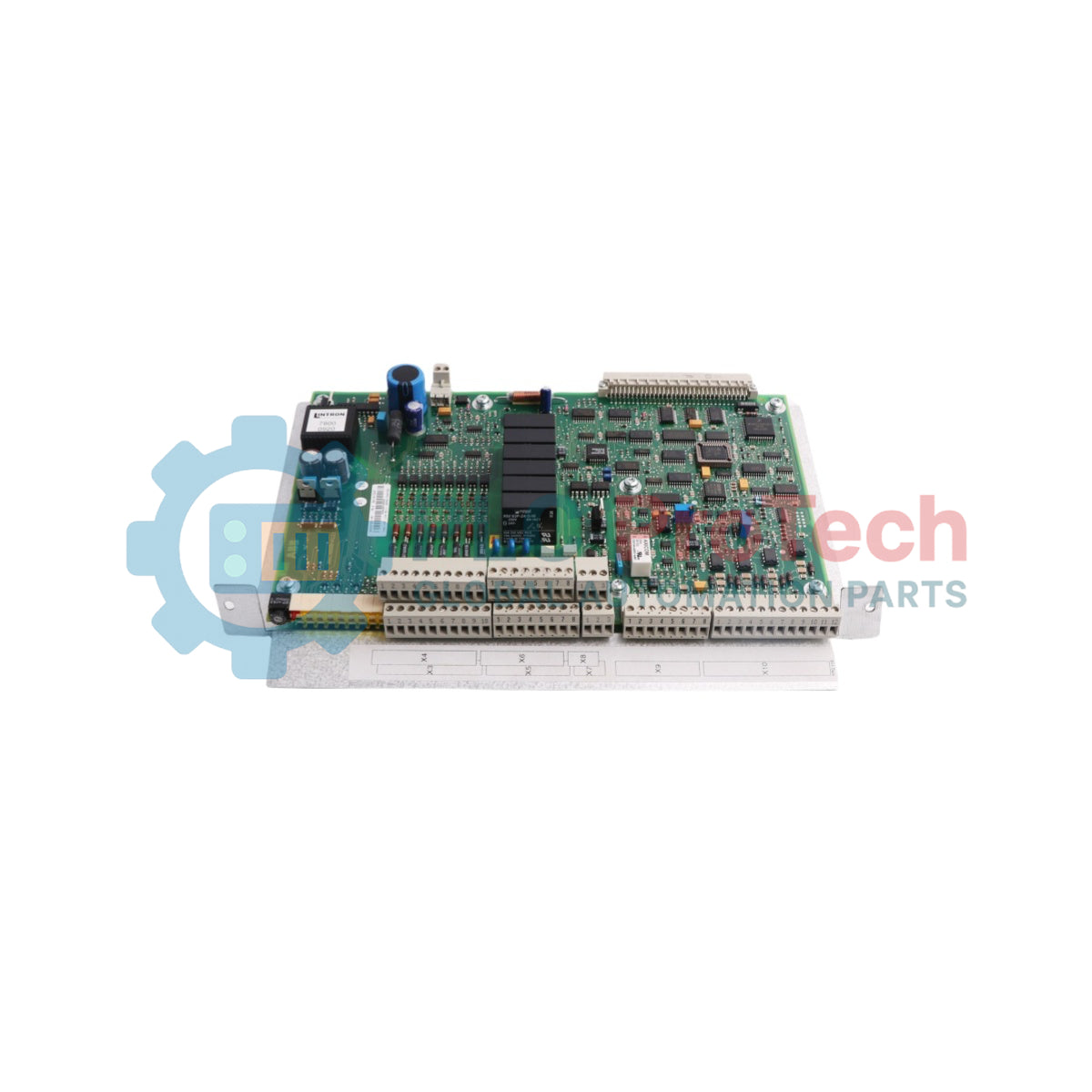

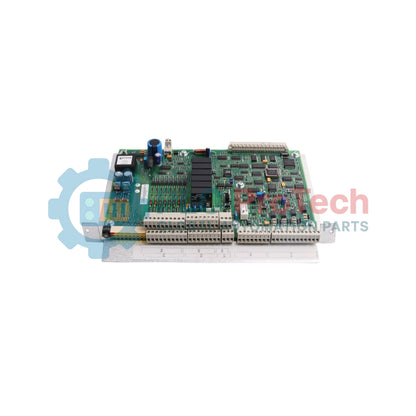

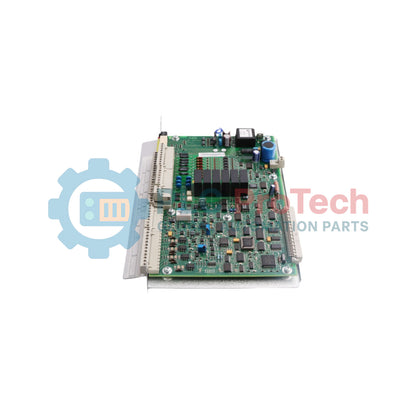

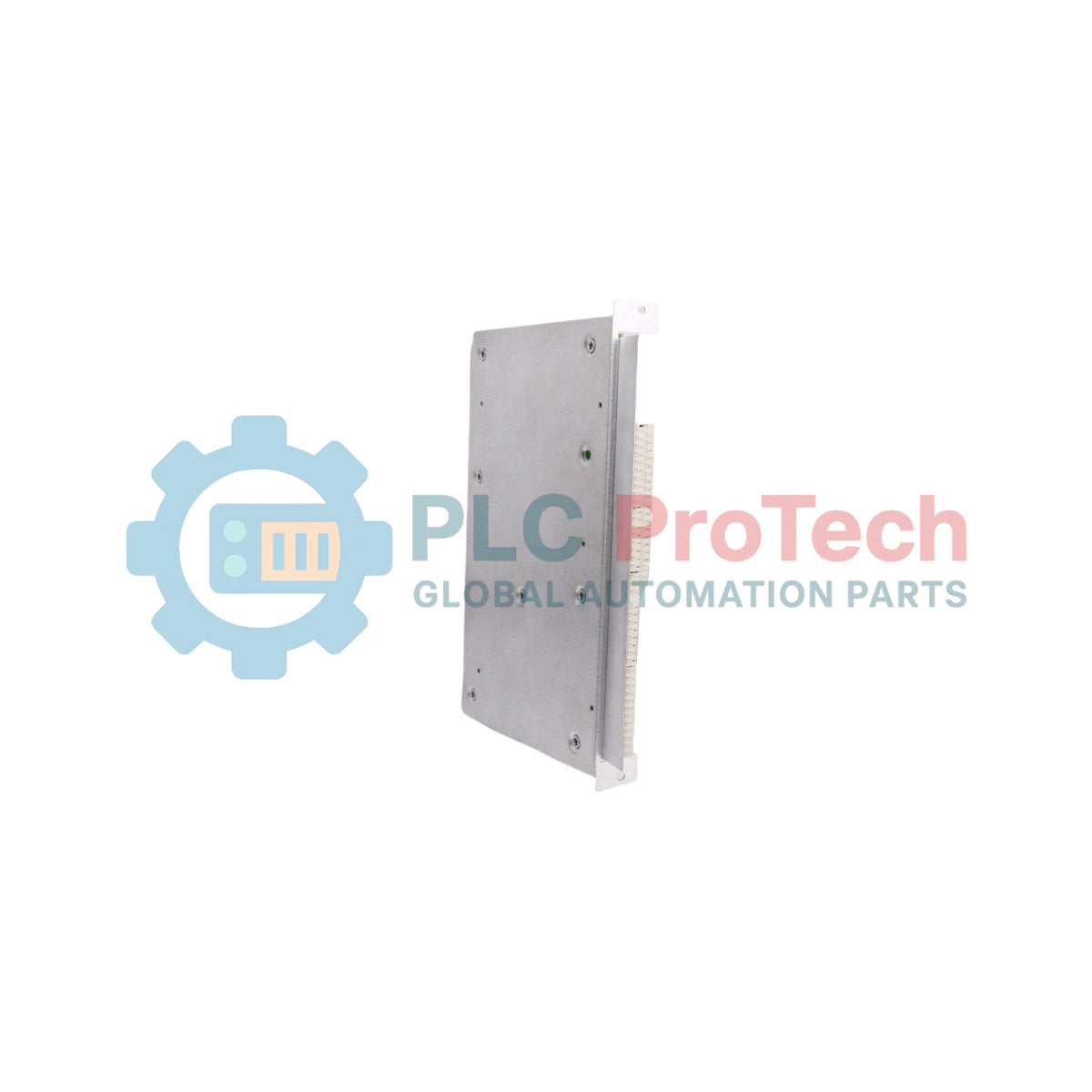

ABB 3ASD573001A5 YPQ 110A Legacy DC Drives Mixed I/O Board

Product Description

The ABB 3ASD573001A5 YPQ 110A is an industrial mixed input and output interface module engineered for legacy direct current and medium voltage alternating current drive control networks. Operating within critical processing systems, this ABB YPQ 110A board bridges field-level digital and analog telemetry with the drive processor to manage real-time loop feedback and internal control sequences. The hardware assembly is optimized for stable operations inside high-power power electronics enclosures, mitigating electromagnetic coupling and ensuring deterministic signal conditioning for heavy industrial drive infrastructures.

Features

• Consolidated Subsystem Design: Integrates mixed input and output channels onto a single printed circuit board assembly to reduce internal drive wiring complexity and point-to-point interconnect paths.
• Factory-Calibrated Interfaces: Features dedicated signal processing circuitry engineered to interface seamlessly with the processing backplane of legacy ABB drive units.
• Direct Form-Factor Compatibility: Serves as a direct-fit component for specialized drive control slots, maintaining strict signal integrity and mechanical alignment parameters.
• Interchangeable Support Pathway: Maintains structural compatibility with standard upgrade profiles, enabling straightforward migrations to updated platform architectures when system modernizations are mandated.

Applications

• Legacy DC Drive Systems: Installed as a core interface layer within classic ABB YGMV, YGMW, YHMV, and YHMW direct current drive topologies.
• Medium Voltage AC Infrastructure: Deployed inside TYRAK LCI legacy medium voltage alternating current drives to execute complex, high-power automation tasks.
• Heavy Industry Power Control: Utilized across metals, mining, and paper processing facilities where precise torque, speed, and feedback loops are regulated via centralized legacy drive control units.

Technical Specifications

Installation Guidelines

1. 1 Don a properly grounded electrostatic discharge wrist strap and attach it to a verified metallic earth reference on the drive framework before removing the card from its static-shielded packaging.
2. 2 Inspect the drive subrack slot rails for debris. Carefully realign the module card-edge connectors with the targeted backplane socket keys.
3. 3 Press firmly and evenly on the front faceplate handles until the module is fully seated into the bus. Tighten the retaining hardware to the specified torque limits to establish a proper electrical chassis ground.
4. 4 Reconnect all terminal blocks and signal harnesses. Perform a physical inspection to confirm that no wire strands are shorted to adjacent pathways before initiating the power-up sequence.
