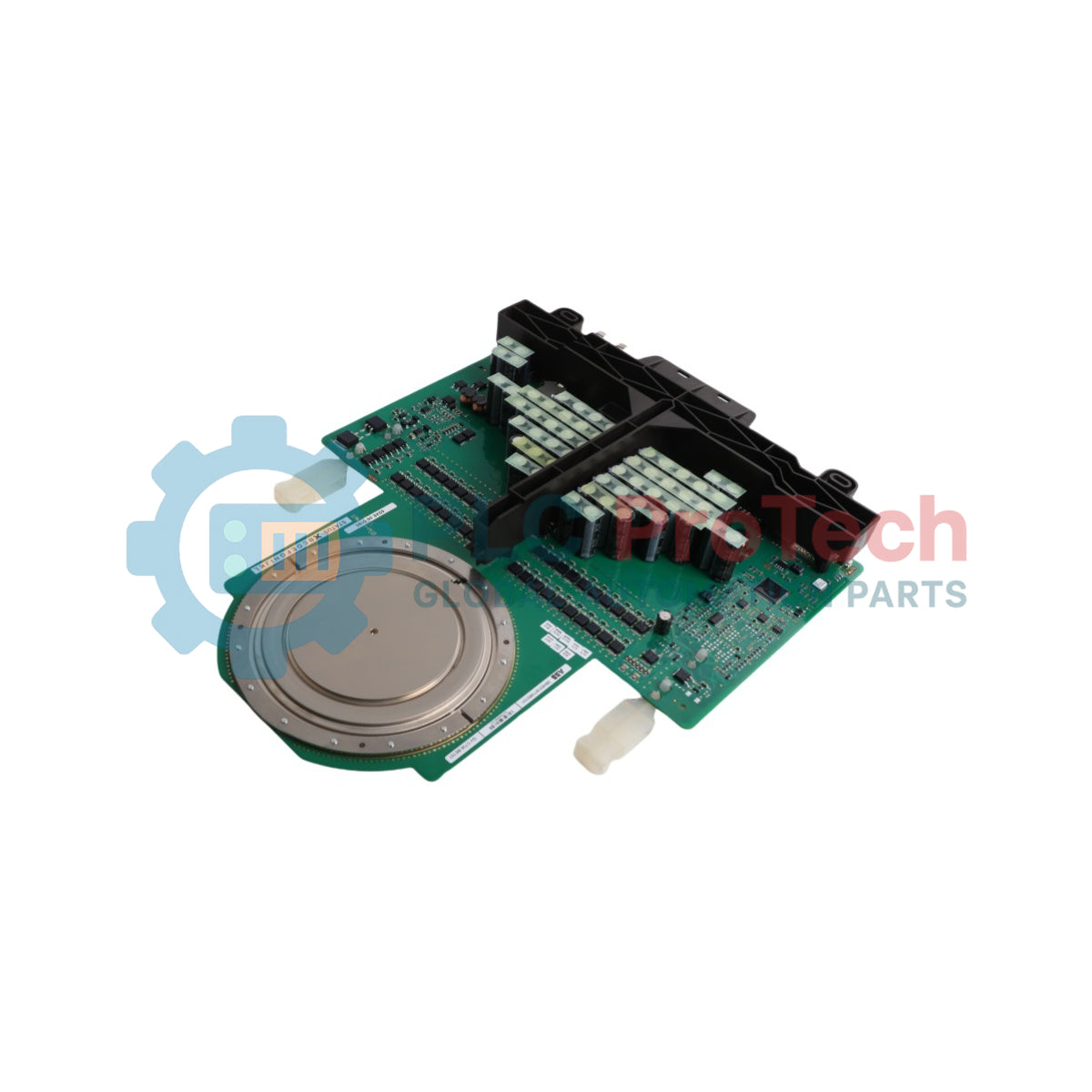

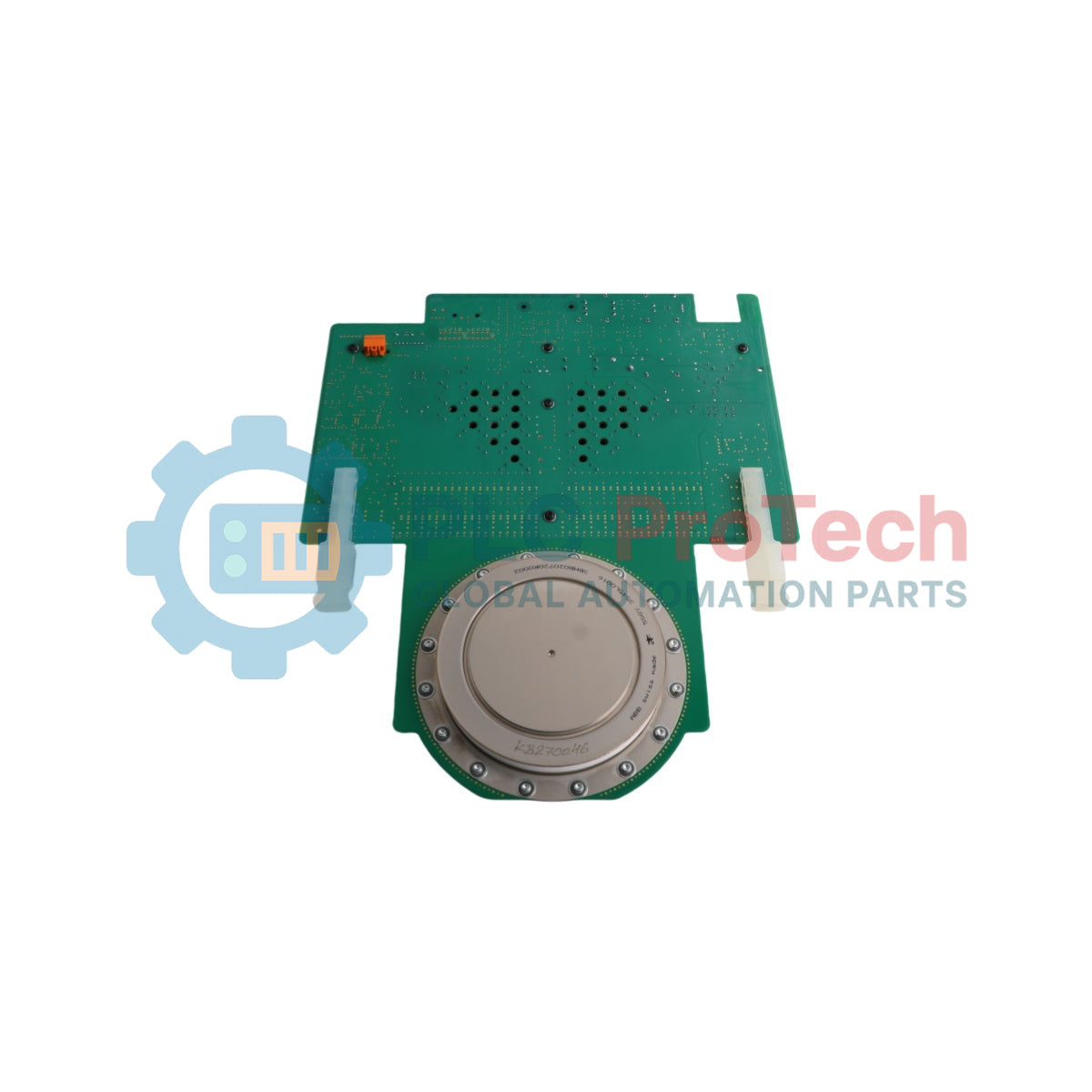

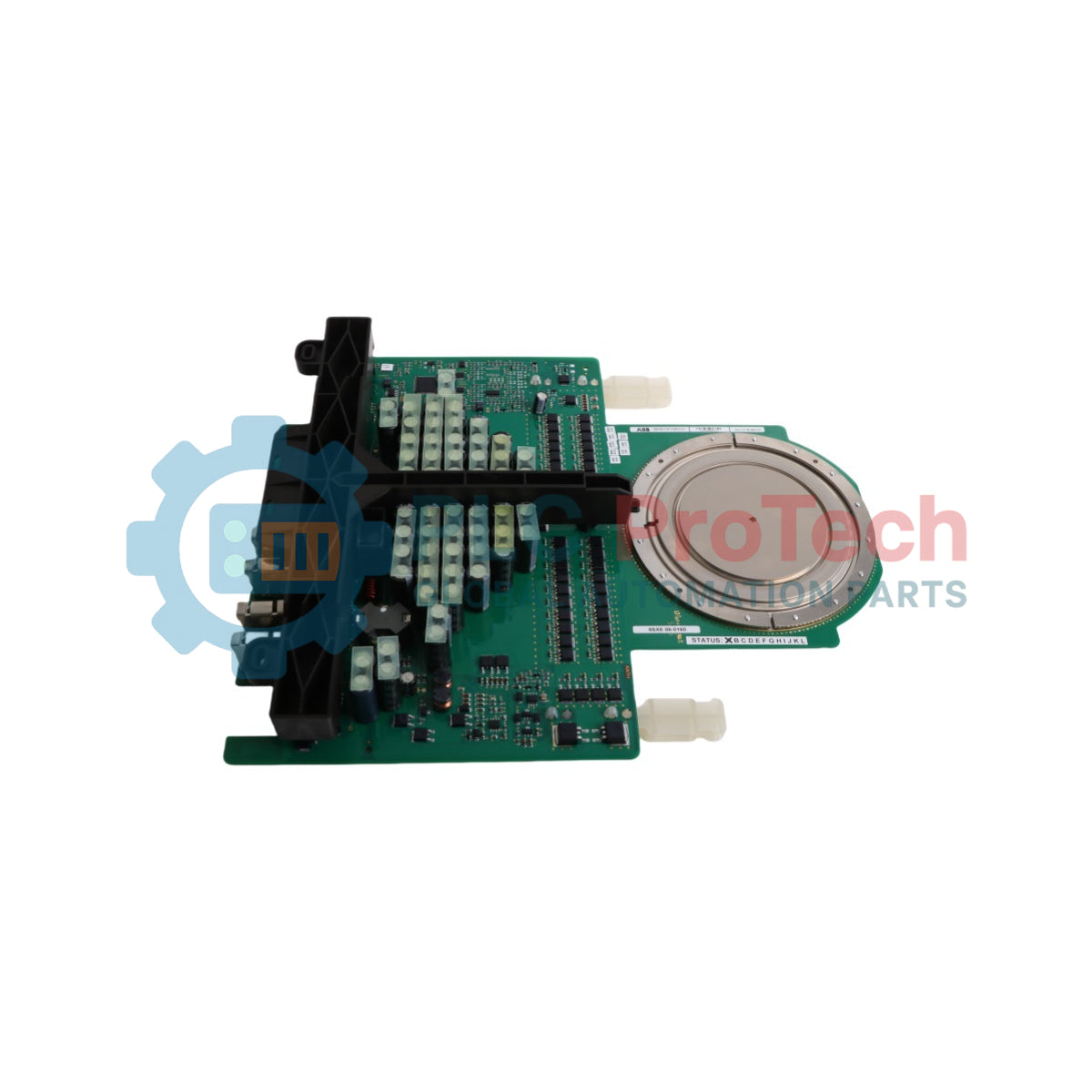

ABB 3BHB030310R0001 5SHY 4045L0006 PCS6000 IGCT Module

Description

The ABB 3BHB030310R0001 5SHY 4045L0006 is an Integrated Gate-Commutated Thyristor (IGCT) semiconductor module engineered for press-pack stack mounting within ABB PCS6000 medium-voltage drive architectures. It serves as a core switching element in phase power modules (POU) and drive line units (DLU), executing high-efficiency power conversion in demanding heavy-industrial applications. The IGCT Module combines a high-voltage semiconductor switch with an integrated gate driver board, interfaced via fiber-optic connections to ensure complete electrical isolation and high electromagnetic immunity. Utilized within liquid-cooled semiconductor stack assemblies, this device supports stable switching performance in wind power generation, shore-to-ship power conversion, and medium-voltage motor control systems.

Features

• Integrated gate driver board connected via fiber-optic cables for interference-free switching control.
• Designed for press-pack liquid-cooled heat sink assemblies within PCS6000 power modules.
• Directly compatible with FADEC 3 semiconductor inspection tools for gate-cathode and state testing.
• Precision-engineered press-pack structure optimized for thermal dissipation under uniform clamping torque.
• Essential switching component for medium-voltage system drive converters.

Applications

• ABB PCS6000 medium-voltage system drives
• Wind turbine power converter systems
• Shore-to-ship static frequency converters
• Medium-voltage industrial drive systems and power conversion units

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Safety Isolation: Fully de-energize the drive system and follow the standard 7 steps that save lives. Ensure all main power, external control voltages, and auxiliary supplies are isolated and tagged out.
• Grounding & ESD Precautions: Connect the grounding kit (3BHE039277R0001) to phase and PE connections prior to touching internal components. Wear appropriate ESD protection when handling gate unit circuit boards.
• Cooling System Preparation: Depressurize and drain the liquid cooling circuit before releasing semiconductor stack pressure to prevent coolant spills inside the cabinet.
• Stack Release: Install stabilizer plates into the power module framework. Loosen clamping bolts in the specified order and apply the mechanical spreading tool (3BHE041414R0001) over the heat sinks to open the stack gap.
• Module Handling: Disconnect fiber-optic cables and auxiliary wiring. Unbolt gate unit fixations and carefully extract the IGCT module without applying mechanical force to the gate board or pole surfaces.
• Clamping & Alignment: Ensure heat sinks and pole pieces are properly centered during reassembly. Relieve the spreading tool and tighten clamping bolts using calibrated pressure loading gauges to achieve accurate contact force.

Compliance and Certifications

• ANSI Z535.6
• ISO 7010 / ISO 3864-2
• EN 50110 (Electrical Work Safety)
