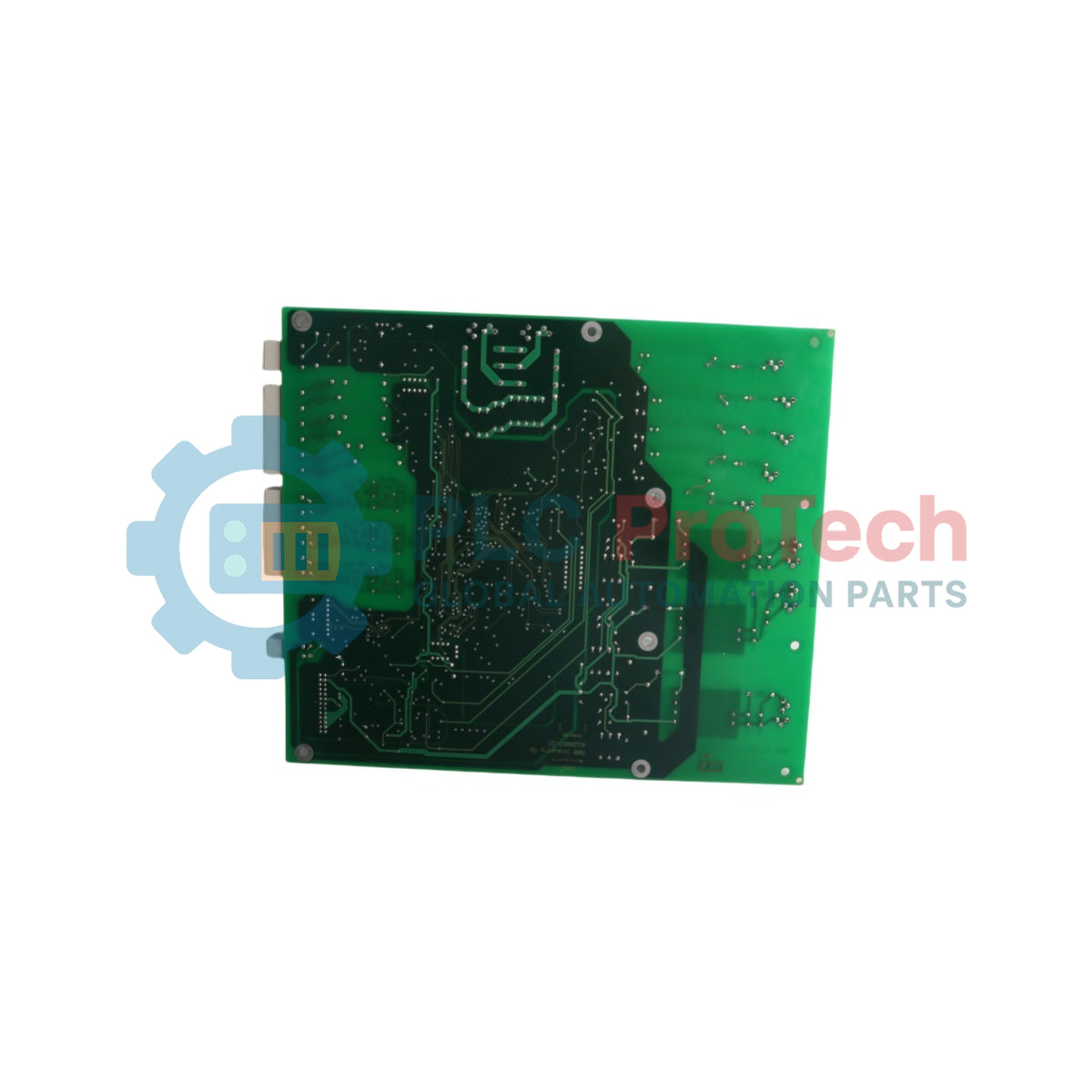

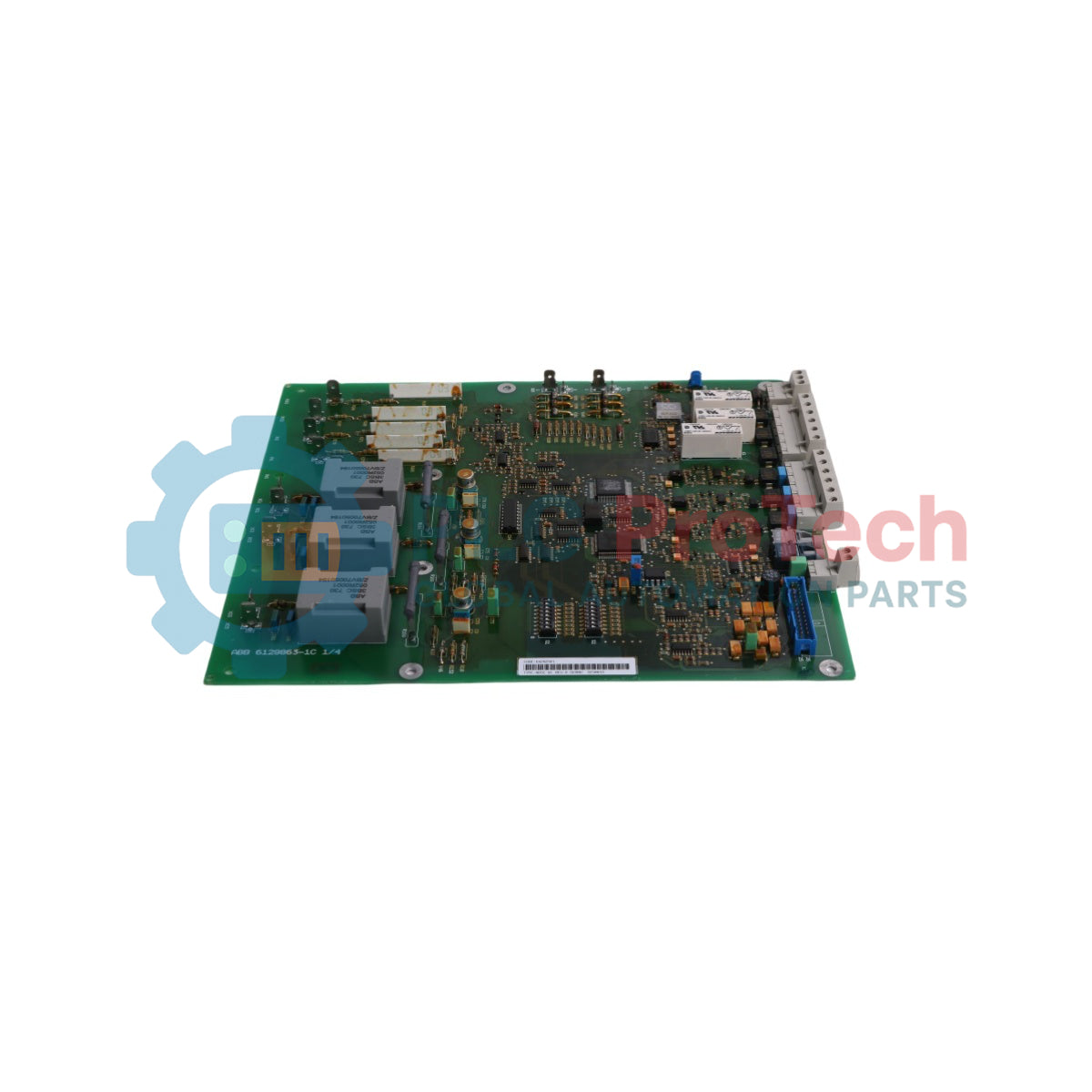

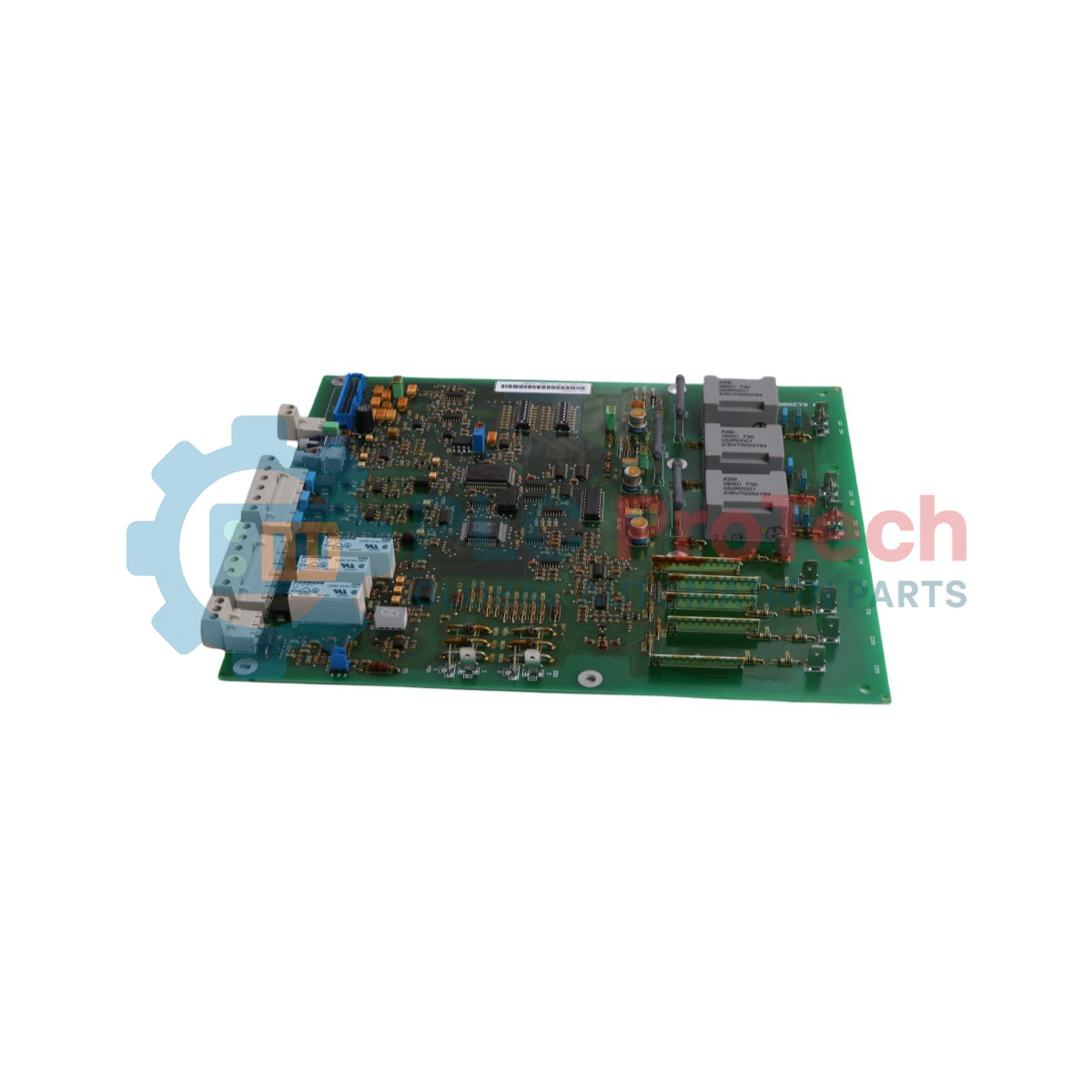

ABB 61298487 ACS 600 DSU CONTROL NDSC-01

SKU NDSC-01 61298487

In stock

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: NDSC-01 61298487
Origin Sweden
Product Type: DSU Control Board
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.8 kg
Dimensions: 28 cm x 23.2 cm x 2.5 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The ABB 61298487 is a dedicated DSU CONTROL NDSC-01 control board engineered for the ACS 600 frequency converter series. It serves as the primary hardware processing unit for Diode Supply Units (DSU) managing six-pulse and twelve-pulse half-controlled rectifier bridges. The device directly supervises high-ohmic AC line voltage sensing, DC busbar measurements, synchronization timing, and gate pulse generation for the power semiconductors. It integrates software logic to ensure seamless execution of charging modes and normal operational tracking within continuous current configurations.

Features

Complete control board layout integrating three galvanically isolated digital inputs and three relay outputs.
Onboard high-ohmic resistor chains supporting high-voltage tracking up to actual network levels without standard external scaling.
Dedicated DDCS communication link interfaces and localized diagnostic tracking via a 7-segment hardware display.
Configurable operational parameters utilizing twin 8-way integrated DIP switches for rapid configuration adjustments.

Applications

Half-controlled rectifier bridge tracking within continuous industrial DC link assemblies.
Multi-pulse system coordination for parallel diode supply modules.
Active phase synchronization oversight and system protection routines in industrial frequency converters.

Technical Specifications

Parameter	Value
Manufacturer	ABB
Product ID	61298487
Product Name	DSU CONTROL NDSC-01
Replacement Product ID (NEW)	64560930
Country of Origin	Finland (FI)
Customs Tariff Number	85049099
Digital Inputs	3 channels (galvanically isolated, 10 ms time constant)
Digital Input Voltage Range	24 VDC ... 230 VAC
Digital Outputs	3 + 1 relay outputs (1500 VAC channel test voltage)
Auxiliary Output Supply	+24 VDC (500 mA, fuse protected)
Net Weight	0.8 kg
Gross Weight	0.8 kg

Connections/Interfaces

Connector Pin	Function
X1 Pins 1 and 2	Connection interface for an optional current transformer with a 400/1 A ratio
X1 Pins 1 and 3	Alternative 24 VDC auxiliary digital input for earth fault indicator tracking
X2 Pins 1, 2	Digital Input 1 (DI1) connection terminal
X2 Pins 3, 4	Digital Input 2 (DI2) connection terminal
X2 Pins 5, 6	Digital Input 3 (DI3) connection terminal
X3 Terminal	+24 VDC fuse-protected auxiliary power output connection
X4 Pins 1, 2	Relay Digital Output 1 (DO1) connection terminal
X4 Pins 3, 4	Relay Digital Output 2 (DO2) connection terminal
X4 Pins 5, 6	Relay Digital Output 3 (DO3) connection terminal
TXD / RXD	DDCS fiber optic communication links for overriding systems

Installation Guidelines

Isolate all electrical source networks before commencing mounting or terminal connection routines.
Fasten the card assembly inside the chassis envelope using original metallic mounting supports to establish functional ground contacts.
Set the target configuration criteria matching application specifications via the 8-way integrated DIP switches before operational initialization.
Route internal wiring clear of raw high-voltage power paths to lower EMI coupling risks across the 10 ms low-pass terminal filters.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the voltage range supported by the digital inputs on the module?

The digital inputs are self-adaptive and support an operating voltage range from 24 VDC up to 230 VAC.

What happens if an earth fault is identified by the device?

If an earth fault current exceeds the software limit, the device executes a protective trip loop and lists code F05 on the 7-segment display.

Are the actual main circuit voltage signals on the board isolated?

No, the main circuit actual voltage monitoring loops for lines U1, V1, W1, Uc1, and Uc2 are not galvanically isolated.
