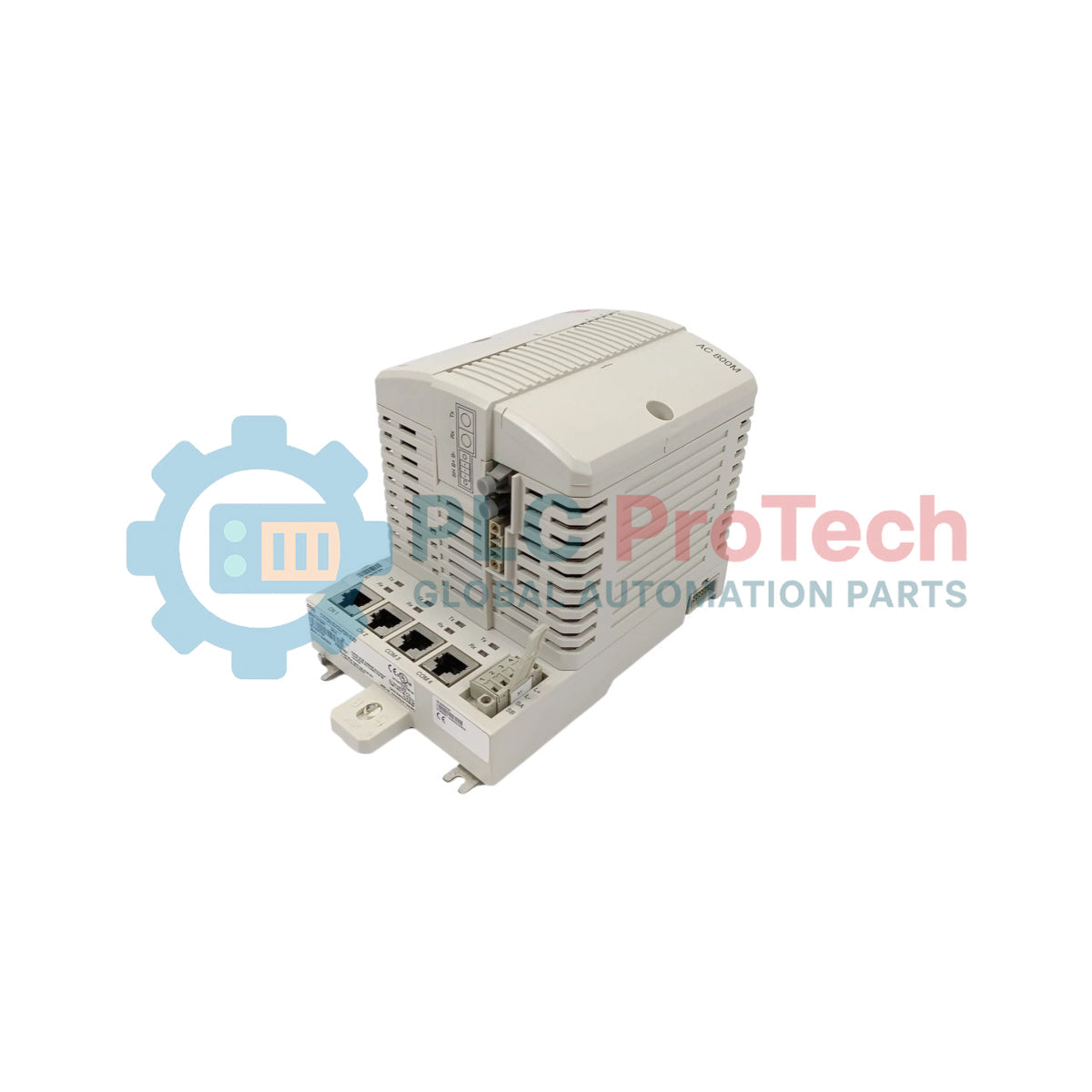

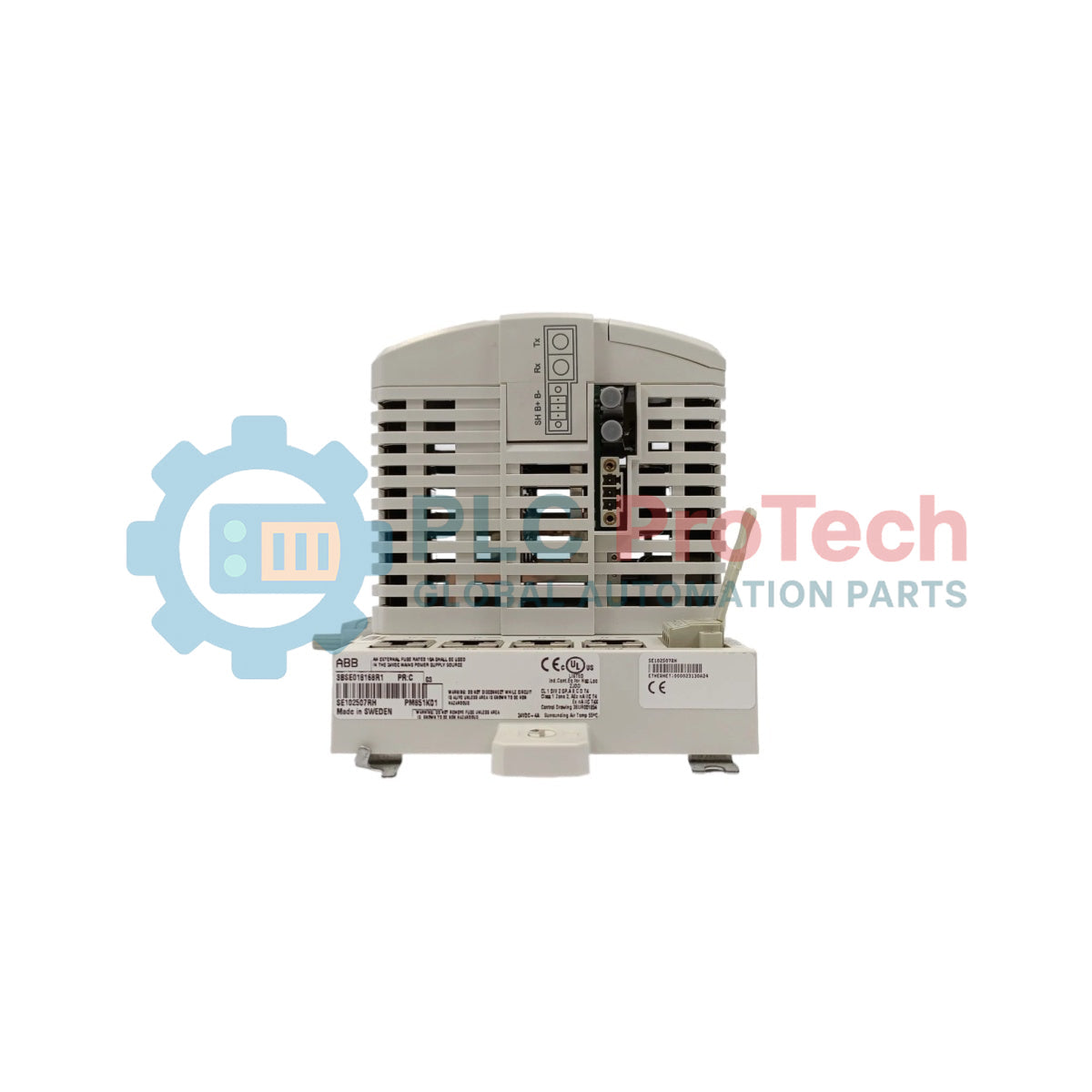

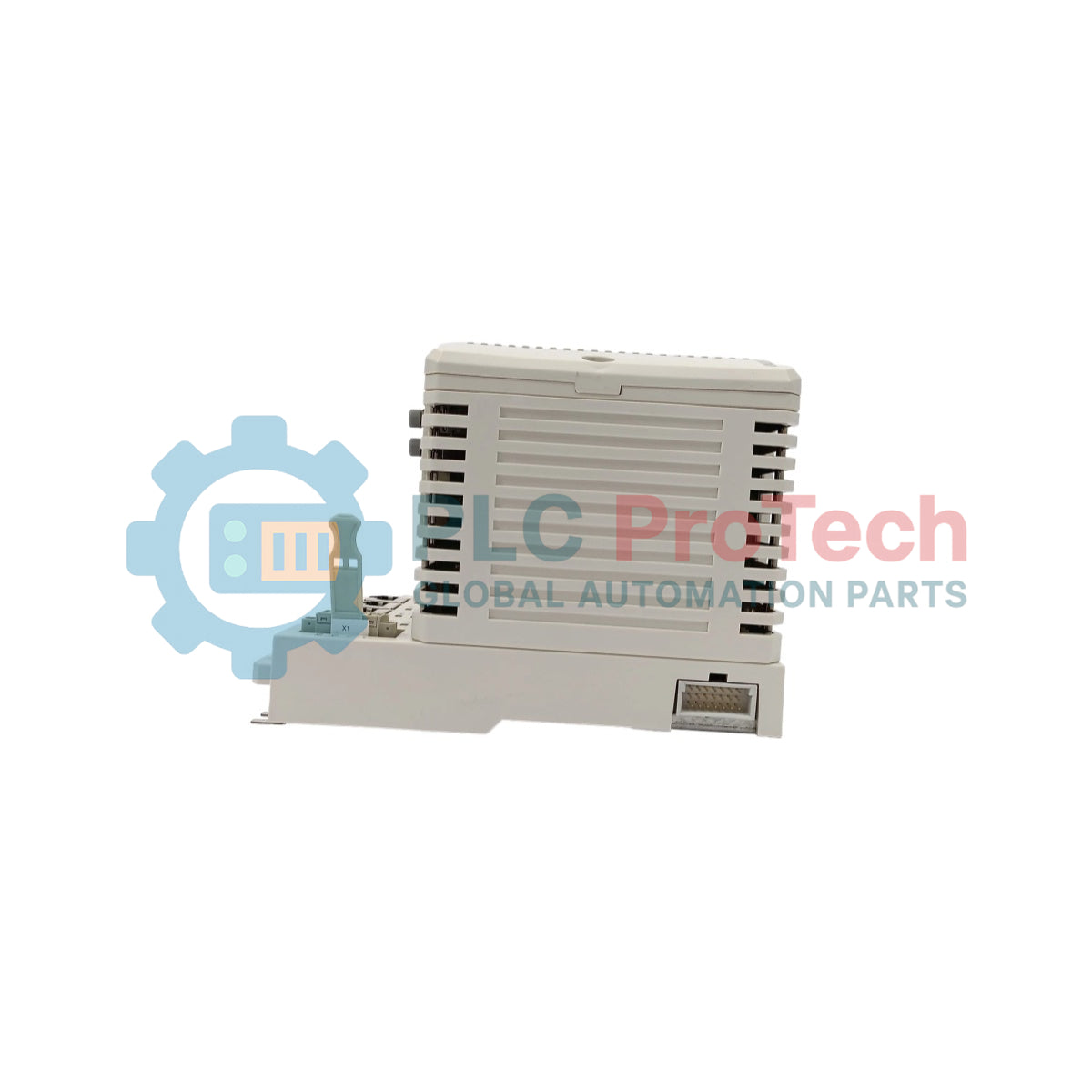

ABB AC 800M SM812K01 3BSE072270R1 Safety CPU Module

Description

The SM812K01 is a high-integrity processing component built to execute safety-critical automation tasks within specialized distributed control systems. Functioning as a dedicated safety CPU module, this device provides secondary logical verification, diverse execution pathways, and comprehensive hardware diagnostics to protect complex industrial processes from reaching hazardous operational states.

This module is certified for use in applications requiring up to SIL3 (Safety Integrity Level 3) capabilities according to IEC 61508, enforcing strict adherence to safety interlocks and protective emergency shutdown loops. To ensure proper risk mitigation and correct baseline operation, the system requires configuration according to the official Safety Manual. The hardware package comes compiled as a complete installation kit, including the core safety module, a robust baseplate, and a high-speed synchronization link cable to maintain real-time mirror processing with primary control lines.

Features

• High-Integrity SIL3 Certification: Fully certified to manage high-risk safety barriers, emergency interlock deployments, and critical protection loops under strict validation protocols.
• Comprehensive Hardware Kit: Dispatched with the SM812 Safety Module, the TP868 Baseplate, and a TK852V10 synchronization link cable for immediate physical deployment.
• Deterministic Processor Pairing: Engineered to work directly alongside main controllers to run parallel diagnostic loops and dual-channel execution paths without increasing processing latency.

Applications

• Emergency Shutdown Systems (ESD) across large petrochemical, chemical, and refining processing operations.
• Burner Management Systems (BMS) requiring strict flame failure monitoring, ventilation sequencing, and fuel gas interlock protection.
• High Integrity Pressure Protection Systems (HIPPS) in oil and gas extraction plants and pipeline transmission terminals.

System Compatibility

The processing architecture limits direct physical and software coupling to the following approved system combinations:

• Approved CPU Controllers: PM857, PM863, and PM867 central processing units.
• Software / Environment Platform: Only compatible for 800xA 6.0.2 and onwards control environments.

Technical Specifications

Installation Guidelines

• Complete Power Source Isolation: Isolate all high and low potential auxiliary logic supplies servicing the mounting rack before inserting the baseplate framework. Confirm zero voltage state at input bus connections before locking the hardware down.
• Electrostatic Discharge Safeguards: This safety-critical module contains sensitive micro-circuits prone to logic-altering degradation from electrostatic transfer. Technicians must be continuously bonded to the metal system frame using a grounded ESD strap during handling.
• Baseplate and Synchronization Alignment: Firmly attach the TP868 baseplate to the DIN rail network before mounting the CPU. Connect the TK852V10 synchronization link cable evenly between ports, confirming the locking collars click completely into place to secure the mirror processing track.
• Safety Qualification Validation: To comply with official plant safety regulations, local field teams must verify engineering qualifications and configure the functional blocks in strict accordance with the dedicated AC 800M Safety Manual.

Compliance and Certifications

• SIL3 certified for use in high-integrity functional safety systems according to IEC 61508.
• Following EU Directive 2011/65/EU (RoHS compliance standard).
