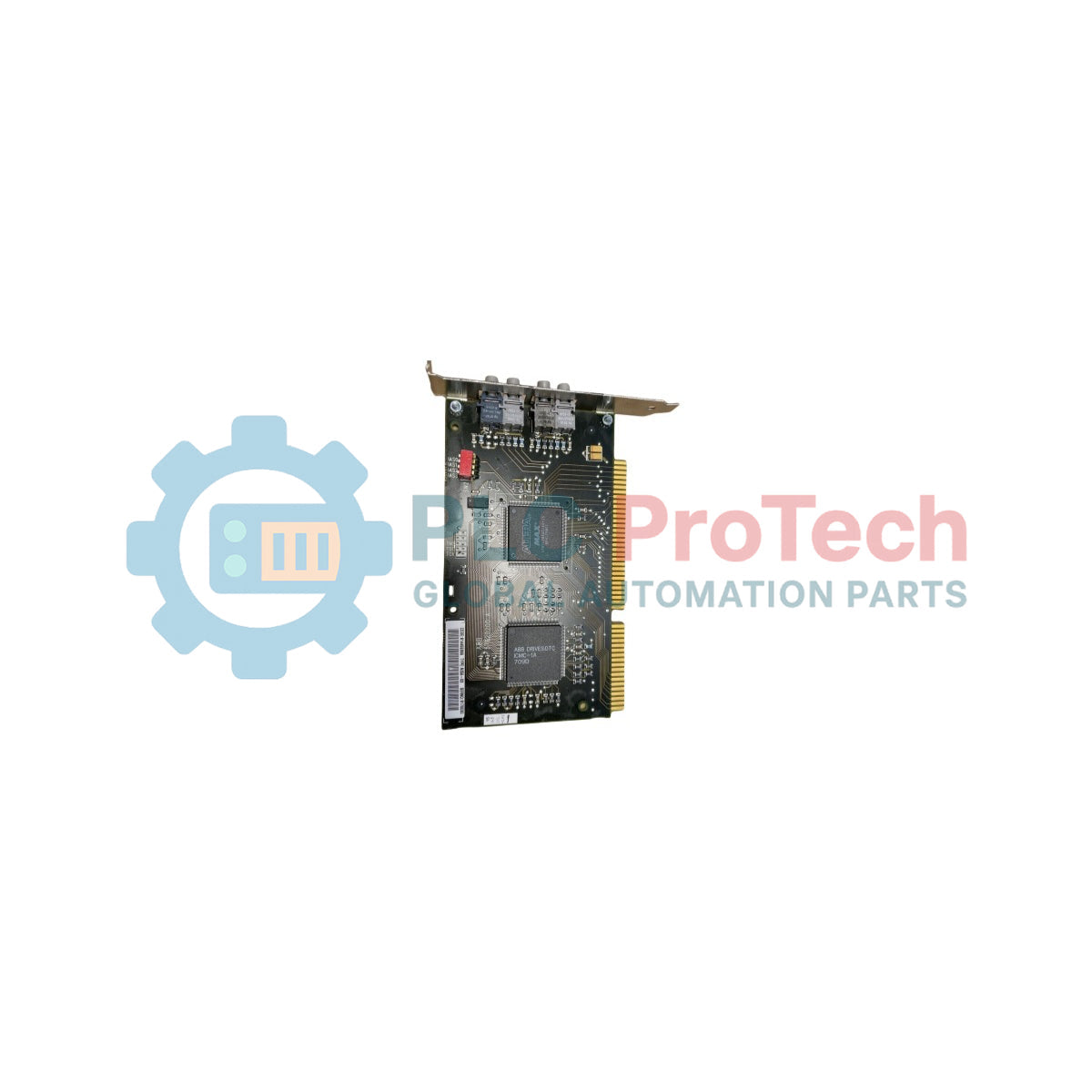

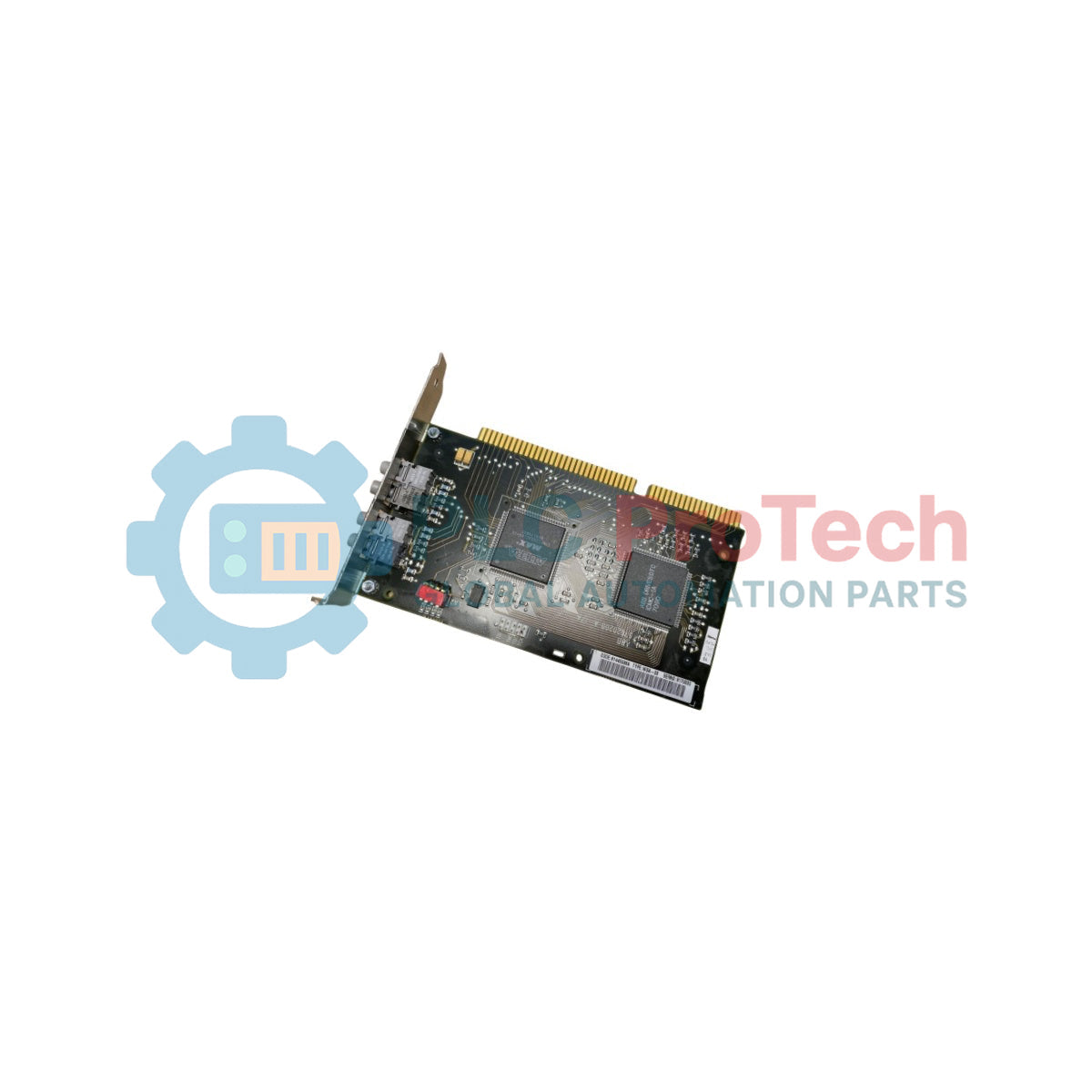

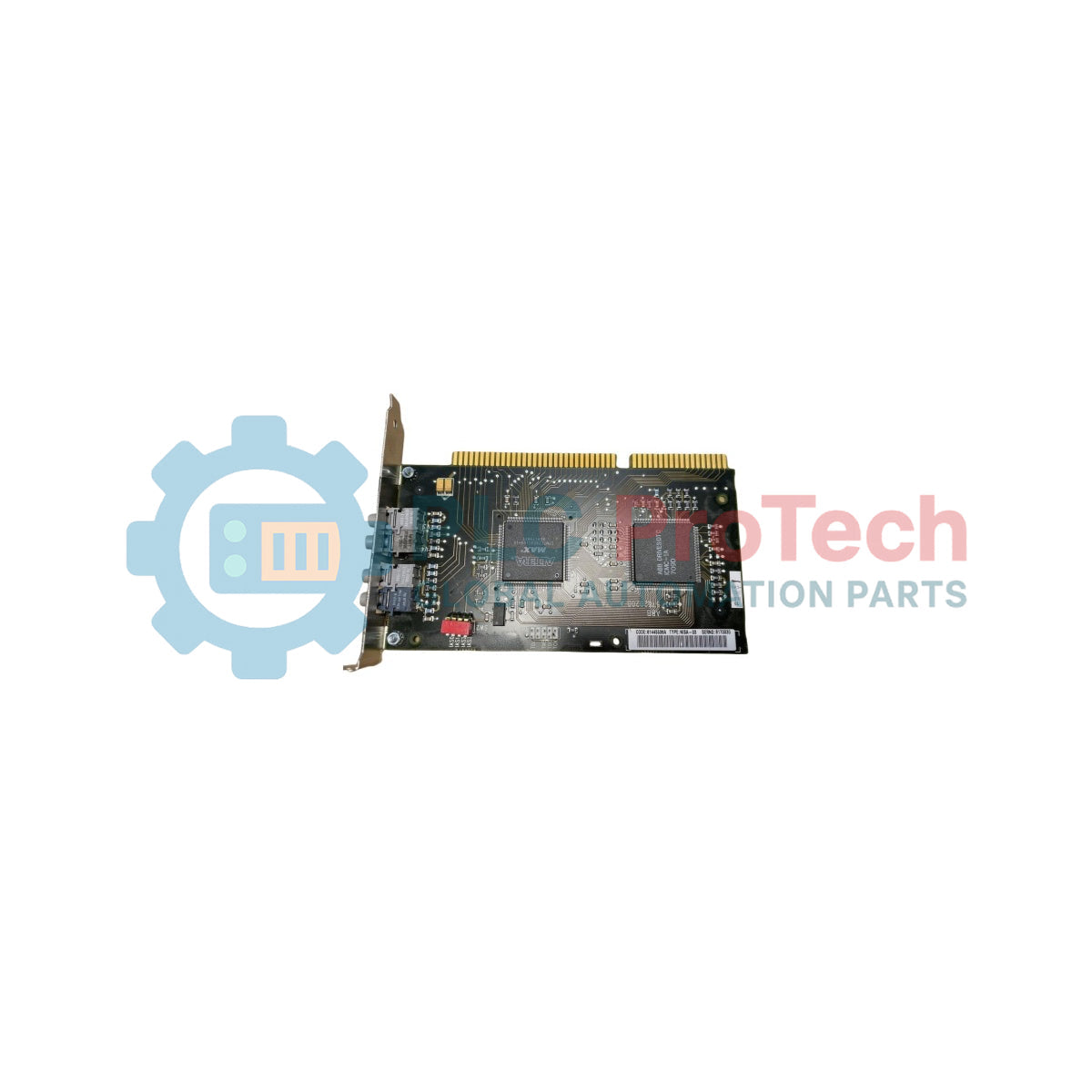

ABB NISA-03 DDCS/ISA Adapter interface Board

SKU NISA-03

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB

  • Product No.: NISA-03

  • Country of origin:Finland

  • Product Type: Communication Adapter Boards

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 100g

  • Dimensions: 2.5 cm x 12.7 cm x 17.8 cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The NISA-03 is a specialized DDCS/ISA adapter interface board configured to enable direct control and monitoring of the ABB ACS 600 product family drives (also referred to as ACx 600) from a personal desktop computer. This electronic adapter board establishes a high-speed communication link that permits the execution of DriveWare PC software, such as DriveWindow, for drive commissioning, diagnostics, and parameter management. Operating over two distinct optical channels utilizing the proprietary DDCS protocol, the module provides a reliable fiber optic bridge to network-managed application and motor control boards.

Features

  • Dual-Channel DDCS Processing: Equipped with one 5 megabaud optical channel and one 10 megabaud optical channel to accommodate varying terminal board connection speeds.
  • PC Bus Integration: Occupies a single standard 16-bit ISA expansion slot on the desktop computer motherboard.
  • Multi-Drive Architecture Support: Supports signal distribution to multiple individual frequency converters when paired with NDBU series branching units.

Applications

  • DriveWare PC Software Communication: Interfaces standard office desktop PCs running DriveWindow software with industrial factory drive systems.
  • ACS 600 Product Family Interfacing: Serves as the central fiber optic interface component to configure and monitor low-voltage motor drives.
  • Distributed Drive Networking: Connects to NAMC control boards and NDBU branching nodes to form complex multi-drive automation arrays.

Technical Specifications

Parameter Value
Manufacturer ABB
Model NISA-03
Module Type DDCS/ISA Adapter
Host Interface Slot 16-bit ISA
Addressing Resource 32 consecutive I/O locations
Default Base I/O Address 280H
Alternative Base I/O Address 2A0H
Optical Channel CH0 Maximum Speed 5 MBaud
Optical Channel CH1 Maximum Speed 10 MBaud
Country of Origin Finland (FI)

Connections/Interfaces

Channel Connection Hardware / Compatibility Cable Type & Maximum Permissible Length



CH0 (5 MBaud)

NAMC-03/04/11 (with NDCO-03 option), NDBU-91  POF (Plastic Optical Fibre) <= 15 m



CH1 (10 MBaud)

NAMC-11 (with NDCO-01/02 option), NAMC-21, NDBU-85/95  POF <= 30 m OR HCS (Hard Clad Silica Fibre) <= 200 m

Installation Guidelines

  • Electrostatic Precaution: Ensure an earthing wristband is worn during all handling phases, as the integrated circuits on the board are highly sensitive to electrostatic discharge (ESD).
  • Address Configuration: Check the host PC configuration to ensure no existing interface card utilizes the default base address space of 280H. If a conflict occurs, adjust the onboard DIP switches (IAS0 to IAS2) to select the alternative 2A0H address profile.
  • Card Insertion: Firmly and evenly press the adapter card into an available 16-bit ISA slot on the powered-down computer motherboard and secure the bracket with the retention screw.
  • Fiber Optic Handling: Do not exceed the maximum long-term tensile load of 1 N or bend the fiber cables past the minimum short-term bend radius of 35 mm. Avoid touching bare fiber ends, and protect routing paths inside the drive using rubber grommets.
  • Electrical Safety Warning: Never perform work inside the frequency converter while it is energized. Disconnect the main supply line and wait at least 5 minutes for the drive intermediate circuit capacitors to fully discharge before accessing the internal terminals.

FAQ

What is the primary function of this adapter board?

The device acts as a standard 16-bit ISA interface board that enables a personal computer to control and monitor the ABB ACS 600 drive family using DriveWare PC applications like DriveWindow.

How do I resolve an I/O address conflict during installation?

The board has a default base I/O address of 280H. If this address space is occupied, you can change the configuration to 2A0H using the onboard DIP switches (IAS0, IAS1, and IAS2).

What are the handling restrictions for the connected fiber optic cables?

The fiber optic cables must be handled carefully. They require a minimum short-term bend radius of 35 mm, a maximum long-term tensile load of 1 N, and their bare ends must not be touched due to dirt sensitivity.

Where are the fiber cables connected inside the frequency converter?

Inside the drive module, the optical cables connect directly to Channel 3 (terminals V19 and V20) on the NAMC control board, or to the MSTR channel if an NDBU branching unit is used.
