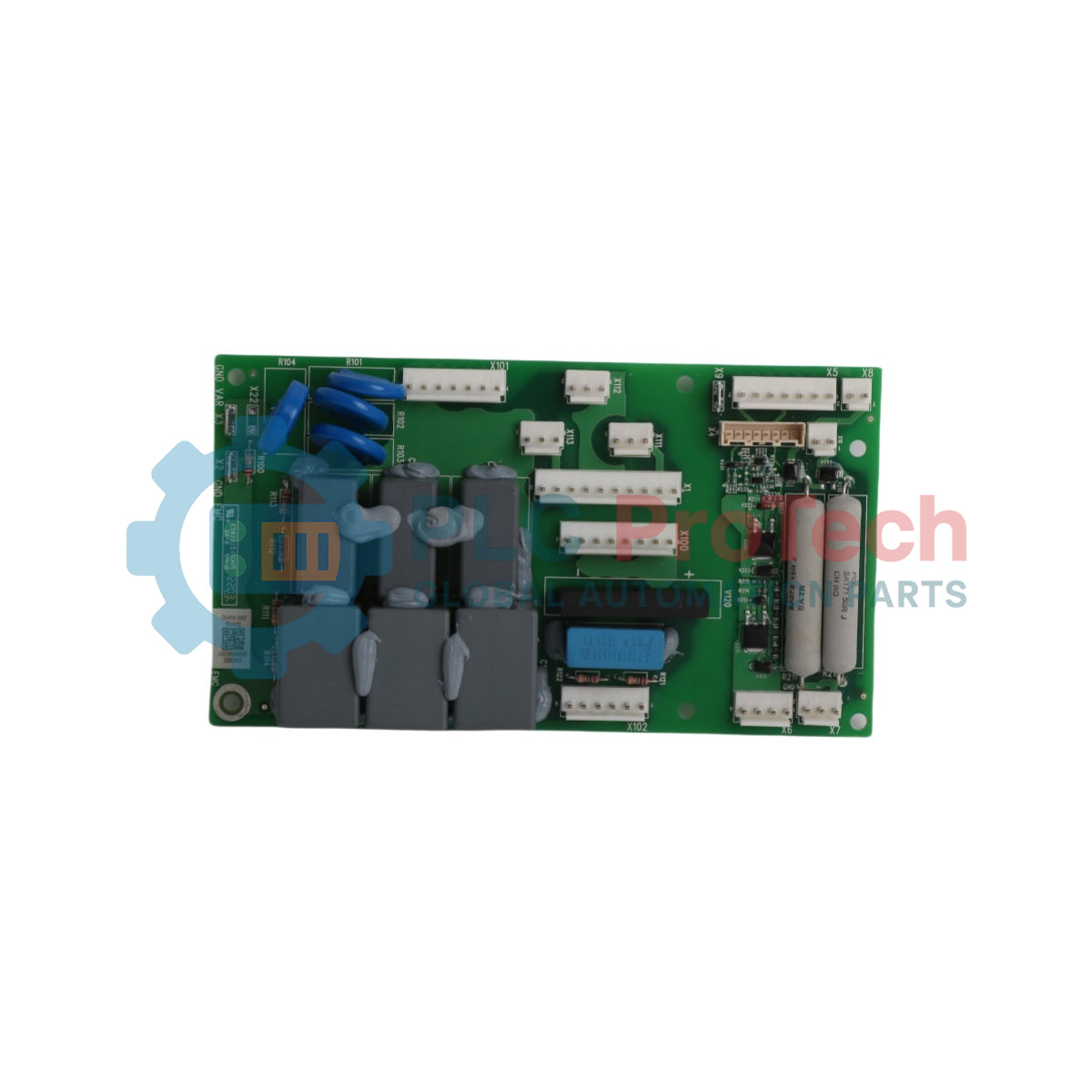

ABB QVAR-5B2 3AXD50000509201 Charging Control Board

Description

The QVAR-5B2 is an industrial charging control board developed to regulate high-capacity power distribution and energy storage sub-circuits within heavy automation setups. Identified by product ID 3AXD50000509201, this component serves as the core regulation platform that monitors main line inputs and handles precision variable DC energy output loops. The board governs steady energy delivery to prevent power fluctuations, ensuring operational consistency across high-demand processing networks. Built for resilient performance across diverse thermal zones, the QVAR-5B2 provides essential processing feedback loops to safeguard downstream modules and maintain grid-tied system stabilization.

Features

• Wide DC output voltage tracking for adaptable load management across industrial systems
• High-capacity current regulation threshold up to 100A for heavy power delivery
• Solid-state board architecture designed for consistent thermal handling in enclosed control cabinets

Applications

• High-capacity industrial battery charging and energy management systems
• DC bus voltage regulation in automated power distribution networks
• Sub-circuit power control in factory automation control centers

Technical Specifications

Installation Guidelines

• Thermal Management: Mount the unit in a well-ventilated enclosure where ambient cabinet temperatures remain within the certified -10 degC to +60 degC operating range.
• Wiring Protocols: Use appropriately rated heavy-gauge copper wiring to accommodate current loads up to 100A and prevent localized terminal overheating.
• Power Isolation: Ensure all main incoming line voltages (380-480V) are completely isolated and locked out prior to mounting or servicing the circuit assembly.
