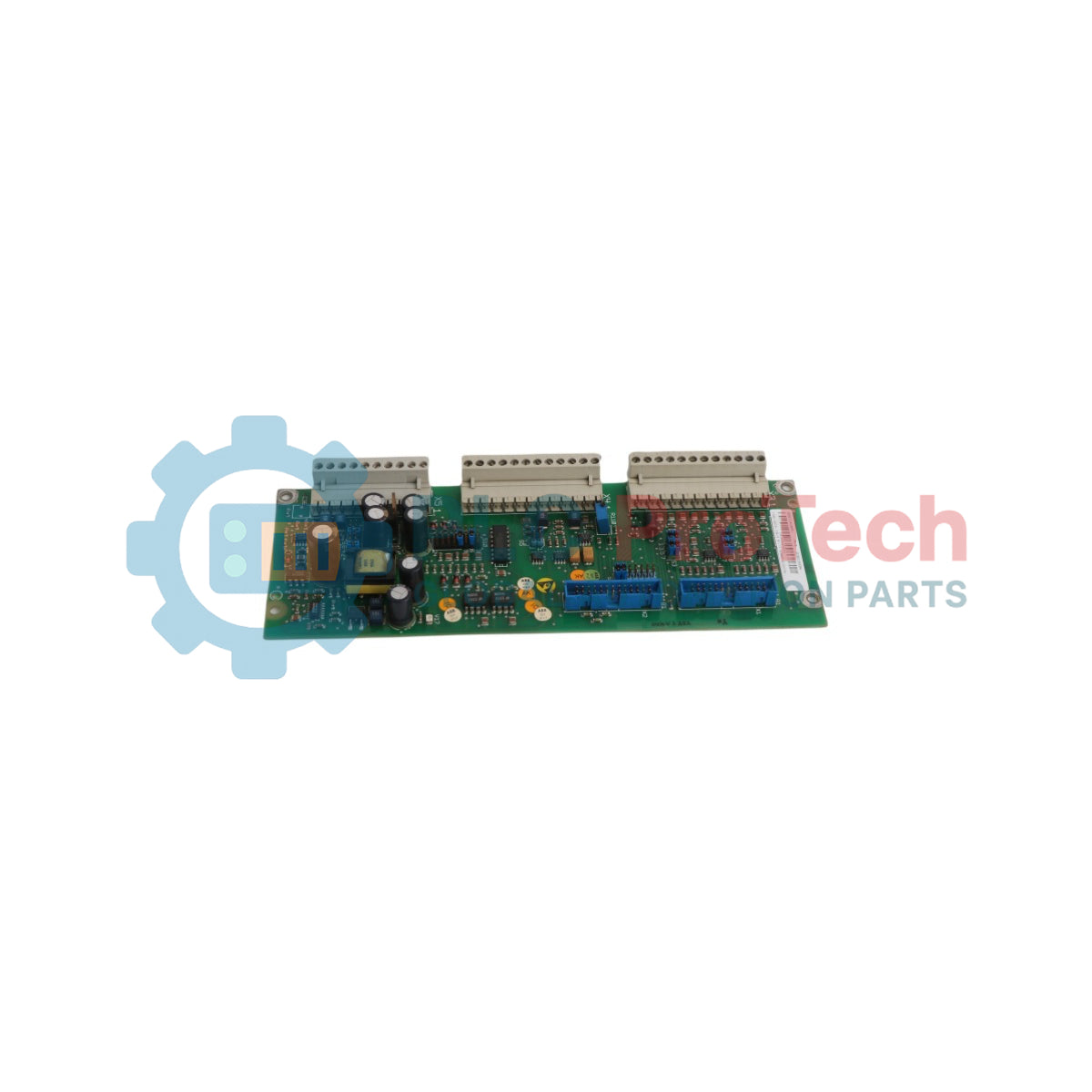

ABB SDCS-IOB-3 (3BSE004086R0001) DCS DC Drives I/O Connection Board

SKU SDCS-IOB-3 3BSE004086R1

In stock

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: SDCS-IOB-3 3BSE004086R1
Country of origin:Thailand,Germany
Product Type: I/O Connection Board
Barcode: 85049099
Payment: T/T, Western Union
Weight: 190g
Dimensions: 190 mm x 115 mm x 45 mm
Shipping port: Xiamen
Warranty: 12 months

Description

The ABB SDCS-IOB-3 is a specialized industrial interface module designed to handle discrete and analog signal routing within high-power DC converter systems. Functioning fundamentally as an I/O connection board, this device serves as the direct physical interface between the main drive controller electronics and the field instrumentation wiring layout.

This hardware assembly features structured terminal configurations for distribution of encoder paths, localized control relays, and digital interlocking feedback channels. The SDCS-IOB-3 is engineered with precise onboard jumper coding configurations that allow deployment field engineers to calibrate signal attenuation parameters and tracking properties based on site requirements. Its design ensures optimized low-impedance pathways that isolate high-frequency electronic noise, preventing data corruption across critical field signaling networks.

Features

Hardware Jumper Coding: Integrated pin-header jumper settings permit direct on-board modification of internal circuit traces to match specific signal topologies.
Robust Terminal Isolation: Provides high electrical separation margins to protect sensitive internal logic rails from field-induced surge noise.
Low-Mass Footprint: Optimized physical profile designed for efficient slot integration within standard drive module control trays.

Applications

Field I/O extension, routing, and termination inside ABB DCS series power converters and thyristor stacks.
Heavy manufacturing process setups including deep mining operations, paper production infrastructure, and metal rolling mills.

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Model Designation	SDCS-IOB-3
Product ID / Order Number	3BSE004086R0001
Device Classification	I/O Connection Board
Customs Tariff Number	85049099
UNSPSC Classification	39120000 / 39122004
WEEE Business Category	Business To Business
Part Type Status	Original / New
Country of Origin	Thailand (TH) / Germany (DE)
Product Net Weight	0.19 kg
Shipping Weight (Calculated)	0.35 kg
Package Dimensions (Calculated)	190 mm x 115 mm x 45 mm

Alternative Models & Compatibility

The SDCS-IOB-3 board with original designation 3BSE004086R0001 has been officially replaced by ABB by the new updated part identity 3ADT220090R0020. This newer product configuration manages backward compatibility across matching drive chassis assemblies. Plant operators must verify on-board jumper links match legacy terminal configurations identically to prevent mismatch errors inside active automation tasks.

Installation Guidelines

CRITICAL WARNING: RESIDUAL VOLTAGE DISCHARGE

Isolate, disconnect, and lock out all upstream three-phase supply lanes, control panel lines, and field auxiliary relays before accessing internal circuitry. Capacitive drive banks store heavy potential electrical charges after safety line breaks. Wait a minimum of 15 minutes for safe internal leakage attenuation, and perform a cross-terminal check with a rated voltage meter to confirm zero electrical state before installing hardware.

1

Fasten a verified grounding static strip around your wrist and fix the other side to an unpainted grounded segment of the chassis frame to ground body static.

2

Compare the physical jumper selection blocks on the replacement board with the previous operational board to ensure signaling, current, or encoder options correspond exactly.

3

Unplug the low-voltage internal ribbons, loosen the holding fasteners, switch out the worn board, re-tighten the frame mounts evenly to preserve ground grounding, and plug back the ribbon harnesses tightly.

FAQ

What is the official factory replacement designation for this board?

ABB has officially replaced this product configuration with the new updated product ID 3ADT220090R0020.

Why are onboard jumpers critical on this interface assembly?

The onboard jumper groupings configure internal hardware parameters and circuit wiring routing to align precisely with specific drive signaling requirements.

Does this board handle high-voltage line tracking directly?

No, it functions as a low-voltage control connection board interfacing field signals, encoder paths, and drive logic configurations.
