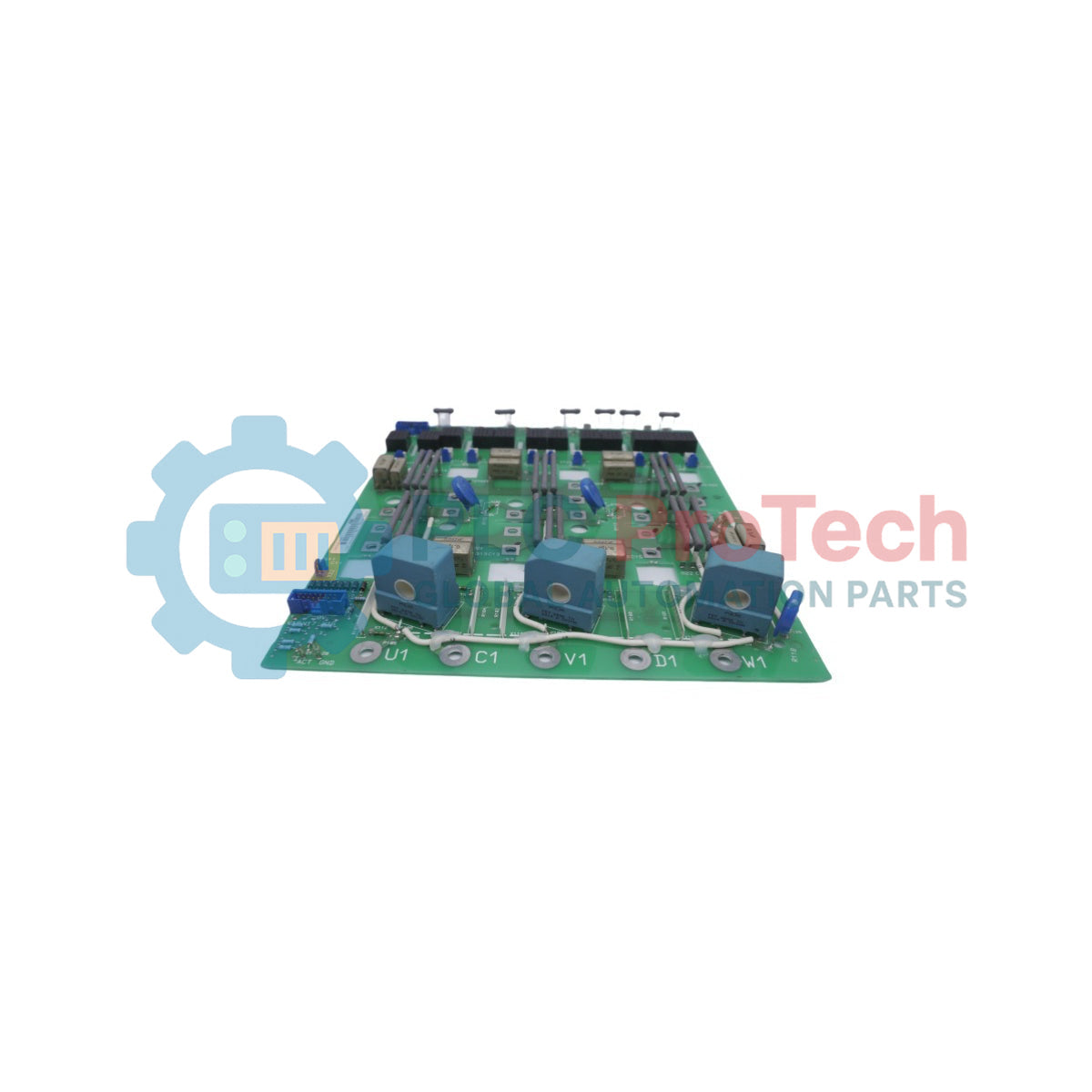

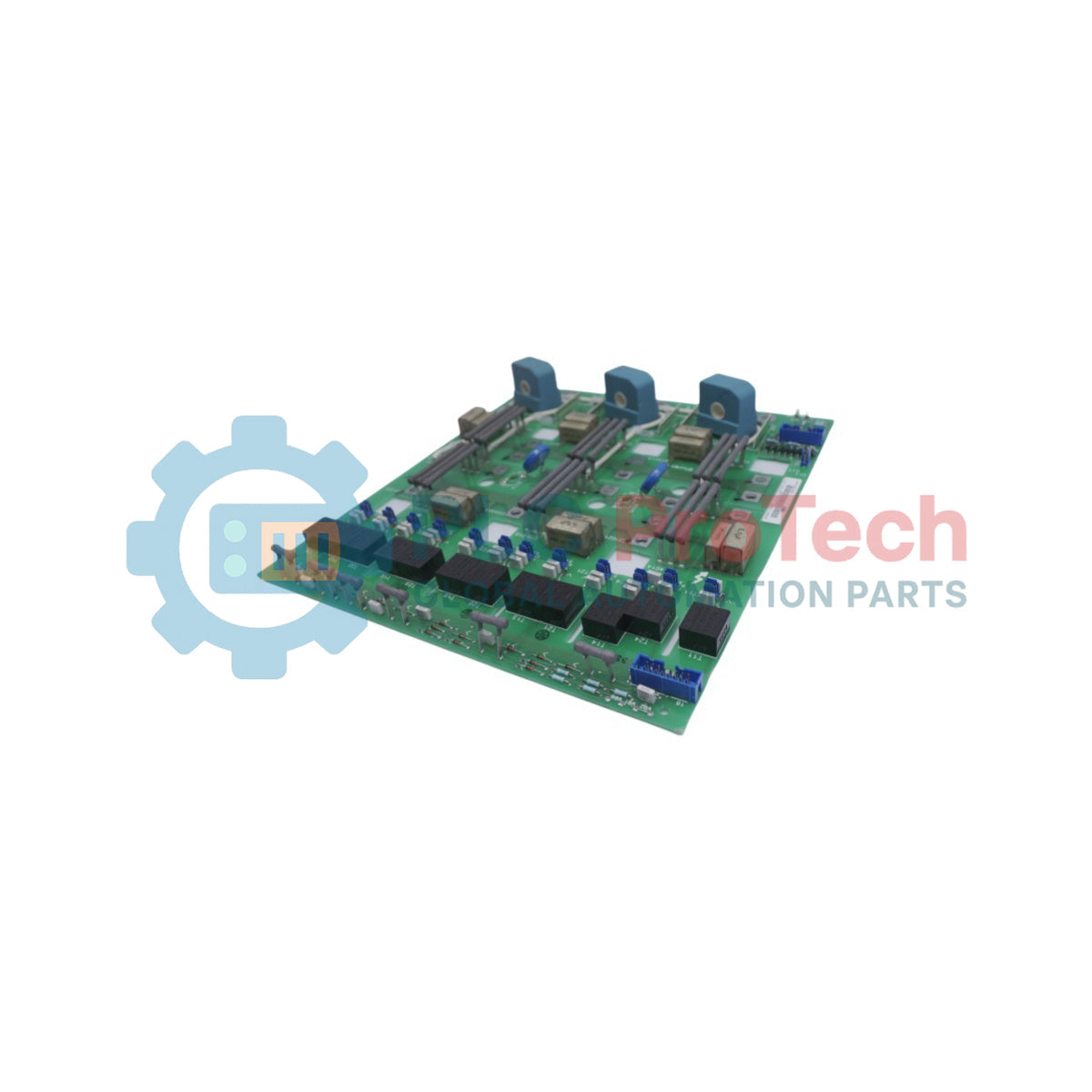

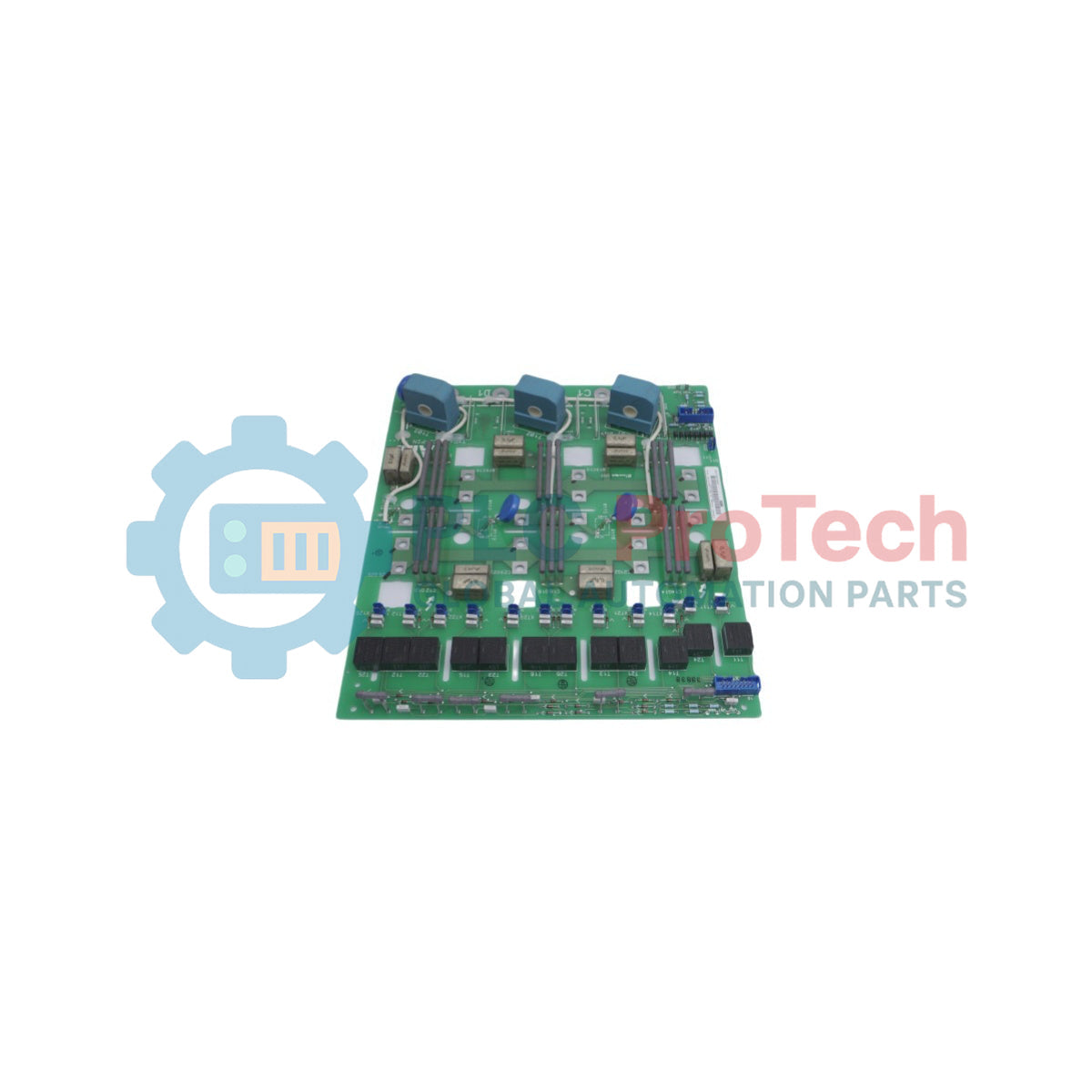

ABB SDCS-PIN-11 (3ADT306100R1) DCS500/DCS600 Power Interface Board

SKU SDCS-PIN-11 3ADT306100R1

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB

  • Product No.: SDCS-PIN-11 3ADT306100R1

  • Country of origin:Finland

  • Product Type: Power Interface Board

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 500g

  • Dimensions: 28.1 cm x 25.4 cm x 4 cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The ABB SDCS-PIN-11 is a specialized gate driver and phase synchronization hardware module designed for mid-range thyristor power converters operating within the DCS500, DCS600, DCF501, DCF502, DCF601, and DCF602 drive infrastructures. Operating strictly as a high-reliability power interface board, this component acts as the primary galvanic and operational bridge linking the low-voltage microprocessing control systems to the high-voltage thyristor bridge arrays.

This module integrates dedicated electrical measurement networks, phase angle tracking channels, and pulse amplification circuits that deliver robust gate firing distribution across the semiconductor topology. The SDCS-PIN-11 features optimized impedance networks to suppress localized electrical noise and signal jitter induced during high dV/dt thyristor commutation events. It isolates upstream digital control architectures from heavy back-EMF spikes and lines transients common to industrial DC motor drives and static excitation applications.

Features

  • High-Drive Gate Channels: Provides continuous, steep-fronted gate firing currents needed for clean, balanced activation of heavy power thyristors.
  • Mains Phase Synchronization: Integrates direct high-potential voltage attenuation circuits to accurately map supply timing under harmonic distortion.
  • Multi-Drive Architecture Scaling: Adaptable layout accommodating standard regenerative/non-regenerative three-phase systems as well as dedicated field exciter units.

Applications

  • Thyristor bridge gate control and synchronization within ABB DCS500 and DCS600 converter setups.
  • External field excitation control loops utilizing DCF501, DCF502, DCF601, or DCF602 power blocks.

Technical Specifications

Parameter Specification
Manufacturer ABB
Model Designation SDCS-PIN-11
Product ID / Order Number 3ADT306100R1
Device Type Power Interface Board
Compatible Series DCS500 / DCS600 / DCF501 / DCF502 / DCF601 / DCF602
Part Type Status Original / New
Country of Origin Finland (FI)
Shipping Weight (Calculated) 0.65 kg
Package Dimensions (Calculated) 245 mm x 175 mm x 50 mm

Alternative Models & Compatibility

The SDCS-PIN-11 is backward compatible across legacy DCS500 and DCS600 configurations. However, note that the thyristor modules SKKT 27 / 16E utilized in DCS500/DCS600 drive systems are not structurally or electrically identical to the SKKT 27 B/16E thyristor components running inside DCS400 converter setups. Gate pulse impedance and mounting layout constraints mean this card must be validated explicitly against DCS500/DCS600 or matching DCF field modules to prevent uneven thyristor firing.

Application Pitfalls & Engineering Notes

When implementing the SDCS-PIN-11 as a field engineering replacement unit within DCF501, DCF502, DCF601, or DCF602 external excitation units, a physical hardware modification is strictly mandatory. The specific scaling resistors designated as R113, R116, and R119 must be cleanly removed from the printed circuit assembly before powering up. Failing to remove these three resistors alters the operational feedback impedance matrix on external DCF installations, leading to premature synchronization trip faults and tracking mismatches.

Installation Guidelines

CRITICAL WARNING: HIGH-VOLTAGE COUPLING RISK

De-energize, isolate, and lock out all upstream three-phase supply lines, shunt measurement terminals, and auxiliary electronics power connections before opening the converter drawer. Internal bus capacitors contain stored voltage potential long after line disconnection. Wait a minimum of 15 minutes for complete discharge, and use a calibrated multi-meter to confirm zero voltage across all terminal pins before performing any component replacement.

1
Wear an approved anti-static wrist strap clipped to an unpainted chassis grounding point to avoid static micro-discharges on bare components.
2
If the unit is replacing a part on a DCF module, desolder or clip resistors R113, R116, and R119 carefully as directed in the engineering bulletins. For standard DCS500/DCS600 drive modules, retain these components as assembled.
3
Disconnect all high-density ribbon cables and gate connections, loosen the standoff screws, replace the old board with the new card, secure all chassis fasteners to maintain clean grounding, and re-engage all plugs snugly.

FAQ

What modification must be executed when utilizing this board inside a DCF module?

Resistors R113, R116, and R119 must be physically removed from the circuit board to ensure correct tracking loops when deployed in DCF assemblies.

Can this board be used interchangeably with DCS400 drive modules?

No, it is specific to DCS500/DCS600 series since thyristor modules like SKKT 27 / 16E differ significantly in characteristics from the SKKT 27 B/16E units in DCS400 drives.

What is the primary role of this card within the drive stack?

It serves as the main power interface link, coordinating line synchronization timing inputs and distributing gate firing commands to the thyristors.
