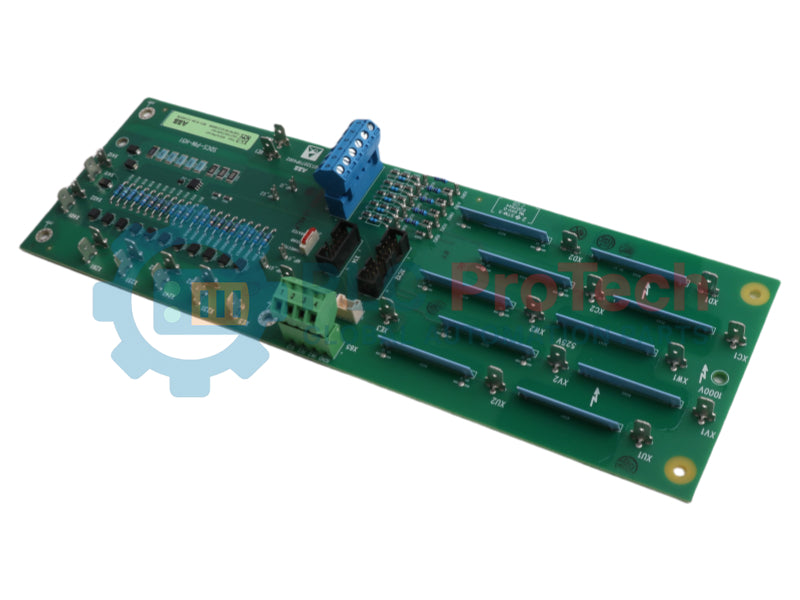

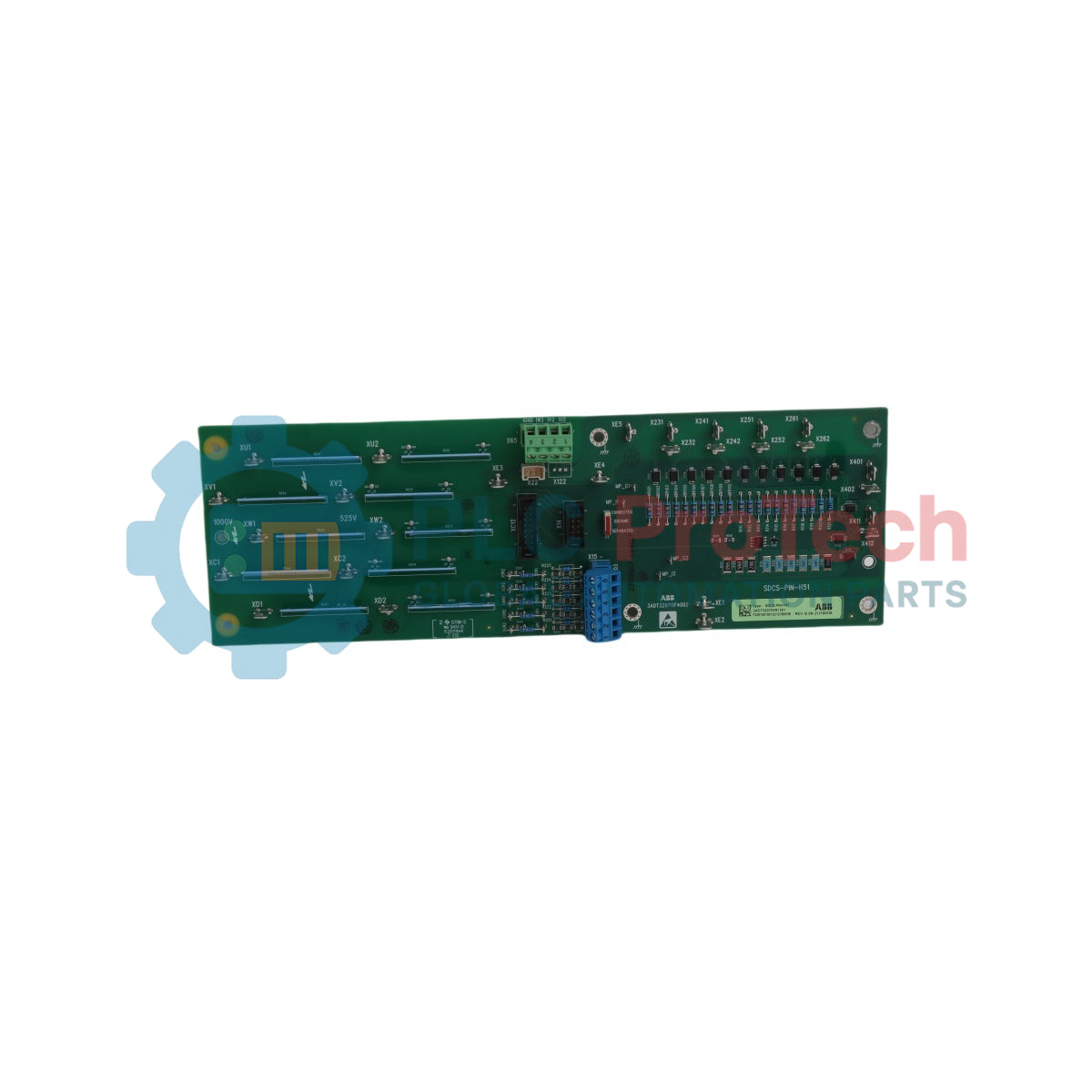

ABB SDCS-PIN-H51 (3ADT320700R1501) DCT880 Pulse Interface Board

SKU SDCS-PIN-H51 3ADT320700R1501

In stock

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: SDCS-PIN-H51 3ADT320700R1501
Country of origin:Switzerland
Product Type: Power Supply Board
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 1150g
Dimensions: 290 mm x 215 mm x 60 mm
Shipping port: Xiamen
Warranty: 12 months

Description

The ABB SDCS-PIN-H51 is an internal auxiliary hardware module engineered for high-power thyristor units and system power controllers. Functioning primarily as an integrated pulse interface board, this card establishes the critical physical and electrical link between low-voltage processing electronics and the main thyristor infrastructure.

This technical board architecture regulates vital firing configurations across a standard AC input tracking threshold of 380-480V while stabilizing a continuous charging potential range spanning from 12V to 600V DC. Operating across current distribution tolerances of 10A to 100A, the card utilizes dedicated signal insulation pathways to prevent switching disturbances, line notches, and voltage distortion fields from interrupting execution logic. To ensure absolute operational resilience under corrosive and taxing plant environments, this module is built with a factory-applied conformally coated finish that prevents atmospheric moisture tracking, electrochemical migration, and fine dust short-circuit pathways.

Features

Wide DC Charging Range: Manages high-integrity pulse control across a flexible voltage span of 12V to 600V DC.
Conformal Coating Protection: Factory-treated printed circuit board architecture shields delicate internal tracks against thermal stresses and particulate contamination.
High-Current Tolerance Matrix: Validated for stable performance in high-amperage automation contexts from 10A up to 100A.

Applications

Pulse triggering and system distribution tasks within ABB DCT880 T6 power controller systems.
High-capacity industrial heating units, automotive painting ovens, and precise melting furnace arrays.

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Model Designation	SDCS-PIN-H51
Product ID / Order Number	3ADT320700R1501
Device Classification	Pulse Interface Board / Power Supply Unit
Nominal Input Voltage	380-480V AC
DC Charging Voltage Range	12V to 600V DC
Operating Current Scale	10A to 100A
Operating Temperature Range	-10 to +60 degC
Storage Temperature Limits	-20 to +70 degC
Board Surface Treatment	Conformally Coated Coating
Part Type Status	Original / New
Shipping Weight (Calculated)	1.15 kg
Package Dimensions (Calculated)	290 mm x 215 mm x 60 mm

Alternative Models & Compatibility

The SDCS-PIN-H51 represents the hardware solution utilized across specific DCT880 T6 design updates (such as models matching the -X0 type suffix layout). This module functions differently than legacy pulse hardware architectures, such as the older SDCS-PIN-H11 setups found in legacy series units. When shifting configurations or substituting modules, fields within parameter 99.07 (Service Mode) must be put into "Set Type code" configuration to choose the correct unit tracking code inside parameter 95.16, allowing the system firmware to recognize the current circuit board attributes.

Installation Guidelines

CRITICAL WARNING: HIGH POTENTIAL VOLTAGE RESIDUE

Isolate all primary three-phase lines and auxiliary power supplies feeding the structural cabinet enclosure before executing service routines. High-power controllers store extensive energetic hazards inside heavy capacitor groups. Allow a minimum of 15 minutes for complete internal charge dissipation, and verify a zero-energy state with a multi-meter at all terminal points before reaching into the mounting tray.

1

Maintain continuous static grounding protocols. Operational technicians must remain tethered via a functional ESD wrist strap tied to structural earth ground to shield components against micro-circuit static failure.

2

Clearly document, index, and disconnect the multi-pin ribbon links and high-voltage sense connectors from the module interfaces to ensure exact reconnect trajectories.

3

Extract the mechanical assembly screws holding the card to the sub-plate, lift the card out, set the new card in place, and securely tighten all structural ground screws before reconnecting signal lines.

FAQ

What is the primary operational role of the SDCS-PIN-H51 board?

The card functions as a core pulse interface and gate tracking driver layer, distributing firing signals from the central controller to the primary thyristor power blocks.

What parameters must be configured in the firmware when replacing this board type?

The unit type code must be updated. This is handled by setting parameter 99.07 (Service Mode) to Set Type code and selecting the correct designation within parameter 95.16.

What are the core electrical boundaries managed by this interface module?

The board operates over an input AC potential of 380-480V, supports a DC charging voltage range of 12V to 600V DC, and handles a current range from 10A to 100A.

How does the environmental coating configuration alter the structural reliability of the card?

The conformal coating adds a protective physical layer that prevents localized leakage currents, moisture ingress, and atmospheric corrosion from damaging the components.
