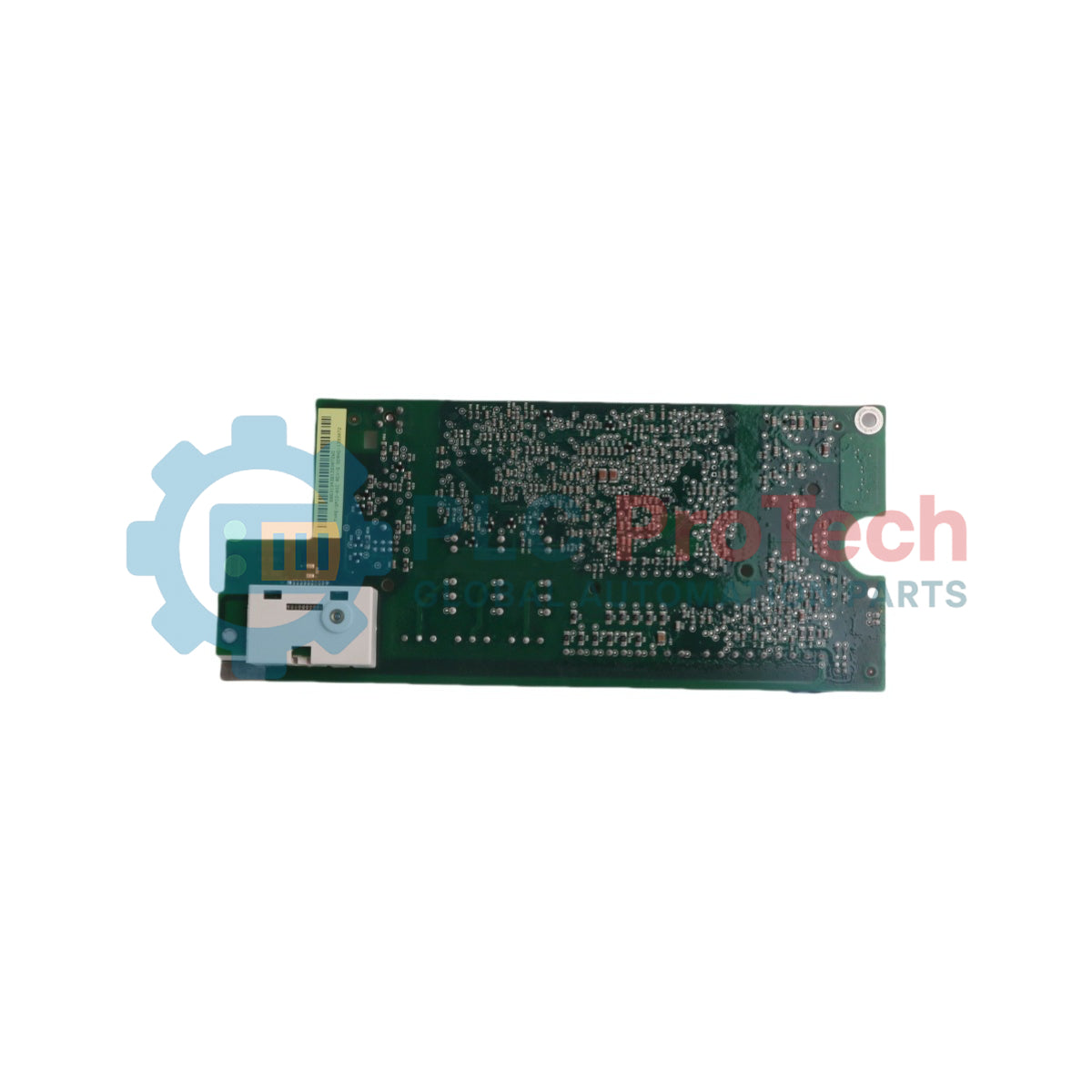

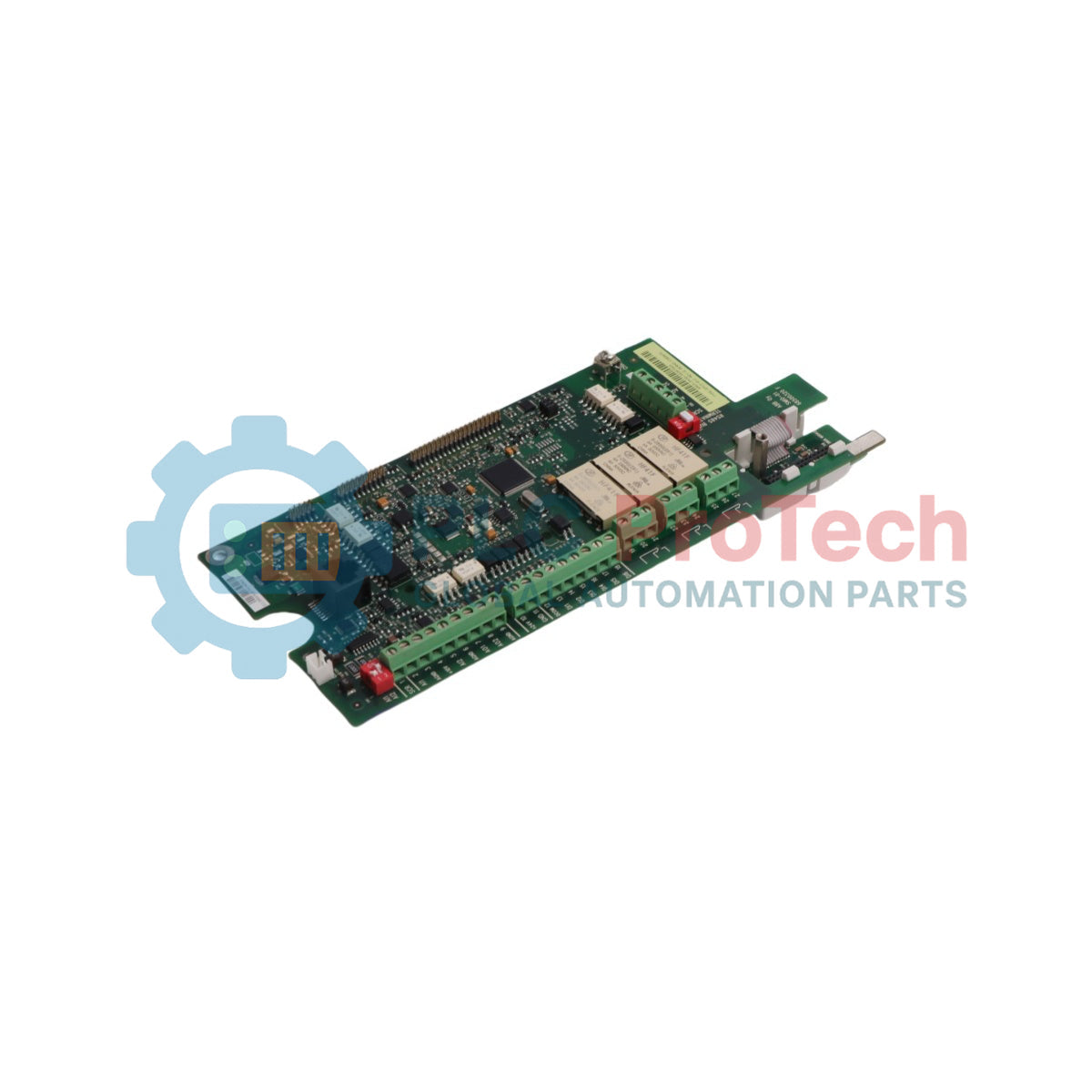

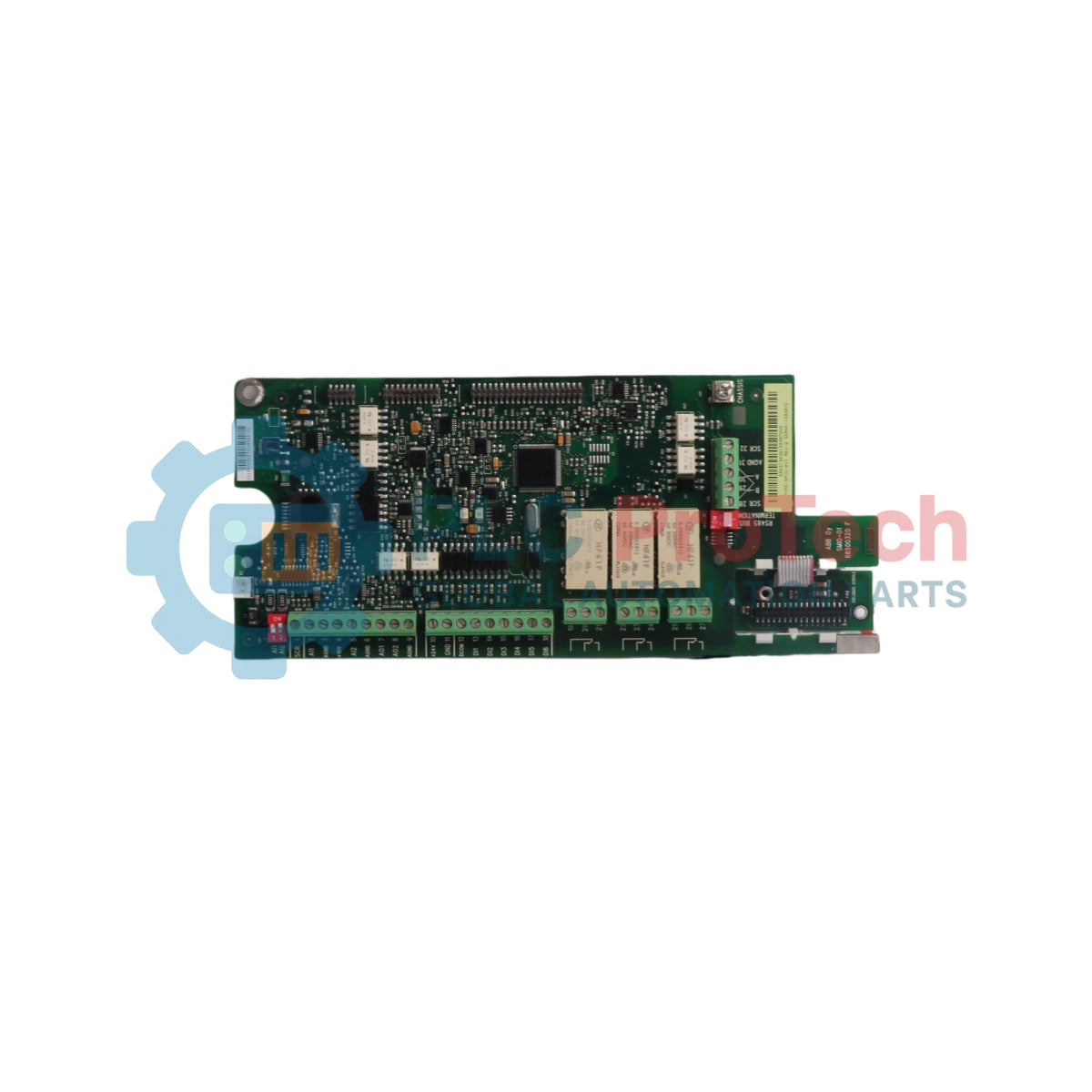

ABB SMIO-01C 68631343 Control Board

Description

The SMIO-01C is a dedicated processing unit designed to execute real-time regulation commands, parameter assessments, and internal signal routing within frequency converter assemblies. Acting as the primary intelligence hub, this module regulates complex variable frequency routines while maintaining baseline diagnostics and input/output synchronization.

This control board standardizes systemic industrial drive interactions across extensive automation line architectures, helping maintain structural phase execution and minimizing localized operational discrepancies. Delivered pre-loaded with specialized processing parameters, the hardware structure optimizes data-bus speeds while managing discrete logic execution without intermediate interpretation delays.

Features

• Integrated Drive Logic Execution: Handles main operational software loops and parameter verification tasks natively within the drive frame.
• Pre-Configured Regional Core: Delivered standard with ACS550SW Europe operating structures for immediate framework identification.
• Multi-Platform Scalability: Provides consistent tracking capabilities across wall-mounted and free-standing industrial frequency converters.

Applications

• Main processing loop control inside ACS550-01 and ACS550-U1 wall-mounted frequency converters.
• System level parameters and interface management in ACH550 series HVAC variable speed drives.
• Heavy-duty speed regulation architectures utilizing ACS550-02 free-standing drive platforms.

Technical Specifications

Installation Guidelines

• Chassis Power Isolation: Before beginning installation work, guarantee all incoming AC main power supplies are isolated and locked out. Allow a minimum of 15 minutes for the drive internal capacitor blocks to completely bleed down to safe logic potentials, and check with a trusted voltmeter across the DC link terminals.
• Electrostatic Discharge Precautions: The control card circuit pathways embed delicate complementary metal-oxide-semiconductor logic tracks. Technicians must remain continuously grounded using an approved static dissipative wrist strap while interacting with unshielded hardware components.
• Ribbon Cable Alignment for R6 Frames: When installing within large R6 converter frames, it is highly recommended to order and replace the matching ribbon cabling arrays alongside the main card assembly to preserve high signal integrity. Ensure the 10 pin ribbon connection line (Code: 64733834) between SMIO and SINT layers seats flush without crimping.
• Frame Repair Warnings: During standard factory warranty terms, single drive frames sized from R1 through R4 must not undergo on-site component recovery or internal repair loops; replace total sub-assemblies through verified service channels.
