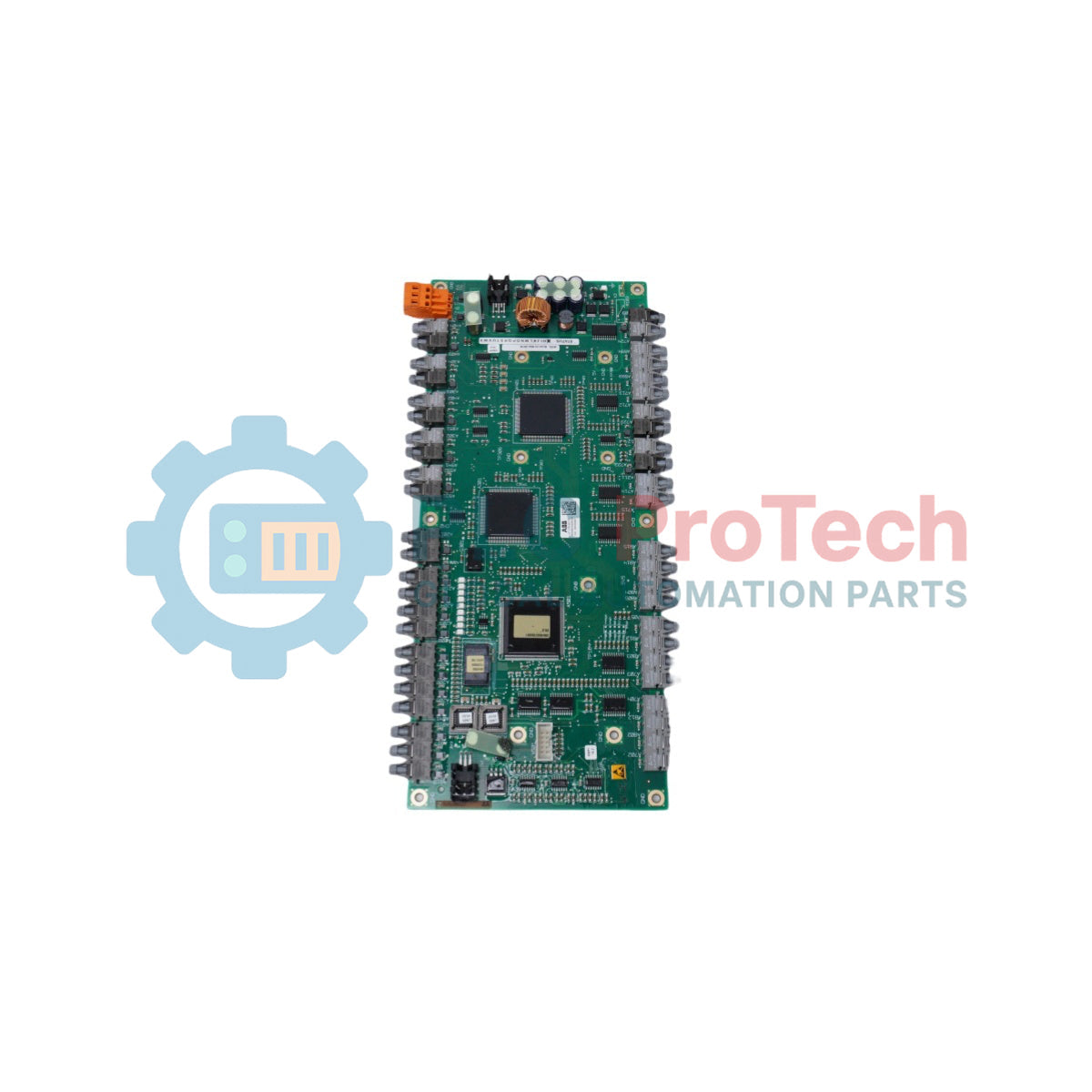

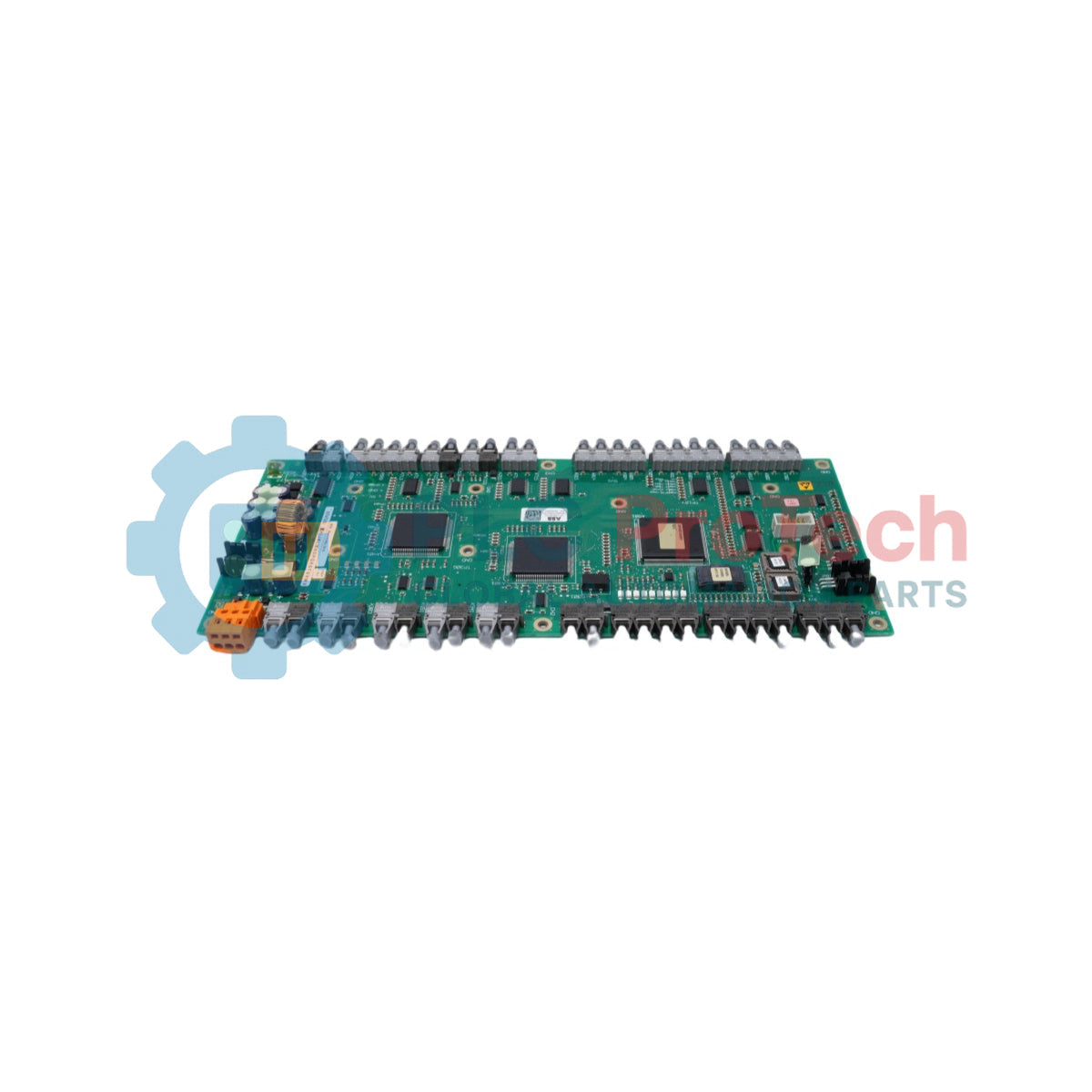

ABB UFC760BE103 3BHB007030R0103 Drive Processor Control Module

SKU 3BHB007030R0103

In stock

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: 3BHB007030R0103
Country of origin:Switzerland
Product Type: PLC Processors
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 550g
Dimensions: 44.0 cm x 23.0 cm x 5.0 cm
Shipping port: Xiamen
Warranty: 12 months

The ABB UFC760BE103 3BHB007030R0103 is a high-performance processor control module designed as the primary computational engine for specialized medium voltage AC drives and heavy-duty static excitation systems. Functioning as the core intelligence framework, this module executes advanced vector control calculations, coordinates synchronized PWM pulse distribution, and handles high-speed digital communications across local drive networks. Engineered to survive harsh electrical substation conditions, the processor architecture features integrated galvanic isolation paths to maintain deterministic system timing and prevent localized ground loop propagation during high-power switching transients.

Key Features

Real-Time Processing Node: Equipped with an industrial-grade microprocessor topology tailored for continuous deterministic task execution and zero-latency gating loops.
Multi-Channel Communications: Features integrated network hardware supporting synchronous peripheral routing protocols, including native Modbus interface configurations.
High Electromagnetic Resilience: Multilayer shielding design combined with low-impedance grounding structures minimizes common-mode noise vulnerability inside multi-megawatt frameworks.
Onboard Diagnostic Mapping: Constantly monitors structural parity and subsystem states, providing fast data fault logs directly to the master DCS topology during operational events.

Industrial Applications

Medium Voltage Drive Control: Functions as the master processing element governing high-power inverter panels in critical industrial environments.
Static Excitation Systems: Deployed inside power generation control architectures to manage field winding currents and voltage regulation tracking.
Heavy-Duty Infrastructure Transmissions: Regulates high-inertia automation loads such as mining conveyors, mill ventilation fans, and municipal pump stations.

Technical Specifications

Parameter	Value / Specification
Manufacturer	ABB
Model Number	UFC760BE103
Global Part Number	3BHB007030R0103
Module Type	Processor Module / Circuit Card
Supported Communication	Modbus and Synchronous Drive Net Bus Interfaces
Country of Origin	Switzerland
Shipping Weight (Calculated)	0.55 kg
Package Dimensions (Calculated)	44.0 cm x 23.0 cm x 5.0 cm

Field Deployment & Installation Guidelines

CRITICAL VOLTAGE & CORE DISCHARGE WARNING

Isolate all control cabinet power loops and secondary power links before touching the module faceplate. Adjacent medium voltage power cells retain significant electrical charge even following a system trip sequence. Installation engineers must wear an active, grounded anti-static ESD wrist strap to protect internal processor gates from invisible thermal degradation caused by electrostatic transfer.

Field maintenance crews must execute replacement routines using explicit technical protocols to limit synchronization offsets or bus faults:

1

Hardware Profile Backup: Prior to unseating the faulty unit, download existing processor parameter configurations and parameters via the local service terminal to ensure immediate field replication on the replacement hardware.

2

Chassis Rail Seating: Carefully align the processor card inside the enclosure tracking frame. Apply even, perpendicular pressure along both edges until the rear pins seat deeply into the master backplane panel socket.

3

Fastener Locking & Torque: Fully torque the module retaining panel screws. A secure frame connection is required to complete the low-impedance path to chassis ground, ensuring adequate high-frequency noise mitigation.

4

Initialization Diagnostic Trace: Energize auxiliary systems and observe the controller boot logic. Verify that the network link and status LEDs switch to stable run states, confirming active synchronization with the host automation bus.

FAQ

Can this R0103 revision substitute an older R0102 processor board?

The R0103 and R0102 codes denote specific sub-assembly revisions. While physical form factors match, the internal firmware baseline or tracking layers may differ. Review system-wide bills of materials before hot-swapping different revisions.

What should I do if the module fails to establish a communication link post-boot?

Verify that all backplane connectors are fully pushed in and the chassis panel retention fasteners are torqued down. Loose paths along the ground planes or mismatched node parameters are common causes of boot-up timeouts.

Does this card handle application parameter storage directly onboard?

The module houses its native logic parameters, but drive configurations are typically loaded from the master memory module or pushed down from the upper DCS station during host system initialization.
