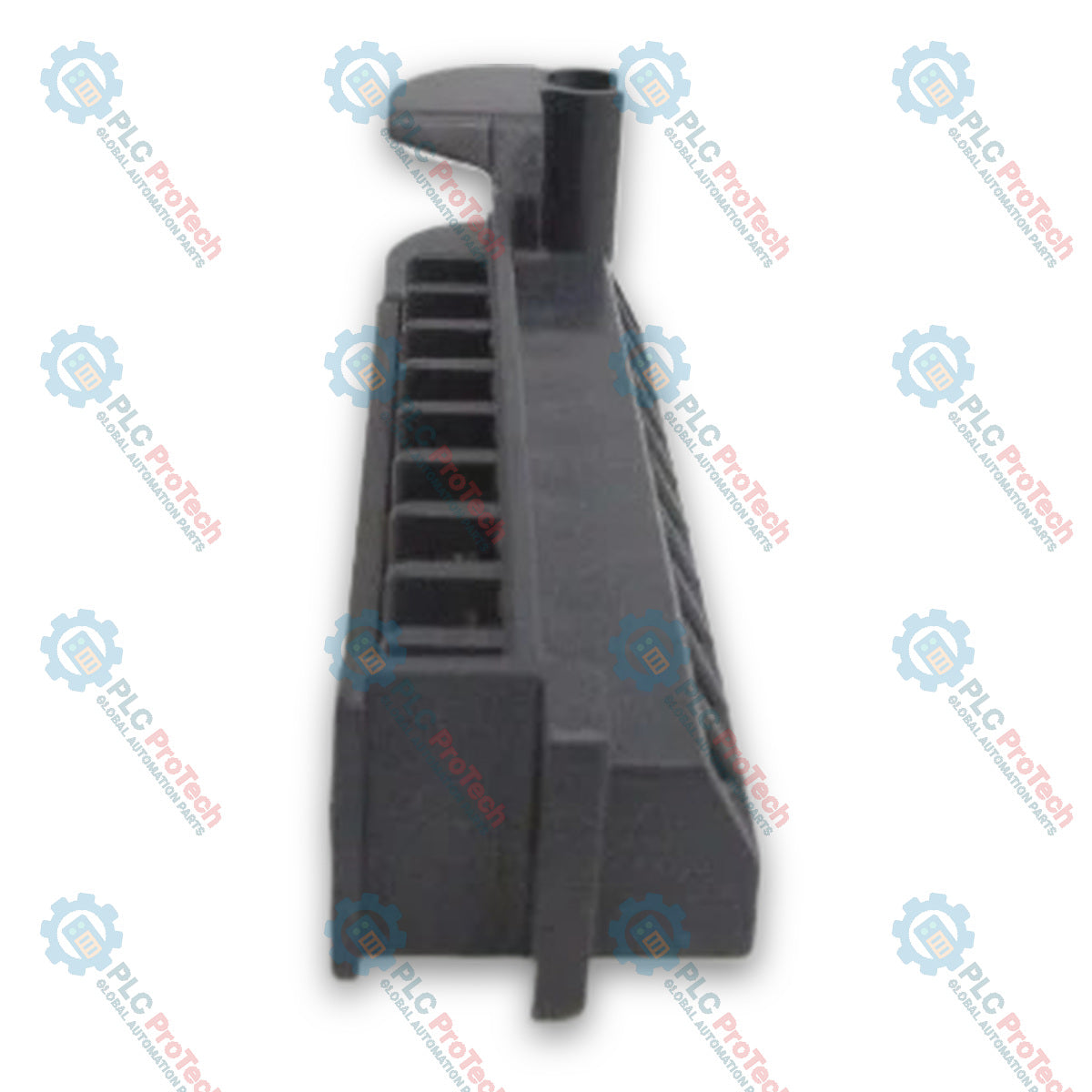

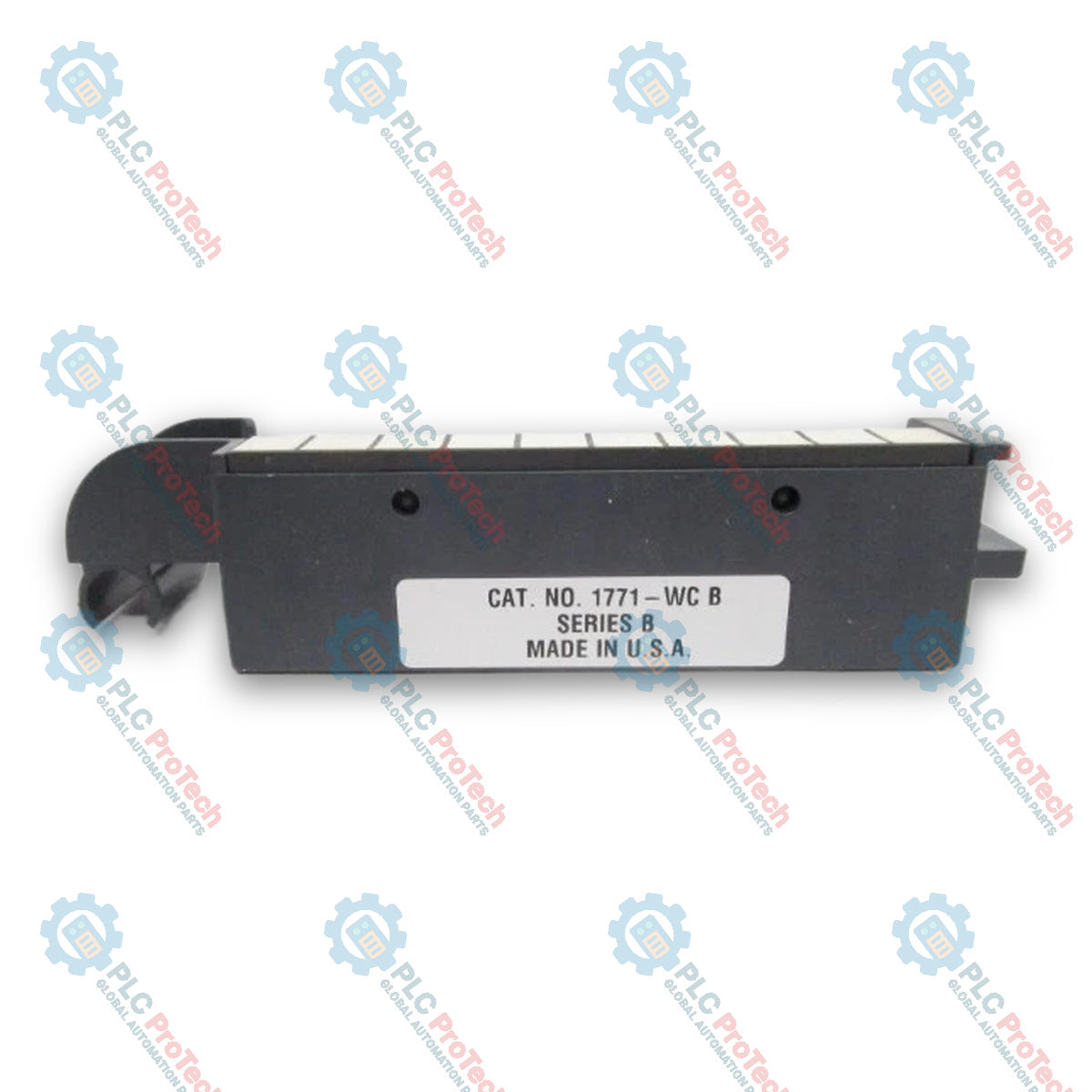

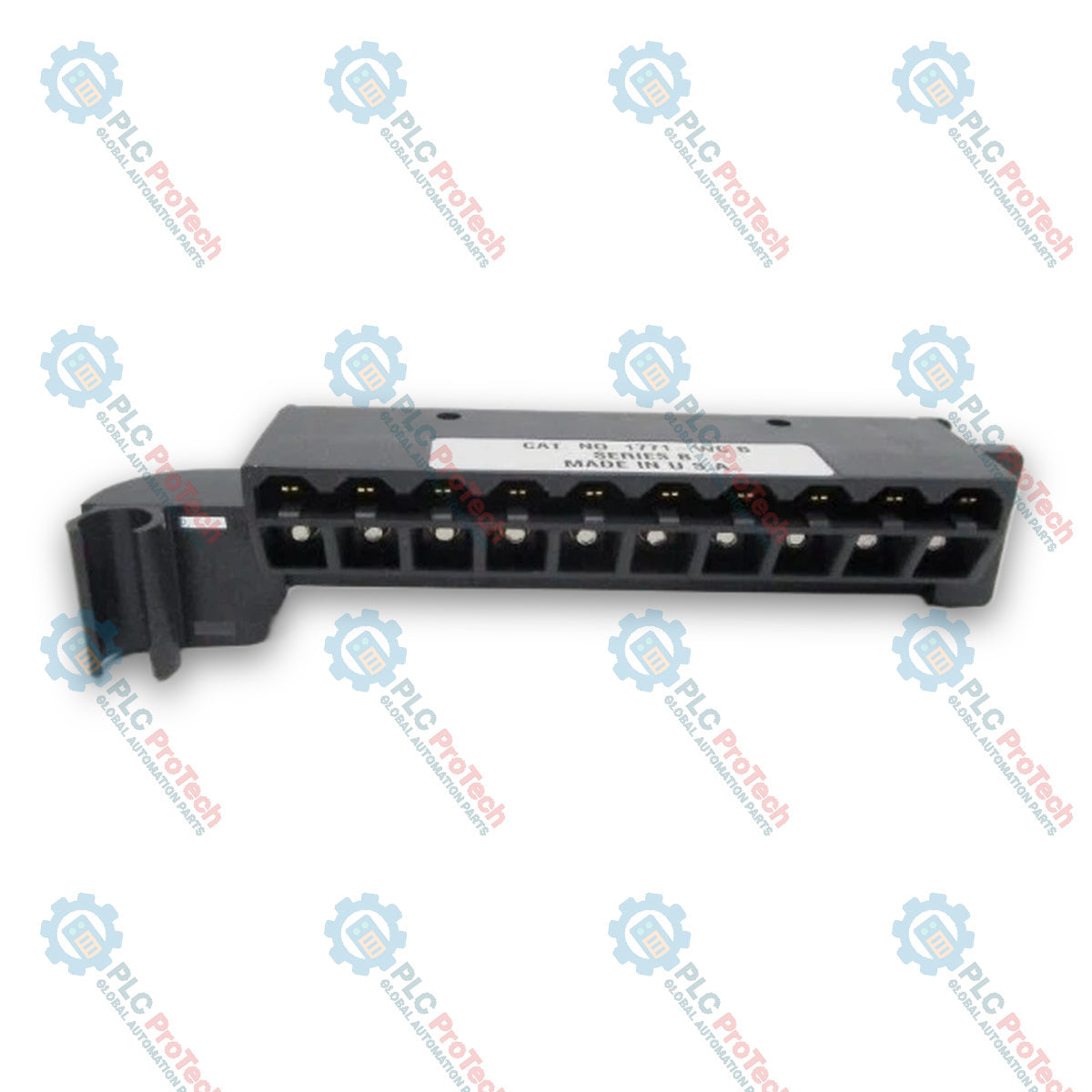

Allen-Bradley 1771-WC 1771 I/O Field Wiring Arm

SKU 1771-WC

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: Allen-Bradley

  • Product No.: 1771-WC

  • Country of origin:United States

  • Product Type: Field Wiring Arm

  • Barcode: 8537101190

  • Payment: T/T, Western Union

  • Weight: 950g

  • Dimensions: 145 mm x 30 mm x 90 mm (H x W x D)

  • Shipping port: Xiamen

  • Warranty: 12 months

Allen-Bradley 1771-WC is a field wiring arm designed for use within the Allen-Bradley 1771 I/O system. The device connects directly to analog output modules, including the 1771-OFE series modules (such as 1771-OFE1, 1771-OFE2, and 1771-OFE3), to interface field analog output devices like valve positioners, motor speed controllers, signal converters, or recorders. It pivots on the front of the 1771 I/O chassis, attaching to the horizontal bar at the bottom, which allows modules to be installed or removed without disconnecting user field wiring.

Features

  • Enables module installation and removal without disconnecting field wiring
  • Pivots on the front of the 1771 I/O chassis for modular maintenance
  • Attaches to the horizontal bar at the bottom of the 1771 I/O chassis
  • Includes terminal screws for field wiring terminations
  • Includes a functional ground connection terminal

Applications

  • Interfacing 1771 analog output modules with field analog devices
  • Industrial process control systems using 1771 I/O chassis installations
  • Control panel wiring for valve positioners, motor speed controllers, signal converters, and recorders

Technical Specifications

Parameter Specification
Manufacturer Allen-Bradley
Catalog Number 1771-WC
System Compatibility 1771 I/O Chassis
Recommended Cable Belden 8761 (Shielded Twisted Pair)
Screw Torque 7 to 9 pound-inches (0.6 to 1.1 Nm)

Installation Guidelines

  • Mounting: Attach the wiring arm to the horizontal bar at the bottom of the 1771 I/O chassis. The arm pivots upward to connect with the module.
  • Power Safety: Remove power from the 1771 I/O chassis backplane and field wiring arm before removing or installing an I/O module. Disconnect and lockout AC power from the processor and system power supplies before wiring.
  • Wiring & Shielding: Use Belden 8761 single insulated, twisted-pair shielded cable for signal transmission. The cable shield must extend the length of the cable and be connected only at the 1771 I/O chassis end.
  • Grounding: Connect the cable shield to a properly grounded common bus or chassis ground stud at the chassis end only.

FAQ

What is the Allen-Bradley 1771-WC used for?
The Allen-Bradley 1771-WC is a field wiring arm used to connect field analog devices to 1771 I/O modules without requiring disconnection of user wires during module removal or installation.

Which system does the 1771-WC field wiring arm belong to?
The 1771-WC field wiring arm belongs to the Allen-Bradley 1771 I/O system and attaches to the 1771 I/O chassis.

How is the 1771-WC mounted in an I/O chassis?
The 1771-WC attaches to the horizontal bar at the bottom of the 1771 I/O chassis and pivots upward to connect with the installed module.

What is the recommended screw torque for the 1771-WC field wiring arm?
The recommended screw torque for the field wiring arm terminals is 7 to 9 pound-inches (0.6 to 1.1 Nm).
