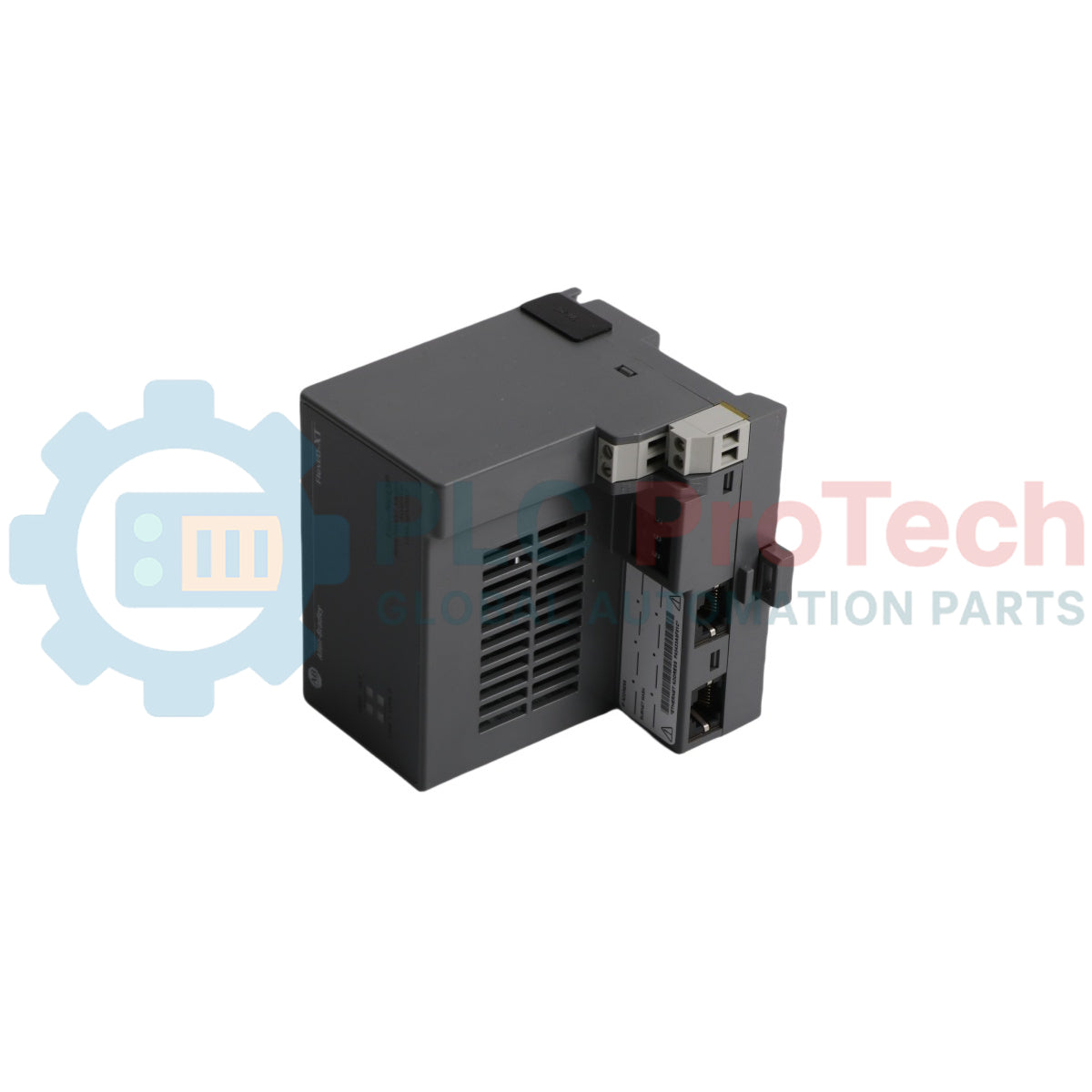

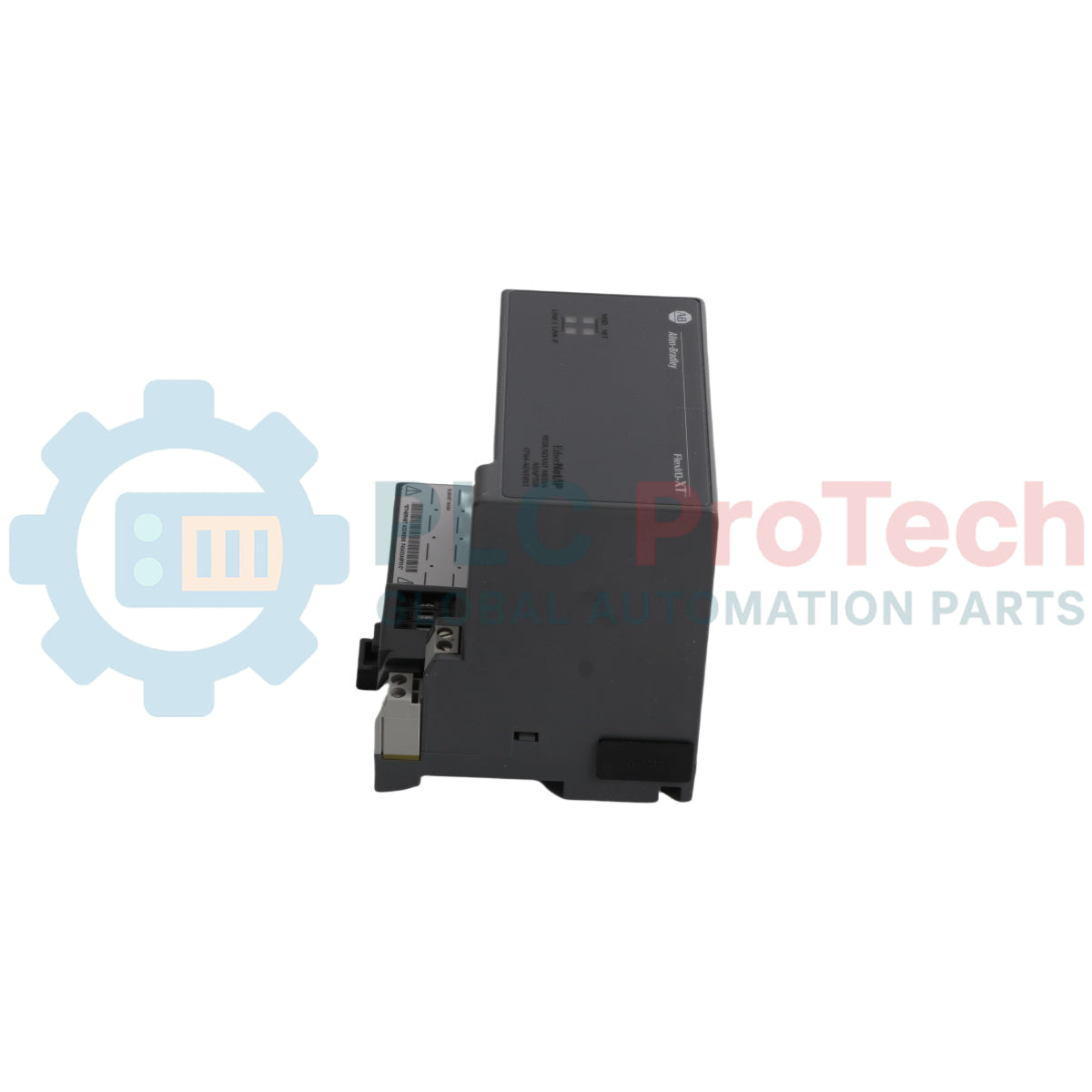

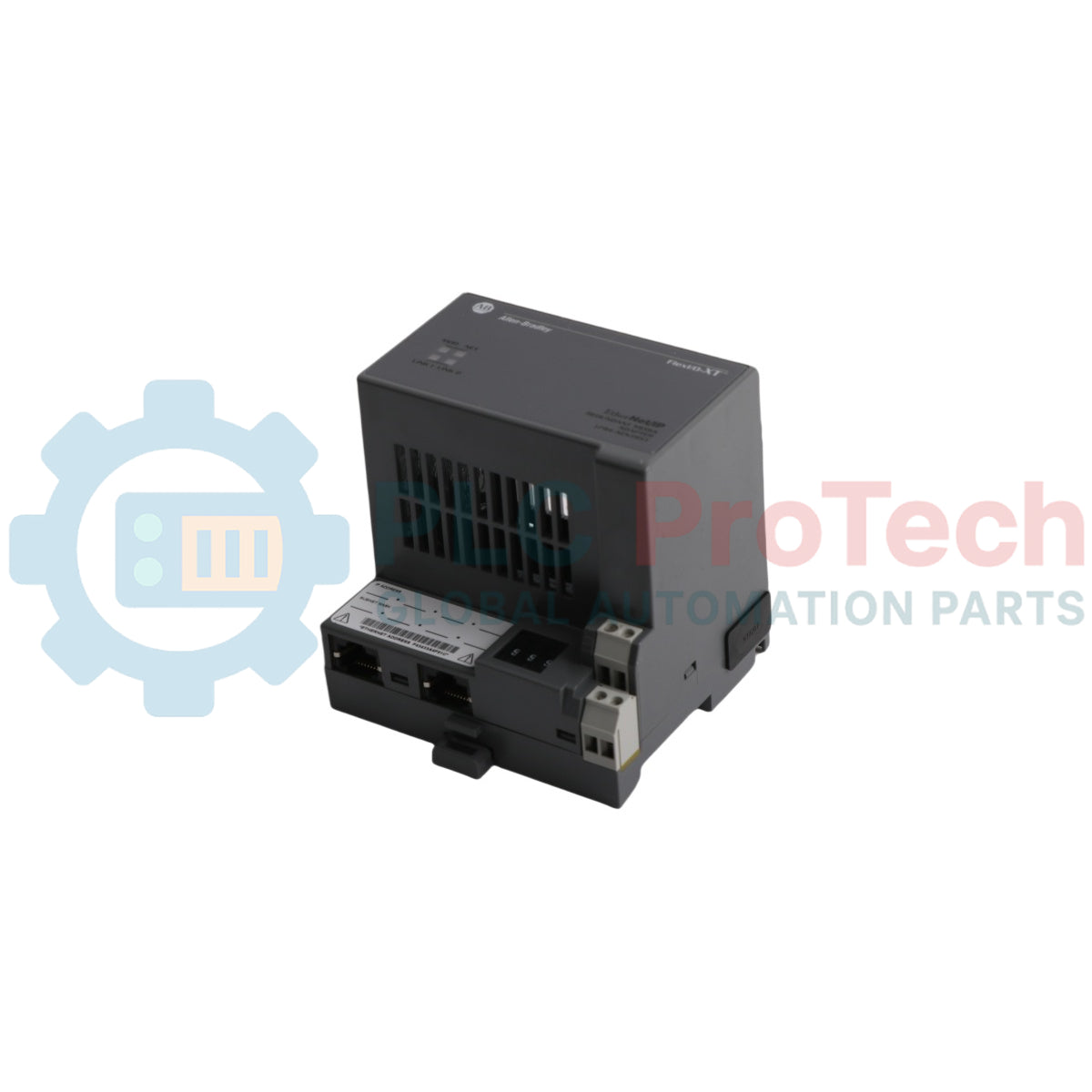

Allen-Bradley 1794-AENTRXT FLEX I/O XT EtherNet/IP Dual-Port Adapter Module

Description

The 1794-AENTRXT is a ruggedized communications adapter module engineered for the FLEX I/O XT distributed input/output platform. This device functions as the network interface link that connects a localized cluster of I/O modules to a centralized programmable automation controller via an EtherNet/IP network infrastructure. Armed with integrated dual RJ45 Ethernet ports, the component natively supports Device Level Ring (DLR), linear, and star network topologies, enabling media redundancy that preserves system tracking capabilities if a single physical line break occurs.

As an XT (Extended Temperature) variant, this industrial hardware block incorporates resilient component architectures and factory conformal coating to withstand extreme thermal conditions ranging from -25 to 70 Celsius. The 1794-AENTRXT manages high-speed bidirectional data exchanges, translating physical field-side input/output registers across the isolated backplane using an integrated FlexBus connection interface. It is standard across oil and gas upstream stations, offshore drilling platforms, wastewater aeration facilities, and remote pipeline telemetry panels requiring continuous industrial uptime in unconditioned environments.

Features

• Extreme thermal performance scaling safely from -25 to 70 Celsius.
• Factory applied conformal coating protecting internal substrates from moisture and airborne chemical agents.
• Dual RJ45 ports providing native Device Level Ring (DLR) and linear media redundancy.
• Embedded web server configuration tools enabling remote network monitoring and IP assignment via standard web browsers.
• Support for up to eight standard or extended temperature FLEX I/O modular blocks on a single rail cluster.

Applications

• Midstream pipeline pumping station data aggregation in unconditioned field cabinets.
• Offshore drilling infrastructure remote I/O link distribution networks.
• Heavy machinery mining excavations subject to high ambient thermal fluctuations.
• Outdoor water treatment facilities and remote localized utility stations.

Technical Specifications

Connections/Interfaces

Installation Guidelines

DIN Rail Installation

Hook the upper tracking slots on the back panel of the module housing onto the upper lip of standard zinc-plated 35 mm DIN tracking. Apply uniform downward and inward physical force until the spring-loaded lower metal retention tab snaps shut behind the bottom rail track. Secure the rail string with heavy-duty end anchors.

FlexBus Backplane Connection

Position the network adapter at the leftmost position on the DIN rail track segment. Align the side-facing female FlexBus socket of the first functional I/O terminal base block with the male interface pins protruding from the right side of the adapter casing, sliding the base laterally until the interlocking tabs lock into position.

Network Address Configuration

For standalone or default networks, adjust the three front-panel rotary switches to select an explicit decimal code value between 001 and 254. This selection dynamically overrides and assigns the terminal IP configuration block to 192.168.1.xxx. Set the switches to 888 to initiate a full factory reset.

Thermal Integrity Management

Ensure ambient air circulation pathways are completely free of structural debris within the enclosure. Maintain the factory minimum 50 mm clearance boundaries above, below, and to the sides of the terminal assembly rail to enable natural convective cooling under high ambient operational profiles.

FAQ

What protocol does this communications component utilize?

It communicates natively across EtherNet/IP networks deploying standard Common Industrial Protocol configurations.

What function does the dual-port setup execute inside this device?

The dual RJ45 interface enables the device to support Device Level Ring topologies for media redundancy or daisy-chain linear layouts without external switches.

What is the extended temperature threshold rating for this hardware?

The module is fully certified to maintain uninterrupted data conversions under ambient parameters shifting from -25 to 70 Celsius.

Can an engineer hot-swap this communications adapter while the I/O rack is running?

No, while individual I/O modules support live removal, disconnecting or removing the network adapter disrupts backplane data transfer for the whole rail cluster.

What is the maximum current load this adapter can feed to the connected I/O blocks?

The integrated power circuit supplies a maximum of 640 mA at 5V DC backplane potential down the FlexBus line to power attached extension modules.

How is a unique IP address assigned if the thumbwheel switches are set to zero?

If set to 000, the adapter defaults to checking a DHCP or BOOTP server utility across the open network to pull its assigned IP registers.

What terminal base block parameters should be matched for the XT series?

To preserve the robust environmental parameters of the XT adapter, it should be paired exclusively with conformal coated components like the 1794-TB3K.

What cable specification is mandatory for network tracking?

Category 5 or higher shielded twisted-pair (STP) industrial Ethernet copper cabling runs are required to mitigate electromagnetic distortion.

What do flashing red patterns on the Module Status display mean?

A flashing red indication typically signals that a recoverable minor fault or configuration data block mismatch exists inside the internal memory map.

Does this adapter unit contain an embedded web management utility?

Yes, typing the module's IP address into a standard network web browser opens an internal portal for diagnostics, status parameters, and configuration viewing.
