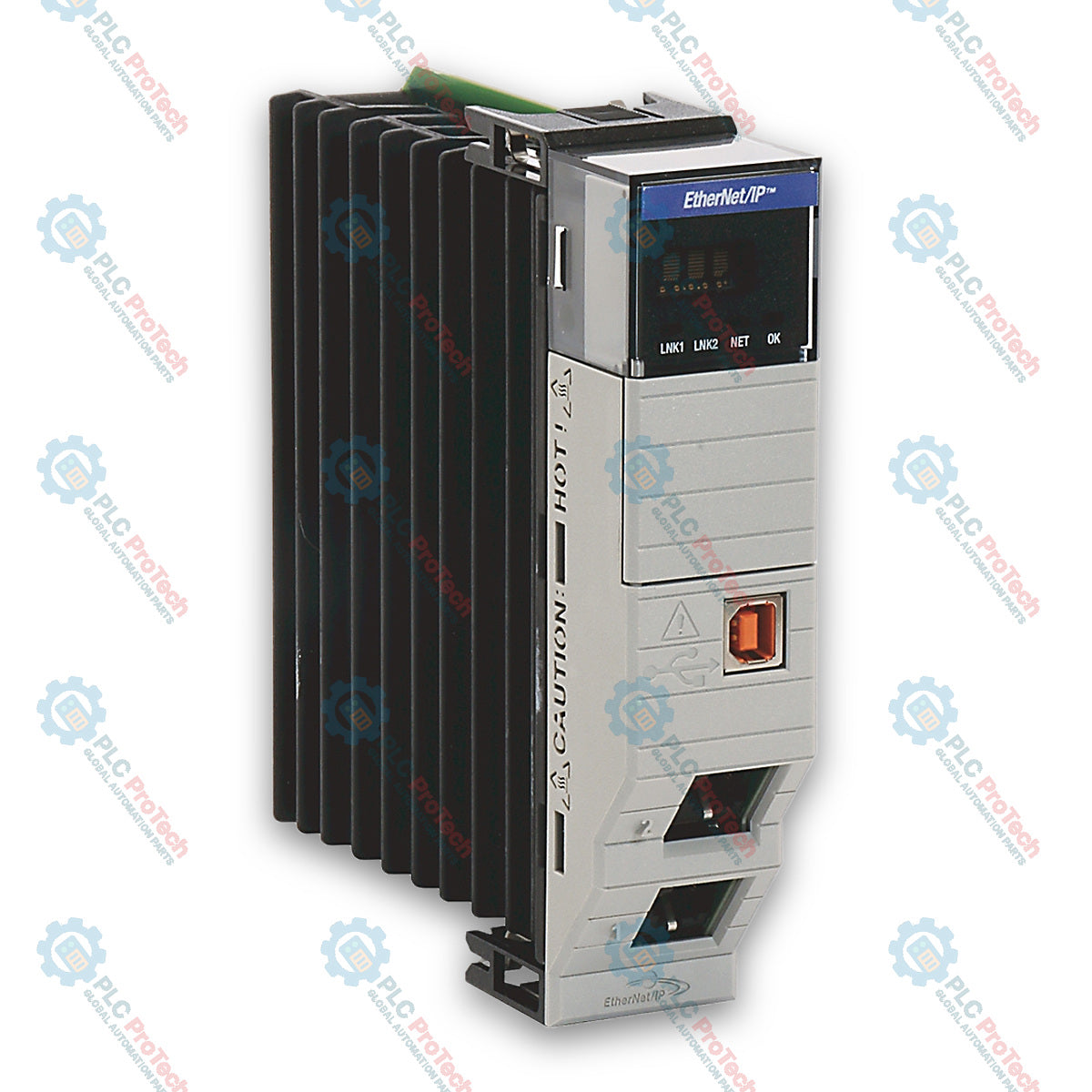

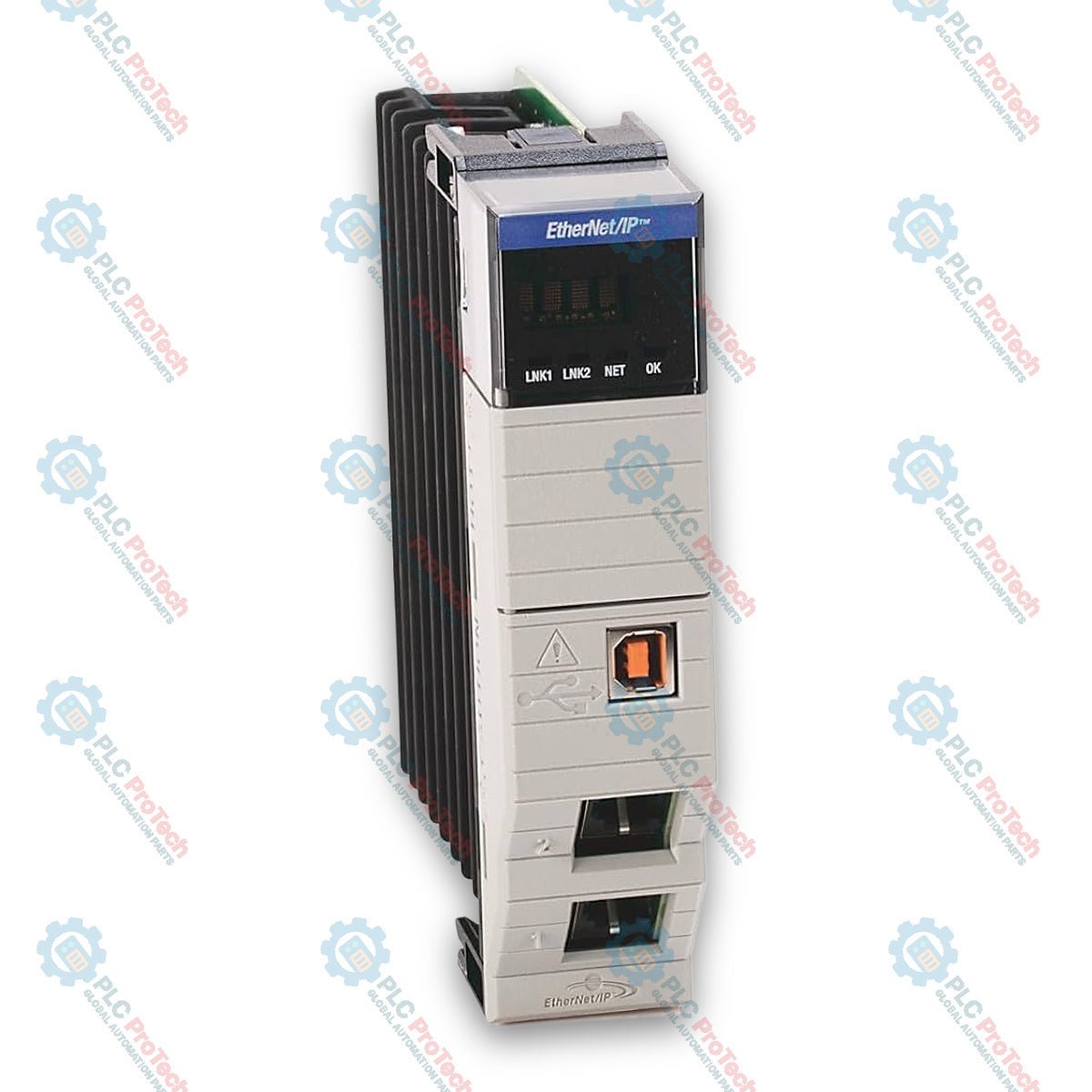

The Allen-Bradley 5069-L3100ERM is a CompactLogix 5380 motion controller designed for industrial automation and integrated motion applications. It provides 10 MB of user memory and supports Integrated Motion over EtherNet/IP.
The controller provides two Ethernet ports for EtherNet/IP communication and a USB programming port. Its Ethernet interfaces can operate in Dual-IP or Linear/DLR mode.
The 5069-L3100ERM supports up to 31 local Compact 5000 I/O modules with applicable Logix Designer versions. It supports up to 180 EtherNet/IP nodes and 32 position-loop-configured Integrated Motion drive axes.
The controller belongs to the Logix 5000 controller family and mounts on a DIN rail. It can monitor and control local I/O, remote I/O, and EtherNet/IP-connected devices.
| Parameter | Specification |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 5069-L3100ERM |
| Controller Family | CompactLogix 5380 |
| Controller Type | Motion Controller |
| User Memory | 10 MB |
| Processor | Quad Core |
| Local I/O Modules, Maximum | 31 with Studio 5000 Logix Designer version 30.00.00 or later |
| EtherNet/IP Nodes, Maximum | 180 with Logix Designer version 31 or later |
| Integrated Motion Drive Axes | 32 maximum, position-loop configured |
| Controller Tasks | 32 tasks; continuous, periodic, and event |
| Programs per Task | 1000 |
| Parameter | Specification |
| Primary Industrial Network | EtherNet/IP |
| Ethernet Ports | 2 |
| Ethernet Data Rates | 10 Mbps, 100 Mbps, 1 Gbps |
| Ethernet Duplex | Full-duplex only |
| EtherNet/IP Modes | Dual-IP mode; Linear/DLR mode |
| Supported Network Topologies | DLR, star, linear |
| USB Interface | USB 2.0 Type B |
| USB Data Rate | 12 Mbps, full speed |
| USB Functions | Programming, configuration, firmware update, and online edits only |
| Parameter | Specification |
| MOD Power Voltage Range | 18…32V DC |
| MOD Power Current, Maximum | 450 mA |
| MOD Power Inrush | 850 mA for 125 ms |
| MOD Power Current Rating, Maximum | 10 A |
| SA Power Voltage Range | 0…32V DC; 0…240V AC, 47…63 Hz; EX 125V AC maximum |
| SA Power Current Rating, Maximum | 10 A, AC or DC |
| Power Dissipation, Maximum | 8.5 W |
| Thermal Dissipation, Maximum | 29 BTU/hr |
| Power Cycles | 80,000 |
| Parameter | Specification |
| Mounting | DIN rail, horizontal mounting only |
| Compatible DIN Rail | EN 50022, 35 x 7.5 mm zinc-plated chromate steel DIN rail |
| Approximate Weight | 0.768 kg (1.693 lb) |
| Enclosure | None, open-style |
| Parameter | Specification |
| Operating Temperature | 0°C < Ta < +60°C (+32°F < Ta < +140°F) |
| Nonoperating Temperature | -40…+85°C (-40…+185°F) |
| Maximum Surrounding Air Temperature | 60°C (140°F) |
| Relative Humidity | 5…95%, noncondensing |
| Operating Vibration | 5 g at 10…500 Hz |
| Operating Shock | 30 g |
| Nonoperating Shock | 50 g |
| Parameter | Specification |
| Ladder Diagram | Supported |
| Structured Text | Supported |
| Function Block Diagram | Supported |
| Sequential Function Chart | Supported |
| Interface | Function |
| Ethernet Port 1 | EtherNet/IP communication; supports Dual-IP or Linear/DLR operation |
| Ethernet Port 2 | EtherNet/IP communication; supports Dual-IP or Linear/DLR operation |
| USB 2.0 Type B | Temporary connection for programming, configuration, firmware updates, and online edits |
| MOD Power RTB | Module-side system power connection |
| SA Power RTB | Sensor/actuator-side system power connection |
Rockwell Automation technical data identifies the 5069-L3100ERM within the CompactLogix 5380 certification group. Applicable certifications include c-UL-us, CE, UKCA, RCM, ATEX, IECEx, CCC, EtherNet/IP conformance, and CIP Security conformance. Certification applicability can depend on hardware revision and the markings on the specific product.
The CompactLogix 5380 controller family is also certified to IEC 62443-4-2:2019 for Embedded Devices up to Security Level Capability 1 (SL-C 1). The uploaded TÜV Rheinland revision list specifically includes the 5069-L3100ERM Series A with certified firmware revisions through V38.011.
Global Express Shipping
Returns & Warranty
Manufacturer: Allen-Bradley
Product No.: 5069-L3100ERM
Country of origin:United States
Product Type: Motion Controller Modules
Payment: T/T, Western Union
Weight: 768g
Dimensions: 143.97 x 98.10 x 136.81 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
