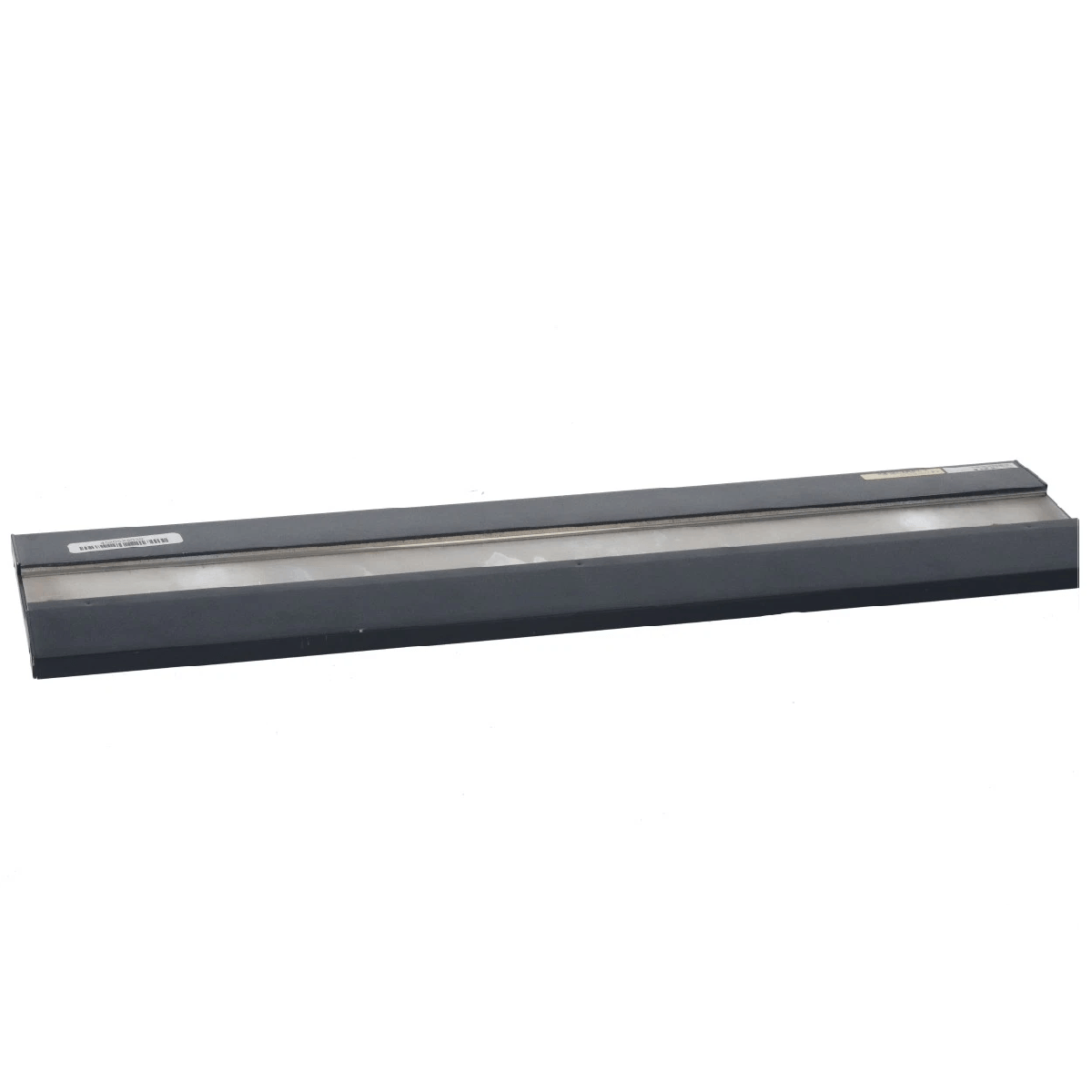

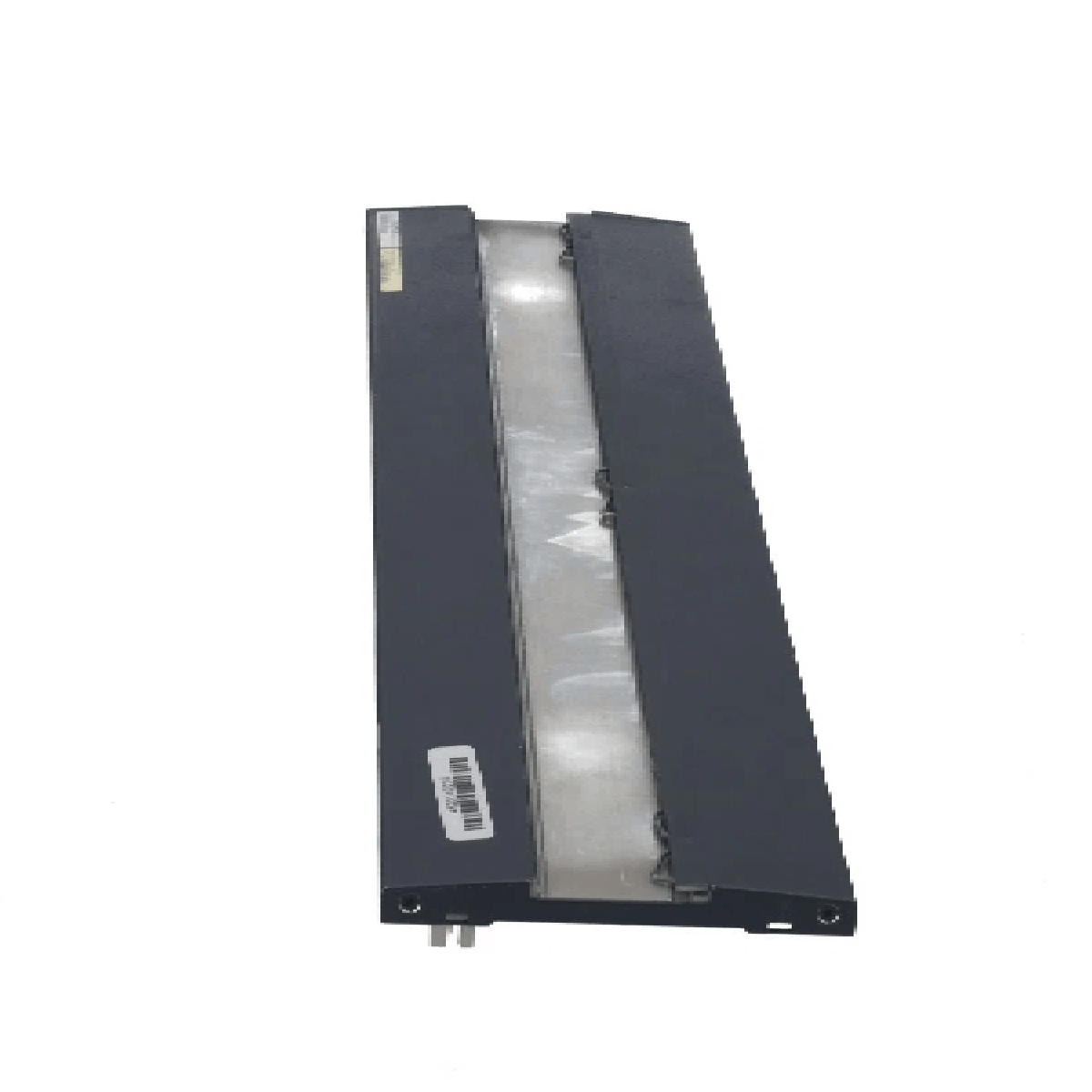

Bachmann Electronic BS209 M200 Control System Backplane

SKU BS209

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Bachmann
Product No.: BS209
Country of origin:Austria
Product Type: Backplane - 9-Slot
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 800g
Dimensions: 495 mm x 23 mm x 119 mm
Shipping port: Xiamen
Warranty: 12 months

Description

The Bachmann Electronic BS209 is a 9-slot backplane component designed to serve as the structural and communication backbone for the M200 control system. This unit mechanically and electrically connects multiple hardware system modules, such as power supply units, processor modules, and various I/O modules. Developed with a robust mechanical footprint, it facilitates high-speed, multi-slot interconnection arrays within advanced industrial environments.

Features

Seamless connectable and extendable architecture
Stable mechanics combined with a compact hardware design
Vibration proof fixing to ensure steady placement of hardware modules
Designed to be snapped securely onto standard EN 60715 DIN rails

Applications

Programmable Logic Controllers (PLCs)
Distributed Control Systems (DCS)
Factory automation and control cabinets
Industrial computing and modular infrastructure

Ordering Information

Part Type Designation	Part Number	Description
BS209	00009634-00	Backplane with 9 module slots

Technical Specifications

Mechanical Specifications

Parameter	Value
Manufacturer	Bachmann electronic GmbH
Product Model	BS209
Spare Model	BS200 00009634-00, 9634/00
Product Parameters	Backplane - 9-Slot
Number of Module Slots	9 module slots (Series scalability from 1 to 16 slots)
Width	495 mm (55 mm x 9 slots)
Depth	23 mm including connector
Height	119 mm
Country of Origin	Austria
Tariff Code	8537101190
Weight	0.8 kg
Estimated Shipping Size	49.5 cm x 12.7 cm x 2.5 cm

Environmental Limits

Parameter	Value
Operating Temperature	-30 degC to +60 degC (vertical mounting: -30 degC to +55 degC)
Relative Humidity (Operation)	5% to 95%, non-condensing
Storage Temperature	-40 degC to +85 degC
Relative Humidity (Storage)	5% to 95% with condensation

Installation Guidelines

DIN Rail Installation: The module is engineered to snap directly onto standard EN 60715 DIN rails for fast cabinet mounting.
Vibration Protection: When populating the backplane, align the hardware system modules with the designated slots and secure them fully to engage the integrated vibration proof fixing.
Thermal Management: For vertical installation orientations, ensure surrounding air temperature does not exceed +55 degC.

Compliance and Certifications

General Approvals: CE, UKCA, cULus
Marine Certifications: ABS, BV, DNV, KR, LR, NK, RINA

FAQ

Which system modules can be installed onto this backplane?

The backplane mechanically and electrically connects hardware modules of the M200 control system, including the power supply unit, processor module, and various input/output modules.

What is the physical size of this 9-slot module?

The backplane has a standard height of 119 mm, a depth of 23 mm including the connector, and a slot-dependent width calculated at 55 mm per module slot, resulting in an overall width of 495 mm for this version.

Can this backplane be utilized under high vibration or marine environments?

Yes, the device features vibration proof fixing of modules and carries multiple marine certifications, including ABS, BV, DNV, KR, LR, NK, and RINA.
