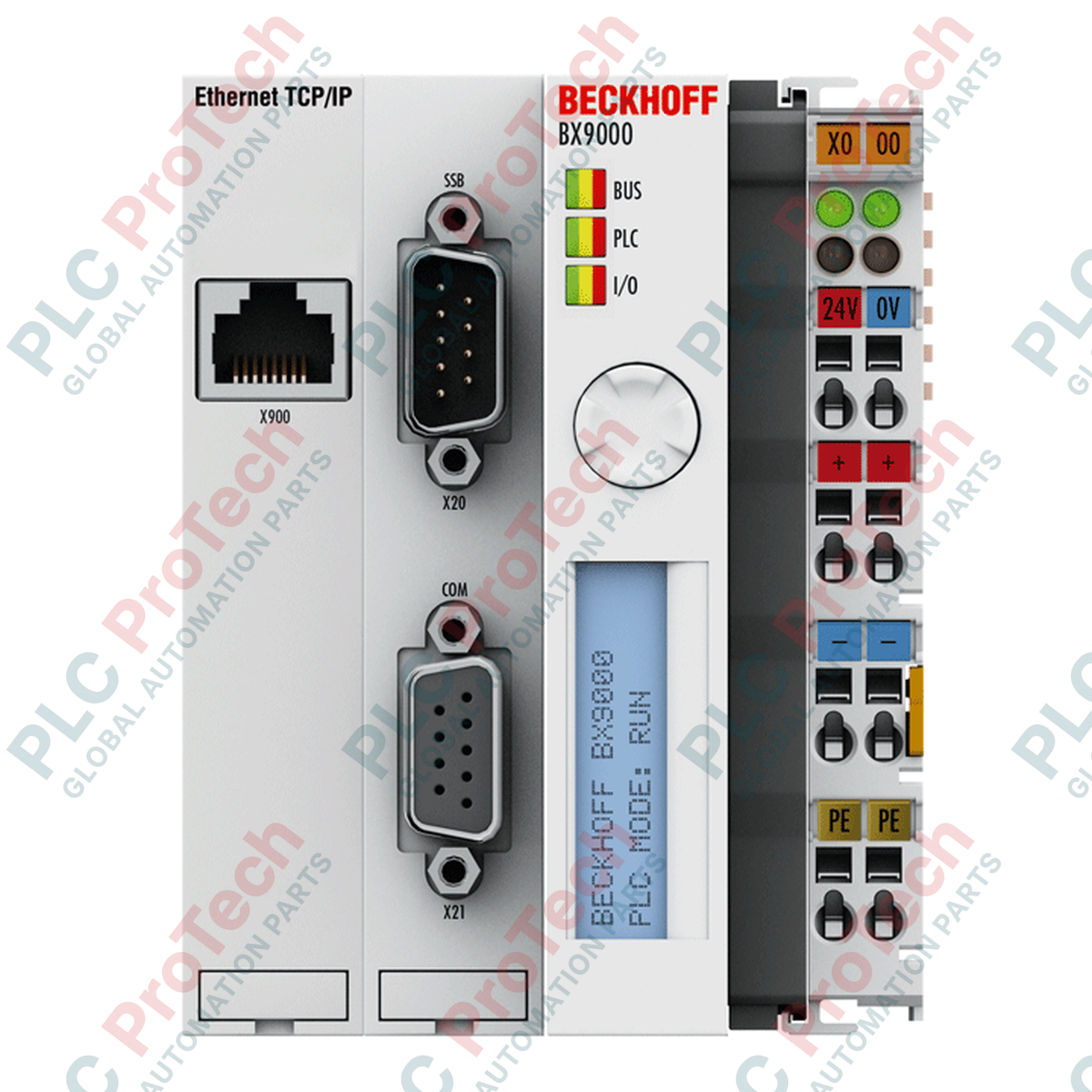

Beckhoff BX9000 Bus Terminal Controller

SKU BX9000

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: BX9000
Country of origin:Germany
Product Type: Bus Terminal Controllers
Payment: T/T, Western Union
Weight: 250g
Dimensions: 81 mm x 100 mm x 90 mm
Shipping port: Xiamen
Warranty: 12 months

Description

Designed as an autonomous, high-performance PLC with an integrated Ethernet port, the Beckhoff BX9000 Bus Terminal Controller bridges decentralized I/O systems and higher-level networks. This compact controller executes complex control programs locally while processing communication tasks independently. Programmed using the standardized TwinCAT system in accordance with IEC 61131-3, the module ensures flexible, modular architecture for a broad range of industrial Automation setups.

The unit features extensive local memory capacities, including 256 kB of program memory and 256 kB of data memory, with additional remanent and persistent data allocation. Up to 64 local Bus Terminals connect directly to the system block, with expansion up to 255 terminals possible via the integrated K-bus extension. For diagnostic operations, it provides an illuminated FSTN display, status LEDs, and a mechanical joystick switch for localized menu navigation and system diagnostics.

Features

Versatile Programming: Configurable via TwinCAT over the network Ethernet interface or the dedicated serial programming connection.
Multi-Language Execution: Fully compliant with IEC 61131-3 standards (IL, LD, FBD, SFC, ST).
Robust Connectivity: Equipped with an RJ45 Ethernet interface (10/100 Mbit/s auto-baud rate), dual serial ports (RS232 and RS485), and an integrated CANopen-based Smart System Bus (SSB).
Local HMI Interface: Integrated 2 x 16 character backlit FSTN display paired with a navigational joystick for real-time local parameters.
Flexible Expansion: Seamlessly manages up to 255 individual Bus Terminals using K-bus extension accessories.
Time Tracking: Contains an onboard battery-backed real-time clock for system-wide time-stamping.

Applications

Distributed plant automation and localized process control systems.
Substation diagnostic nodes and monitoring stations in utility networks.
Machine-level PLC control with upstream Ethernet TCP/IP supervisory communication.

Technical Specifications

Manufacturer	Beckhoff
Part Number / Model	BX9000
Program Memory	256 kbytes
Data Memory	256 kbytes
Remanent / Persistent Data	2 kbytes / 1 kbyte
Cycle Time	Approx. 1 ms for 1,000 instructions (excluding I/O cycle)
Bus Terminals Supported	64 (up to 255 with K-bus extension)
Data Transfer Rates	10/100 Mbit/s with automatic recognition
Bus Interface	RJ45
Serial Interfaces	COM1: 1 x RS232, COM2: 1 x RS232 or RS485
Sub-bus System	SSB (CANopen-based subsidiary bus)
Power Supply Voltage	24 V DC (-15 % / +20 %)
Input Current	140 mA + (total K-bus current)/4, max. 500 mA
Starting Current	2.5 x continuous current
K-bus Current Supply	1450 mA
Power Contacts Capacity	Max. 24 V DC / max. 10 A
Electrical Isolation	500 V (power contact / supply voltage)
Diagnostics / Display	Illuminated 2 x 16 character FSTN display, 2 x Power LEDs, 2 x K-bus LEDs
Operating Temperature	0 to +55 Celsius
Storage Temperature	-25 to +85 Celsius
Relative Humidity	95 %, non-condensing
Protection Rating	IP20
Dimensions (W x H x D)	81 mm x 100 mm x 90 mm
Weight	Approx. 250 g

Connections and Interfaces

Interface Type	Specification / Compatibility
Ethernet Port	RJ45 connection, 10/100 Base-T
COM1 Interface	RS232 serial connection for programming and diagnostic data
COM2 Interface	RS232 or RS485 configuration for peripheral device attachment
K-Bus	Direct connection backplane interface for local Bus Terminals
Wiring Type	Solid wire (s), stranded wire (st), or ferrule (f) connection using spring actuation
Solid Wire Cross-Section (s)	0.08 to 2.5 mm²
Stranded Wire Cross-Section (st)	0.08 to 2.5 mm²
Ferrule Cross-Section (f)	0.14 to 1.5 mm²
Stripping Length	8 to 9 mm

Installation Guidelines

Mounting: Mount directly on a standard 35 mm DIN rail conforming to EN 60715 using the integrated lock mechanism.
Positioning: Variable mounting orientation is acceptable. Utilize the built-in double slot and key connection for reliable side-by-side terminal mounting.
Terminal Wiring: To insert or remove connection wires, actuate the terminal springs by applying pressure with a standard screwdriver.
Thermal Considerations: Maintain free air convection clearance inside the electrical cabinet to keep operating conditions below the +55 Celsius threshold.
