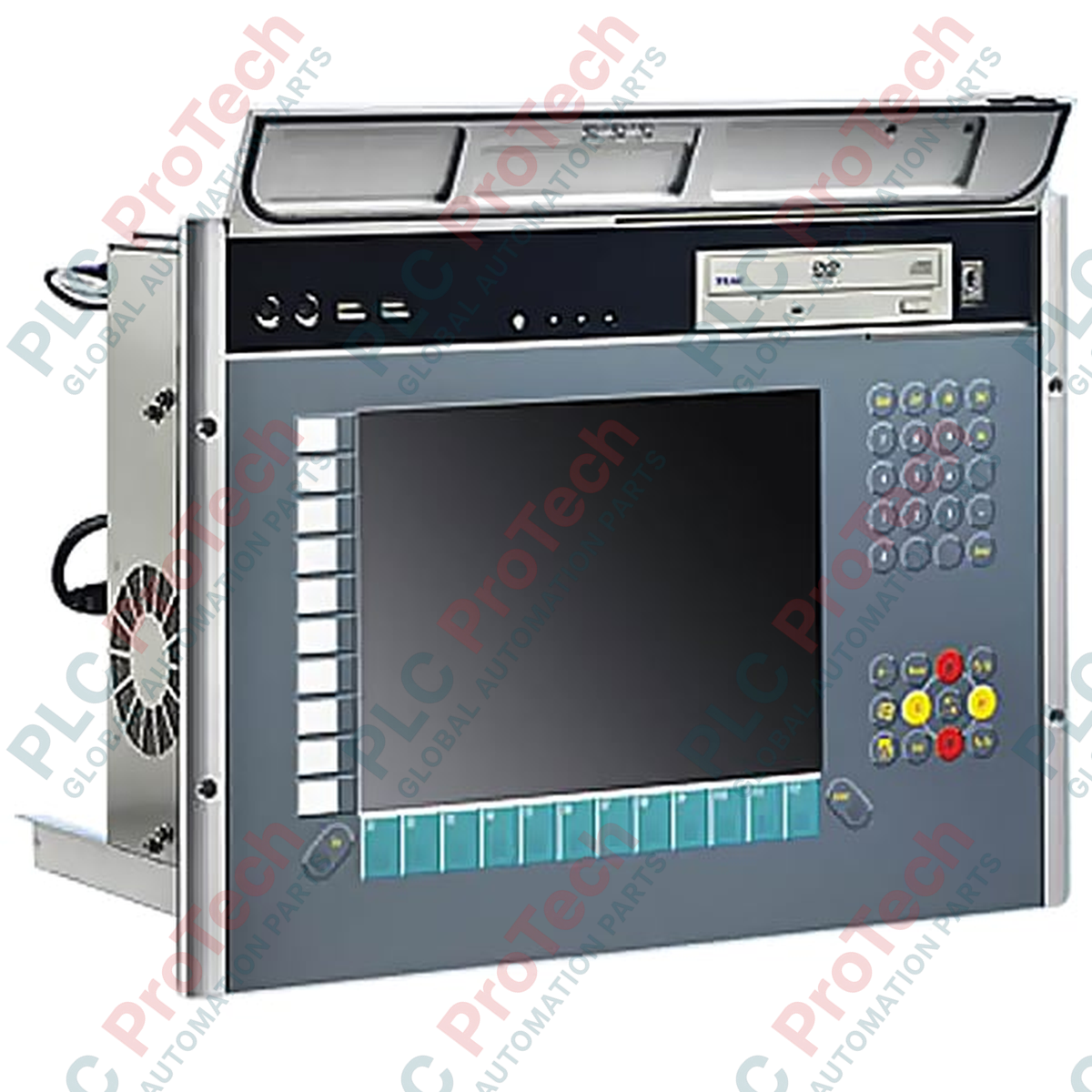

Beckhoff C3350-0060 C3350 Series 19-inch Panel PC

Description

Designed to serve as a high-reliability visualization and control node, the Beckhoff C3350-0060 industrial Panel PC is engineered for installation within standard 19-inch control cabinets. This robust 10 rack unit (RU) system supports high-performance ATX motherboards and is accessible entirely from the front panel to minimize downtime during field maintenance. Operating within demanding environments, the system features a rigid mechanical card holder design to secure expansion modules against heavy industrial vibration, ensuring continuous operation of TwinCAT-based real-time automation architectures.

Features

• Front-Access Architecture: Allows convenient front-side access to all internal components, storage drives, and expansion slots, eliminating the need to slide the unit out of the cabinet rack during servicing.
• Robust Motherboard Capacity: Features a 7-slot processor core designed to accommodate standard industrial ATX motherboards.
• Toolless Card Retention: Features integrated card holders with toolless actuation to securely clamp down expansion cards against shock and vibration.
• Heavy-Duty Expansion Options: Equipped with 3 full-length PCI slots and 4 PCI Express slots (supporting boards up to 240 mm in length) for extensive fieldbus, communication, or vision capture card integration.
• Environmental Sealing: Built with an IP65-rated front panel protective construction to safeguard against dust and moisture ingress, and an IP20-rated rear enclosure.

Applications

• Centralized plant visualization and supervisory SCADA execution in heavy industrial settings.
• High-performance TwinCAT real-time machine control and multi-axis motion planning.
• Aggregated data acquisition, industrial vision processing, and edge gateway computing.
• Standard 19-inch server rack control cabinets requiring a local, high-durability human-machine interface (HMI).

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The Beckhoff C3350-0060 features a highly standardized 10 RU ATX physical layout. When replacing older C33xx control computers, pay close attention to the BIOS configurations and motherboard generation integrated inside. Newer revisions of this model may require updated TwinCAT drivers or specific real-time ethernet (RT-Ethernet) card settings to match the original cycle times of legacy controllers.

Application Pitfalls & Engineering Notes

While the front panel is rated at IP65, the rear of this computer operates at IP20. Ensure that the 19-inch rack enclosure maintains adequate heat dissipation. Active rear-cabinet ventilation is recommended when the computer runs multiple high-draw PCIe communication cards simultaneously. Keep front-facing filter mats clean to prevent air intake restriction, which can cause internal thermal throttling under sustained processing loads.

Commissioning & Wiring Tips

Ensure the industrial chassis grounding terminal is connected directly to your central control cabinet functional earth (FE) bus bar. When inserting fieldbus network cards (such as EtherCAT interface cards), utilize the toolless card-clamp system to prevent loose physical connections from occurring due to ambient panel vibrations. Ensure proper configuration of the TwinCAT real-time kernel to assign specific cores to control logic and separate cores to HMI execution.
