Beckhoff CP3713-0020 CP37xx Series Multi-touch Panel PC

Beckhoff CP3713-0020 CP37xx Series Multi-touch Panel PC

Only 10 item(s) left in stock

  • Manufacturer: BECKHOFF

  • Product No.: CP3713-0020

  • Country of origin:Germany

  • Product Type: Multi-touch Panel PCs

  • Payment: T/T, Western Union

  • Weight: 500g

  • Dimensions: 380 mm x 300 mm x 160 mm

  • Shipping port: Xiamen

  • Warranty: 12 months

View full details
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

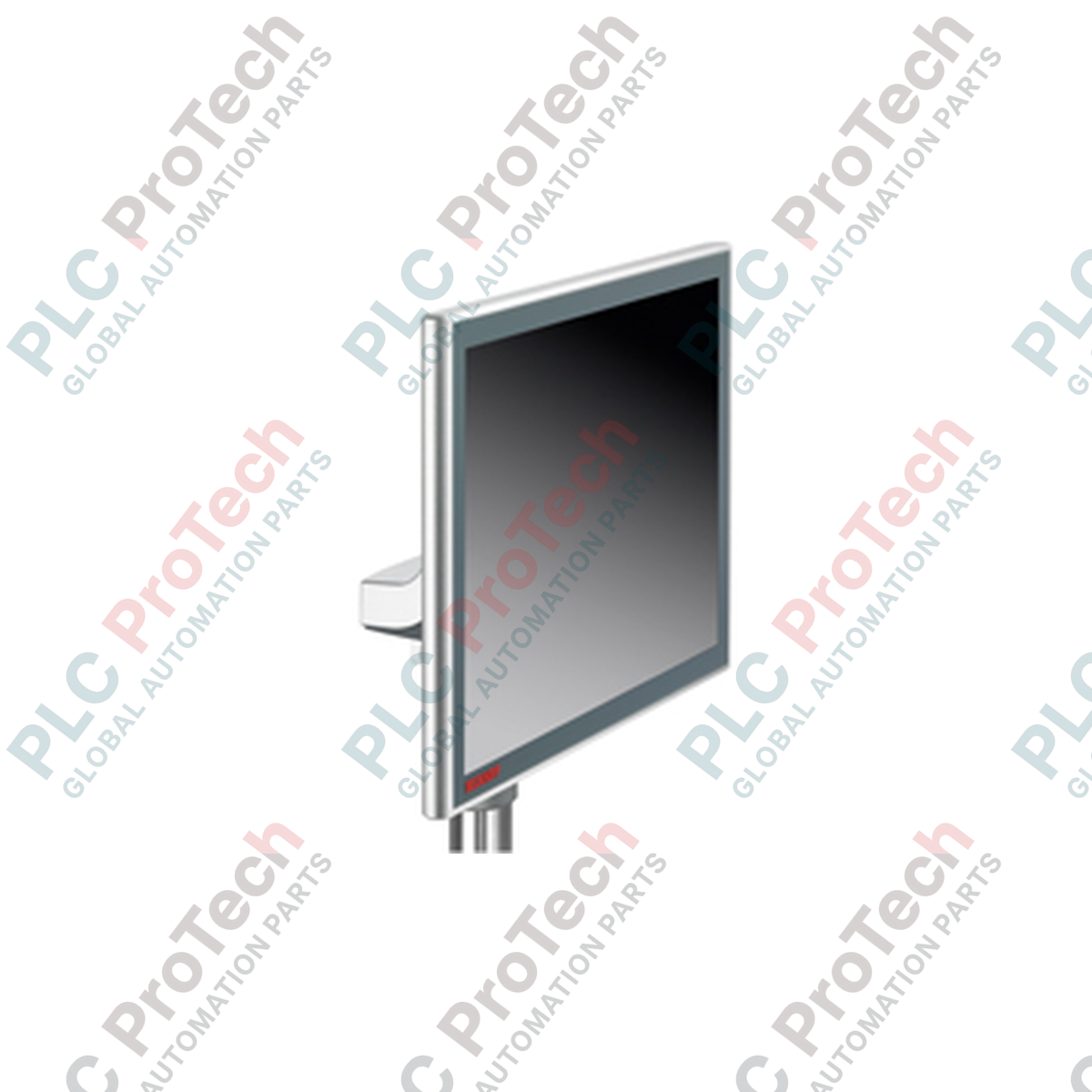

Designed for direct integration onto mounting arm installations, the Beckhoff CP3713-0020 is a high-performance industrial multi-touch Panel PC featuring a 12.1-inch widescreen display with a resolution of 1280 x 800. Encased in a rugged aluminum housing, this control terminal delivers IP65-rated protection, making it ideal for machine-level operation in harsh industrial environments. Powered by energy-efficient Intel Atom x5-E39xx processors, the device supports robust multi-finger touch interaction and relies on passive cooling technology combined with an internal fan to ensure optimal heat dissipation without dust ingress.

Key Features

  • High-Resolution Display: 12.1-inch widescreen multi-touch interface (1280 x 800 resolution) with multi-finger touch capability.
  • Rugged Enclosure: Industrial-grade aluminum housing designed specifically for mounting arm installation with a rotatable and tiltable adapter.
  • Optimized Thermal Management: Passive external cooling via integrated heat sink structures paired with an internal fan to equalize heat distribution across the housing walls.
  • Dual Storage Slots: Equipped with two slots for CFast flash memory cards to separate operating system/application data and user logs.
  • Flexible Mounting: Compatible with 48 mm tube mounting arm systems from top or bottom interfaces, including Rittal and Rolec configurations.
  • Protected Connectivity: Wiring area designed for up to four IP65-rated connectors to preserve environmental sealing.

Applications

  • Machine tool human-machine interfaces (HMI)
  • Automotive assembly line control stations
  • Food and beverage processing plant control
  • On-site monitoring in petrochemical and packaging plants

Technical Specifications

Parameter Specification
Manufacturer Beckhoff Automation GmbH & Co. KG
Model Number CP3713-0020
Display Size & Resolution 12.1-inch widescreen, 1280 x 800
Touch Technology Multi-touch (multi-finger capacitive)
Processor Options Intel Atom x5-E3930 (1.3 GHz, 2 Cores) / Intel Atom x5-E3940 (1.6 GHz, 4 Cores)
System Memory (RAM) 4 GB DDR4 RAM (scalable up to 8 GB ex factory)
Storage Slots 2 x CFast card slots (up to 320 GB capacity supported)
Ethernet Ports 2 x 100/1000BASE-T on-board (1 led out as Push-Pull connector)
Power Supply Input 24 V DC (UPS options available)
Enclosure Protection Rating IP65 (fully dust-tight and water-jet resistant)
Operating Temperature 0 to 45 degC (32 to 113 degF)
TwinCAT Compatibility TwinCAT 3 performance class: TC3:40 (dual-core) / TC3:50 (quad-core)
Shipping Weight (Calculated) 8.0 kg (17.6 lbs)
Package Dimensions (Calculated) 380 mm x 300 mm x 160 mm
Country of Origin Germany

Connections and Interfaces

Connector / Terminal Function / Circuit Assignment
Push-Pull RJ45 100/1000BASE-T Ethernet interface for IP65 secure cabling
Power Input Terminal 24 V DC main operating power supply input
CFast Slot 1 Primary boot storage (operating system and system files)
CFast Slot 2 Secondary expansion storage (user application, database, and logging)

Empirical Engineering Insights

Alternative Models & Compatibility: The CP3713 platform shares performance definitions with standard CP37xx systems. Depending on the processor selection, it scales from TwinCAT 3 performance class TC3:40 (dual-core E3930) up to TC3:50 (quad-core E3940). Ensure that TwinCAT license dongles or software licenses match the exact performance class of the deployed processor configuration.

Application Pitfalls & Engineering Notes: Because this device features a completely sealed passive aluminum heat sink structure, it is critical to respect the required 20 cm (7.9 inches) free space clearance envelope around the Panel PC housing. Operating in stagnant air pockets without the specified clearance can result in localized thermal buildup, causing the processor to scale down its clock speed to prevent damage.

Commissioning & Wiring Tips: To preserve the integrity of the IP65 environmental seal, all unused connector entry points in the wiring area must be sealed using the original OEM blanking plugs. Always feed the cables through a compatible 48 mm mounting arm tube before terminating connections to avoid strain on the internal terminal board.

Installation Guidelines

CRITICAL WARNING: Prior to attempting any installation, physical modifications, or wiring adjustments to the Panel PC, ensure the entire control panel feed is completely de-energized. Allow at least 2 minutes for any residual capacitive electrical charges within the power supply filtering circuitry to safely bleed to ground.
1
Mount the Panel PC to the 48 mm tube adapter associated with the Rittal or Rolec mounting arm, ensuring all structural mounting bolts are torqued to manufacturer specifications.
2
Route the necessary power and communication cables internally through the mounting arm and feed them directly into the IP65 cable gland entries on the device's wiring interface.
3
Connect the 24 V DC power cord to the primary input terminal blocks. Ensure proper grounding wire (PE) connection to prevent high-frequency noise interference on the capacitive touch controller.
4
Close the interface compartment cover firmly, verifying that the IP65 rubber sealing gasket is fully seated and uncompressed to guarantee protection against water jet penetration.
Key Features:
#CP37xx Series #HMI #Multi-Touch Panel PCs

What is the standard TwinCAT 3 performance class for the CP3713-0020?
The performance class depends on the specific processor configuration. For the dual-core Intel Atom x5-E3930, it is classified as TC3:40. For the quad-core Intel Atom x5-E3940, it is classified as TC3:50.

Does this Panel PC require active cabinet ventilation?
The system utilizes passive cooling with an external heat sink structure and an internal fan for uniform thermal distribution. While it does not require active cabinet ventilation, you must maintain a 20 cm (7.9 inches) clear air space around the housing for proper natural convection.

How is the IP65 protection rating maintained for cable entries?
The CP3713-0020 is designed with a protected wiring compartment that accommodates up to four IP65-rated push-pull connectors. Any unused entries must be sealed using certified blanking caps.

What storage media does this Panel PC support?
The system features two accessible slots designed specifically for CFast flash memory cards, supporting configurations up to 320 GB.
