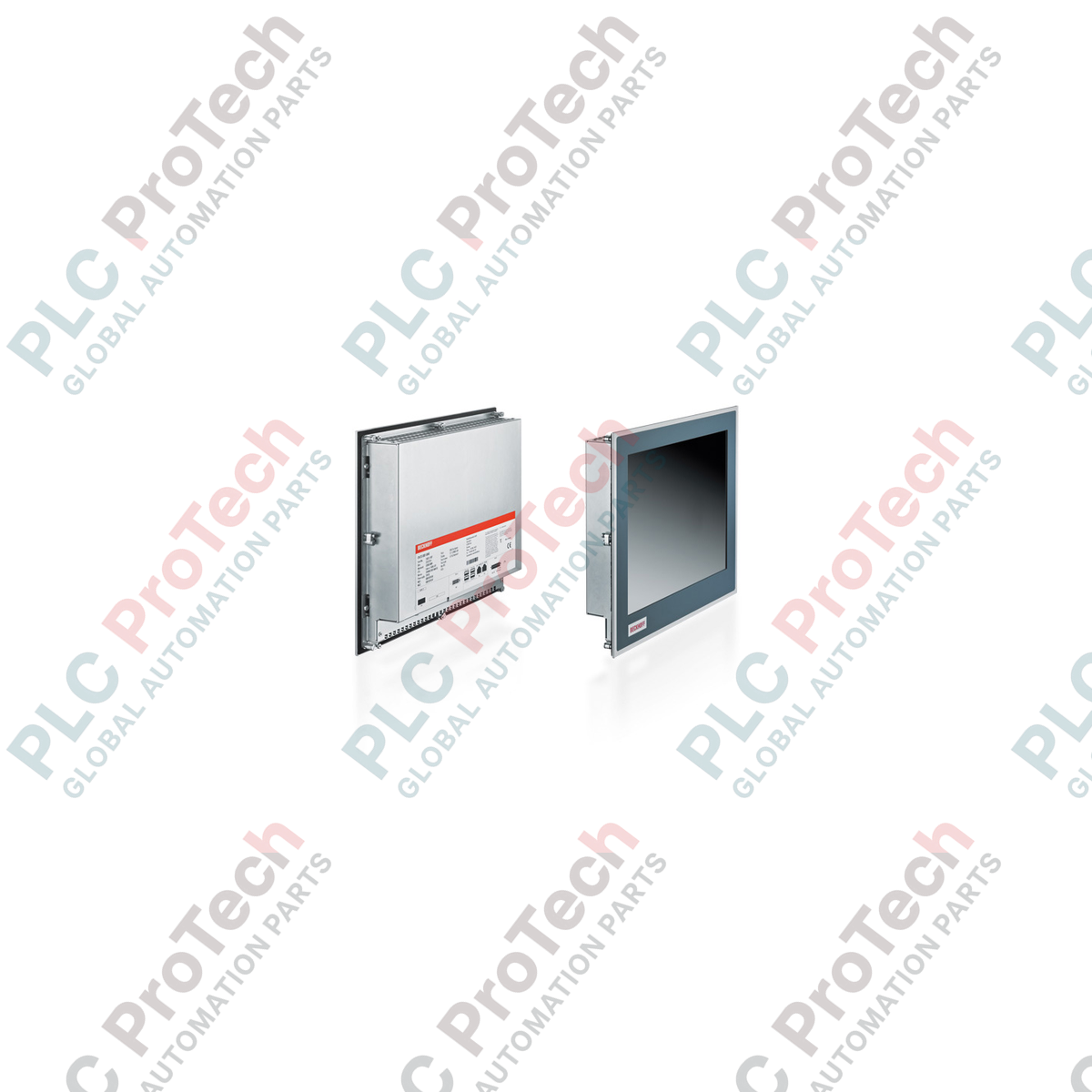

BECKHOFF CP6703-0020-0060 CP67xx Built-in Panel PC

Description

Designed for space-saving machine integration and high-performance visualization, the CP6703-0020-0060 functions as a industrial-grade Economy built-in Panel PC equipped with an integrated 19-inch display. This unit combines a robust display and control panel with PC controller technology in a single compact housing. It is engineered with an aluminum front bezel and a sheet-steel rear cover, providing flush-mounted, single-finger touch operation without a physical front keyboard.

The processing core relies on efficient Intel Atom x5 processors mounted on a compact 3½-inch motherboard, coupled with DDR4 RAM to handle modern PLC and HMI requirements under TwinCAT control environments. For simplified physical installation, the unit utilizes specialized pull-out clamping levers that secure the Panel PC into control cabinets or console cutouts without loose mounting hardware.

Features

• High-resolution 19-inch TFT display (1280 x 1024 pixels) for precise industrial visualization.
• Robust front-side IP65 ingress protection against dust and liquid splash, combined with IP20 rear protection.
• Tool-less installation via integrated pull-out clamping levers.
• Dual independent 100/1000BASE-T Ethernet interfaces for physical network separation.
• Compact 3½-inch industrial motherboard architecture with onboard CFast slot for flash-based storage.

Applications

• Machine-level HMI and SCADA visualization.
• Industrial assembly line control and monitoring.
• Process engineering automation interfaces.
• Control cabinet door integration for packaging and manufacturing machinery.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting Cutout: Verify enclosure cutout dimensions correspond to the official 19-inch panel template before installation.
• Clamping Levers: Insert the device into the cutout from the front and secure using the pull-out clamping levers. Tighten securely to ensure a proper IP65 compression seal against the panel face.
• Grounding: Always establish a low-impedance functional ground connection between the grounding terminal on the steel rear cover and the central earth ground of the control cabinet.
• Thermal Management: Maintain unobstructed vertical clearance around the rear chassis to facilitate convection cooling and preserve ambient operating temperatures below 55 degC.
