Description

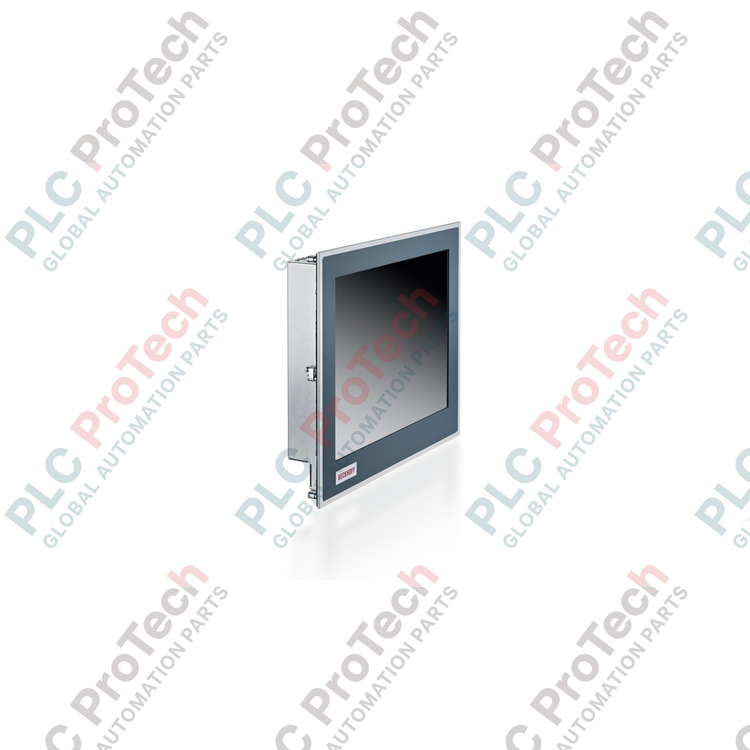

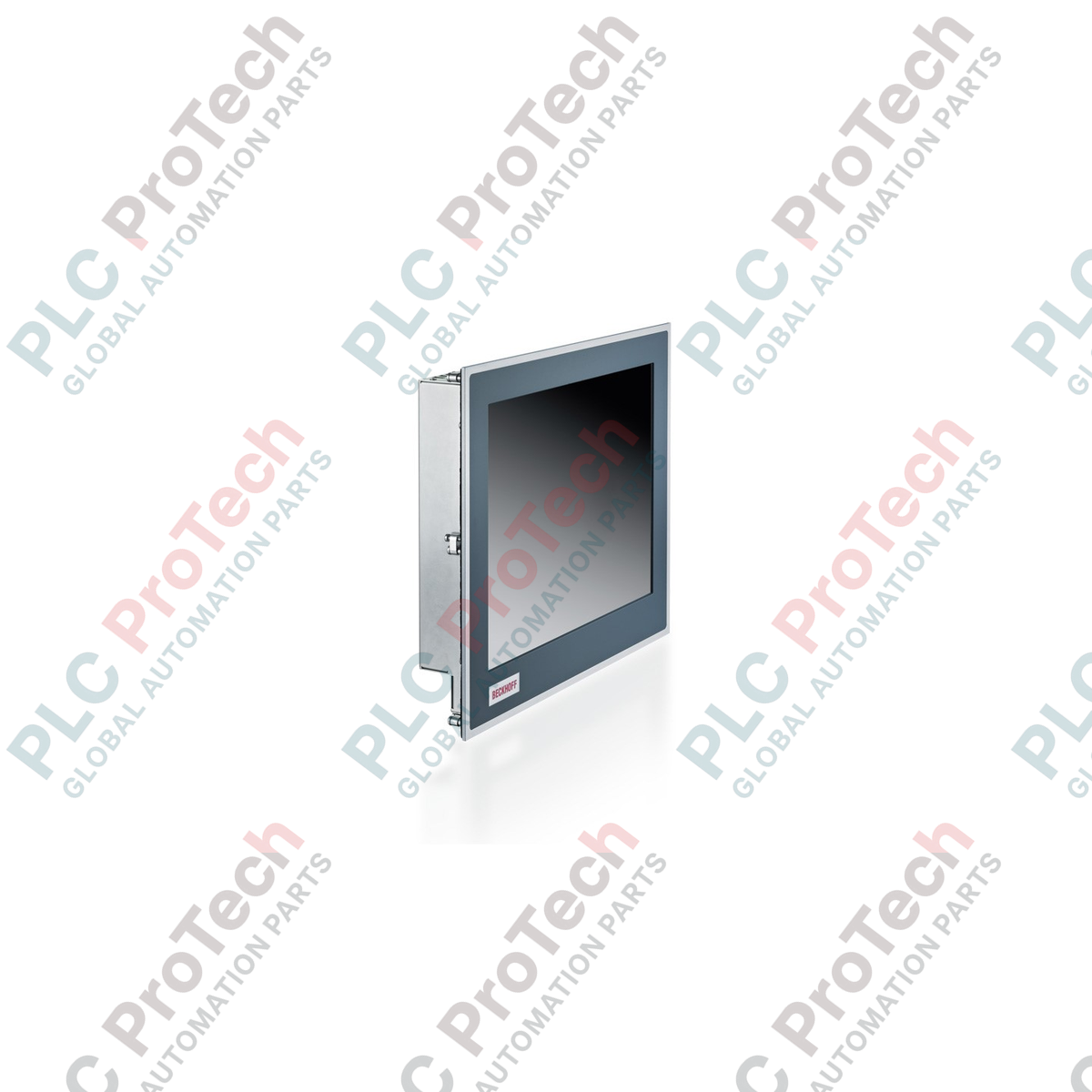

Designed for space-saving control cabinet installation, the CP6742-0000-0060 serves as an industrial Economy built-in Panel PC combining high-efficiency processing power with versatile visualization interfaces. Operating on an Intel Atom x5 processor architecture, this control cabinet PC provides an optimized hardware platform suitable for standard PLC, motion control, and HMI runtime engines. The system features a rugged mechanical design with clamping levers to enable straightforward mechanical integration without loose parts.
By standardizing on a 3.5-inch industrial motherboard, this series supports high-speed DDR4 RAM and versatile storage layouts including CFast cards and 2.5-inch solid-state drives. The robust enclosure layout pairs a sleek front face with a rugged sheet-steel rear cover, balancing aesthetic demands with structural integrity.
Features
- High-efficiency Intel Atom x5 processors with up to 4 cores.
- Integrated 3.5-inch industrial motherboard.
- Compact pull-out clamping levers for rapid mounting.
- Dual independent 100/1000BASE-T Ethernet ports.
- Configurable front laminate options including alphanumeric keyboards or touch-only displays.
- Flexible storage configurations featuring high-speed CFast slots.
Applications
This panel PC is designed for execution across diverse industrial sectors, including:
- Automotive manufacturing production lines.
- Packaging machinery control and visualization.
- Water and wastewater plant monitoring.
- Special-purpose industrial machine automation.
Technical Specifications
| Manufacturer |
BECKHOFF |
| Model Number |
CP6742-0000-0060 |
| Device Type |
Economy built-in Panel PC |
| Housing Material |
Aluminum front with sheet-steel rear cover (stainless steel options for touch screens) |
| Display Options |
5.7 inch (640 x 480), 12 inch (800 x 600), 15 inch (1024 x 768), or 19 inch (1280 x 1024) |
| Touch Technology |
Single-finger touch screen or touch pad option |
| Processor Option 1 |
Intel Atom x5-E3930, 1.3 GHz, 2 cores (TC3: 40) |
| Processor Option 2 |
Intel Atom x5-E3940, 1.6 GHz, 4 cores (TC3: 50) |
| Motherboard |
3.5-inch motherboard for Intel Atom x5-E39xx |
| Memory |
4 GB DDR4 RAM (scalable up to 8 GB ex factory) |
| Ethernet Ports |
2 x 100/1000BASE-T on-board (optional 3rd port available) |
| Storage Configurations |
1 slot for CFast, or 2 slots for CFast, or 1 slot for 2.5-inch HDD/SSD |
| Storage Capacity |
40 GB CFast up to 320 GB CFast, HDD, or SSD |
| Physical Interfaces |
2 x USB 3.0, 2 x USB 2.0, 1 x DVI |
| Power Requirements |
24 V DC (UPS support optional) |
| Protection Rating |
IP65 (front side), IP20 (rear side) |
| Operating Temperature |
0 to 55 degC |
| Operating System |
Windows 10 IoT Enterprise (optional configuration) |
| Shipping Weight |
5 kg |
Connections and Interfaces
| Port / Interface |
Specification and Function |
| Ethernet 1 & 2 |
100/1000BASE-T RJ45 on-board interfaces for network connection and EtherCAT communication |
| USB 3.0 |
2 x High-speed USB ports for external peripheral storage or expansion |
| USB 2.0 |
2 x Standard USB ports for keyboard, mouse, or legacy device connection |
| DVI |
1 x Digital Video Interface for secondary display cloning or independent screen outputs |
| Power Supply |
24 V DC input terminal connection with optional integrated UPS interface |
Installation Guidelines
To ensure safe and reliable operation of the CP6742-0000-0060 panel PC, adhere to the following setup parameters:
-
Mounting: Use the integrated pull-out clamping levers to secure the unit within the control cabinet cutout. Tighten according to standard specification torque without stripping the mountings.
-
Grounding: Connect the ground screw on the rear sheet-steel cover directly to the central control cabinet ground terminal with a low-impedance conductor.
-
Clearance: Maintain a minimum clearance of 50 mm above and below the rear housing cover to facilitate natural convection cooling.
-
Cable Routing: Separate communication lines (Ethernet, USB) from high-voltage motor or power supply wiring to prevent electromagnetic interference.
