BECKHOFF CP6923-0001-0000 Control Panel 19-Inch Display

Description

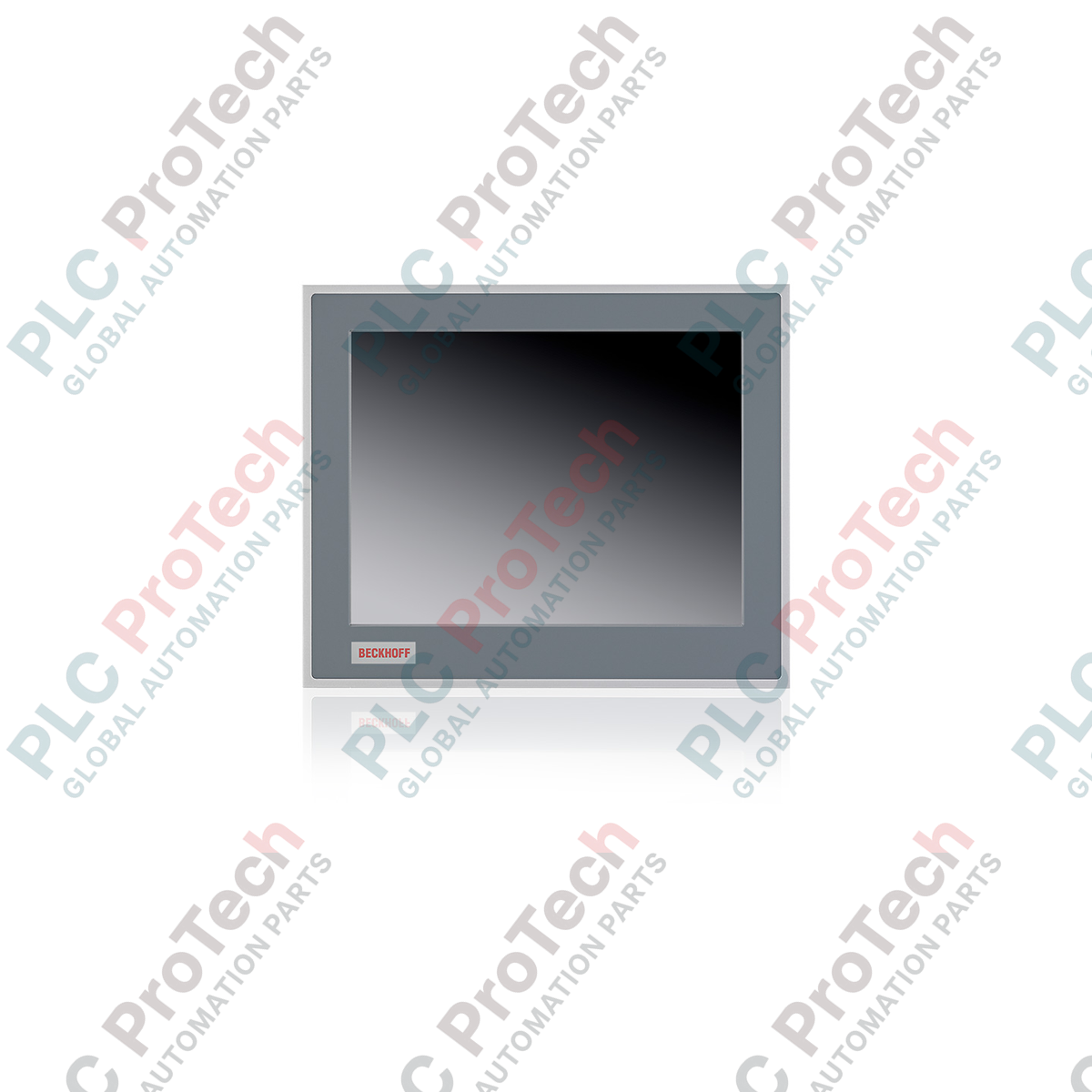

Engineered for robust industrial visualization and control, the CP6923-0001-0000 built-in industrial Control Panel provides an expansive 19-inch display with a resolution of 1280 x 1024 pixels. This unit functions as an efficient operator interface, utilizing advanced DVI-E and USB-E 2.0 connection technology to permit physical separation from the control PC by distances of up to 50 meters. The DVI-E transmission path operates compatibly with standard graphics card outputs, while the USB-E 2.0 link facilitates high-speed data transfer rates of up to 480 Mbit/s for seamless peripheral interaction.

Constructed with an aluminum front bezel and a rugged sheet-steel rear cover, this device is built to withstand demanding industrial environments. The front panel features a streamlined laminate face without keys, optimizing screen visibility and protecting internal electronics. Fast mechanical installation is achieved via integrated, pull-out clamping levers that secure the panel into control cabinet doors or mounting consoles without loose mounting hardware.

Features

• High-contrast 19-inch active matrix display with a sharp 1280 x 1024 resolution.
• DVI/USB Extended (DVI-E, USB-E 2.0) interface technology enabling reliable remote operations up to 50 meters.
• Industrial-grade front laminate protection conforming to IP65 standards against liquid and dust ingress.
• Rear-side IP20 protection rated for internal cabinet mounting.
• Dual integrated USB 2.0 ports for connecting diagnostic tools or local user peripherals directly at the panel.
• Secure, tool-free installation using integrated pull-out clamping levers.

Applications

• Machine tool human-machine interface (HMI) consoles.
• Automotive manufacturing assembly line tracking and control.
• Process control systems in chemical, water treatment, and power generation sectors.
• Distributed operator stations in remote or expansive manufacturing layouts.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Panel Cutout: Ensure the mounting cutout dimensions exactly match the specifications of the 19-inch housing profile before inserting the device.
• Clamping Levers: Pull out and lock the integrated clamping levers progressively to apply uniform pressure across the front sealing gasket, ensuring an IP65 seal.
• Cable Management: Use certified, shielded DVI-E and USB-E 2.0 cables to mitigate electromagnetic interference over extended runs up to 50 meters.
• Thermal Clearance: Maintain a minimum clearance of 50 mm above and below the rear cover to allow natural convection cooling.
