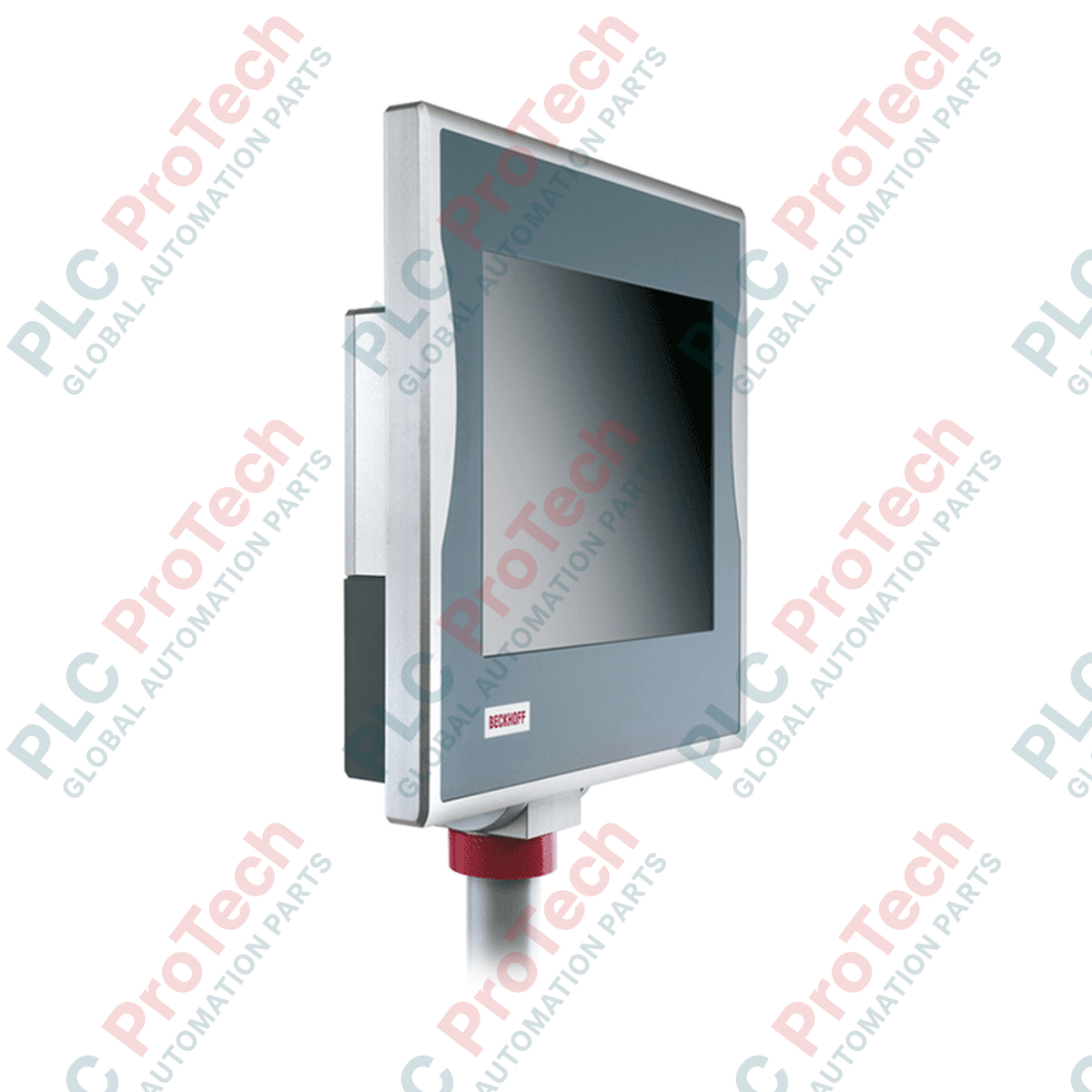

Beckhoff CP7223-0002-0050 CP72xx 19-inch Economy Panel PC

Description

Integrating industrial computing power directly into field-level control systems, the Beckhoff CP7223-0002-0050 provides an all-in-one HMI visualization platform featuring a high-contrast 19-inch display. Designed for mounting arm installation, this unit combines the functionality of an industrial control panel with a compact, fan-assisted passive heat sink PC unit. Constructed inside a fully sealed IP65 aluminum housing, it ensures absolute protection against liquid ingress, dust, and mechanical vibration, making it highly reliable for demanding manufacturing environments. The integrated 24 V DC UPS connectivity protects control processes against abrupt power fluctuations and data loss.

Key Features

• 19-Inch Industrial Display: High-clarity 1280 x 1024 resolution screen optimized for complex industrial SCADA and PLC visualization screens.
• All-Aspect IP65 Protection: Housed in premium rugged aluminum, providing complete protection against dust and low-pressure water jets from any direction.
• Rotatable Mounting Arm Adapter: Compatible with industry-standard 48 mm Rittal and Rolec mounting tube systems, allowing flexible top or bottom installation options.
• Advanced Heat Management: Employs passive cooling through an external heat-sink structure, paired with an internal circulation fan to distribute thermal loads evenly across the housing walls.
• Protected Connection Area: Fully sealed wiring area configured for up to 6 IP65 connectors, including 4 open channels for custom application signals.

Industrial Applications

• Automotive assembly plant floor visualization and direct operator input stations.
• Packaging line synchronization systems requiring physical mounting arm integration.
• Food and beverage manufacturing units where washdown resistance and IP65 seals are mandatory.
• Machine tool and CNC control interface integration in heavy-duty industrial complexes.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The CP7223 series occupies a specific mechanical form-factor. Users upgrading from legacy CP72xx units must verify the physical mounting tube size. While older revisions may have featured standard industrial threadings, the CP7223-0002-0050 utilizes a 48 mm rotatable collar, matching Rittal or Rolec structures. Software-level migration from Windows Embedded systems to Windows 10 IoT is fully supported, provided TwinCAT runtime components (TC2 or TC3) are updated to compatible licensing standards.

Application Pitfalls & Engineering Notes

Maintaining clean convective airflow is paramount. This Panel PC relies heavily on its external cast-aluminum heat-sink structure. Engineering teams must observe the 20 cm (7.9 inches) structural clearance rule around all external faces of the PC housing. Placing this unit in tight recesses or directly against physical blockages can rapidly degrade passive thermal exchange, triggering internal thermal throttling protocols under heavy CPU operations.

Commissioning & Wiring Tips

When wiring the power interfaces, ensure that the 24 V DC supply lines are properly sized to handle the peak boot-up currents. If utilizing the integrated UPS feature, verify that the battery backup module is configured within the Windows control panel and that the push-pull Ethernet connection is fully clicked into place to secure the IP65 seal in the wiring cavity.
