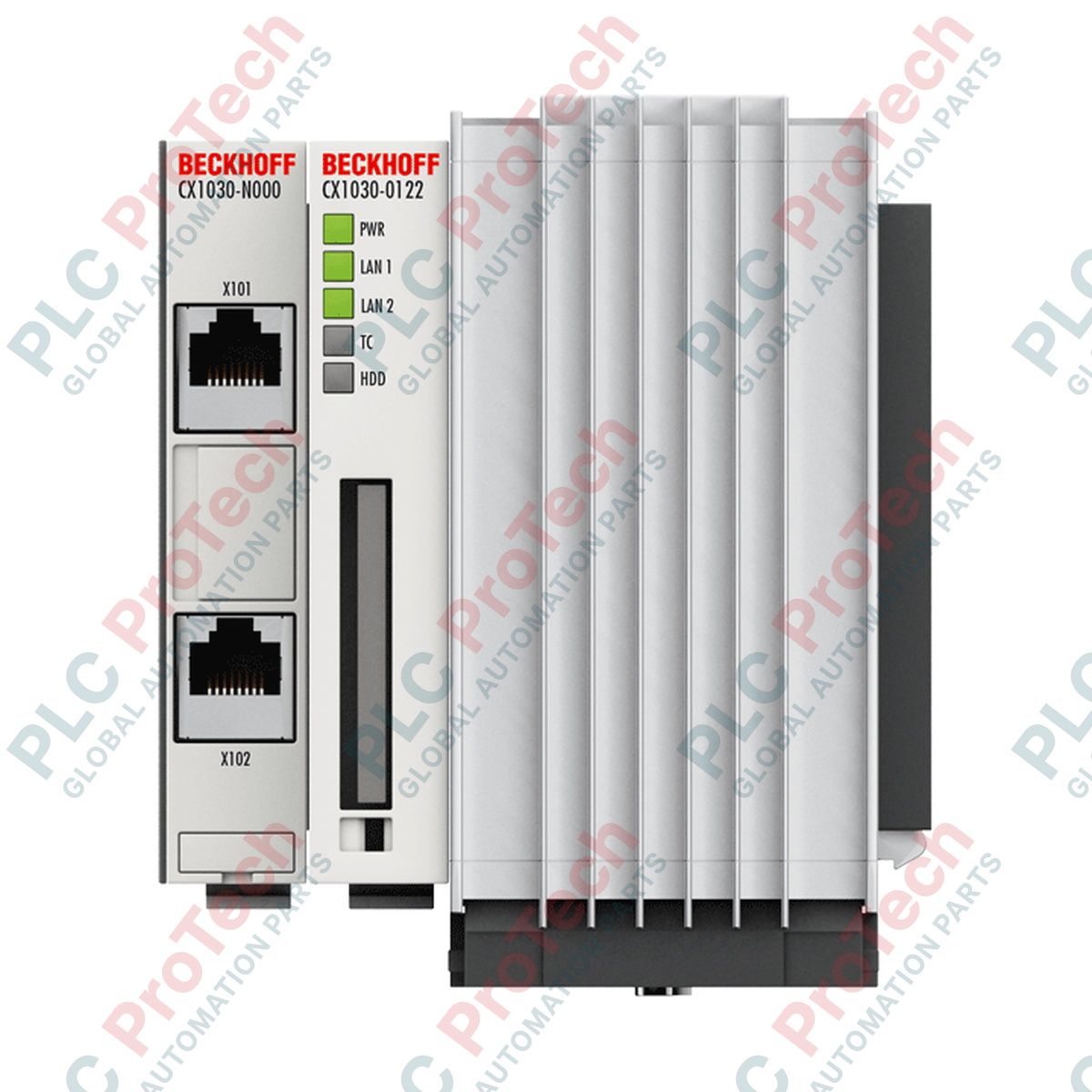

Beckhoff CX1030-0000 CX Series CPU Module

SKU CX1030-0000

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: CX1030-0000
Country of origin:Germany
Product Type: CPU Modules
Payment: T/T, Western Union
Weight: 580g
Dimensions: 96 mm x 112 mm x 99 mm
Shipping port: Xiamen
Warranty: 12 months

Description

Engineered for complex control tasks requiring high processing capacity, the Beckhoff CX1030-0000 serves as a high-performance industrial CPU module within the modular CX series. This controller is equipped with an Intel Pentium M processor operating at 1.8 GHz, delivering deterministic execution times for PLC, NC PTP, and NC I control software. The unit integrates two RJ45 Ethernet ports connected via an internal switch, allowing cost-effective line topologies to be constructed without additional network switches.

The processing unit connects directly to Beckhoff I/O systems through a system bus interface, supporting K-bus, E-bus (EtherCAT), and IP-Link connections via compatible power supply modules. To ensure reliable performance under continuous industrial loads, the module includes a specialized cooling module and an easily exchangeable, speed-controlled fan cartridge with double ball bearings.

Features

Equipped with an Intel Pentium M single-core processor running at a 1.8 GHz clock frequency.
Features dual RJ45 Ethernet interfaces (10/100 Mbit/s) with an integrated network switch.
Includes a Type I+II Compact Flash card slot with an eject mechanism for system software and storage.
Equipped with 256 MB of high-speed DDR RAM, expandable up to 1 GB.
Integrates a 16-bit ISA (PC/104) system bus for seamless module expansion.
Features an internal battery-backed real-time clock for timestamp accuracy.
Equipped with a diagnostic LED array showing Power, LAN link/activity, TwinCAT status, and Flash access.

Applications

High-speed Motion Control and NC PTP/NC I packaging systems.
Medium-to-large scale industrial machine automation.
Distributed control networks requiring deterministic EtherCAT communication.
Process engineering, manufacturing assembly, and test bench control systems.

Technical Specifications

Manufacturer	Beckhoff
Part Number / Model	CX1030-0000
Processor Type	Intel Pentium M, 1.8 GHz, 1 Core
Memory (DDR RAM)	256 MB (expandable to 1 GB)
Flash Memory Slot	Compact Flash Type I + II slot (128 MB CF card included)
Communication Interfaces	2 x RJ45 10/100 Mbit/s (internal switch)
System Bus Connection	16-bit ISA (PC/104)
Cooling System	Active cooling module with speed-controlled fan cartridge (double ball bearing)
Diagnostic LEDs	1 x power, 2 x LAN link/activity, 1 x TC status, 1 x flash access
Real-Time Clock	Internal, battery-backed (exchangeable battery)
Power Consumption	32 W (maximum)
Operating Temperature	0 to 50 degC
Storage Temperature	-25 to 85 degC
Relative Humidity	95 %, non-condensing
Protection Rating	IP20
Dimensions (W x H x D)	96 mm x 112 mm x 99 mm
Weight	approx. 580 g

Connections and Interfaces

Interface Type	Connection / Function
RJ45 Ports (Dual)	Ethernet 10/100 Mbit/s, internal switch configuration for linear networking
PC/104 System Bus	16-bit ISA bus for direct hardware connection to secondary system modules
CF Card Slot	Type I and Type II Compact Flash memory cards with dedicated eject mechanism
Power Connection	Supplied via system bus from a CX1100 series power supply module

Installation Guidelines

Mount the unit on standard 35 mm DIN rails (EN 60715) in a horizontal position.
Ensure appropriate clearance above and below the device to allow unrestricted airflow through the cooling module and fan cartridge.
Power the CPU module exclusively through a compatible Beckhoff CX1100 power supply (such as CX1100-0012, CX1100-0013, or CX1100-0014).
Do not insert or remove the Compact Flash card while the system is powered on.
Verify that the functional ground is connected securely to ensure EMC immunity compliant with EN 61000-6-2.

Compliance and Certifications

CE
UL
EMC Immunity: Conforms to EN 61000-6-2
EMC Emission: Conforms to EN 61000-6-4
Vibration Resistance: Conforms to EN 60068-2-6
Shock Resistance: Conforms to EN 60068-2-27

FAQ

What power supply is compatible with the Beckhoff CX1030-0000 CPU module?

The CX1030-0000 is powered via the system bus using compatible CX1100 power supply modules, specifically the CX1100-0012 (K-bus), CX1100-0013 (K-bus, IP-Link), and CX1100-0014 (E-bus).

How is the cooling handled on this CPU module?

The module utilizes an active cooling module coupled with an easily replaceable, speed-controlled fan cartridge that features double ball bearing fans.

Which operating systems and control software are supported?

It supports Windows Embedded CE 6 and Windows Embedded Standard 2009 operating systems, alongside TwinCAT 2 PLC, NC PTP, or NC I runtimes.

Does the dual RJ45 interface require an external switch to connect to other devices?

No, the two RJ45 ports are connected via an internal switch, allowing you to build line topologies directly without an external network switch.

Can the system memory of the CX1030-0000 be expanded?

Yes, the standard 256 MB DDR RAM is expandable ex factory up to 1 GB.
