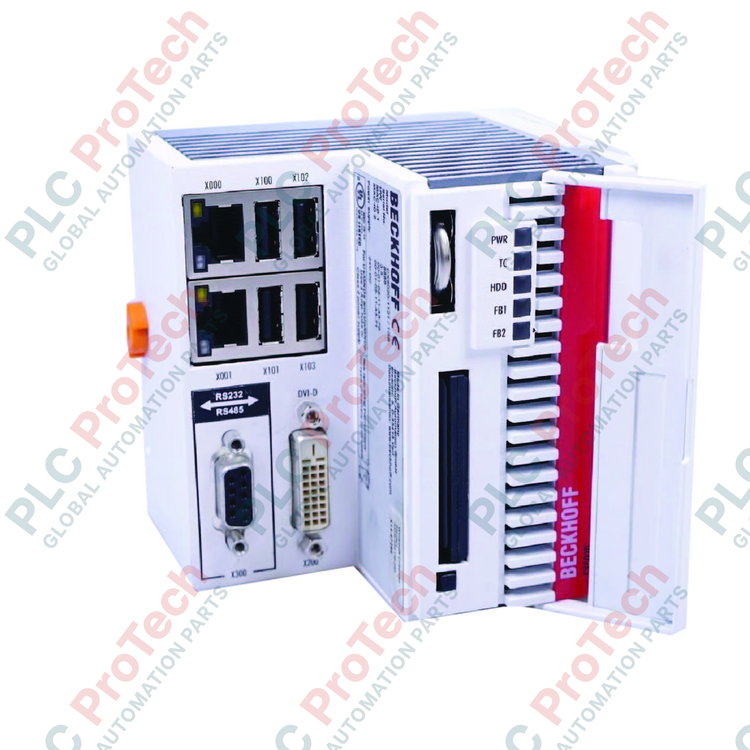

Beckhoff CX5020-0121 CX5000 Embedded PC CPU Module

SKU CX5020-0121

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: CX5020-0121
Country of origin:Germany
Product Type: Embedded PCs
Payment: T/T, Western Union
Weight: 575g
Dimensions: 106 mm x 100 mm x 92 mm
Shipping port: Xiamen
Warranty: 12 months

Description

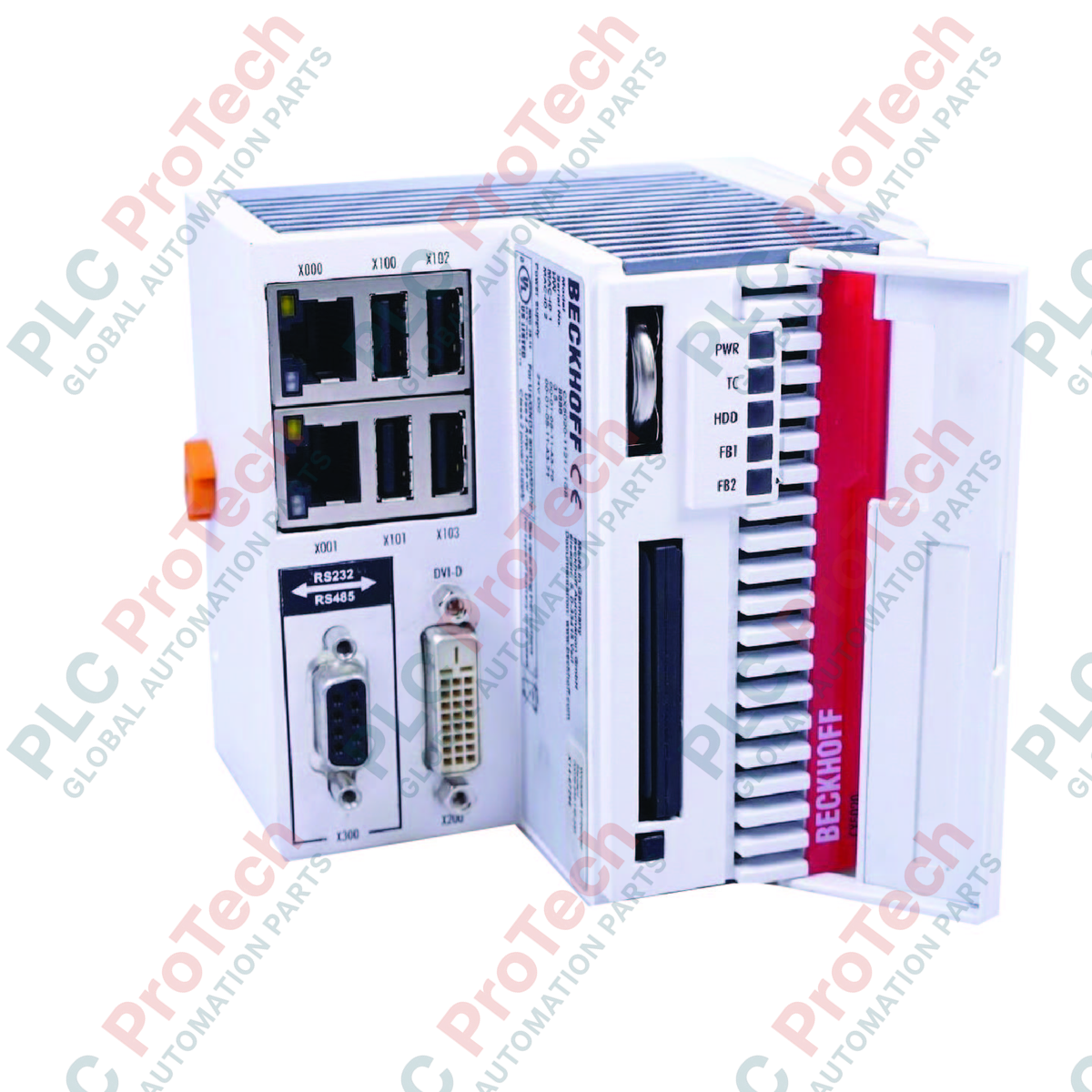

Designed as a compact, DIN rail-mountable controller, the Beckhoff CX5020-0121 belongs to the high-performance CX5000 Embedded PC series. This control unit features a fanless design powered by an Intel Atom Z530 processor running at 1.6 GHz, offering a robust processing environment for industrial automation applications. Utilizing dual-bus compatibility, the module automatically detects and interfaces with both EtherCAT Terminals (E-bus) and standard Bus Terminals (K-bus), providing highly versatile I/O integration. The CX5020-0121 acts as a centralized controller capable of running TwinCAT 2 or TwinCAT 3 (XAR) PLC and Motion Control software, making it ideal for distributed control systems and manufacturing execution platforms.

Features

Intel Atom Z530 single-core processor operating at a 1.6 GHz clock frequency.
Integrated dual-bus interface supporting automatic E-bus (EtherCAT Terminals) and K-bus (Bus Terminals) recognition.
Built-in 1-second UPS utilizing 1 MB of persistent data stored directly on a Compact Flash card.
Dual independent Gigabit Ethernet RJ45 interfaces to facilitate seamless network integration.
Flexible display support through an integrated DVI-D graphic interface.
Equipped with four high-speed USB 2.0 ports and one option slot for customizable communication interfaces.
Fanless design ensures highly reliable operation in harsh industrial environments.

Applications

Machine tool automation and precise motion control processing.
Distributed telemetry systems in water and wastewater facilities.
HVAC and smart building control systems.
Power generation monitoring and auxiliary system control.
Assembly lines, robotics integration, and manufacturing execution.

Technical Specifications

System Characteristics
Manufacturer	Beckhoff
Part Number/Model	CX5020-0121
Processor	Intel Atom Z530, 1.6 GHz (Single Core)
Main Memory	512 MB RAM (expandable to 1 GB ex factory)
Flash Memory	Compact Flash slot (128 MB CF card included)
Persistent Memory	Integrated 1-second UPS (1 MB on CF card)
System Bus Compatibility	E-bus (EtherCAT) or K-bus, automatic recognition
TwinCAT Platform Level	Performance (40)
Supported Operating Systems	Windows Embedded CE 6, Windows Embedded Standard 2009
Power Supply	24 V DC (-15% / +20%)
E-bus/K-bus Current Supply	2 A max.
Power Consumption	13 W max.
Diagnostics LEDs	1 x power, 1 x TwinCAT status, 1 x flash access, 2 x bus status
Dimensions (W x H x D)	106 mm x 100 mm x 92 mm
Weight	Approx. 575 g
Operating Temperature	-25 to +60 Celsius
Storage Temperature	-40 to +85 Celsius
Relative Humidity	95%, non-condensing
IP Rating	IP20
EMC Immunity/Emission	Conforms to EN 61000-6-2 / EN 61000-6-4
Vibration/Shock Resistance	Conforms to EN 60068-2-6 / EN 60068-2-27

Connections and Interfaces

Interface Type	Specification / Function
RJ45	2 x 10/100/1000 Mbit/s (Independent Ethernet ports)
DVI-D	1 x Graphic interface port for external display
USB 2.0	4 x Interfaces for industrial input devices or storage devices
Optional Interface	1 x Slot for interface expansions (e.g., Profibus, CANopen, RS232, RS485)
CF Slot	1 x Industrial Compact Flash slot

Installation Guidelines

Mounting: Mount the module horizontally on a standard 35 mm DIN rail (EN 60715) within a secure IP54-rated control enclosure.
Ventilation: Ensure a minimum clearance of 30 mm above and below the device to permit adequate natural convection cooling in fanless systems.
Grounding: Connect the integrated PE contact on the DIN rail or backplane terminal directly to the central functional earth terminal of the control cabinet.
Power Cabling: Use copper conductors rated for at least 75 Celsius and properly sized to meet the 24 V DC (-15% / +20%) supply tolerance requirements.

Compliance and Certifications

CE
UL
ATEX (with CX1900-0105 ordering option): II 3 G Ex nA IIC T4 Gc

FAQ

Does the Beckhoff CX5020-0121 support both K-bus and E-bus terminals?

Yes, the CX5020-0121 automatically detects and supports both K-bus (standard Bus Terminals) and E-bus (EtherCAT Terminals) upon boot.

What is the purpose of the 1-second integrated UPS in this unit?

The integrated 1-second UPS provides sufficient energy to write up to 1 MB of persistent data onto the Compact Flash card during an unexpected power interruption.

Which operating systems are compatible with the CX5020-0121?

The module supports Windows Embedded CE 6 and Windows Embedded Standard 2009 operating systems.

Does the CX5020-0121 have ATEX hazardous location certification?

Yes, with the CX1900-0105 ordering option, the CPU module carries ATEX compliance under marking II 3 G Ex nA IIC T4 Gc.
