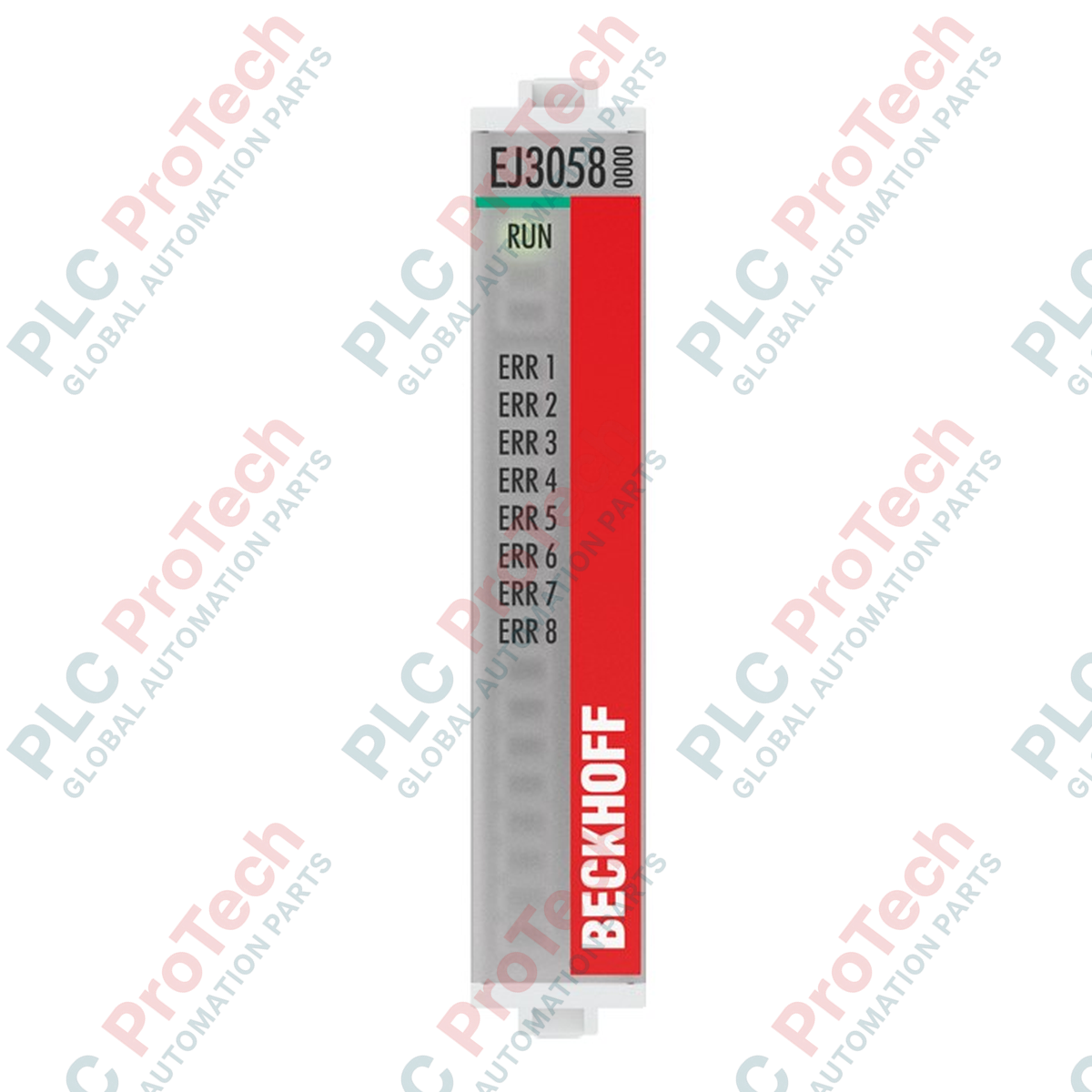

BECKHOFF EJ3058 EtherCAT Plug-In Module

Description

The BECKHOFF EJ3058 is an 8-channel analog input plug-in module designed for direct installation on application-specific signal distribution boards. Part of the compact EJ series, this module is optimized for mass production machinery, enabling quick assembly and reducing point-to-point wiring errors. It is configured to acquire single-ended analog current signals in the standard 4 to 20 mA range with high density and accuracy.

The module processes raw analog signals with a 12-bit physical resolution, which is transmitted to the higher-level controller in a 16-bit representation including the sign. Configurable process parameters, including selectable digital filters (FIR/IIR) and limit value monitoring, allow control engineers to fine-tune signal acquisition for specific mechanical systems. The module remains electrically isolated up to 500 V between the internal E-bus and the field-side potential to maintain signal integrity in demanding industrial environments.

Features

• Eight single-ended analog input channels for 4 to 20 mA standard current loops.
• Direct plug-in design for application-specific signal distribution boards, eliminating manual DIN-rail terminal wiring.
• 12-bit physical analog-to-digital conversion resolution (presented as a 16-bit integer).
• Configurable signal processing with activatable digital FIR and IIR filters to suppress high-frequency noise.
• Integrated limit value monitoring for proactive system diagnostics and fault prevention.
• E-bus powered internal electronics, drawing a typical current consumption of 130 mA.
• Electrical isolation of 500 V between the internal E-bus communication lines and the field potential.

Applications

• High-volume series machine building requiring customized, PCB-based distribution wiring.
• Multi-channel analog signal acquisition from industrial pressure, level, and temperature transmitters.
• Space-constrained control cabinets where traditional terminal block architectures are impractical.

Technical Specifications

Signal and Electrical Specifications

Mechanical and Environmental Specifications

Installation Guidelines

1. Ensure the system and all external supply lines are fully de-energized before mounting or servicing.
2. Inspect the plug-in connection pins on the rear of the EJ3058 module for straightness and cleanliness before insertion.
3. Align the module carefully with the pin sockets on the custom-designed signal distribution board.
4. Press the module down evenly until the mechanical retaining elements seat properly to ensure a reliable electrical connection.
5. Configure the signal parameters, filters, and limit values within the TwinCAT System Manager software environment.
