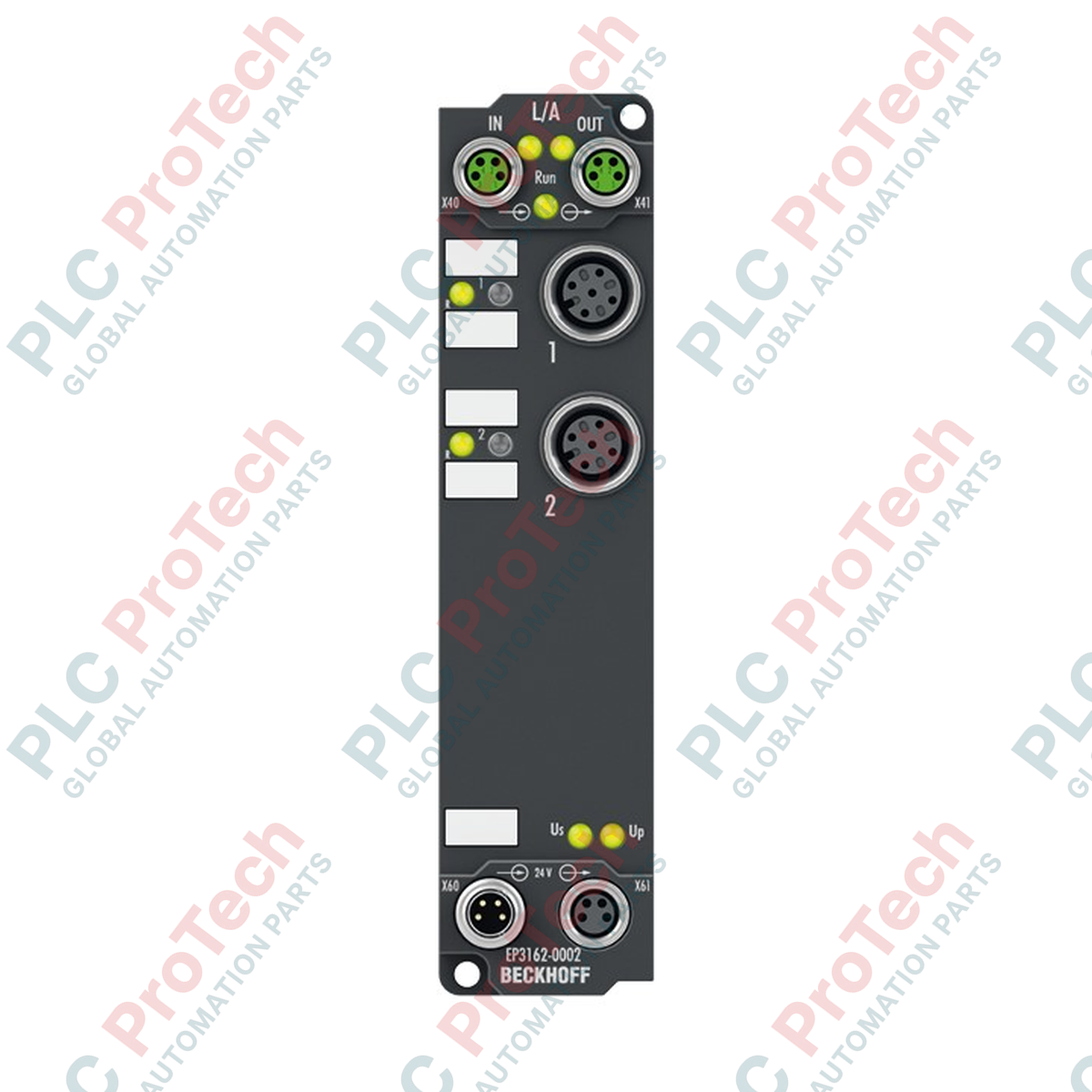

BECKHOFF EP3162-0002 EtherCAT Box 2-Channel Analog Input Module

Q: Can the EP3162-0002 measure both voltage and current on different channels simultaneously?

Yes, each of the two analog input channels on the EP3162-0002 can be independently parameterized via TwinCAT software. One channel can be set for voltage measurements (e.g., -10 to +10 V) while the other handles current loops (e.g., 4 to 20 mA).

Q: What is the level of electrical isolation provided between the two input channels?

The EP3162-0002 features galvanic isolation up to 300 V between the individual input channels, as well as 500 V isolation to the EtherCAT fieldbus, minimizing the risk of ground loops.

Q: Does this module require a control cabinet for installation?

No, with its IP65/66/67-rated enclosure, the EP3162-0002 is designed for direct machine mounting in wet, dusty, or harsh environments without needing an electrical enclosure.

SKU EP3162-0002

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EP3162-0002
Country of origin:Germany
Product Type: Analog Input Modules
Payment: T/T, Western Union
Weight: 165g
Shipping port: Xiamen
Warranty: 12 months

Description

Processing analog signals directly in harsh field environments is simplified with the EP3162-0002 EtherCAT Box. This IP67-rated decentralized module features two highly flexible, galvanically isolated analog inputs that are software-parameterizable for either voltage (-10/0 to +10 V) or current (-20/0/4 to +20 mA) signals on a per-channel basis. By executing analog-to-digital conversion directly at the sensor location, this module minimizes signal degradation over long wire runs, enabling clean 16-bit measurement resolution across distributed fieldbus networks.

The device features dual-channel isolation to eliminate ground loop issues, making it highly reliable in electrically noisy industrial applications. Connectivity is facilitated through robust, industry-standard M12 connectors for the sensor lines and M8 connectors for the EtherCAT fieldbus and power supply daisy-chaining. With integrated Distributed Clocks (DC) support, the module guarantees precise, synchronized data acquisition across large-scale industrial machinery.

Features

Two single-ended, individually parameterizable analog input channels.
Supports standard industrial signal ranges: -10 to +10 V, 0 to 10 V, -20 to +20 mA, 0 to 20 mA, and 4 to 20 mA.
Complete galvanic isolation between individual input channels for high signal integrity.
Fast analog-to-digital conversion time of approximately 100 microseconds per channel.
High-precision 16-bit digital resolution (including sign).
Distributed Clocks (DC) support for high-fidelity clock synchronization in time-critical tasks.
Rugged IP65/66/67 physical housing for direct mounting outside of control cabinets.

Applications

Decentralized process instrumentation and sensor monitoring in heavy industrial plants.
Hydraulics and pneumatic system pressure, flow, and temperature tracking.
Machine-mount data acquisition systems in automotive assembly and packaging lines.
Test bench environments requiring high-speed, synchronized analog measurements.

Technical Specifications

Manufacturer	Beckhoff Automation
Part Number / Model	EP3162-0002
Product Type	EtherCAT Box (Analog Input)
Number of Inputs	2 single-ended (galvanically isolated channels)
Signal Type (Voltage)	-10/0...+10 V (parameterizable per channel)
Signal Type (Current)	-20/0/4...+20 mA (parameterizable per channel)
Resolution	16 bit (including sign)
Internal Resistance	> 200 kOhm (voltage) \| typ. 85 Ohm + diode voltage (current)
Measurement Error	< ±0.3% (relative to full scale value)
Conversion Time	~ 100 microseconds
Input Filter Limit Frequency	5 kHz
Bus Interface Connection	2 x M8 socket, shielded, screw-type
Input Connection Method	M12 x 1, 5-pin, A-coded
Nominal Supply Voltage	24 V DC (-15% / +20%)
Power Connection	Feed: 1 x M8 male (4-pin); Downstream: 1 x M8 female (4-pin)
Current Consumption (Us)	120 mA
Sensor Supply	Us derived from auxiliary voltage, electrically isolated
Electrical Isolation	500 V (fieldbus to signal), 300 V (signal to signal)
Protection Rating	IP65, IP66, IP67 (conforms to EN 60529)
Operating Temperature	-25 to +60 degC
Storage Temperature	-40 to +85 degC
Weight	approx. 165 g
Vibration / Shock Resistance	Conforms to EN 60068-2-6 / EN 60068-2-27

Connections and Interfaces

M12 Pin Connection	Signal Assignment
Pin 1	+24 V DC Sensor Supply (Us)
Pin 2	Analog Input + (Voltage / Current)
Pin 3	GND Sensor Supply (Us)
Pin 4	Analog Input -
Pin 5	Shield / Functional Earth

Installation Guidelines

Mounting: Screw the module directly onto flat machine surfaces using the integrated mounting holes. Ensure the mounting plane is grounded.
Shielding: Use fully shielded M12 sensor cables and shielded M8 EtherCAT cabling to preserve signal integrity and prevent electromagnetic interference (EMI).
Power Daisy Chaining: When utilizing the downstream M8 power output, verify that the total current draw of downstream modules does not exceed the maximum power bus capacity.
Sealing: Unused M12 and M8 ports must be sealed with appropriate IP67 protection caps to maintain environmental integrity.

Compliance and Certifications

CE
UL

FAQ

Can the EP3162-0002 measure both voltage and current on different channels simultaneously?

Yes, each of the two analog input channels on the EP3162-0002 can be independently parameterized via TwinCAT software. One channel can be set for voltage measurements (e.g., -10 to +10 V) while the other handles current loops (e.g., 4 to 20 mA).

What is the level of electrical isolation provided between the two input channels?

The EP3162-0002 features galvanic isolation up to 300 V between the individual input channels, as well as 500 V isolation to the EtherCAT fieldbus, minimizing the risk of ground loops.

Does this module require a control cabinet for installation?

No, with its IP65/66/67-rated enclosure, the EP3162-0002 is designed for direct machine mounting in wet, dusty, or harsh environments without needing an electrical enclosure.

View all FAQs →
