EPP2349-0022

BECKHOFF

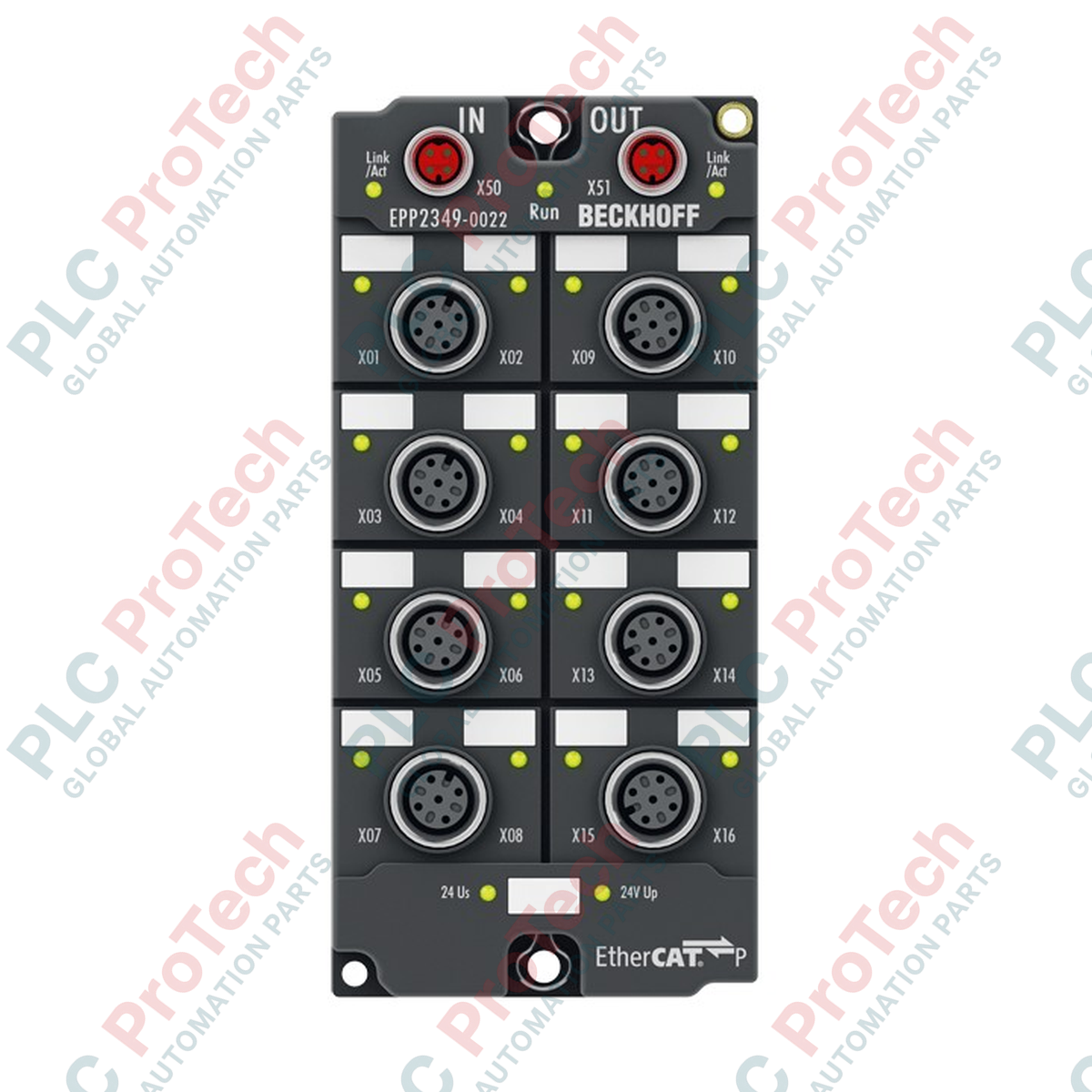

BECKHOFF EPP2349-0022 EtherCAT P Box

SKU EPP2349-0022

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: BECKHOFF
  • Product No.: EPP2349-0022
  • Origin Germany
  • Product Type: EtherCAT P I/O Modules
  • Payment: T/T, Western Union
  • Weight: 0.25 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Digital I/o Modules EtherCAT P
Quantity
Call sales Contact

Product Description

Description

Engineered for decentralized automation architectures, the Beckhoff EPP2349-0022 is a highly versatile, field-mountable EtherCAT P Box designed to manage bidirectional digital signals under demanding conditions. This module features 16 digital channels that are individually configurable as either inputs or outputs. By consolidating multiple signal types into a single unit, this module simplifies system topology, eliminates the need for separate dedicated input/output modules, and optimizes wiring configurations in machine control environments.

The EPP2349-0022 utilizes standard EtherCAT P technology, combining high-speed EtherCAT communication and unit/load power supply (Us and Up) into a single, specialized four-wire cable. This design streamlines installation, reduces cabling overhead, and allows for direct connection of external sensors and actuators via robust M12 connections, bypassing the requirement for a separate protective control cabinet.

Features

  • 16 digital channels, individually configurable as digital inputs or digital outputs.
  • Integrated EtherCAT P interface combining power and fieldbus communication in a single P-coded M8 connection.
  • Robust IP67-rated housing optimized for direct machine installation without protective enclosures.
  • Adjustable configuration complying with EN 61131-2 Type 1/3 physical input standards.
  • Individually short-circuit proof outputs with a combined safety limit of 3 A.
  • Fast internal input filtering and rapid switching characteristics for real-time application responsiveness.

Applications

  • Automated assembly systems and packaging machinery.
  • Intralogistics conveyor systems and material handling.
  • Robotic end-of-arm tooling and end-effector control.
  • Machine tool monitoring and decentralized sensor hubs.

Technical Specifications

Manufacturer Beckhoff Automation
Model / Part Number EPP2349-0022
Protocol EtherCAT
Bus Interface 2 x M8 socket, shielded, screw type, P-coded
Input/Output Connections M12 x 1, 5-pin, a-coded
Number of Channels 16 digital inputs or outputs, individually configurable
Specification EN 61131-2, type 1/3
Input Filter Time 10 us
"0" Signal Voltage -3 to +5 V
"1" Signal Voltage 11 to 30 V, 6 mA input current (EN 61131-2, type 3)
Sensor Supply From load supply voltage, max. 0.5 A total, short-circuit proof
Load Type Ohmic, inductive, lamp load
Rated Load Voltage 24 V DC (-15 % / +20 %)
Max. Output Current 0.5 A per channel, individually short-circuit proof, sum max. 3 A
Switching Times Typical TON: 60 us, typical TOFF: 300 us
Short-circuit Current Typical 1.5 A
Auxiliary Power Current Typical 20 mA
Current Consumption from Us Typical 100 mA
Electrical Isolation 500 V
Weight Approx. 250 g
Operating Temperature -25 to +60 degC
Storage Temperature -40 to +85 degC
Vibration / Shock Resistance Conforms to EN 60068-2-6 / EN 60068-2-27
EMC Immunity / Emission Conforms to EN 61000-6-2 / EN 61000-6-4
Protection Rating IP65, IP66, IP67 (conforms to EN 60529)
Installation Position Variable

Connections and Interfaces

Connection Type Interface Style Functionality
Bus Interface (In/Out) 2 x M8 socket, shielded, screw type, P-coded EtherCAT P system communication and power distribution
Digital I/O Ports M12 x 1, 5-pin, a-coded Connection of digital sensors, actuators, and signal devices

Installation Guidelines

  • Mounting: Secure the unit directly to machine framing or standard panels utilizing the integrated mounting holes. Fits variable installation positions.
  • Shielding & Grounding: Ensure the functional ground connection is established cleanly to avoid electromagnetic interference. Use shielded cables for high-noise environments.
  • Cabling: Maintain appropriate bend radiuses for all M8 P-coded and M12 connection cables to prevent mechanical stress on the sealed interfaces.
  • Torque Limits: Hand-tighten all mating connectors to the specified torque limit to guarantee the IP67 protective seal without damaging the plastic threads.

Compliance and Certifications

  • CE
  • UL
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Can the digital channels on the EPP2349-0022 be used as both inputs and outputs simultaneously?
Yes. Each of the 16 digital channels can be individually configured and operated as either a digital input or a digital output, allowing flexible signal arrangements on a single module.
What is the maximum output current supported by the EPP2349-0022?
Each configured output channel supports up to 0.5 A, with a total cumulative current limit of 3 A across all active outputs.
Does this module require a separate cabinet installation?
No. The EPP2349-0022 has an IP65/66/67 physical protection rating, making it suitable for direct machine installation without an electrical cabinet.
What type of connector is used for the EtherCAT P system interface?
The module uses two shielded, screw-type M8 sockets with P-coding to connect to the EtherCAT P system network.
