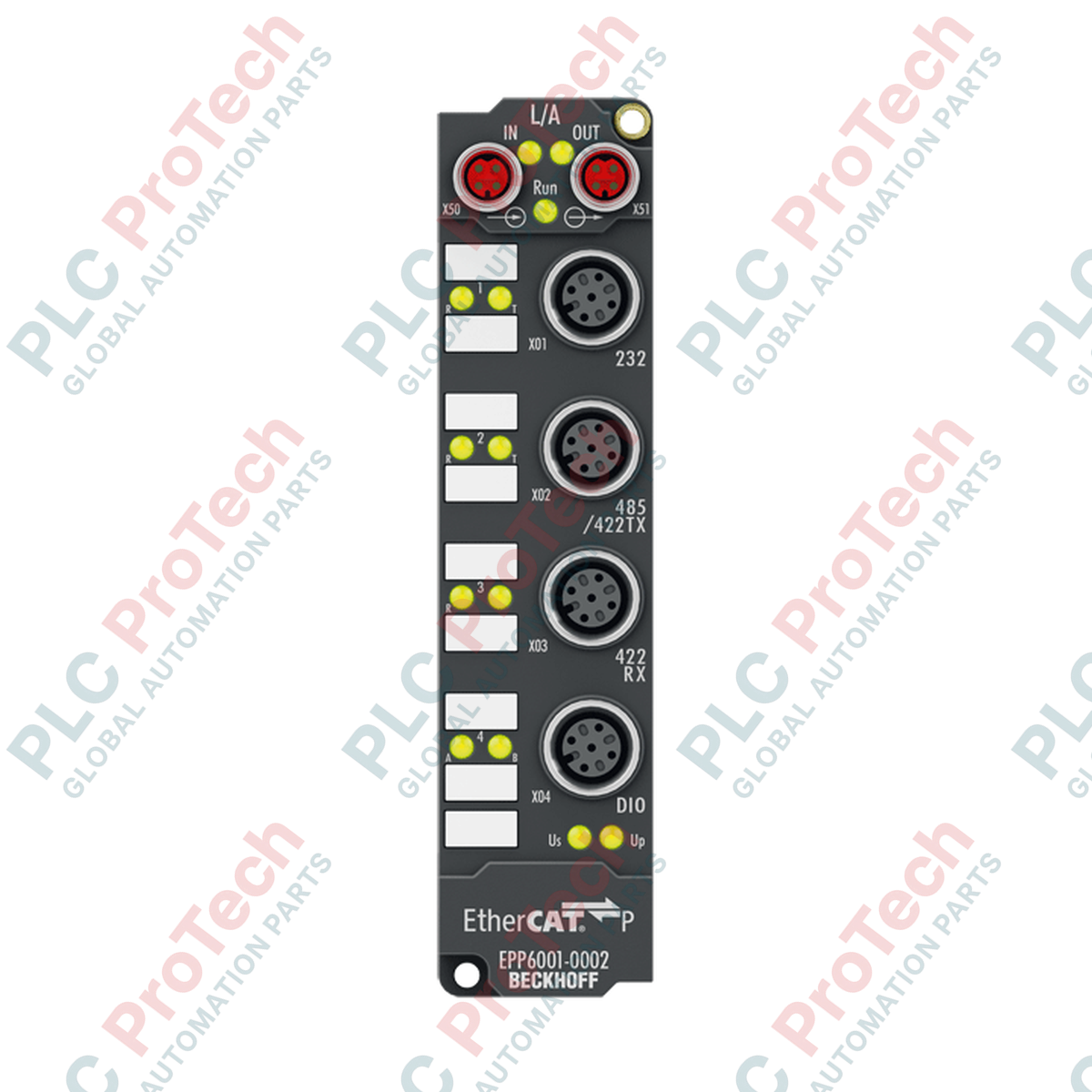

Beckhoff EPP6001-0002 EtherCAT P Box Serial Interface Module

Only 10 item(s) left in stock

Manufacturer: BECKHOFF
Product No.: EPP6001-0002
Country of origin:Germany
Product Type: EtherCAT P Boxes
Payment: T/T, Western Union
Weight: 165g
Dimensions: 30 mm x 126 mm x 26.5 mm
Shipping port: Xiamen
Warranty: 12 months

Description

Designed for direct connection of serial devices in harsh industrial environments, the Beckhoff EPP6001-0002 serial interface module provides high-performance data transmission via the EtherCAT P network protocol. This compact, machine-mountable I/O box enables the integration of devices featuring RS232, RS485, or RS422 interfaces directly into the control network, bypassing the need for protective control cabinets.

The module transmits serial data in a fully bidirectional format to the controller, utilizing an active internal buffer to manage high-speed communication independent of the EtherCAT cycle time. It features integrated digital inputs and outputs, alongside an auxiliary 5 V DC power supply to directly drive connected sensors or terminal equipment, minimizing external wiring requirements.

Features

Selectable Communication Interfaces: Configure each channel individually for RS232, RS485, or RS422 standards.
Integrated Device Supply: Delivers a local auxiliary +5 V DC, 1 A supply specifically for end devices.
Dual Digital I/O: Outfitted with two digital 24 V DC inputs and two short-circuit proof digital 24 V DC outputs.
Robust EtherCAT P Integration: Utilizes shielded, P-coded M8 connections for combined power and data transmission.
Hardened IP67 Enclosure: Encased in a durable polyamide housing with excellent resistance to vibration, shock, and moisture.

Applications

Oil and Gas processing facilities
Power generation and distribution systems
Water and wastewater treatment infrastructure
Robotic assembly and specialized material handling lines

Technical Specifications

Manufacturer	Beckhoff
Part Number / Model	EPP6001-0002
Protocol	EtherCAT P
Bus Interface	2 x M8 socket, shielded, screw-type, P-coded
Data Transfer Channels	1 serial channel, 2 digital inputs, 2 digital outputs
Serial Interfaces	RS232, RS485, RS422 (individually selectable)
Baud Rates	300 to 115,200 baud (9600 baud preset)
Bit Distortion	Less than 3 percent
Cable Length	RS232: max. 15 m; RS422/RS485: approx. 1000 m
Data Buffer	864 bytes receive buffer, 128 bytes transmit buffer
Sensor Supply	+5 V DC, 1 A
Digital Inputs	2 inputs, 24 V DC, type 3 (EN 61131-2), 10 us input filter
Digital Outputs	2 outputs, 24 V DC, 0.5 A per channel, short-circuit proof
Nominal Supply Voltage	24 V DC (-15 percent / +20 percent)
Current Consumption (US)	Typically 100 mA
Electrical Isolation	500 V
Housing Material	PA6 (polyamide)
Dimensions (W x H x D)	30 mm x 126 mm x 26.5 mm
Weight	Approx. 165 g
Operating Temperature	-25 degC to +60 degC
Storage Temperature	-40 degC to +85 degC
Protection Rating	IP65, IP66, IP67 (conforms to EN 60529)

Installation Guidelines

Mounting: Attach to a flat machine surface using the two integrated 3.5 mm diameter fixing holes designed for M3 screws.
Connector Torque: Ensure all M8 and M12 connectors are tightened to their designated torque specification to maintain the IP67 ingress protection rating.
Shielding: Grounding and shielding connection must be established correctly via the EtherCAT P bus interface connectors to limit electromagnetic interference.
Thermal Management: Maintain unobstructed air space around the unit when operating near the upper ambient temperature limit of +60 degC.

Compliance and Certifications

CE
UL
EMC Immunity/Emission: EN 61000-6-2 / EN 61000-6-4
Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27

Key Features:

Which serial communication protocols can be configured on the Beckhoff EPP6001-0002?

The module supports RS232, RS485, and RS422 communication. These interfaces are individually selectable to match your device requirements.

Does the EPP6001-0002 require an external power supply for connected sensors?

No, the module features an integrated sensor power supply providing +5 V DC at up to 1 A, allowing you to power end devices directly.

What is the physical protection rating of this EtherCAT P Box?

The module is rated IP65, IP66, and IP67, making it highly resistant to dust, water jets, and temporary immersion.

How many digital inputs and outputs does the module have?

It includes 2 digital 24 V DC inputs with a 10 us input filter and 2 short-circuit proof digital 24 V DC outputs rated at 0.5 A per channel.
