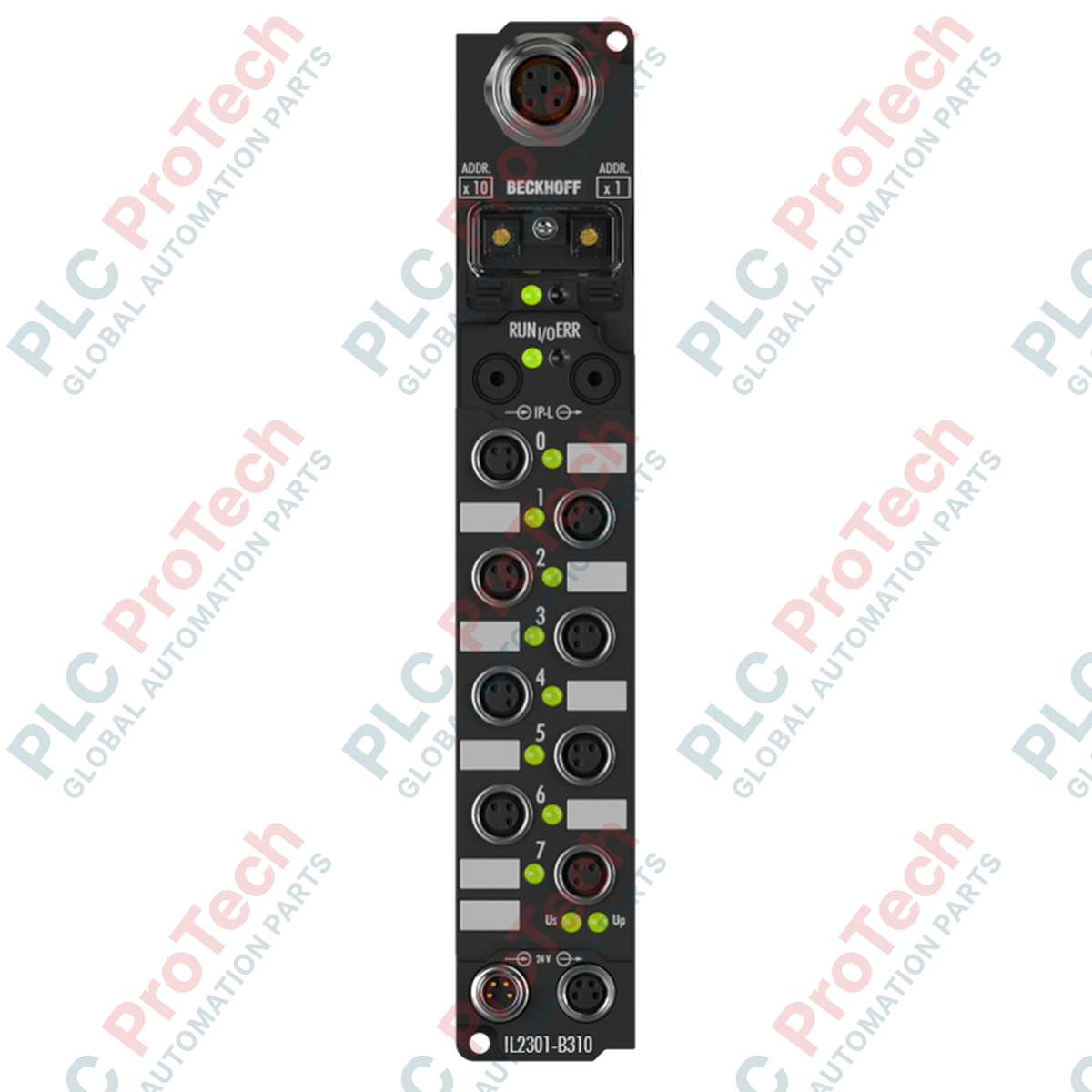

BECKHOFF IL2301-B310 Fieldbus Box Coupler Box

Only 10 item(s) left in stock

Manufacturer: BECKHOFF
Product No.: IL2301-B310
Country of origin:Germany
Product Type: Fieldbus Coupler Boxes
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description

Designed for decentralized industrial automation networks, the IL2301-B310 functions as a robust PROFIBUS DP coupler box within the Beckhoff Fieldbus Box range. This high-performance module serves as an IP-Link gateway, allowing standard decentralized extension modules to interface directly with a PROFIBUS DP fieldbus network. Built to operate in harsh machine-level environments, this coupler box eliminates the need for protective control cabinets by integrating advanced diagnostic functions and rugged hardware routing directly onto the machine frame.

The module automatically detects transfer rates up to 12 Mbaud and supports DP-V1 extensions, providing flexible integration options and precise parameterization via the Beckhoff KS2000 configuration software or the master PLC controller. This ensures optimal communication efficiency and minimal configuration overhead in complex multi-node network topologies.

Features

Automatic baud rate detection up to 12 Mbaud for seamless network integration.
Hardened industrial housing rated at IP65, IP66, and IP67 for direct wet and dusty environment placement.
Integrated IP-Link fiber-optic interface for high-speed localized system expansion.
Support for DP-V1 extensions enabling sophisticated parameterization and advanced diagnostic workflows.
Compact M12 interface for reliable PROFIBUS DP connection and minimized physical footprint.
M8 power supply design with upstream feed and downstream loop-through connections.

Applications

Automotive manufacturing and assembly lines.
High-speed packaging machinery and sorting systems.
Material handling conveyor systems.
Food and beverage production facilities requiring frequent high-pressure washdowns.

Technical Specifications

ManufacturerPart Number / ModelProduct SeriesFieldbus ProtocolData Transfer RatesConfiguration InterfaceFieldbus InterfaceTransmission MediumControl VoltageLoad VoltagePower Supply ConnectionsInternal Current ConsumptionOperating TemperatureStorage TemperatureVibration/Shock ResistanceEMC Immunity/EmissionIngress Protection RatingCertifications

Beckhoff Automation

IL2301-B310

Fieldbus Box (IP-Link Coupler)

PROFIBUS DP

Automatic detection up to 12 Mbaud

Via KS2000 software or master controller (DP-V1 supported)

1 x M12 socket, 5-pin, B-coded

Shielded copper cable, 2 x 0.25 mm2

24 V DC (-15% / +20%)

Dependent on connected I/O extension type

Feed: 1 x M8 male (4-pin); Downstream: 1 x M8 female (4-pin)

85 mA + sensor load (max. 0.5 A)

0 to +55 degC

-25 to +85 degC

Conforms to EN 60068-2-6 / EN 60068-2-27

Conforms to EN 61000-6-2 / EN 61000-6-4

IP65, IP66, IP67 (conforms to EN 60529)

CE, UL

Connections and Interfaces

Connector / Interface	Pin/Socket Type	Function
PROFIBUS DP	M12 Socket, 5-pin, B-coded	Fieldbus communication link
Power Feed	M8 Male, 4-pin	24 V DC control and load power input
Power Downstream	M8 Female, 4-pin	24 V DC loop-through to adjacent modules
IP-Link	Fiber-optic sockets	Connection to Fieldbus Box extension modules

Installation Guidelines

Securely mount the module directly to the machinery frame or mounting plate using appropriate M4 screws.
Ensure all M12 and M8 protective caps or cables are fully tightened to a torque specified for IP67 compliance.
Maintain a minimum bending radius for the IP-Link fiber-optic connection cables to avoid signal degradation.
Use shielded, twisted-pair copper cables for PROFIBUS connections to protect against electromagnetic interference.

Product Image	Model Number / Title	Condition	Availability	Action
	IE2808 BECKHOFF 16-Channel High-Density Digital Output Extension Box	Original New	In Stock	View Details

Key Features:

What is the primary function of the Beckhoff IL2301-B310?

The Beckhoff IL2301-B310 is a PROFIBUS DP coupler box that acts as a decentralized gateway, linking localized IP-Link extension I/O modules directly to a PROFIBUS DP fieldbus system.

Does the IL2301-B310 support DP-V1 extensions?

Yes, this coupler box fully supports DP-V1 extensions, allowing for advanced parameterization, configuration, and diagnostics via KS2000 software or the master controller.

What is the environmental rating of the IL2301-B310?

The module features an IP65, IP66, and IP67 protection rating, meaning it is dust-tight and resistant to high-pressure water jets, enabling direct machine-mount installations.
