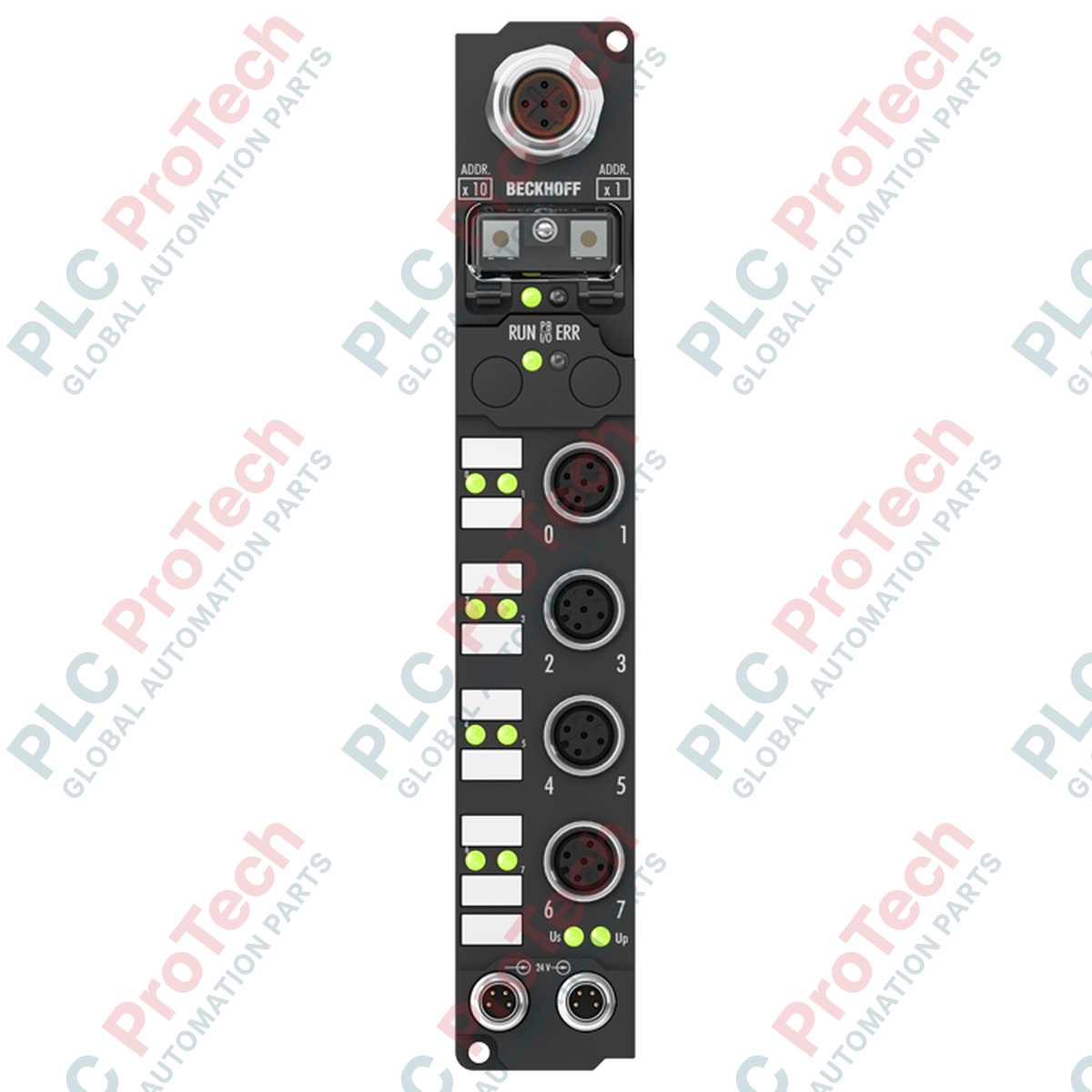

The BECKHOFF IP2042-B730 is an 8-channel digital output fieldbus module designed to interface digital actuators with a Modbus network. This decentralized I/O device is part of the Fieldbus Box series, which enables direct mounting on machinery without the need for a protective control cabinet, reducing cabling efforts and installation footprint.
This module features eight digital outputs rated for 24 V DC nominal voltage. Each channel supports a continuous load current of up to 2 A, making it highly suitable for driving ohmic, inductive, and lamp loads. To ensure system reliability and protection against field-side faults, all outputs are individually short-circuit proof.
Housed in a compact and durable polyamide enclosure, the BECKHOFF IP2042-B730 offers high environmental ingress protection (IP65/66/67). It communicates via Modbus RTU or ASCII protocols over an RS485 physical layer, supporting adjustable data transfer rates up to 38,400 baud. Setup is easily accomplished using built-in address selection switches or the KS2000 configuration software.
| Parameter | Specification |
|---|---|
| Manufacturer | BECKHOFF |
| Model | IP2042-B730 |
| Product Type | Fieldbus Box (Digital Output) |
| Housing Material | PA6 (polyamide) |
| Configuration Options | Address selection switch or KS2000 software |
| Parameter | Specification |
|---|---|
| Number of Outputs | 8 |
| Output Connections | M12, screw-type |
| Load Type | Ohmic, inductive, lamp load |
| Nominal Output Voltage | 24 V DC (-15% / +20%) |
| Max. Output Current | 2 A per channel (individually short-circuit proof) |
| Total Maximum Current | 12 A (Channels 0...3: max 4 A, 4+5: max 4 A, 6+7: max 4 A) |
| Short-Circuit Current | Typical 4 A |
| Auxiliary Power Current | Typical 50 mA per channel |
| Process Image Bit Width | 8 outputs |
| Parameter | Specification |
|---|---|
| Control Voltage Power Supply | 24 V DC (-15% / +20%) via M8 male socket, 4-pin (feed only) |
| Load Voltage Power Supply | According to I/O type |
| Box Supply Current | 45 mA + sensor current consumption (max. 0.5 A) |
| Electrical Isolation | Control voltage to fieldbus: yes; Channels to control voltage: no; Between channels: no |
| Parameter | Specification |
|---|---|
| Protocol | Modbus RTU/ASCII |
| Data Transfer Rates | 150, 300, 600, 1200, 2400, 4800, 9600, 19,200, 38,400 baud |
| Bus Interface | 1 x M12 socket, 5-pin, B-coded |
| Physical Medium | Screened, twisted copper cable 2 x 0.25 mm squared (RS485) |
| Max. Distance Between Stations | Up to 1200 m (depending on selected baud rate) |
| Parameter | Specification |
|---|---|
| Dimensions (W x H x D) | 30 mm x 175 mm x 26.5 mm |
| Weight | Approx. 210 g |
| Operating Temperature | 0 to +55 degC |
| Storage Temperature | -25 to +85 degC |
| Vibration/Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity/Emission | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Protection Class | IP65, IP66, IP67 (conforms to EN 60529) |
| Approvals and Markings | CE, UL |
| Interface Type | Connection Details |
|---|---|
| Modbus RTU Bus Interface | 1 x M12 socket, 5-pin, B-coded |
| Digital Outputs | M12, screw-type connection points |
| Power Supply Connection | Feed: 2 x M8 male socket, 4-pin (no downstream connection) |
