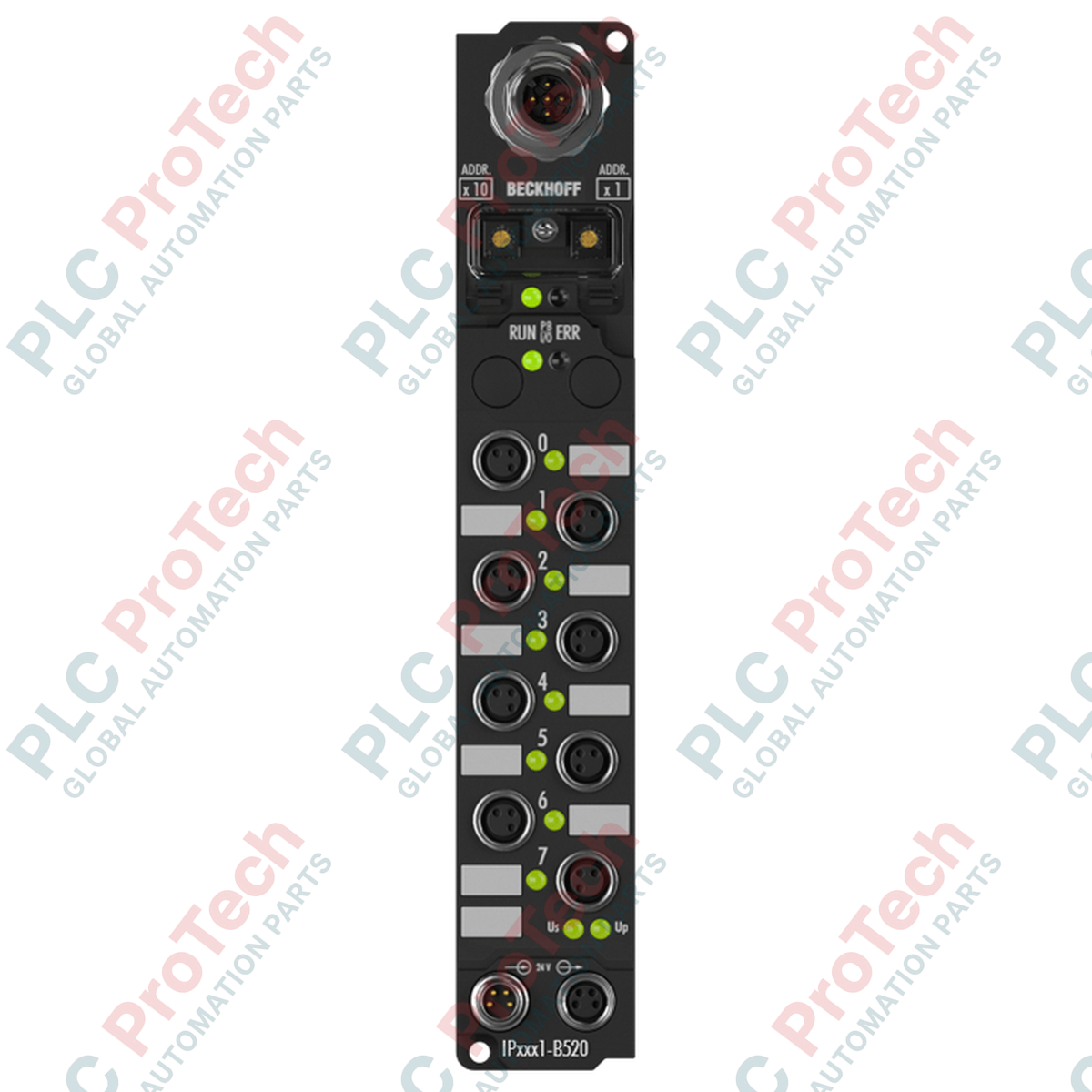

Designed for direct on-machine deployment without protective enclosures, the Beckhoff IP2301-B520 Fieldbus Box offers high-performance decentralized digital I/O handling on standard DeviceNet networks. By combining four 24 V DC digital inputs with a 3 ms filter and four 0.5 A digital outputs in a single IP67-rated housing, this compact module allows engineers to place field connections closer to automation sensors and actuators. This close-proximity installation strategy significantly cuts down on routing paths, decreases cabling complexity, and simplifies maintenance in harsh washdown or high-vibration environments.
| Specification Parameter | Value / Rating |
|---|---|
| Manufacturer | Beckhoff |
| Model / Article Number | IP2301-B520 |
| Protocol / Fieldbus System | DeviceNet (IPxxxx-B52x series) |
| Data Transfer Rates | Auto-detection: 125 kBaud, 250 kBaud, 500 kBaud |
| Number of Channels | 4 Digital Inputs + 4 Digital Outputs |
| Input Signal Voltage | "0" signal: -3 to +5 V | "1" signal: 11 to 30 V (6 mA input current, EN 61131-2 Type 2) |
| Input Filter Time | 3.0 ms |
| Output Voltage Rating | 24 V DC (-15% / +20%) |
| Max. Output Current | 0.5 A per channel (individually short-circuit proof) |
| Control / Fieldbus Isolation | 500 V RMS |
| I/O Connections | M8, screw-type connection |
| Bus Interface | 1 x M12 plug, 5-pin |
| Power Supply Feed | Feed: 1 x M8 male, 4-pin | Downstream: 1 x M8 female, 4-pin |
| Operating / Storage Temp. | 0 to +55 degC / -25 to +85 degC |
| IP Protection Rating | IP65 / IP66 / IP67 (conforms to EN 60529) |
| Housing Dimensions (W x H x D) | 30 mm x 175 mm x 26.5 mm |
| Housing Material / Weight | Polyamide PA6 / Shipping weight: 2 kg |
| Connector Type | Pin Number | Signal Assignment |
|---|---|---|
| DeviceNet M12 (5-pin Male) | Pin 1 | Shield / Functional Earth |
| Pin 2 | V+ (DeviceNet Transceiver Supply 24 V DC) | |
| Pin 3 | V- (DeviceNet Transceiver Common Ground) | |
| Pin 4 | CAN_H (DeviceNet High Line) | |
| Pin 5 | CAN_L (DeviceNet Low Line) | |
| Power Feed M8 (4-pin Male) | Pin 1 | Feed US (Control Logic / Sensor Supply, 24 V DC) |
| Pin 2 | Feed UP (Load / Output Actuator Supply, 24 V DC) | |
| Pin 3 | GND S (Control / Sensor Ground) | |
| Pin 4 | GND P (Load Ground) |
The IP2301-B520 belongs to Beckhoff's classic Fieldbus Box series. If upgrading legacy networks or replacing older revisions, note that firmware version dependencies are critical when attempting direct drop-in swaps on older DeviceNet scanners. Configuration parameters are stored on-module and can be parameter-set via explicit DeviceNet messaging or by utilizing Beckhoff's proprietary KS2000 configuration software connected through an RS232 adapter.
When cascading auxiliary power (US and UP) through multiple Fieldbus Boxes via the M8 daisy-chain downstream connector, ensure that the cumulative system current does not exceed the absolute 4 A rating of the M8 contact pins. Overloading these pins leads to severe thermal stress inside the polyamide housing, risking permanent seal degradation and communication loss.
Always ensure that a standard 121 Ohm terminal resistor is physically situated at the direct endpoints of the DeviceNet trunk line. When completing IP67 assemblies, verify that unused M8 and M12 sockets are sealed with official Beckhoff dust caps (part numbers ZS3000-0010/0020) to prevent moisture ingress. To secure connections without cracking the PA6 threads, torque M8 connections to 0.4 Nm and M12 connections to 0.6 Nm using an industrial torque driver.
Before initiating any hardware mounting, wiring, or pin-configuration procedures, ensure that all main, auxiliary, and network bus power sources have been fully disconnected. High-transient bus signals or accidental shorting of the 24 V DC supply during hot-plugging can permanently damage the DeviceNet transceiver circuitry.
Mount the Fieldbus Box using the two 3.5 mm diameter fixing holes on a flat machine base. Use M3 screws tightened to a maximum torque of 0.8 Nm.
Connect the DeviceNet cable to the M12 5-pin plug, ensuring the network shielding line is securely connected to functional earth.
Interface the M8 4-pin feed cable to configure separate control logic (US) and actuator/load power (UP) lines.
Connect sensors and digital actuator components to the M8 terminal channels, checking that individual loads do not exceed the 0.5 A limit.
Turn on the 24 V DC power, launch the KS2000 utility or your primary DeviceNet master software, and configure node-addressing mapping.
