Description

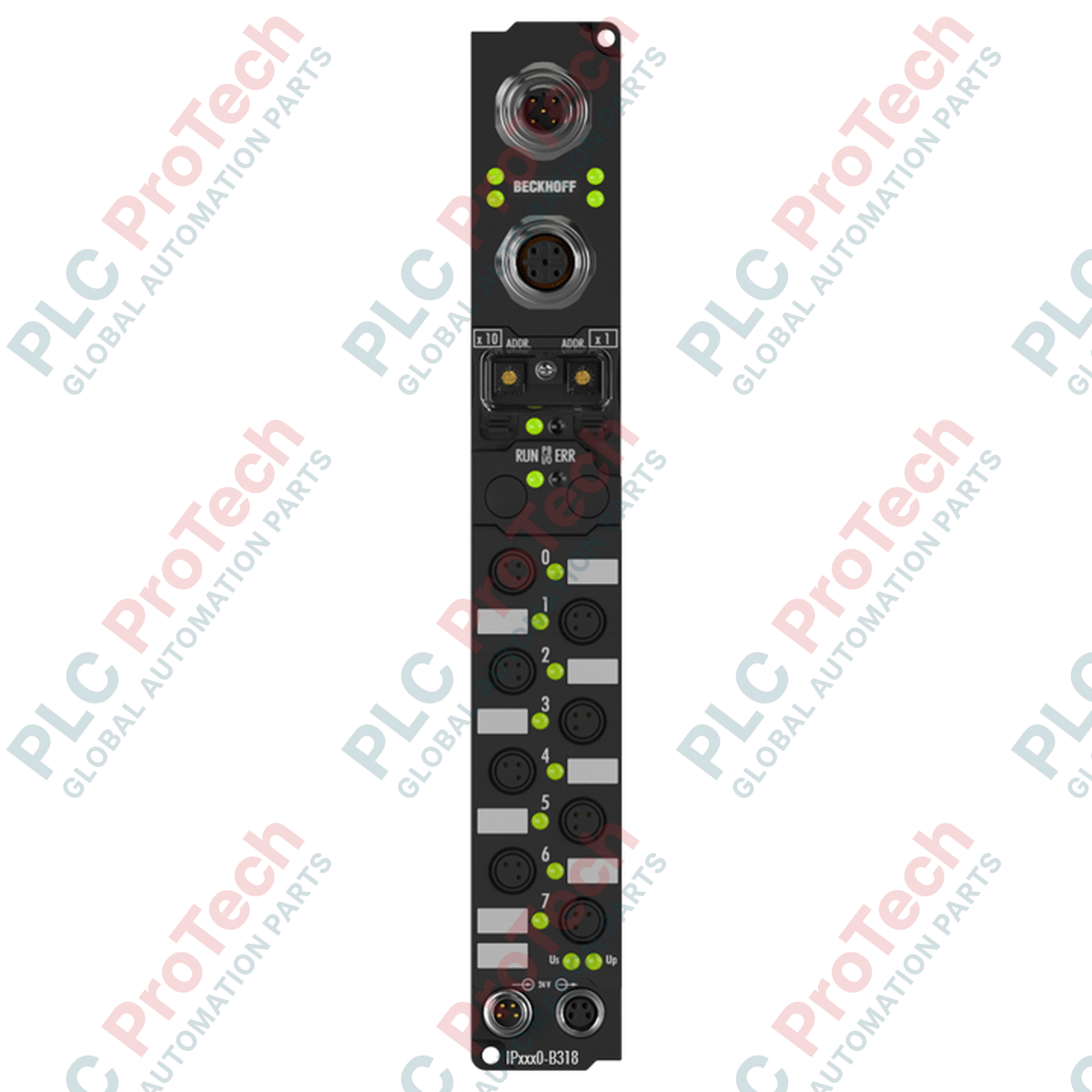

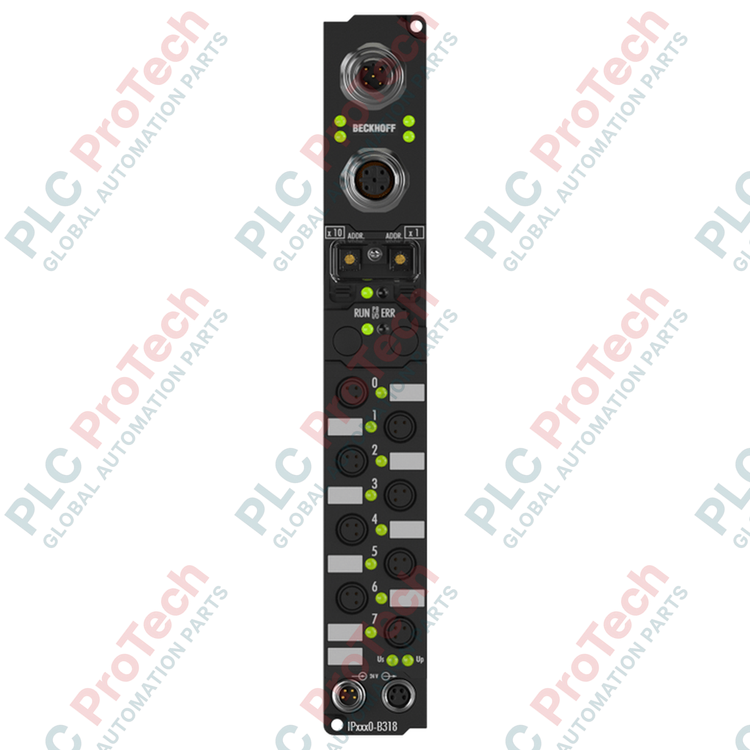

For direct installation in the field without protective enclosures, the Beckhoff IP2330-B310 serves as a robust PROFIBUS DP interface block featuring integrated digital I/O channels. By combining 4 digital inputs and 4 digital outputs in a single, high-protection module, this decentralized station minimizes wiring overhead and optimizes signal routing on modern automated production floors. The device communicates directly with the host PLC via a high-speed PROFIBUS DP connection, executing commands with minimal latency and high operational reliability.
Features
-
Direct Field Mounting: IP67-rated housing allows installation outside control cabinets, reducing cabling paths.
-
Digital Input Configuration: 4 channels rated at 24 V DC with a rapid 0.2 ms input filter for precise signal registration.
-
High-Capacity Outputs: 4 digital outputs delivering up to 2 A per channel, fully short-circuit proof.
-
Industrial Standard Connectors: M8 (8 mm) snap-on round connectors for reliable sensor and actuator integration.
-
Compact Form Factor: Small-footprint modular design with integrated mounting holes for direct machine frame attachment.
Applications
- Decentralized material handling and heavy-duty conveyor systems.
- Automotive assembly lines requiring localized sensor and actuator distribution.
- Packaging machinery operating in washdown or high-dust zones.
- Robotic end-of-arm tooling control interfaces.
Technical Specifications
| Specification Parameter |
Technical Value |
| Manufacturer |
Beckhoff Automation |
| Model Designation |
IP2330-B310 |
| Protocol / Interface |
PROFIBUS DP |
| Data Transfer Rates |
Automatic detection up to 12 Mbaud |
| Digital Inputs |
4 channels (24 V DC, filter time 0.2 ms) |
| Digital Outputs |
4 channels (24 V DC, 2 A maximum, short-circuit protected) |
| Field Connection Type |
M8 (diameter 8 mm) snap-on connectors |
| Power Supply Voltage |
24 V DC (-15% / +20%) |
| Operating Temperature Range |
0 degC to 55 degC |
| Storage Temperature Range |
-25 degC to 85 degC |
| IP Rating |
IP65 / IP66 / IP67 (when fully connected and sealed) |
| Shipping Weight (Calculated) |
2.0 kg |
| Package Dimensions (Calculated) |
175 mm x 45 mm x 35 mm |
Connections and Interfaces
| Connection Pin (M8 Signal) |
Function / Signal Assignment |
| Pin 1 |
Sensor / Actuator Supply (+24 V DC) |
| Pin 3 |
Reference Ground (0 V) |
| Pin 4 |
Input Signal (Channels 1-4) / Output Signal (Channels 1-4) |
Empirical Engineering Insights
Alternative Models & Compatibility
The IP2330-B310 operates as an integrated IP67 equivalent to the coupling of a Beckhoff BK3120/BK3150 PROFIBUS Coupler with KL1404 and KL2404 Bus Terminals. When executing drop-in replacements, ensure that the GSD file installed on the master PROFIBUS controller matches the correct revision level. Older revisions of this Fieldbus Box may have different parameter mappings in hardware configurations; verify whether the GSD file supports the diagnostic structures of newer hardware variants.
Application Pitfalls & Engineering Notes
While individual digital outputs can supply up to 2 A, the cumulative load across all outputs is restricted by the absolute power distribution limit of the module's power feed-in line (typically up to 4 A in series-connected topologies). If driving heavy inductive loads like high-current solenoid valves continuously, mount the module on a metallic plate to aid thermal dissipation and prevent localized thermal shut-down.
Commissioning & Wiring Tips
The PROFIBUS DP address is configured manually via the two rotary switches located behind the screw-down protection cap. Note that the station address cannot be changed dynamically; address modifications only become active upon cycling the system control power (24 V DC). Always ensure the protective screw cap is fully tightened to a minimum of 0.5 Nm after address configuration to maintain the module's IP67 ingress protection rating.
Installation Guidelines
CRITICAL WARNING
Before mounting or servicing this Fieldbus Box, isolate and lock out all 24 V DC control and load power supplies. Ingress of moisture or conductive debris into open, unsealed M8/M12 connectors during installation will cause internal short-circuiting and permanent bus interface failure.
1
Mount the IP2330-B310 onto a flat, vibration-resistant surface using two M3 or M4 screws passing through the integrated mounting slots on the outer edges.
2
Remove the protective cap and configure the target PROFIBUS node address using the dual rotary decimal switches. Reseal the switch cover tightly.
3
Connect the PROFIBUS signal cables to the designated bus interface connectors. Securely tighten all coupled network connections.
4
Install M8 sealing caps on any unused input/output channels to prevent ingress of dirt, cutting oils, or moisture. Apply 24 V DC power and verify system diagnostics.
