Description

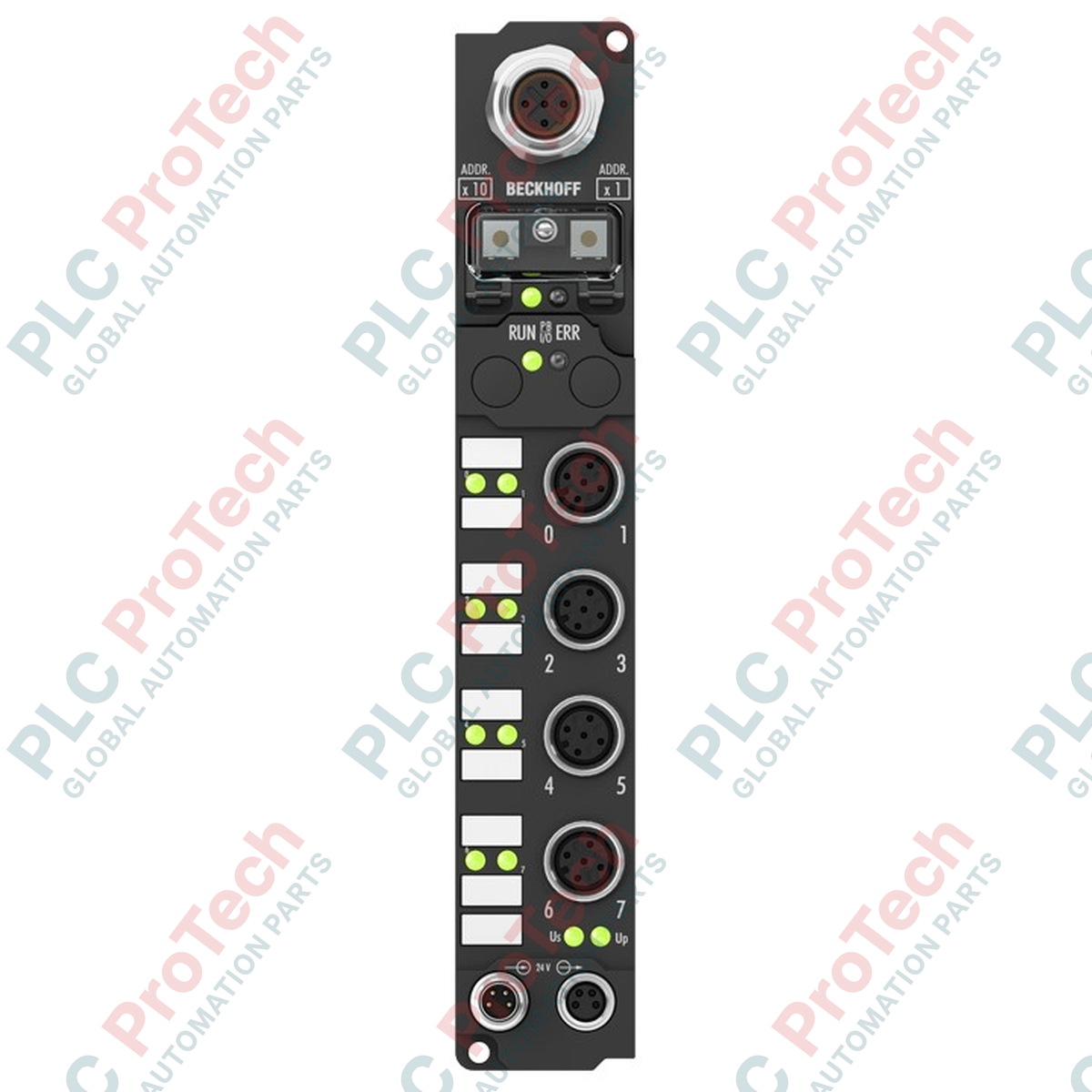

Engineered for decentralized temperature acquisition in demanding industrial environments, the Beckhoff IP3202-B200 fieldbus box delivers precise RTD sensor processing directly at the machine level without requiring a protective control cabinet. This module integrates high-performance analog-to-digital conversion with the noise-immune Lightbus fiber-optic communication system, allowing reliable long-distance signal transmission in high-interference settings. The physical enclosure is built to withstand extreme mechanical stress, moisture, and dust, providing direct-to-machine mountability for minimized field-wiring loops.

Features

• Lightbus Interface: Employs dual optical fiber connections operating at 2.5 Mbaud, providing absolute electrical isolation and immunity against electromagnetic interference.
• Direct RTD Acquisition: Optimized for standard RTD and Pt100 temperature sensors without requiring external signal transmitters.
• Robust IP67 Enclosure: Designed for direct field mounting in wet, dusty, or high-vibration environments, complying with IP65, IP66, and IP67 protection standards.
• Efficient Power Daisy-Chaining: Dual M8 connectors (male feed and female downstream) enable direct distribution of control voltages across multiple fieldbus boxes.
• Flexible Configuration: Accessible parameters and calibration settings manageable via Beckhoff KS2000 software or directly through controller register structures.

Applications

• Decentralized temperature sensing in washdown areas, food processing, and chemical production.
• Remote monitoring on highly articulated mechanical systems and robotic assemblies.
• Noise-sensitive installations where traditional copper fieldbus lines suffer from EMI/RFI issues.
• Distributed HVAC and environmental control loops in large industrial facilities.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The IP3202-B200 module is designed specifically for Beckhoff Lightbus architectures. If migrating or integrating with newer control platforms, keep in mind that Lightbus requires dedicated master PCI/PCIe cards (e.g., FC2001) or specific bus terminal controllers. For applications looking to migrate to EtherCAT without altering physical layouts, equivalent models from the EP series (such as the EP3202-0002) should be considered, though a change in network architecture and cabling from fiber-optic to industrial Ethernet is required.

Application Pitfalls & Engineering Notes

When working with fiber-optic connections in industrial rings, maintaining optical clean room standards is critical during physical installations. Avoid exceeding the minimum bending radius of the fiber-optic cabling (typically 30 mm for ZS1020 assemblies) to prevent signal loss or permanent physical degradation of the polymer fibers. Furthermore, any open or unused M8 or fiber-optic ports must be sealed using certified protective IP67 caps. Leaving these connections open in wet environments invites capillary moisture ingress, which can corrode internal components over time.

Commissioning & Wiring Tips

To configure analog channel operational characteristics, use the Beckhoff KS2000 software package connected via a serial configuration cable, or access the internal registry directly through the PLC startup parameters in TwinCAT. Ensure that the sensor cabling shields are terminated close to the fieldbus module's metal mounting ears to provide a low-impedance path to local earth ground, preventing high-frequency common-mode noise from corrupting delicate RTD measurements.

Installation Guidelines
