BECKHOFF KL8548 Bus Terminal

SKU KL8548

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: BECKHOFF

  • Product No.: KL8548

  • Country of origin:Germany

  • Product Type: Bus Terminals

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

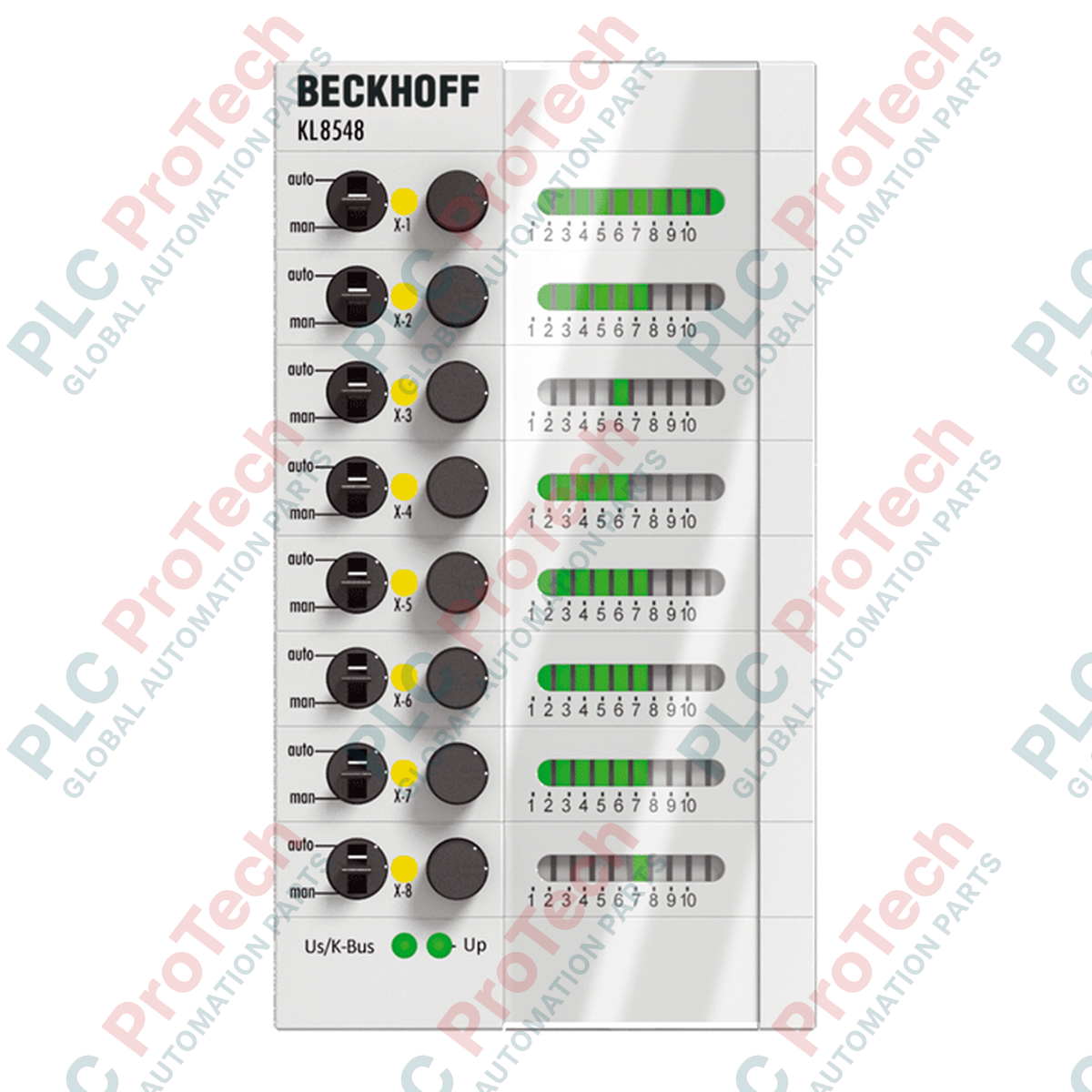

The BECKHOFF KL8548 is an 8-channel analog output module designed for integration within the BECKHOFF Bus Terminal system. It functions as a specialized interface combining analog control capabilities with integrated manual operation features, allowing operators to interact directly with the automation system. The device features eight analog outputs providing a 0 to 10 V signal range, alongside eight potentiometer input channels for manual reference setting.

As part of the K-bus connected terminal family, the KL8548 is powered via a 24 V DC connection and communicates state information to the higher-level PLC. The module incorporates hardware switches and potentiometers whose positions can be read directly by the control system, enabling seamless switching between automated and manual operating modes. Analog values are visually represented via onboard bar chart LED displays to assist with diagnostic and monitoring tasks.

Features

    8-channel analog outputs with a 0 to 10 V signal range for actuator control. 8 potentiometer inputs supporting manual parameter adjustment. Integrated operating switches supporting auto and manual configuration modes. Bar chart LED display for direct visual indication of analog values. PLC integration allowing switch and potentiometer settings to be read dynamically. K-bus communication for connection to standard BECKHOFF Bus Couplers. Flat-ribbon cable connection (20-pin, shielded) for field-side signal wiring.

Applications

    Manual override and operator control stations in industrial automation. Process control systems requiring direct analog setpoint adjustments. Machine control panels combining automated PLC control with manual tuning. Testing and commissioning rigs requiring visual feedback of analog signal levels.

Technical Specifications

General

Parameter Specification
Manufacturer BECKHOFF
Exact Model KL8548
Product Type Bus Terminal (8-channel analog output module)
Country of Origin Germany

Signal and I/O

Parameter Specification
Number of Outputs 8
Number of Inputs 8 (potentiometer)
Signal Voltage (Outputs) 0 to 10 V
Resolution 12 bit

Electrical

Parameter Specification
Nominal Voltage 24 V DC (-15 % / +20 %)
Power Supply 24 V connection
Current Consumption K-bus 50 mA in ECO mode, 95 mA in full scale mode

Communication and Connection

Parameter Specification
Bus Interface K-bus connection IN/OUT
I/O Connections Flat-ribbon cable connection, 20-pin, shielded

Mechanical and Environmental

Parameter Specification
Diagnostics LED Yellow
Switch Settings Auto / manual, potentiometer
Protection Rating IP20
Installation Position Variable
Operating Temperature Range 0 to +55 degC
Storage Temperature Range -25 to +85 degC
Relative Humidity 95 %, no condensation
Vibration Resistance Conforms to EN 60068-2-6
Shock Resistance Conforms to EN 60068-2-27
EMC Immunity Conforms to EN 61000-6-2
EMC Emission Conforms to EN 61000-6-4
Net Weight 215 g

Approvals

Parameter Specification
Approvals CE

Installation Guidelines

  1. Verify that the system is completely de-energized before mounting or removing the BECKHOFF KL8548 terminal.
  2. Inspect the terminal housing and K-bus contacts for any mechanical damage or contamination.
  3. Mount the Bus Terminal onto the DIN rail in the specified orientation alongside compatible Bus Couplers and terminals.
  4. Connect the 24 V DC power supply and ensure proper field-side wiring via the 20-pin shielded flat-ribbon cable.
  5. Check all potential distributions and signal connections before restoring power to the automation system.
  6. Commission the terminal through the TwinCAT programming environment, ensuring proper configuration of the K-bus and PLC variable mappings.

FAQ

What is the primary function of the BECKHOFF KL8548 Bus Terminal?
The BECKHOFF KL8548 is an advanced 8-channel analog output module designed to combine standard control functionality with integrated manual operating features. It provides eight analog outputs with a 0 to 10 V signal range alongside eight potentiometer inputs for direct reference setting. This allows operators to seamlessly switch between automated PLC control and manual operational modes on industrial machinery.

How are manual adjustments handled on this module?
The BECKHOFF KL8548 features integrated hardware operating switches and potentiometers that allow for direct manual parameter adjustments. The precise positions of these switches and potentiometers can be read dynamically by the higher-level control system. Additionally, onboard bar chart LED displays offer immediate visual feedback of the current analog values during operation.

What are the electrical and communication requirements for the KL8548?
The BECKHOFF KL8548 operates on a nominal power supply of 24 V DC with a specified tolerance range. For system communication, it connects via the standard K-bus interface to compatible BECKHOFF Bus Couplers. Field-side signal wiring is established securely utilizing a 20-pin, shielded flat-ribbon cable connection.

What environment is the BECKHOFF KL8548 rated for?
The BECKHOFF KL8548 features an IP20 protection rating, making it suitable for installation inside standard industrial control panels and cabinets. It is engineered to operate reliably within an ambient temperature range of 0 to +55 degC. Furthermore, the unit complies with rigorous international standards for vibration, shock, and electromagnetic compatibility.
