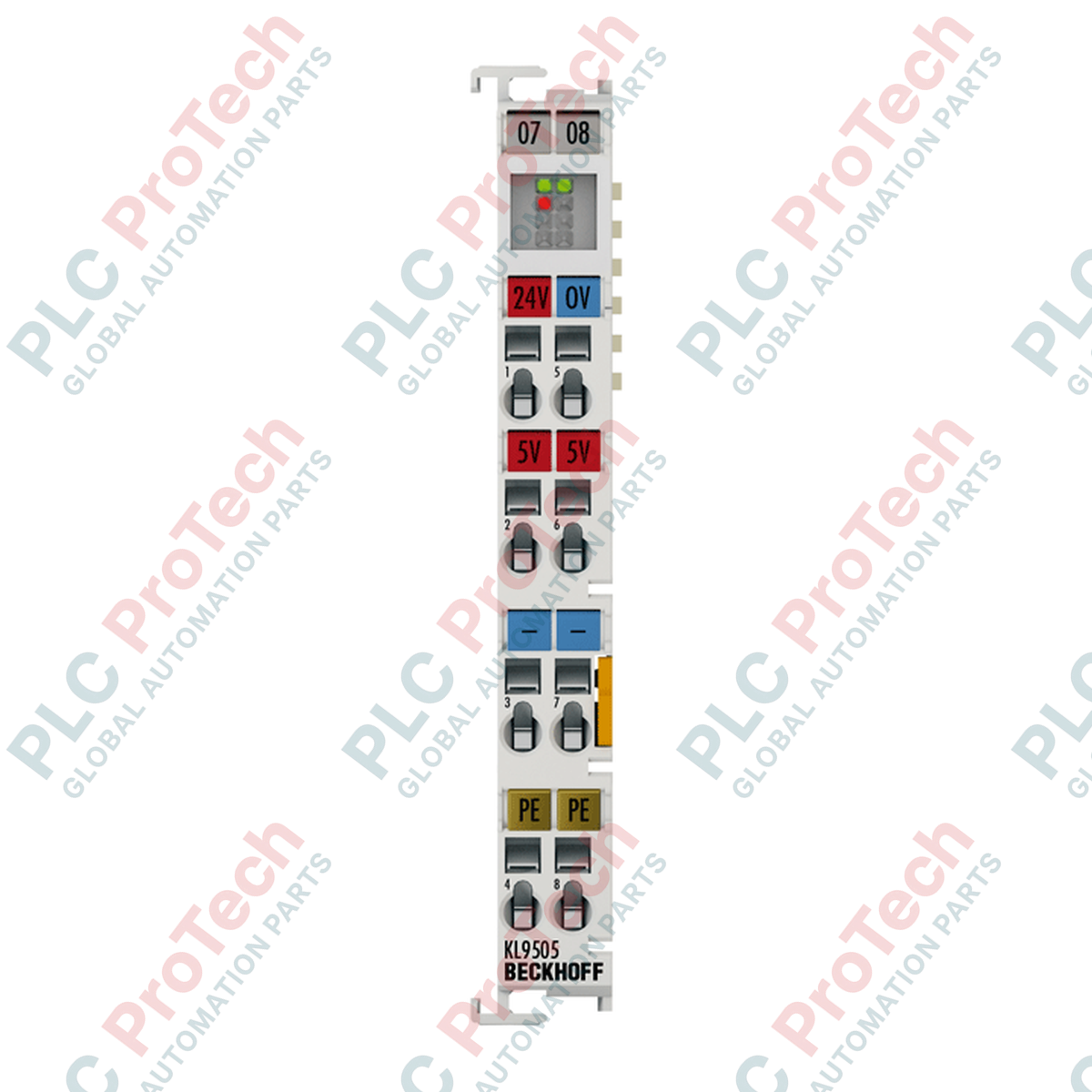

Beckhoff KL9505 Bus Terminal Power Supply Module

Q: What is the primary function of the KL9505 terminal?

The KL9505 is a power supply terminal that converts a 24 V DC input into a stabilized 5 V DC output for use within the Beckhoff Bus Terminal system.

Q: Does the module provide protection against short circuits?

Yes, the module is short-circuit proof and includes an integrated overcurrent LED to indicate fault conditions.

Q: What is the maximum output current for this device?

The maximum output current for the KL9505 is 0.5 A.

Q: What are the environmental operating limits for this module?

The module operates within a temperature range of 0 to +55 degC and supports up to 95% relative humidity without condensation.

SKU KL9505

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: KL9505
Country of origin:Germany
Product Type: Power supply terminal 5 V DC
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

The KL9505 is a 5 V DC power supply terminal designed to provide a regulated voltage for peripheral devices within the Beckhoff Bus Terminal system. This module converts a 24 V DC input into a stabilized 5 V DC output, ensuring reliable power delivery for sensitive electronics. It is engineered for industrial environments, featuring an integrated overcurrent LED for status monitoring and protection against short circuits.

Features

Stabilized 5 V DC output voltage
Integrated overcurrent monitoring with LED indicator
Short-circuit proof design
Pluggable wiring interface for KSxxxx series compatibility
Compact DIN rail mountable form factor

Applications

Powering auxiliary 5 V sensors or transducers
Local supply for communication interfaces
General-purpose low-voltage DC power distribution in automation cabinets

Technical Specifications

Feature	Specification
Manufacturer	Beckhoff
Model	KL9505
Input Voltage	24 V DC (-15 %/+20 %)
Output Voltage	5 V DC ±1 %
Output Current	0.5 A
Residual Ripple	< 5 mV
Short-Circuit Proof	Yes
Weight	Approx. 65 g
Operating Temperature	0 to +55 degC
Storage Temperature	-25 to +85 degC
Relative Humidity	95 %, no condensation
Protection Rating	IP20

Installation Guidelines

DIN Rail Mounting: The module is designed for standard DIN rail installation. Ensure it is securely clicked into place to maintain proper electrical contact with the bus system.
Wiring: Use pluggable wiring consistent with KSxxxx series requirements. Ensure correct polarity of the 24 V DC input supply.
Cooling: Maintain adequate clearance around the module to allow for natural convection cooling, especially when operating near the upper limit of the temperature range.
Protection: Adhere to local EMC regulations (EN 61000-6-2/EN 61000-6-4) during cable routing to minimize noise interference.

Compliance and Certifications

CE
UL
ATEX: II 3 G Ex nA IIC T4 Gc
Vibration/Shock: Conforms to EN 60068-2-6 / EN 60068-2-27

FAQ

What is the primary function of the KL9505 terminal?

The KL9505 is a power supply terminal that converts a 24 V DC input into a stabilized 5 V DC output for use within the Beckhoff Bus Terminal system.

Does the module provide protection against short circuits?

Yes, the module is short-circuit proof and includes an integrated overcurrent LED to indicate fault conditions.

What is the maximum output current for this device?

The maximum output current for the KL9505 is 0.5 A.

What are the environmental operating limits for this module?

The module operates within a temperature range of 0 to +55 degC and supports up to 95% relative humidity without condensation.
