Bently Nevada 16710-15 Interconnect Cable

Description

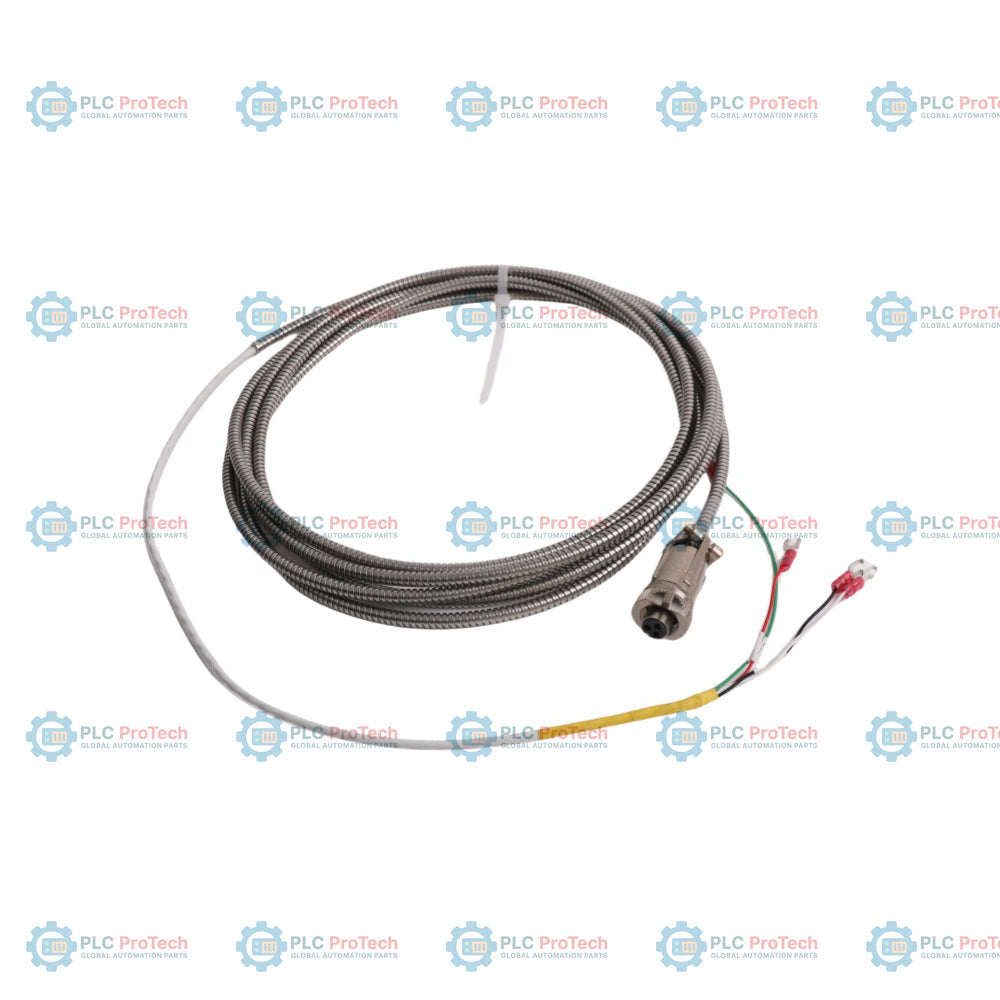

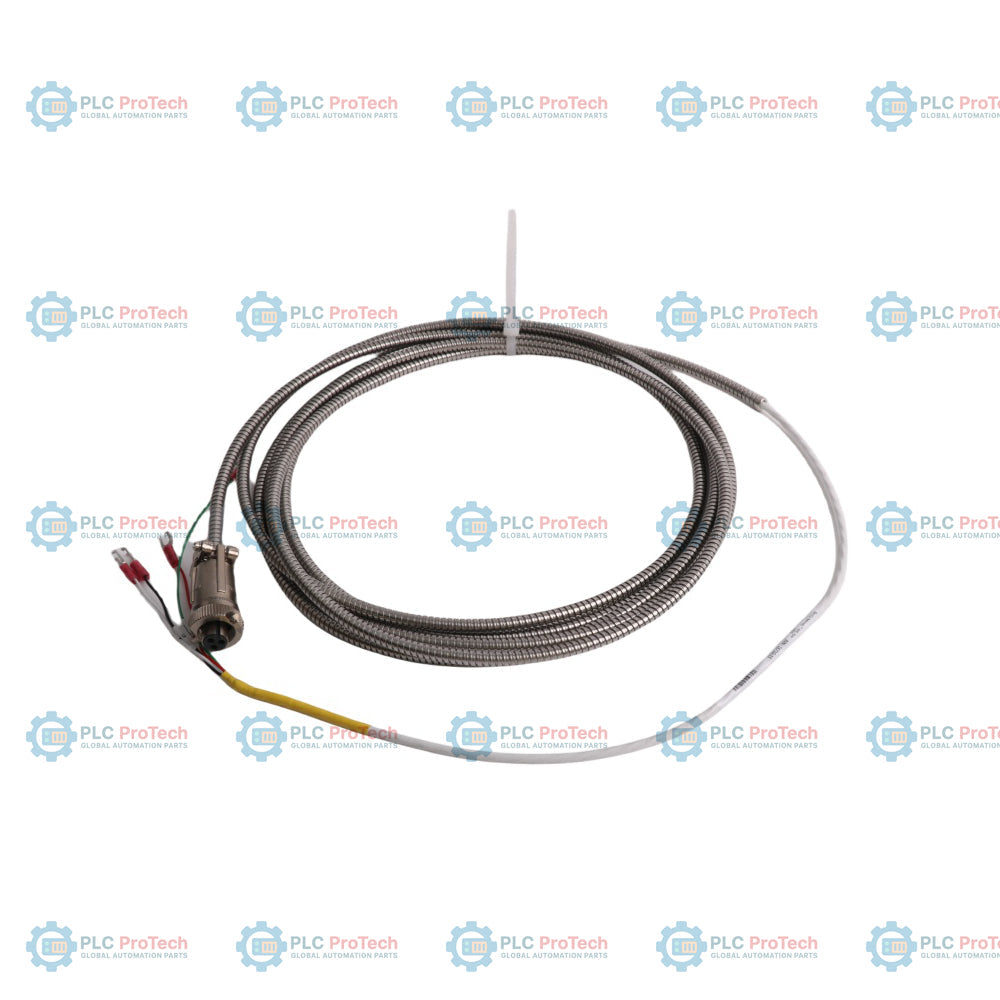

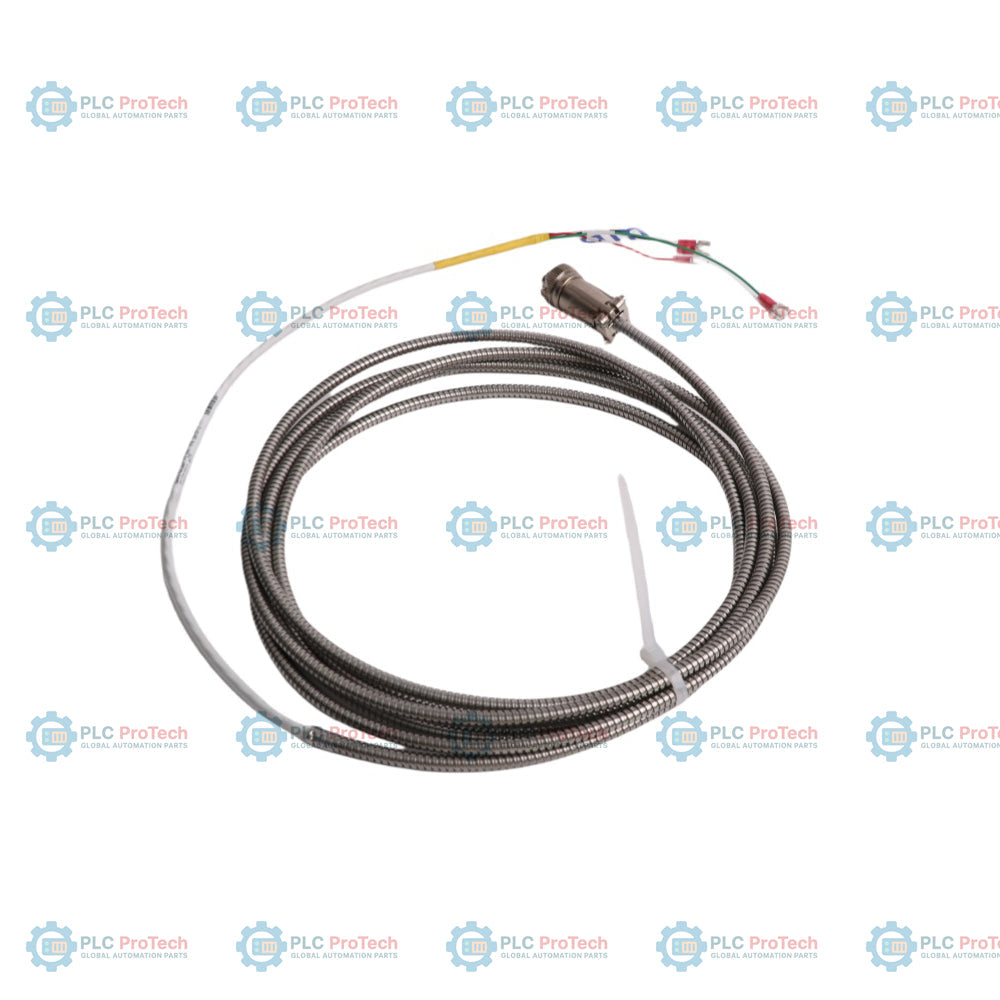

The 16710-15 is a 15 ft (4.5 m) interconnect cable designed specifically for use with 330400 and 330425 series Bently Nevada acceleration transducers. This cable features a 3-conductor, shielded 22 AWG (0.5 mm2) construction, ensuring signal integrity for critical machinery monitoring applications such as gear mesh and casing vibration analysis.

This configuration utilizes a 3-socket plug at the transducer interface and terminal lugs for easy field termination at the monitoring system or junction box. The cable is designed for environments where reliable transmission of vibration data is essential for machine protection. For installations requiring different lengths, custom lengths are available, with this specific unit providing a 4.5 m (15 ft) reach.

Features

• 15 ft (4.5 m) length configuration
• 3-conductor, shielded 22 AWG (0.5 mm2) cable construction
• 3-socket plug connector for 330400/330425 transducer compatibility
• Terminal lugs for secure termination
• Compatible with Bently Nevada 330400 and 330425 series accelerometers
• Robust shielding to minimize electrical noise interference

Applications

• Casing vibration monitoring
• Gear mesh analysis
• Critical rotating machinery protection
• Industrial condition monitoring systems

Ordering Information

Technical Specifications

Installation Guidelines

Ensure the cable is routed away from high-voltage power lines to prevent electromagnetic interference (EMI). The 3-socket plug should be securely seated onto the accelerometer connector to maintain IP-rated connections. Ensure proper strain relief is provided for the cable to prevent mechanical stress on the transducer connection.
