Product Overview

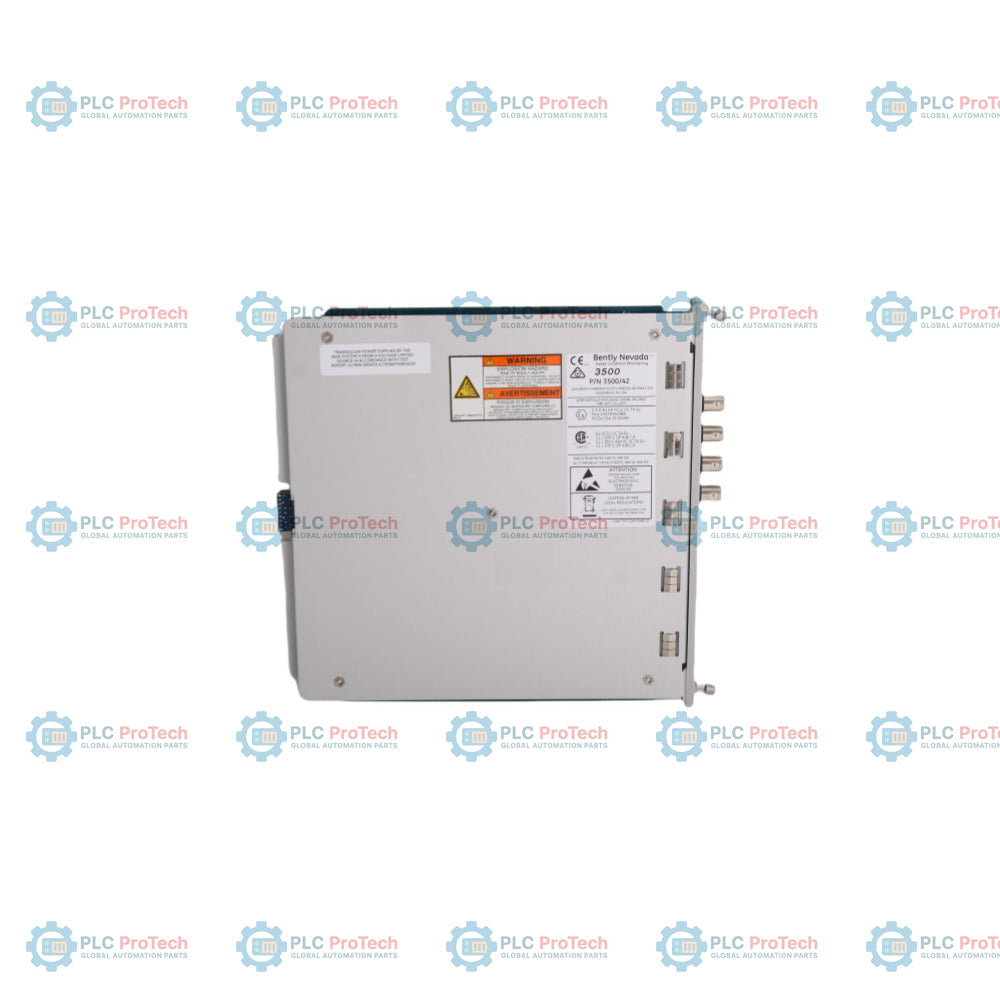

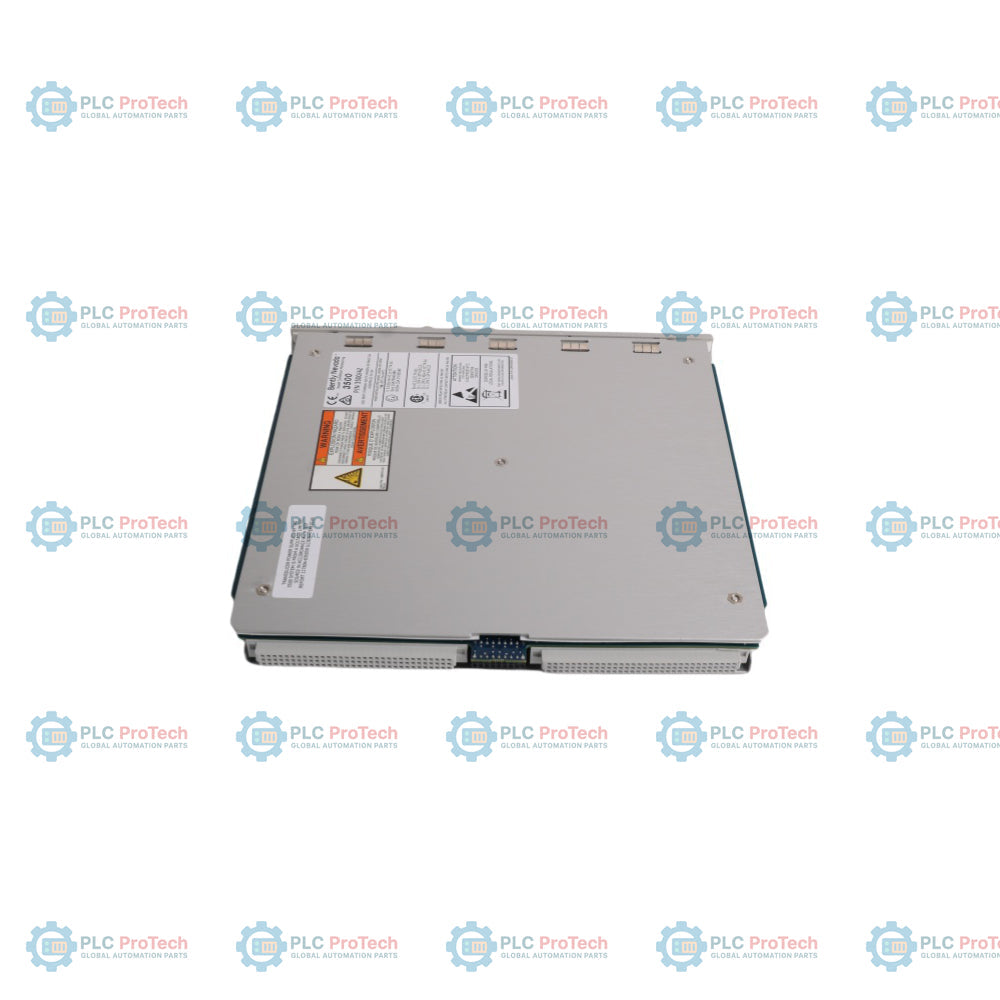

The 176449-02 (3500/42M) is a high-performance four-channel vibration monitor engineered for the Bently Nevada 3500 Machinery Protection System. Designed for critical assets in power generation, oil and gas, and heavy manufacturing, this module accepts inputs from proximity, velocity, and acceleration transducers. Its primary role is to provide continuous machinery protection by cross-referencing live vibration data against user-defined alarm setpoints. By identifying early warning signs of shaft misalignment, bearing wear, or unbalance, the 176449-02 empowers maintenance teams to execute predictive interventions, effectively eliminating catastrophic machine failures and drastically reducing unscheduled facility downtime.
Technical Configuration
The 3500/42M monitor leverages a dual-pair channel architecture, allowing for versatile monitoring strategies within a single rack slot.
-
Channel Programming: Channels are configured in pairs (1/2 and 3/4), supporting simultaneous functions. For instance, one pair can monitor Radial Vibration while the second pair tracks Thrust Position or Acceleration.
-
Static Value Generation: The module conditions raw transducer signals into actionable parameters such as Direct, Gap, 1X and 2X Vector, Smax, and Eccentricity.
-
Filtering Logic: Features programmable single-pole filters (4 Hz to 4000 Hz) and constant Q notch filters for "Not 1X" and vector monitoring, ensuring high-fidelity signal conditioning even in noisy environments.
-

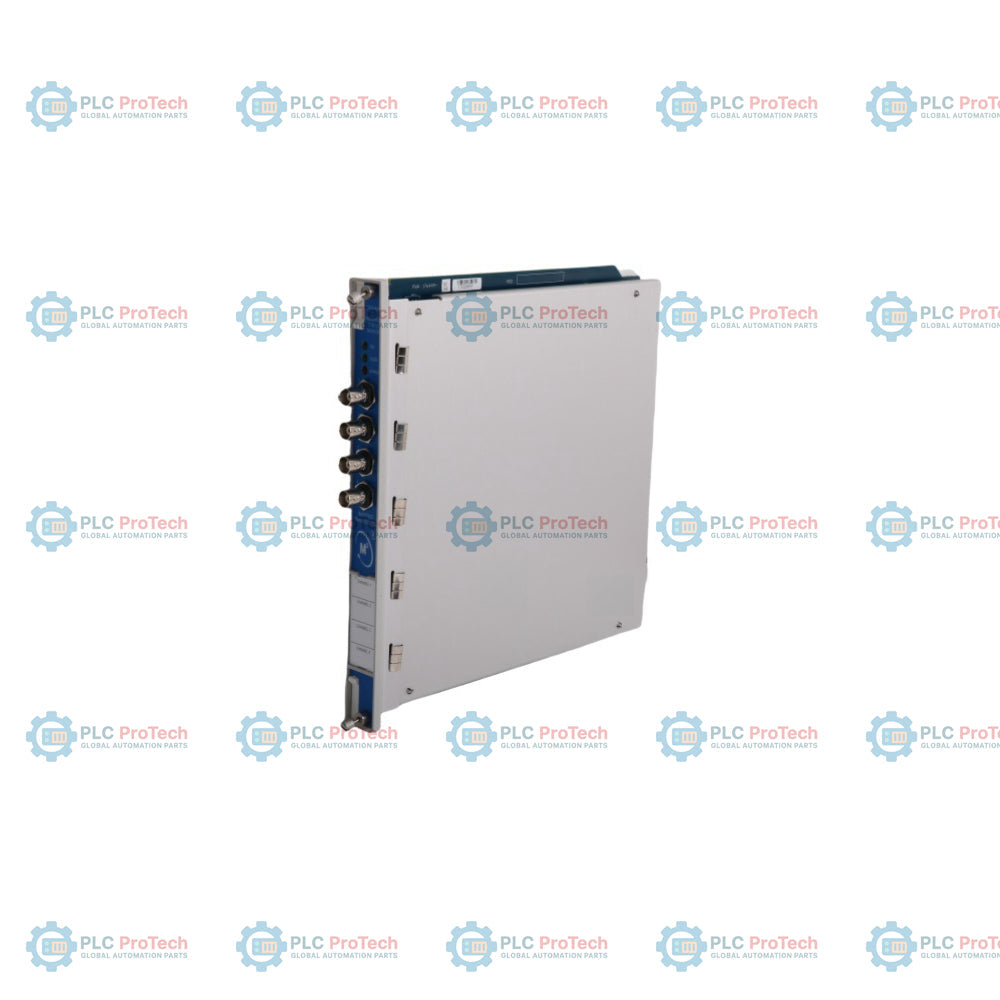

Buffered Outputs: Front-panel coaxial connectors provide short-circuit protected buffered signals for each channel, allowing for direct connection to external frequency analyzers or data collectors without interrupting protection loops.
Technical Specifications
| Attribute |
Specification |
| Model |
176449-02 |
| Brand |
Bently Nevada |
| Origin |
U.S.A. |
| Power Consumption |
7.7 watts typical |
| Input Impedance |
10 kOhm (Standard I/O) |
| Transducer Supply |
-24 VDC |
| Recorder Output |
4 to 20 mA (Individual for each channel) |
| Load Resistance |
0 to 600 Ohm |
| Operating Temp |
-30 to +65 Celsius |
| Frequency Response |
1 Hz to 4000 Hz (User-programmable) |
| Dimensions |
241.3 mm x 24.4 mm x 241.8 mm |
| Weight |
0.91 kg |
Field Service FAQs
What do the front-panel LEDs signify for system health?
The OK LED indicates the internal diagnostics of the 3500/42M are successful. The TX/RX LED flashes to confirm active serial communication with the Rack Interface Module (RIM), while the Bypass LED illuminates when the monitor is in Bypass Mode, indicating that alarm logic is inhibited.
Can the 3500/42M monitor process different transducer types simultaneously?
Yes, because channels are programmed in pairs, you can monitor Proximitor signals on one pair and Seismic (Velocity/Acceleration) signals on the other pair, provided they are within the supported signal range of -24 VDC.
What happens if a recorder output is short-circuited?
The monitor operation and protection logic are completely unaffected by short circuits on the 4-20 mA recorder outputs. The module features internal voltage compliance management to maintain signal integrity across its load range.
Engineering Installation and Commissioning Guidelines
-
Shielding and Grounding: Always terminate signal cable shields at the 3500 system I/O module ground terminals. Never ground the shield at both ends, as this introduces ground loops that can corrupt the sensitive vibration signals.
-
Gap Voltage Calibration: For proximity probe applications, verify the "Gap" static value during installation. Ensure the probe is gapped within the linear range of the transducer (typically -10 VDC for standard 8 mm probes) to prevent signal clipping and maintain accurate alarm thresholds.
-
Wiring Integrity: Ensure that the load resistance for the 4-20 mA recorder outputs does not exceed 600 Ohms. Exceeding this limit will result in signal saturation, causing inaccurate reporting to the DCS or PLC.
-
Thermal Management: When using the monitor in high-density rack configurations near the 65 Celsius limit, ensure proper cabinet ventilation. Sustained operation at peak temperatures can degrade the accuracy of the 4-20 mA resolution (from 0.25% at room temp to 0.7% at temperature limits).
