Manufacturer: Bently Nevada
Product No.: 3500/64M 176449-05
Country of origin:United States
Product Type: Dynamic Pressure Monitor
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 820g
Dimensions: 241.3 mm x 24.4 mm x 241.8 mm
Shipping port: Xiamen
Warranty: 12 months

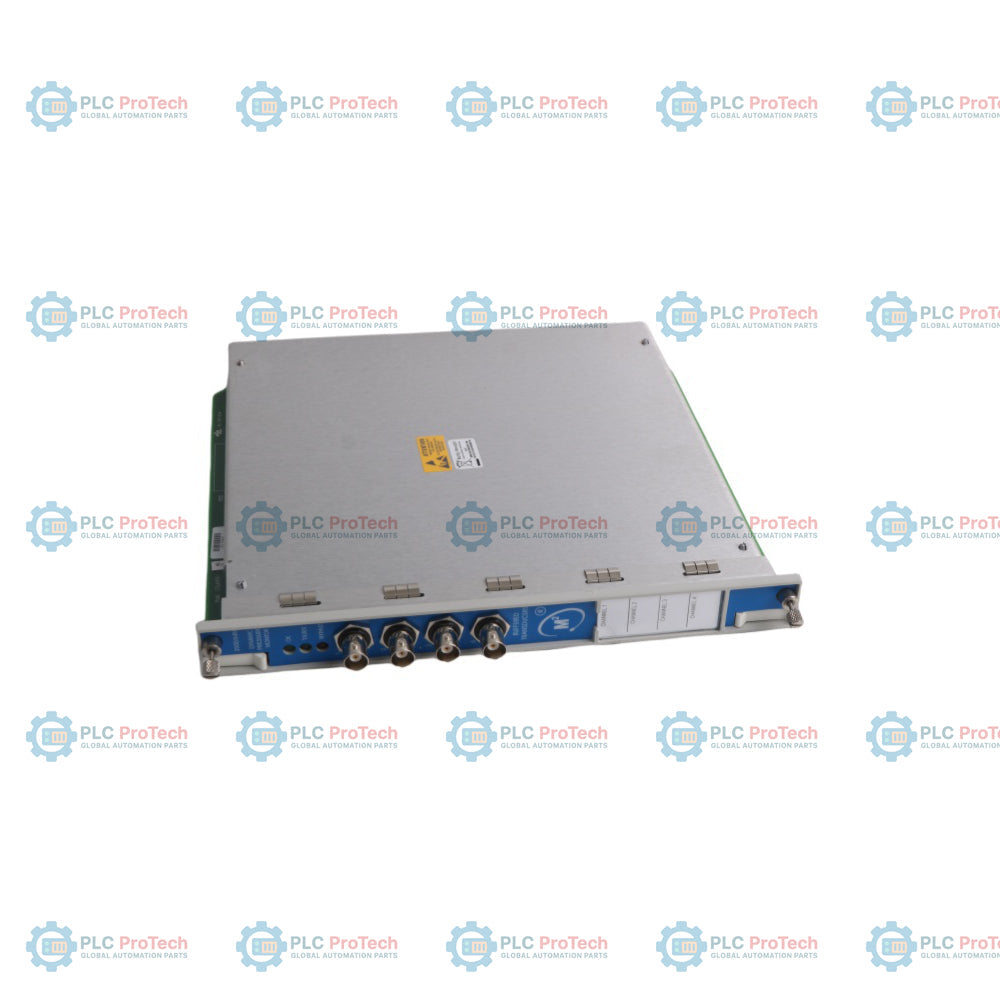

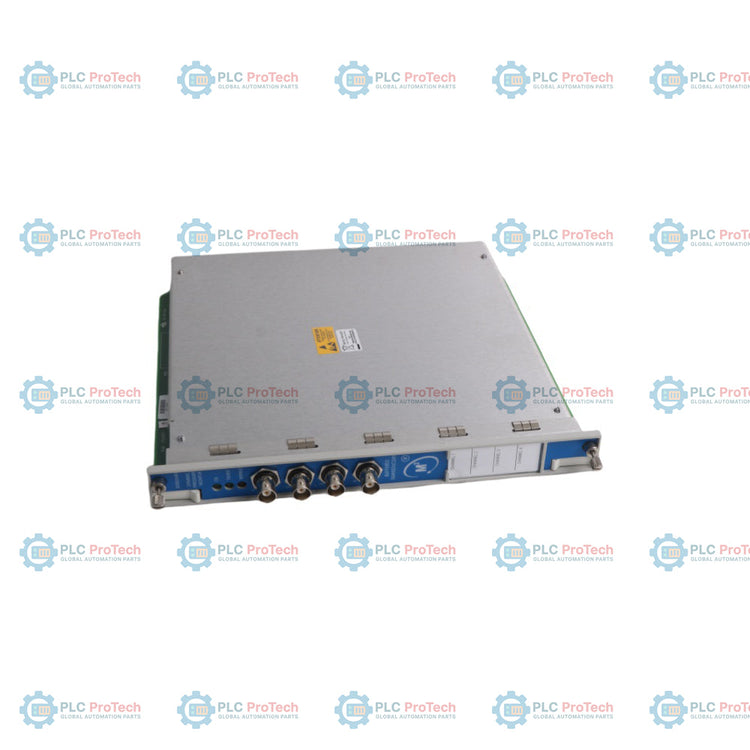

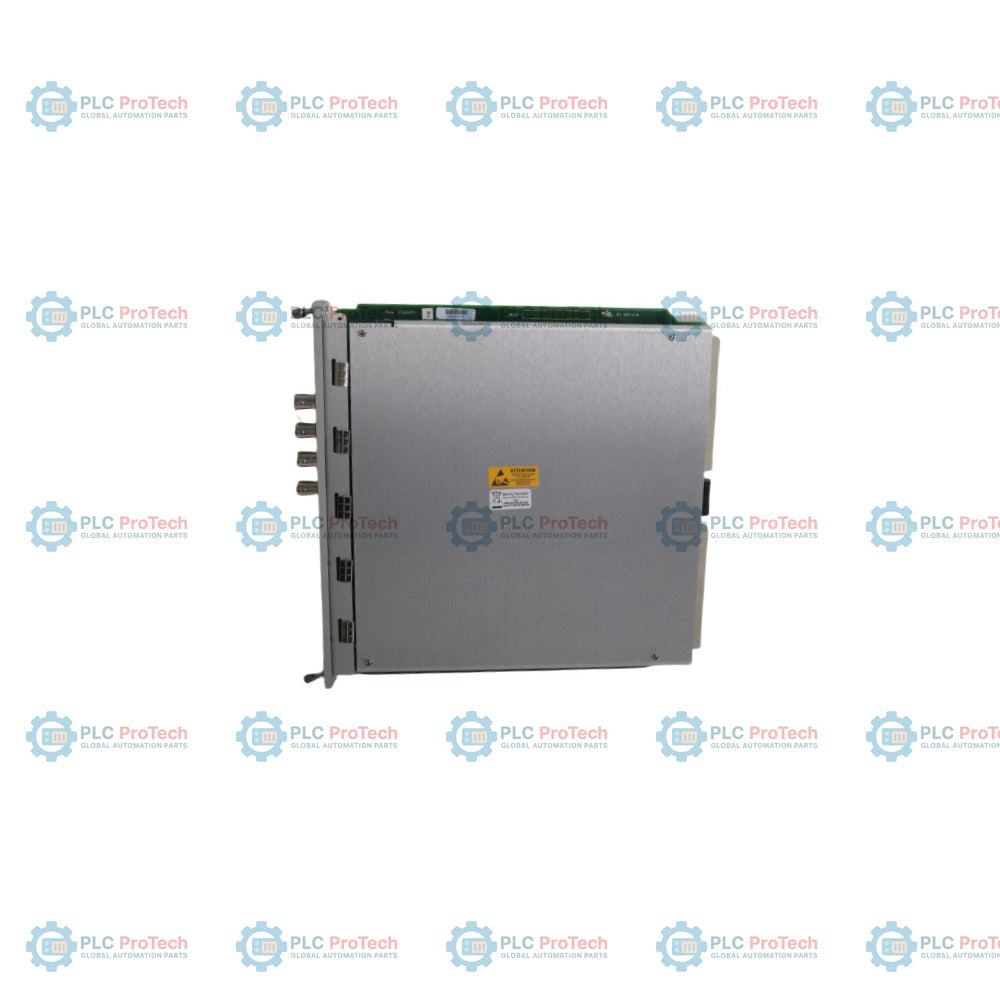

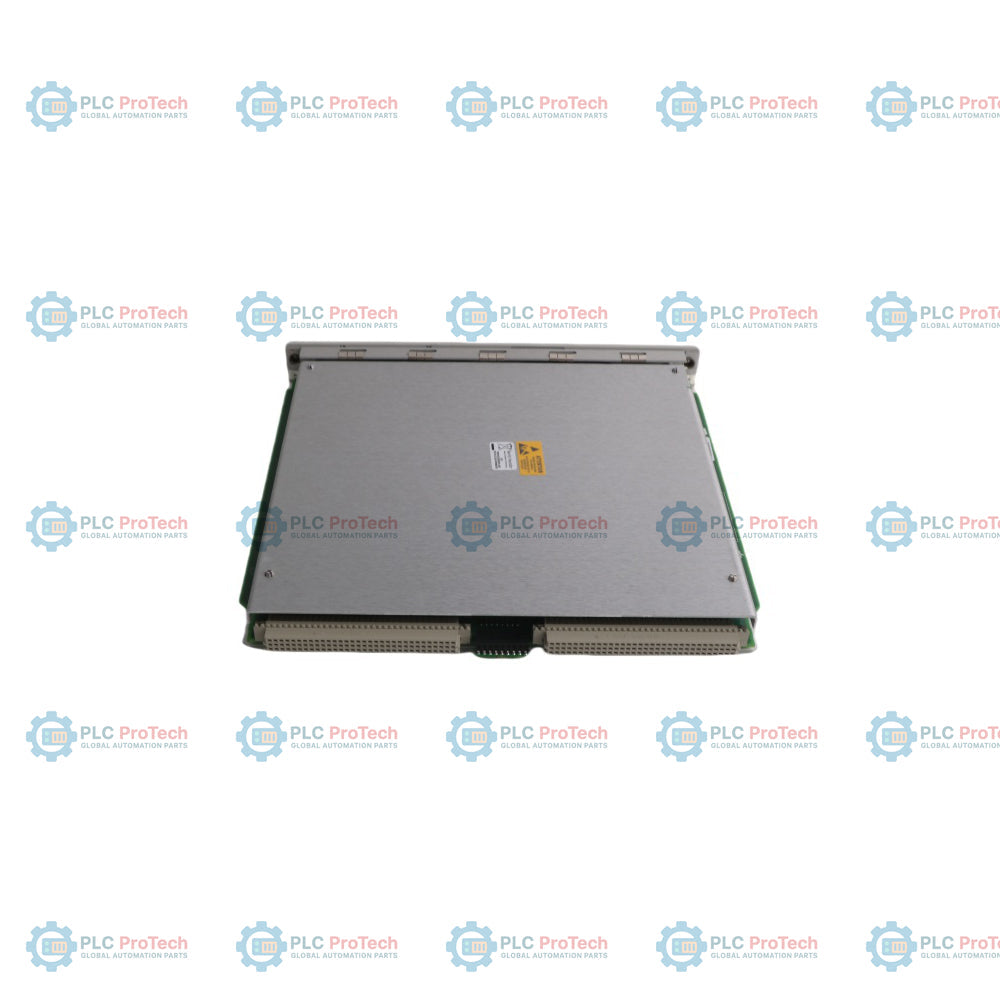

The 3500/64M 176449-05 is a four-channel dynamic pressure monitoring module designed for continuous machinery protection and process monitoring applications. It accepts input signals from high-temperature pressure transducers and processes dynamic pressure measurements for vibration and pressure pulsation analysis in rotating equipment systems.
The monitor supports configurable bandpass filtering, notch filtering, and recorder outputs for integration with plant control systems. Each channel can generate independently configured measured variables, alert levels, and danger alarms using the 3500 Rack Configuration Software.
The 3500/64M 176449-05 Dynamic Pressure Monitor continuously compares measured values against configured alarm setpoints to support machinery protection functions and provide diagnostic information for operations and maintenance personnel.
The module supports both 2-wire and 3-wire pressure transducers and can operate in Cascade Mode, allowing one transducer input to feed all four monitoring channels with different filter configurations and full-scale ranges.
Typical installations include turbines, compressors, pumps, fans, and other critical rotating machinery requiring dynamic pressure monitoring within Bently Nevada 3500 Series machinery protection systems.
| Category | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Product Type | Dynamic Pressure Monitor |
| Series | 3500 Series |
| Model | 3500/64M |
| Spare Part Number | 176449-05 |
| Input Channels | 1 to 4 pressure transducer signals |
| Measured Variable | Dynamic pressure direct |
| Sensitivity | 100 mV/psi (1.45 mV/mBar) |
| Recorder Output | +4 to +20 mA |
| Recorder Output Load Resistance | 0 to 600 Ohm |
| Recorder Output Resolution | 0.3662 uA per bit |
| Recorder Output Update Rate | Approximately 100 ms or less |
| Voltage Compliance | 0 to +12 Vdc across load |
| 3-Wire Transducer Supply | 24 Vdc |
| 2-Wire Transducer Supply | 3.3 mA current source @ 22 Vdc nominal |
| Buffered Output Impedance | 550 Ohm |
| 3-Wire Transducer Input Impedance | 10 kOhm |
| 2-Wire Transducer Input Impedance | 1.5 MOhm to 3.5 MOhm typical |
| Low Mode Filter Range | 5 Hz to 4 kHz |
| Extended Low Mode Range | Approximately 5.285 kHz without LP filter |
| High Mode Filter Range | 10 Hz to 14.75 kHz |
| High Pass Filter Quality | 10-pole, 200 dB per decade, 60 dB per octave |
| Low Pass Filter Quality | 10-pole, 200 dB per decade, 60 dB per octave |
| High Mode Filter Quality | 6-pole, 120 dB per decade, 36 dB per octave |
| Line Rejection Filter | 50 Hz or 60 Hz selectable |
| Alarm Setpoint Range | 0 to 100% of full-scale |
| Alarm Accuracy | Within 0.13% of desired value |
| Alert Delay | 1 to 60 seconds |
| Danger Delay | 0.1 seconds or 1 to 60 seconds |
| Monitor Module Dimensions | 241.3 mm x 24.4 mm x 241.8 mm |
| Monitor Module Weight | 0.82 kg |
| Non-Barrier I/O Module Dimensions | 241.3 mm x 24.4 mm x 99.1 mm |
| Non-Barrier I/O Module Weight | 0.20 kg |
| Barrier I/O Module Dimensions | 241.3 mm x 24.4 mm x 163.1 mm |
| Barrier I/O Module Weight | 0.46 kg |
| Connector Pin | Function |
|---|---|
| Front Panel Coaxial Connectors | Buffered transducer outputs for each channel |
| Recorder Outputs | +4 to +20 mA analog output |
| 2-Wire Transducer Interface | Dynamic pressure signal input |
| 3-Wire Transducer Interface | Dynamic pressure signal input with external supply |
| Cascade Mode | Routes channel 1 input to all four channels |
| TX/RX LED | Rack communication status |
| OK LED | Module operating status |
| Bypass LED | Indicates bypass mode |
What is the function of the 3500/64M 176449-05 module?
It monitors dynamic pressure signals for machinery protection and condition monitoring applications.
How many channels does the monitor support?
The module supports four monitoring channels.
Can the module work with 2-wire pressure transducers?
Yes. It supports both 2-wire and 3-wire transducers.
What is Cascade Mode in the monitor?
Cascade Mode distributes one transducer input signal across all four channels.
Does the module provide analog outputs?
Yes. Each channel includes a +4 to +20 mA recorder output.
What filtering options are available?
The monitor supports configurable bandpass and notch filtering.
Can the notch filter operate at both 50 Hz and 60 Hz?
Yes. Both line frequency selections are supported.
What does the TX/RX LED indicate?
It indicates communication activity with other rack modules.
How are alarm setpoints configured?
Alarm levels are configured using 3500 Rack Configuration Software.
What is the purpose of buffered transducer outputs?
They provide direct signal access for external analysis and diagnostics.
Which rack system is required for installation?
The module operates within Bently Nevada 3500 Series racks.
What industries commonly use this module?
Oil and gas, power generation, petrochemical, and industrial processing facilities.
Does the monitor support machinery protection functions?
Yes. It continuously compares measured values against configured alarm thresholds.
What does the Bypass LED indicate?
It indicates that the module is operating in bypass mode.
