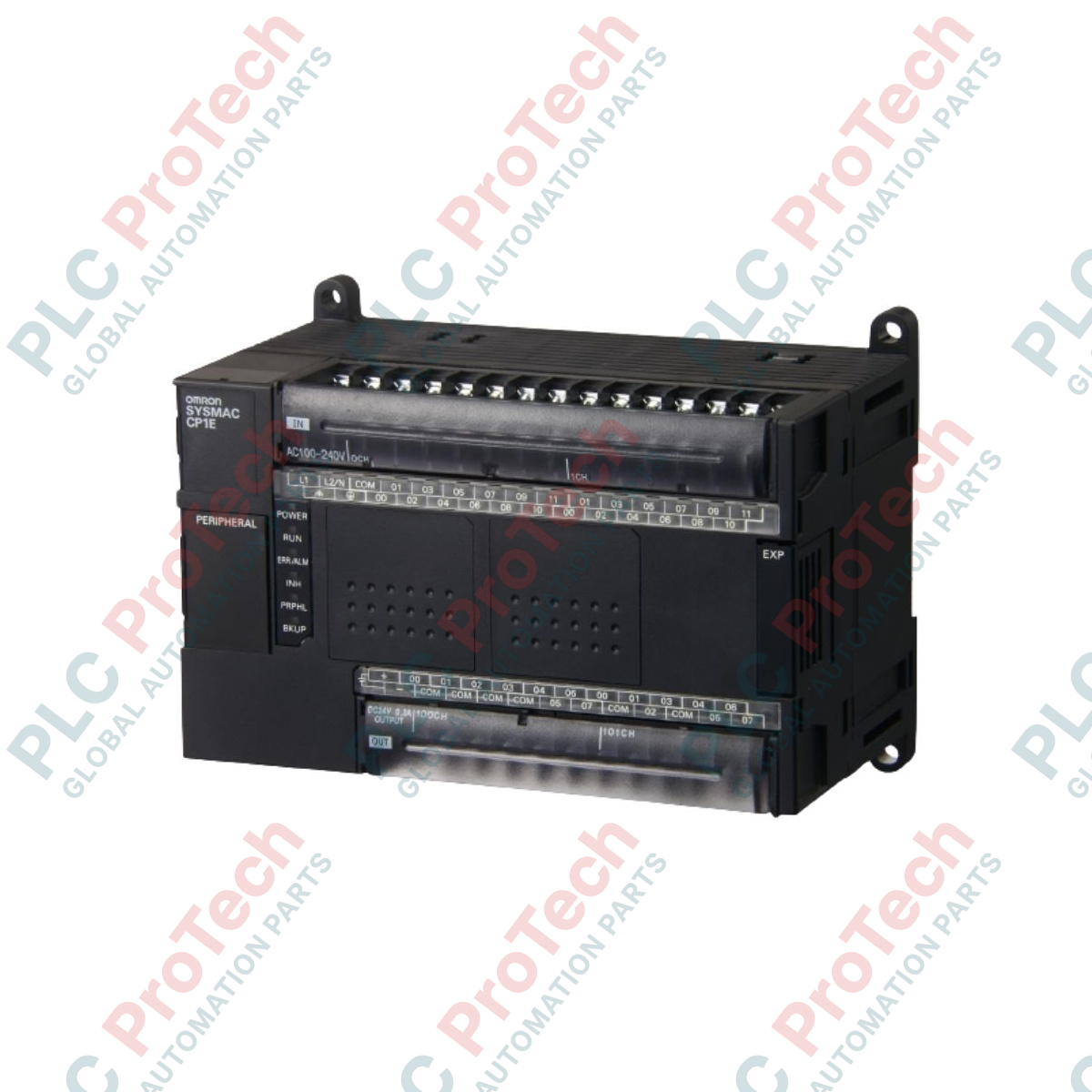

CP1E-N60DR-D | Omron | CP1E CPU Unit Hardware

Description

The Omron CP1E-N60DR-D is an all-in-one programmable logic controller (PLC) package designed for small-scale machinery and process automation applications. Operating as the core controller, it processes sequence logic and interfaces directly with field equipment through embedded digital inputs and electromechanical relay outputs. As an "N" type application model, this unit includes enhanced programmable capabilities and built-in communication ports for local human-machine interfaces (HMIs) and system configuration tools. The hardware relies on a low-voltage DC power grid configuration, making it well-suited for integration into standard industrial control cabinets alongside standard sensor networks and electrical motor drives.

Features

• High-density embedded I/O configuration with 60 distinct control terminals.
• Electromechanical relay outputs for directly switching diverse AC and DC loads.
• Integrated communication ports supporting interface options for programming and network telemetry.
• Standard application type controller ("N" model) providing comprehensive data handling functionality.
• Slotless, block-type hardware enclosure for immediate DIN rail or surface mounting.
• Flash memory backup safeguards user ladder programs and parameter states without battery reliance.

Applications

• Sorting and packaging conveyor machinery.
• Dedicated material handling equipment.
• Food processing and packaging lines.
• Multi-pump municipal water management stations.
• Climate control, ventilation, and commercial HVAC panel networks.

Technical Specifications

Electrical

Performance and System Capacity

Input/Output

Mechanical

Connections / Interfaces

Installation Guidelines

• DIN Rail Installation: Snap the rear alignment notch onto standard 35 mm DIN rail. Lock the unit by pressing the retention tabs upward until fully seated.
• Panel Mounting: Utilize the integrated mounting screw apertures on the outer casing corners for high-vibration applications requiring structural surface installation.
• Wiring Polarity: Double-check terminal alignment before completing the 24 VDC wiring setup. Ensure the source lines fall within the specified 20.4 to 26.4 VDC boundary to prevent component damage.
• Cooling and Ventilation: Maintain a clear operational space of at least 20 mm around the vertical and horizontal sides of the unit to ensure natural convection currents through the ventilation grills.
• Cable Routing: Separate high-voltage AC lines or power conductor cables from low-voltage DC inputs and serial lines to minimize industrial electromagnetic noise (EMI/RFI).

FAQ

• What is the difference between an "N" type and an "E" type CPU in this line?
• The "N" type (Application Model) features built-in communication ports and a more comprehensive instructions database compared to basic "E" types.
• Can this specific unit be powered by 110 or 220 VAC lines?
• No, this model requires a regulated 24 VDC power supply, functioning between an acceptable range of 20.4 to 26.4 VDC.
• What is the capacity of the built-in digital I/O points?
• The hardware has 60 embedded points, split cleanly into 36 digital inputs and 24 relay outputs.
• Are the digital outputs solid-state or electromechanical?
• The unit utilizes mechanical relay outputs, allowing direct switching across a variety of voltage levels and external loads.
• What programming application handles code development for this CPU?
• CX-Programmer, which is included in the unified Omron CX-One automation software installation package.
• Is an independent external chassis ground connection required?
• Yes, the functional grounding terminal must be connected to a dedicated industrial earth point using appropriate gauge wiring.
• Does this PLC require an option card to perform serial communications?
• The "N" type CPU includes built-in communication ports, though it can be expanded further with option boards if extra links are required.
• What are the physical footprint clearances of this module?
• The physical base casing measurements are 8.5 cm long, 19.5 cm wide, and 9 cm high.
• Are user step programs wiped if the internal battery runs dry?
• The main user configuration and step logic arrays are preserved within internal non-volatile flash memory, protecting your automation code from power failures.
• Can expansion I/O units be attached to this block-type controller?
• Yes, the hardware can interface with supplementary expansion units to scale beyond the initial 60 built-in points.
